stock no. :
20879
Type :

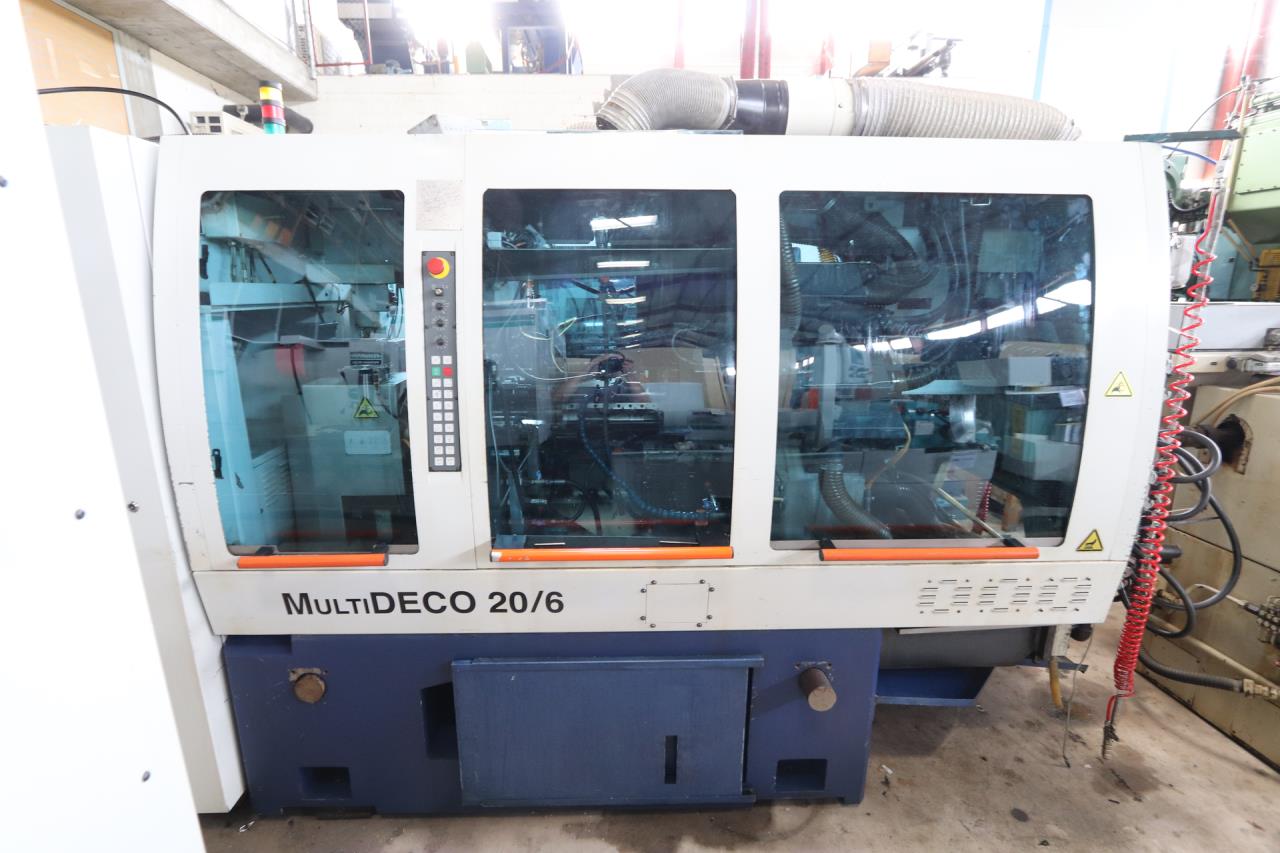

TORNOS MULTIDECO 20/6

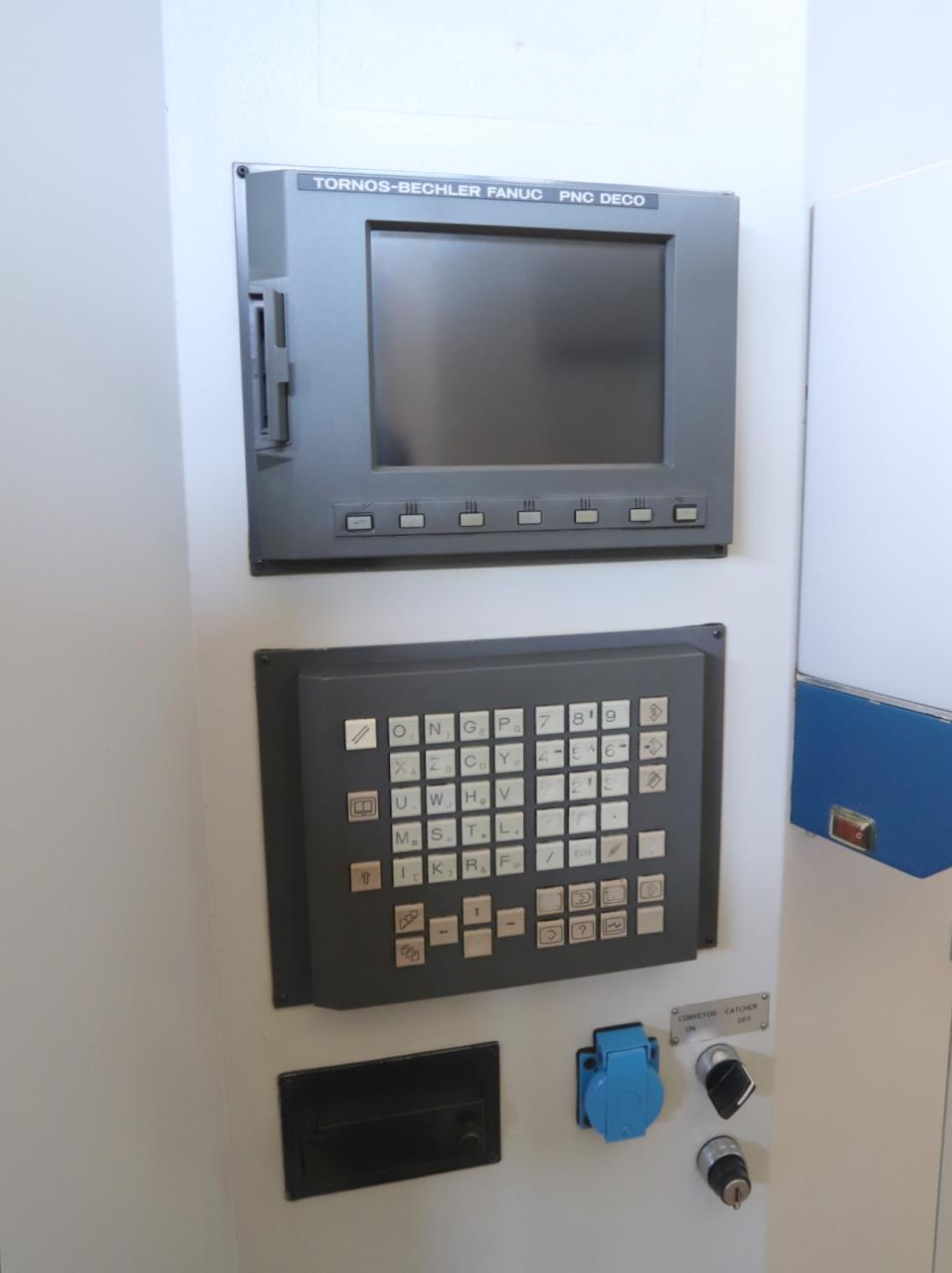

Controller :
PNC-DECO FANUC
Jahrgang :
2001
Video

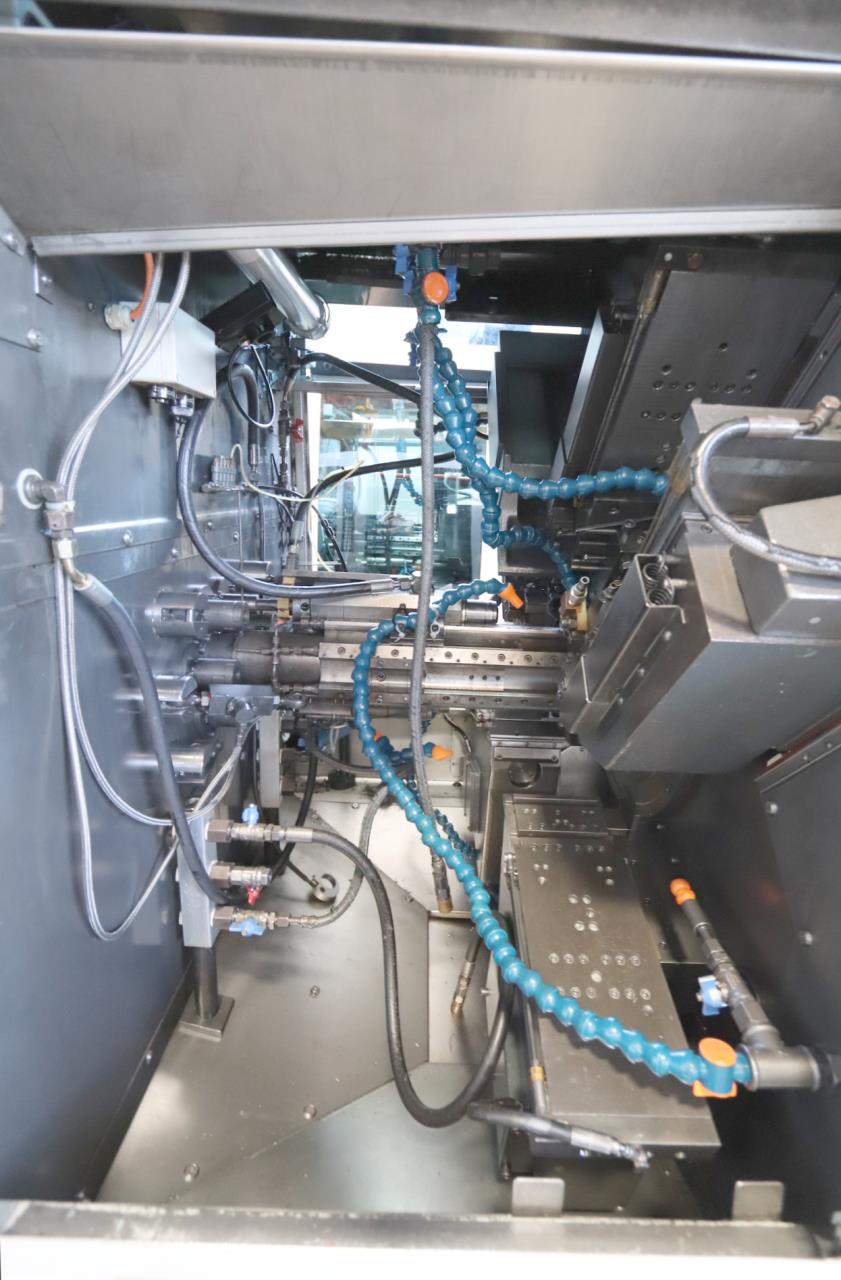

TORNOS MULTIDECO 20/6 10 Image(s)
Back
Technical data
Number of axis total
18
Number of cross slides
6
Plain turning slide number
5
Longitudinal carriage way
160 mm
Number back spindle
1
Capacity round bar
5-20 mm
Workpiece length max.
100 mm
Spindle speeds:
    stepless
       up to
6000 rpm
Production capacity
45 pce/min
Voltage 50 Hz 3x
400 Volt
Spindle power
15 kW
Total power required
43 kVA
Machine's weight about
8500 kg
Overall dimensions machine:
    Length
3500 mm
    Width
1600 mm
    Height
1950 mm
Various accessories:

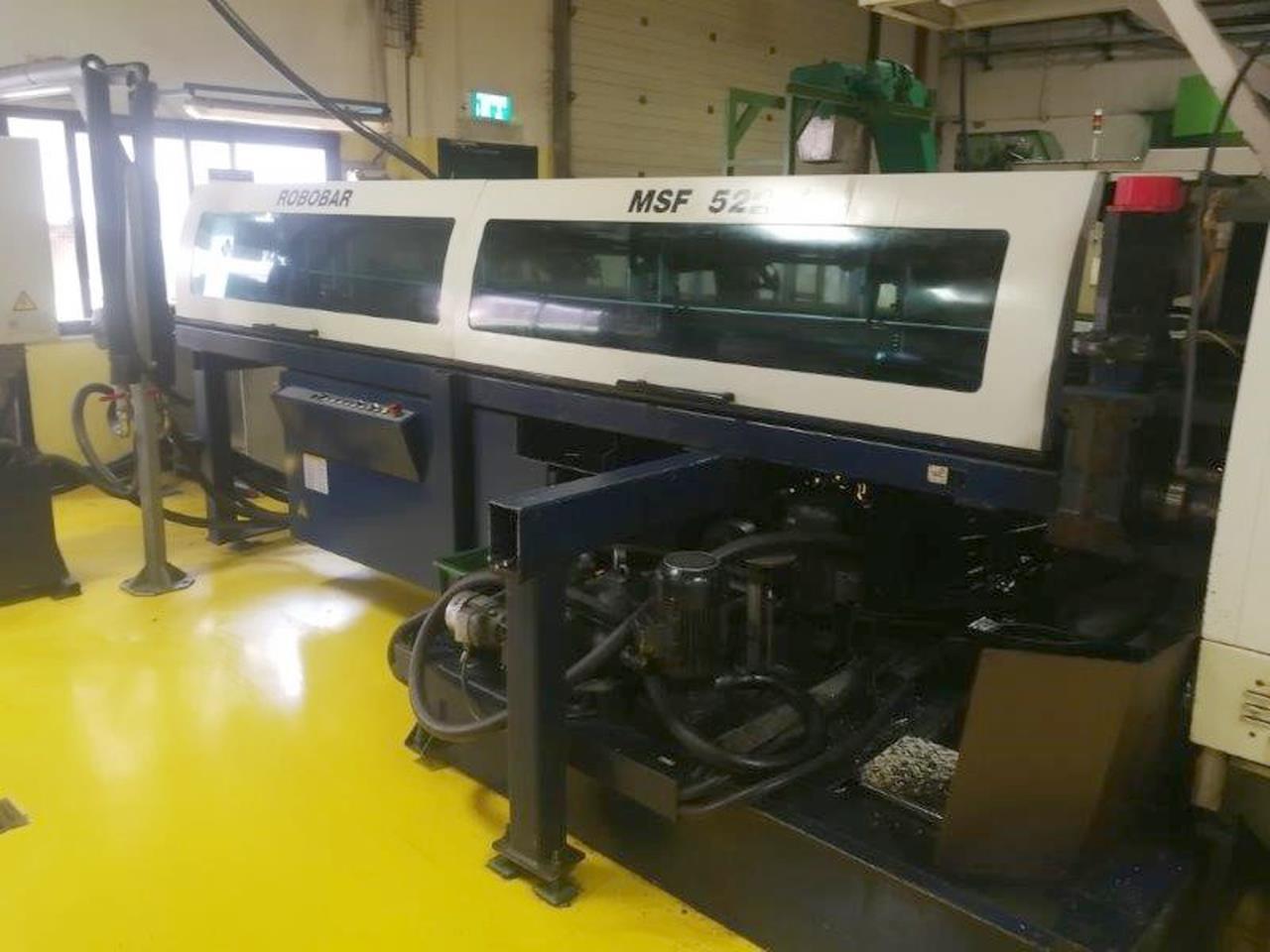

Bar loader number of bars
ROBOBAR
    Type
MSF 522/6
Coolant system

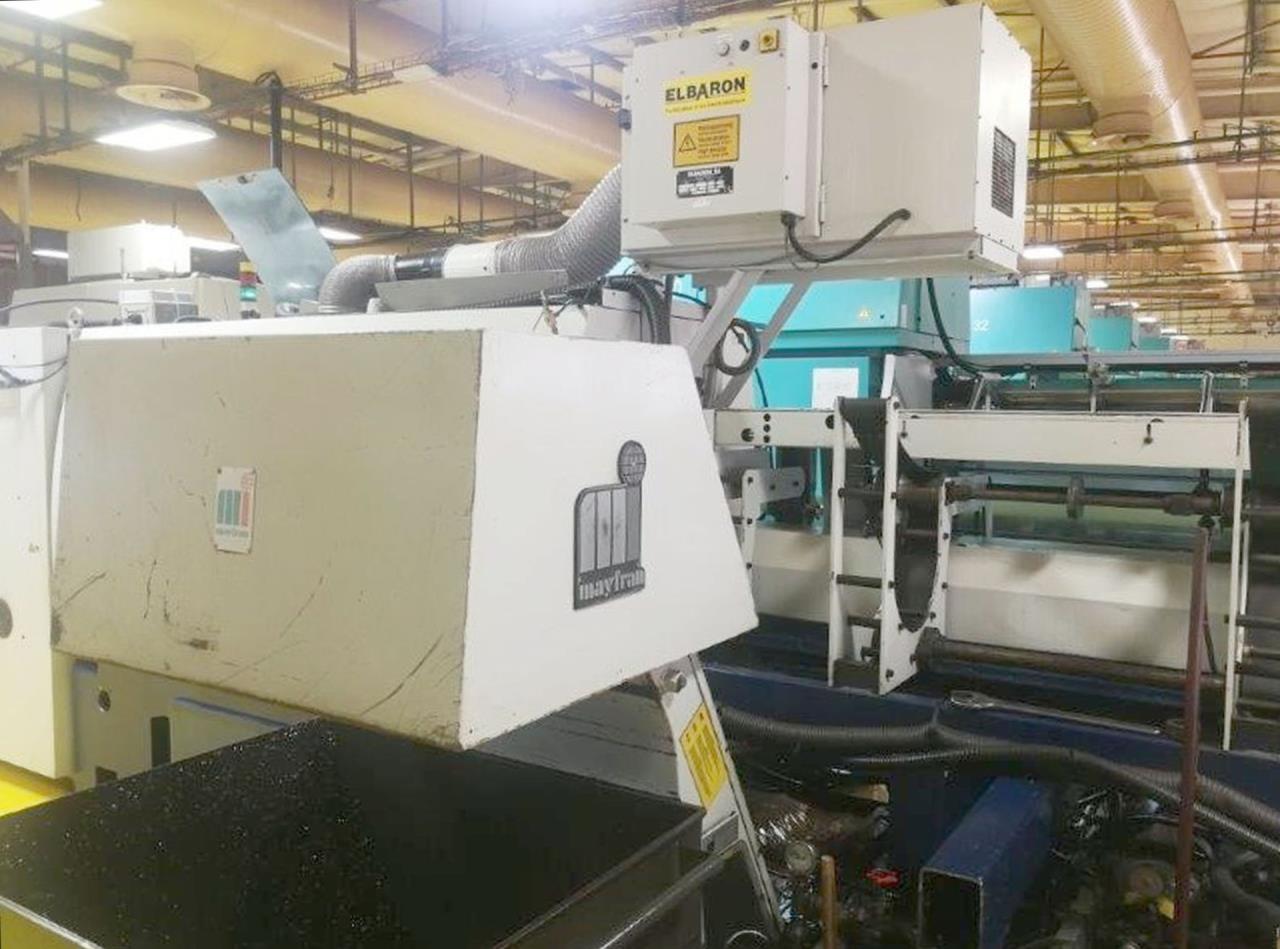

Oil mist extractor
ELBARON
Chip conveyor
Pick-up spindle
Spindle stop device
°
Lamp
Status light
Fire extinguishing system (without bottle)

Technical specifications and pictures without guarantee.
