Technical data
Table length
1230 mm
Table width
250 mm
Longitudinal travel (X-axis)
800 mm
Transversal travel (y axis)
350 mm
Vertical travel (z axis)
400 mm

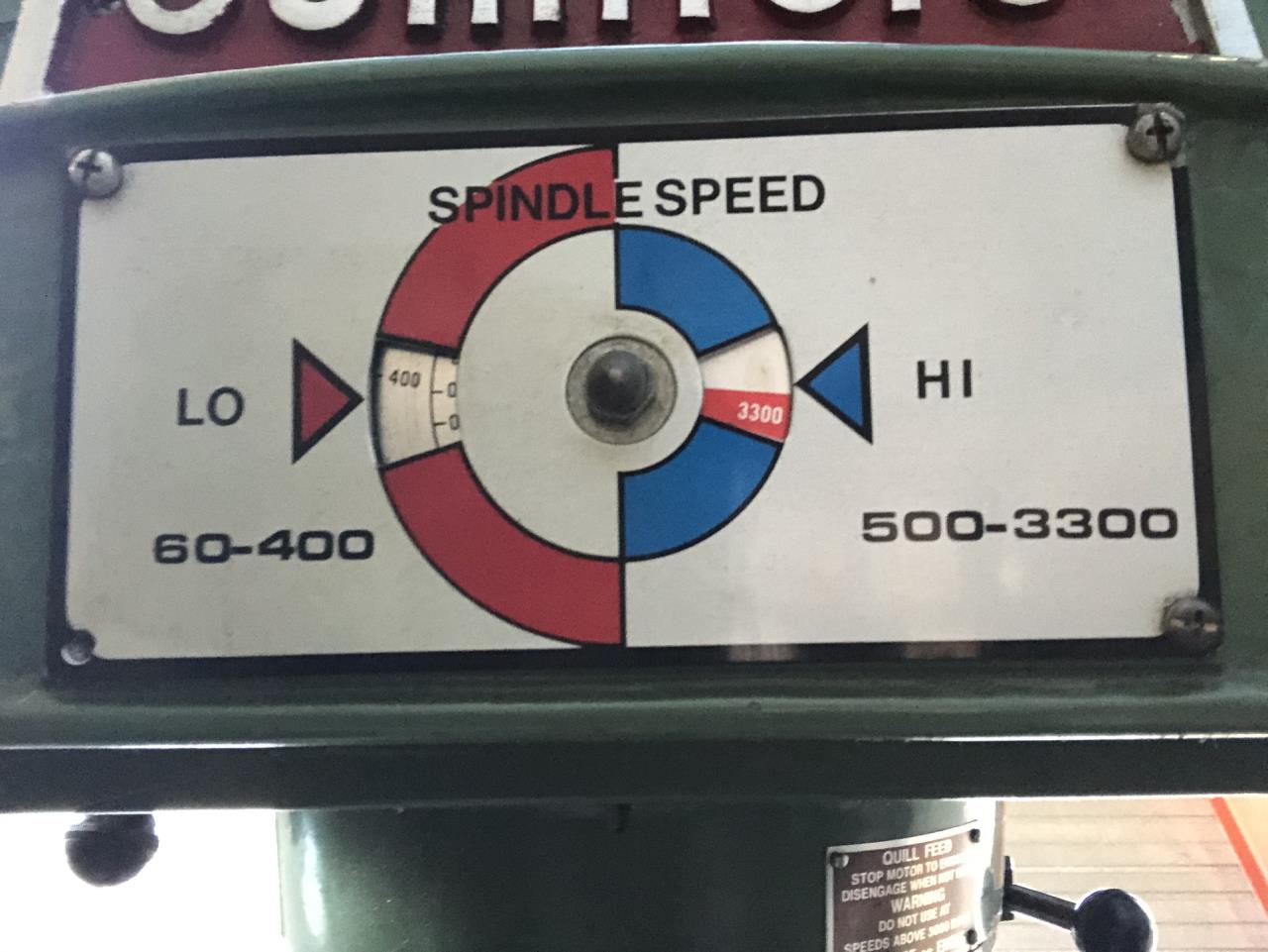

Spindle speeds:
number (steps)
2
stepless
from
60 / 500 rpm
up to
400 / 3300 rpm
Taper in spindle
R-8

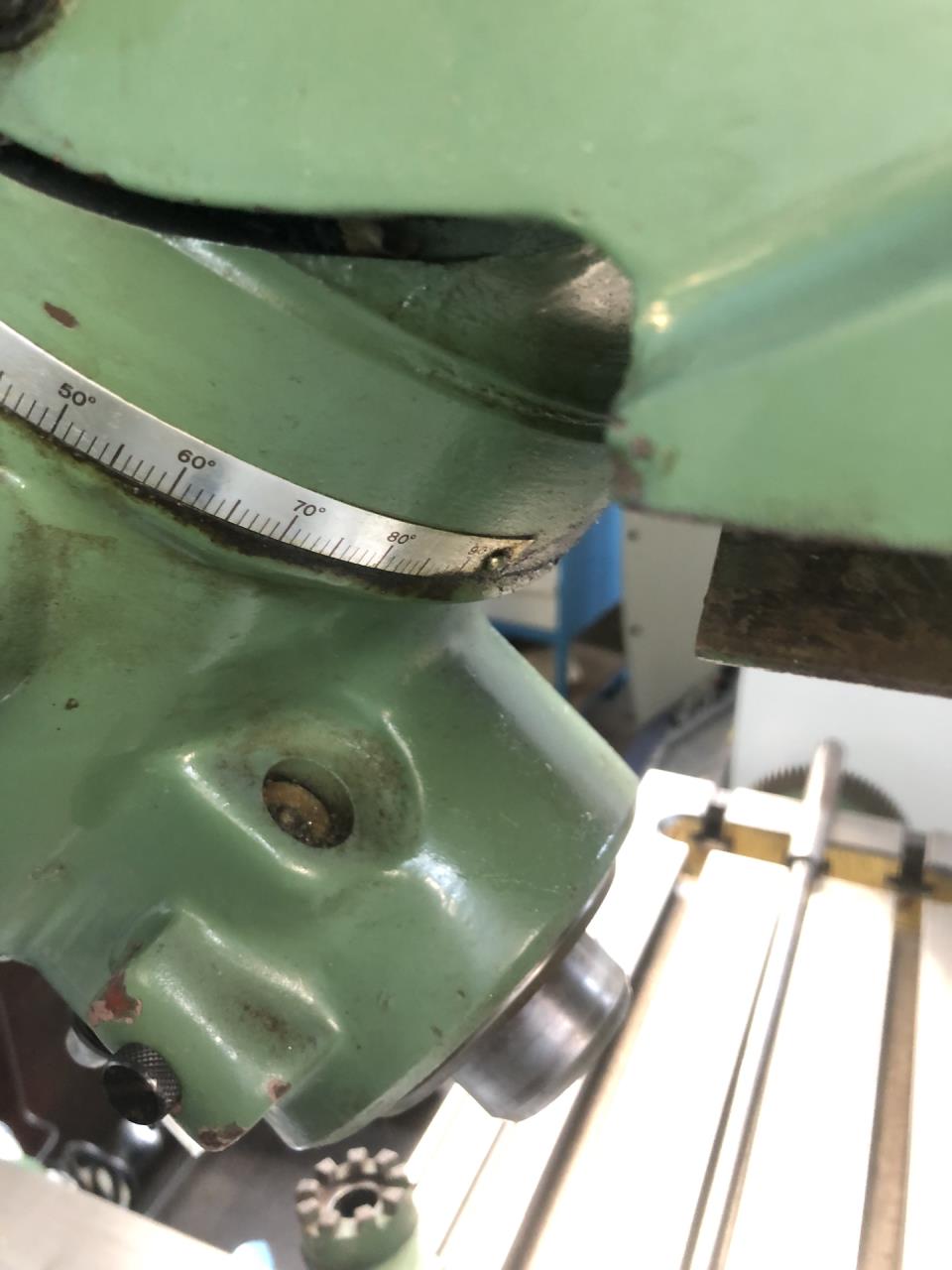

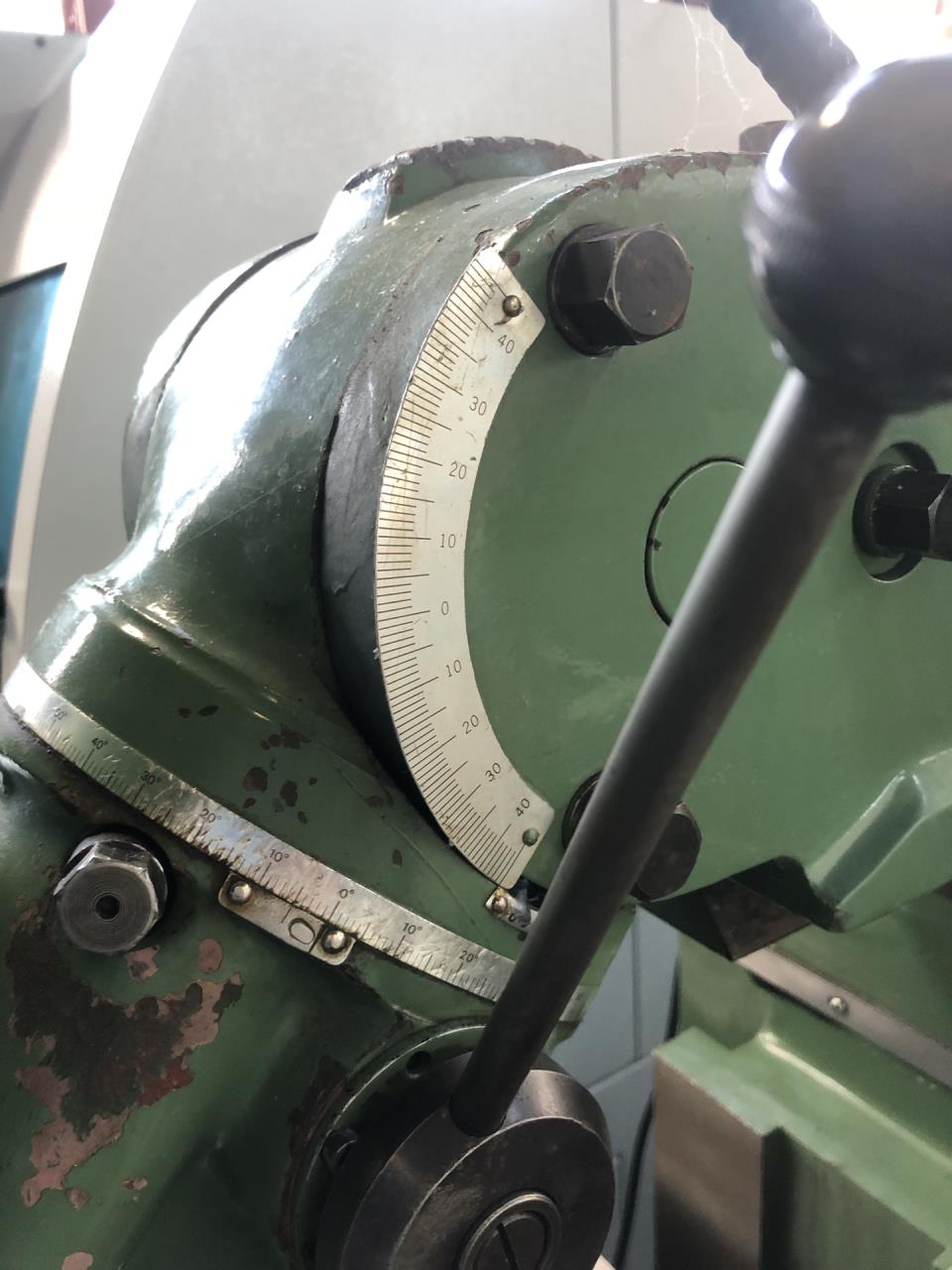

Swivel range Vertical milling head
+ / - 90 °
Head inclining + -
45 °
Voltage 50 Hz 3x
380 Volt
Machine's weight about
1000 kg
Overall dimensions machine:
Length
1500 mm
Width
1500 mm
Height
2200 mm
Various accessories:

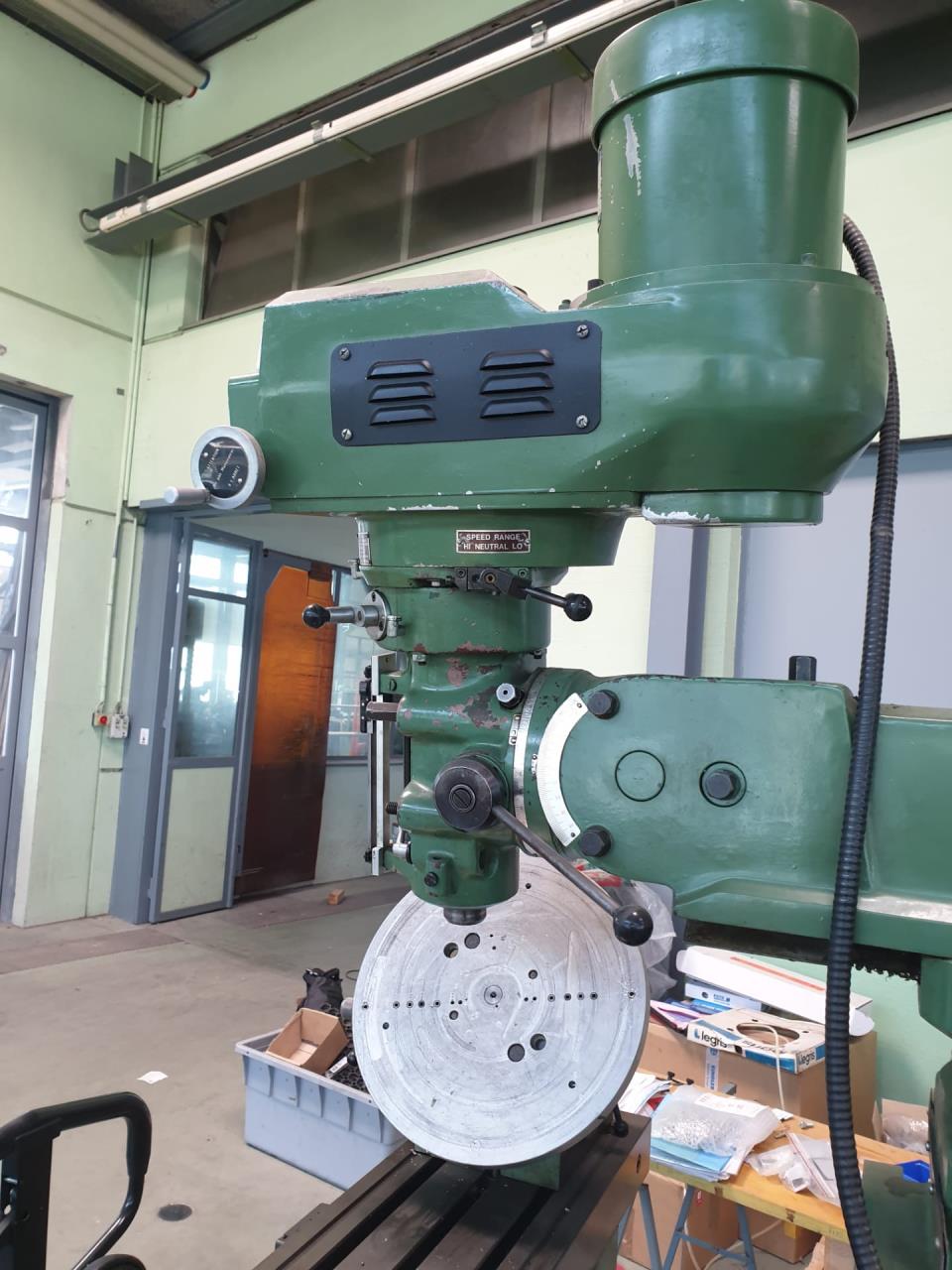

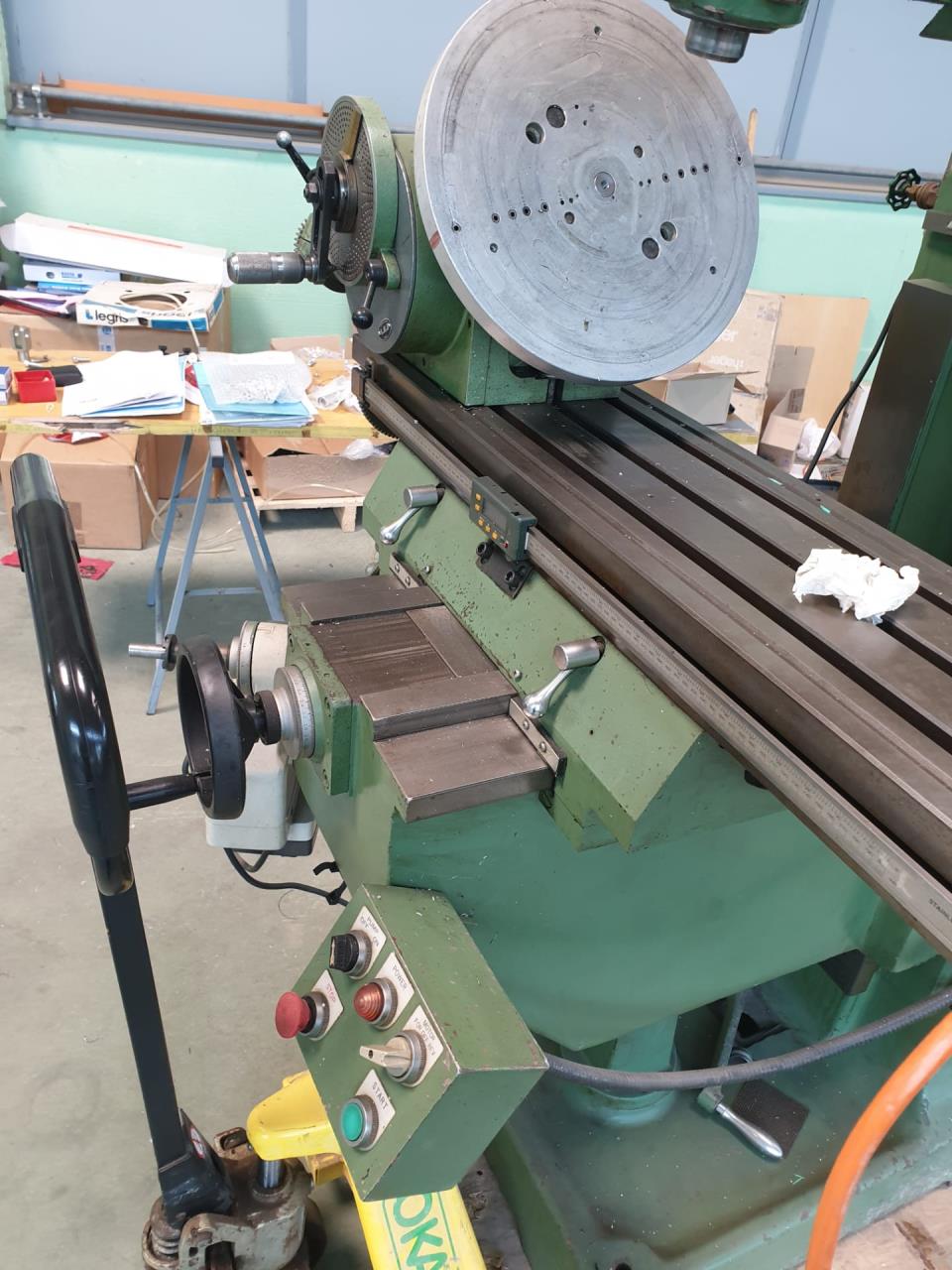

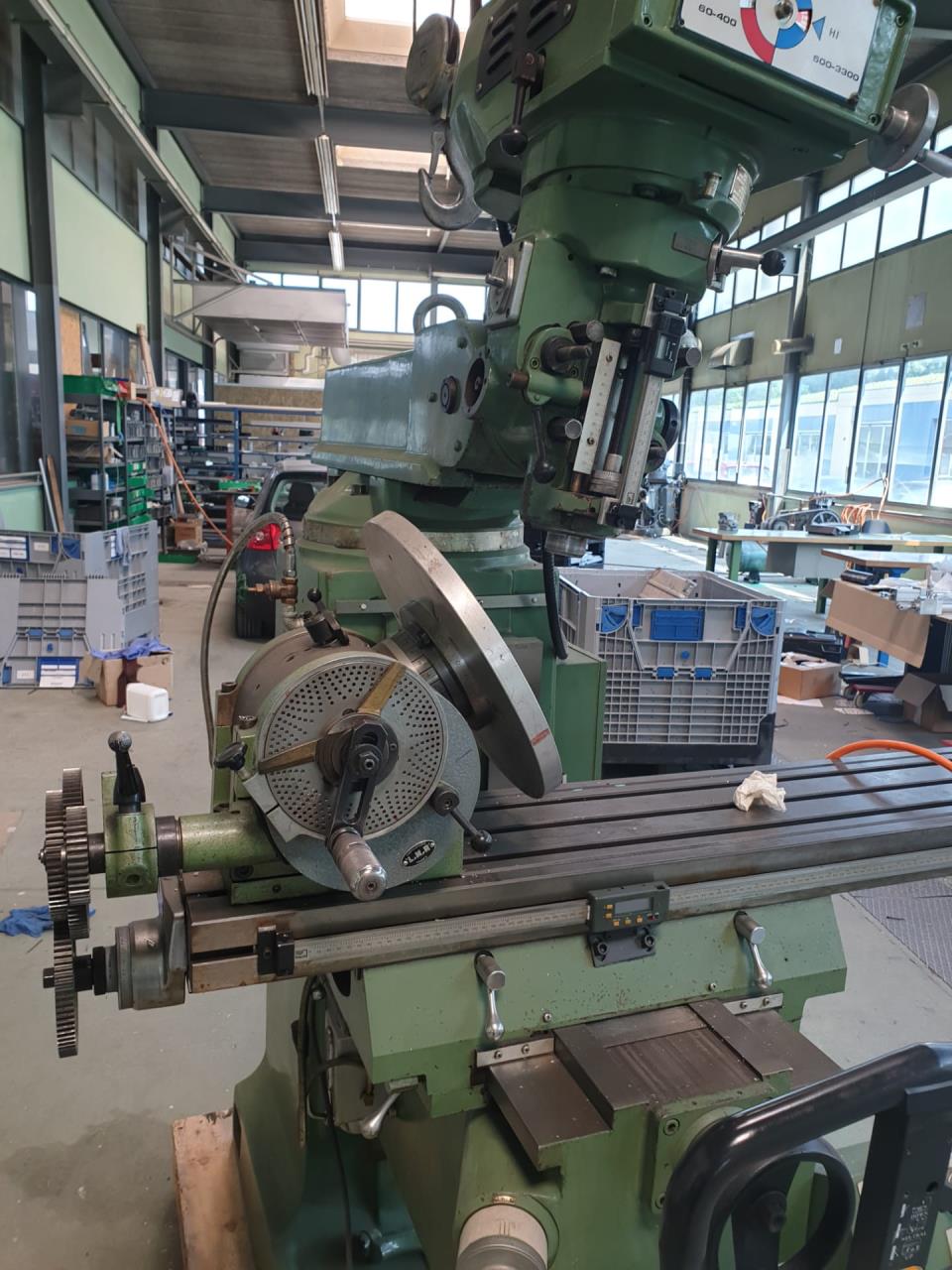

Dividing attachment
Centre height
130 mm
Technical specifications and pictures without guarantee.
