stock no. :
20741
Machine's group :
Machining center
Type :
MCM Jet Five Mirror

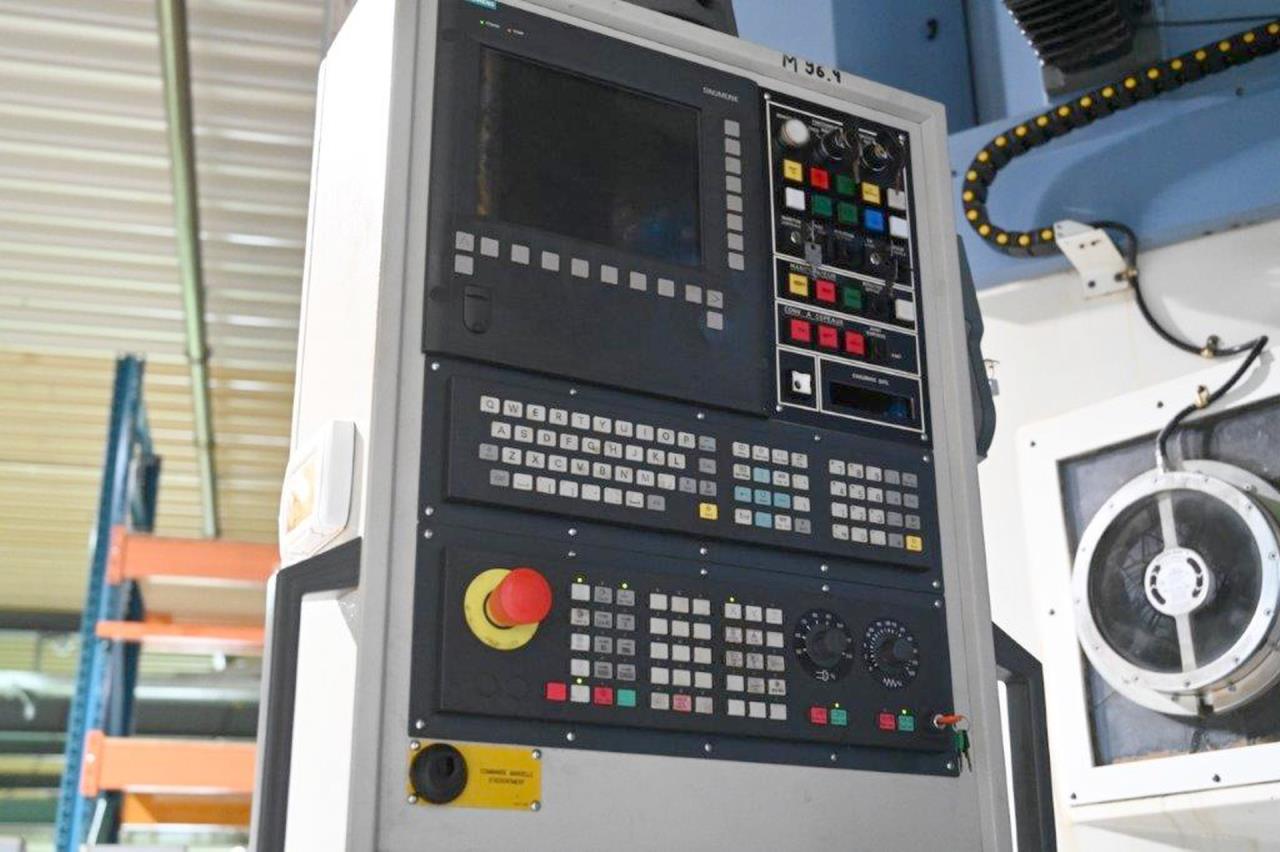

Controller :
SIEMENS SINUMERIK 840 D
Information request Video
MCM Jet Five Mirror 10 Image(s)
Back
Technical data
Number of axis total
5
Longitudinal travel (X-axis)
3000 mm
Transversal travel (y-axis)
2000 mm
Vertical travel (z axis)
2000 mm
vertical travel (Y-axis)
1720 mm
Table divisions (B)
0.001 °
Swivel angle (a-axis)
175 °

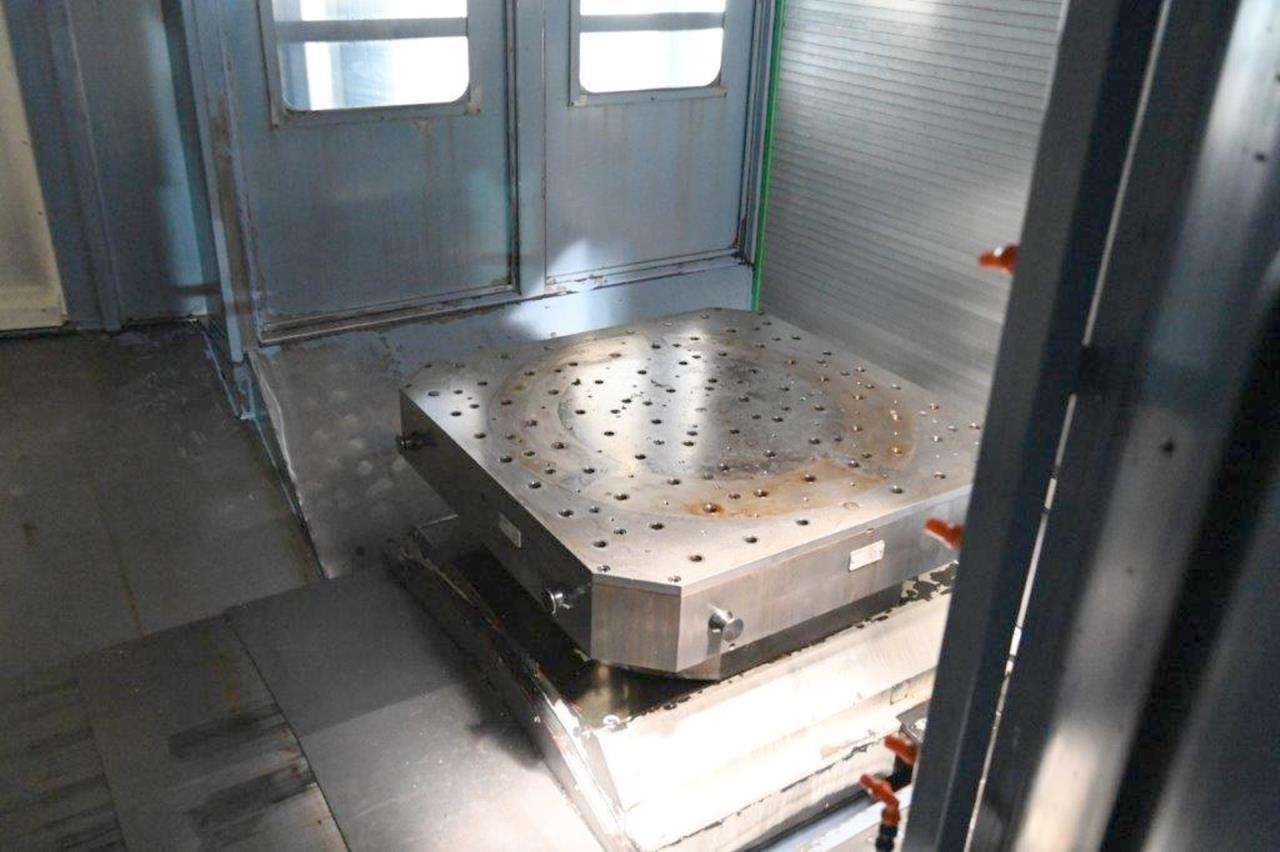

Pallets:
    number
8
    Length
1250 mm
    Width
1250 mm
    Transport weight
3000 kg
Tool changer:
Tool magazine number of tools
640
Spindle nose: HSK-A
100
Spindle speeds:
    stepless
       up to
3000 rpm
Feeds:
    X axis
40 m/min
    Y axis
40 m/min
    Z axis
30 m/min
Spindle motor
50 kW
Various accessories:

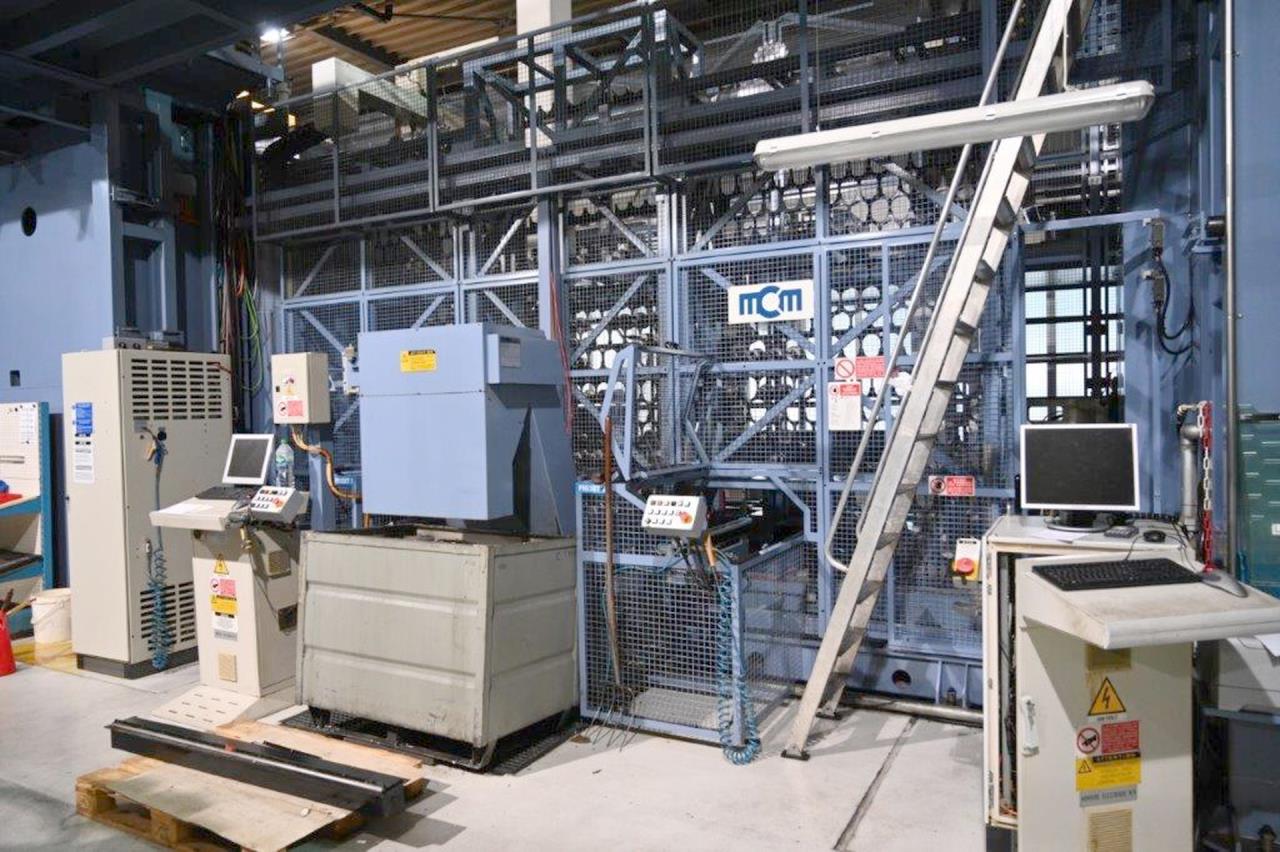

FMS system (flexible manufacturing system)
Coolant system
Chip conveyor

Technical specifications and pictures without guarantee.
