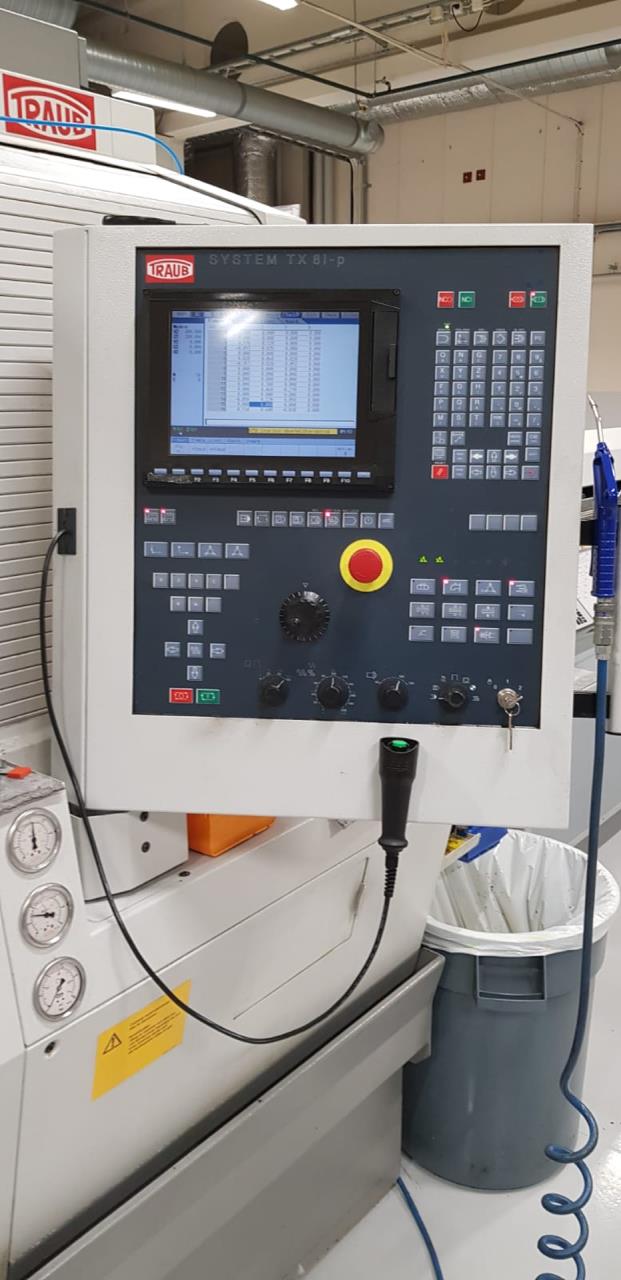

Technical data
Number of axis total
7
Number of spindles
2
Turning length
180 mm
Number of axis total
Max. bar diameter
20 mm
Collet device
F25
Spindle speeds:
stepless
up to
8000 rpm
Longitudinal travel (Z-axis)
205 mm
C axis (spindle,resolution)
0.001 °
Back spindle:
up to
6400 rpm
C axis (spindle,resolution)
0.001 °

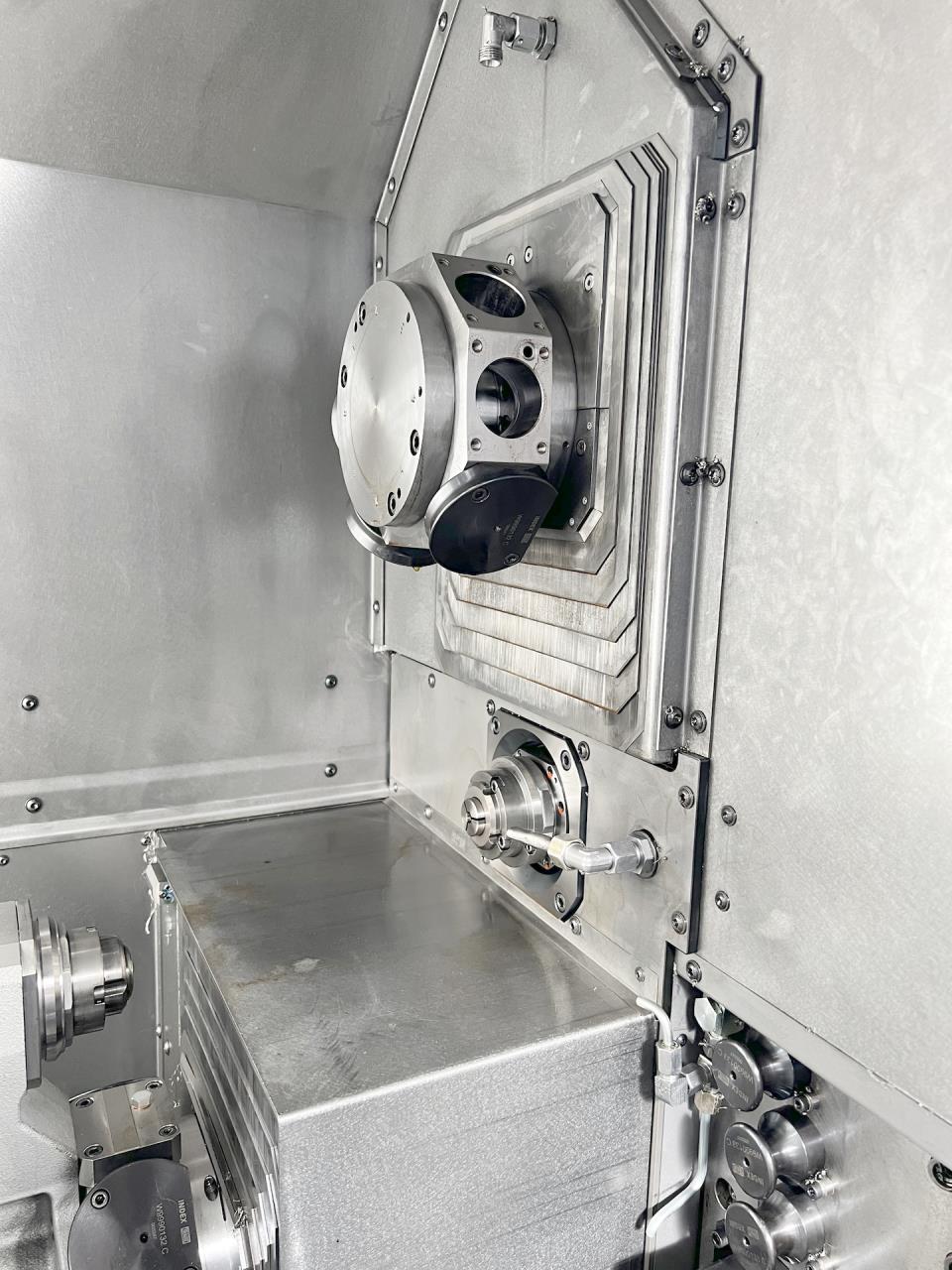

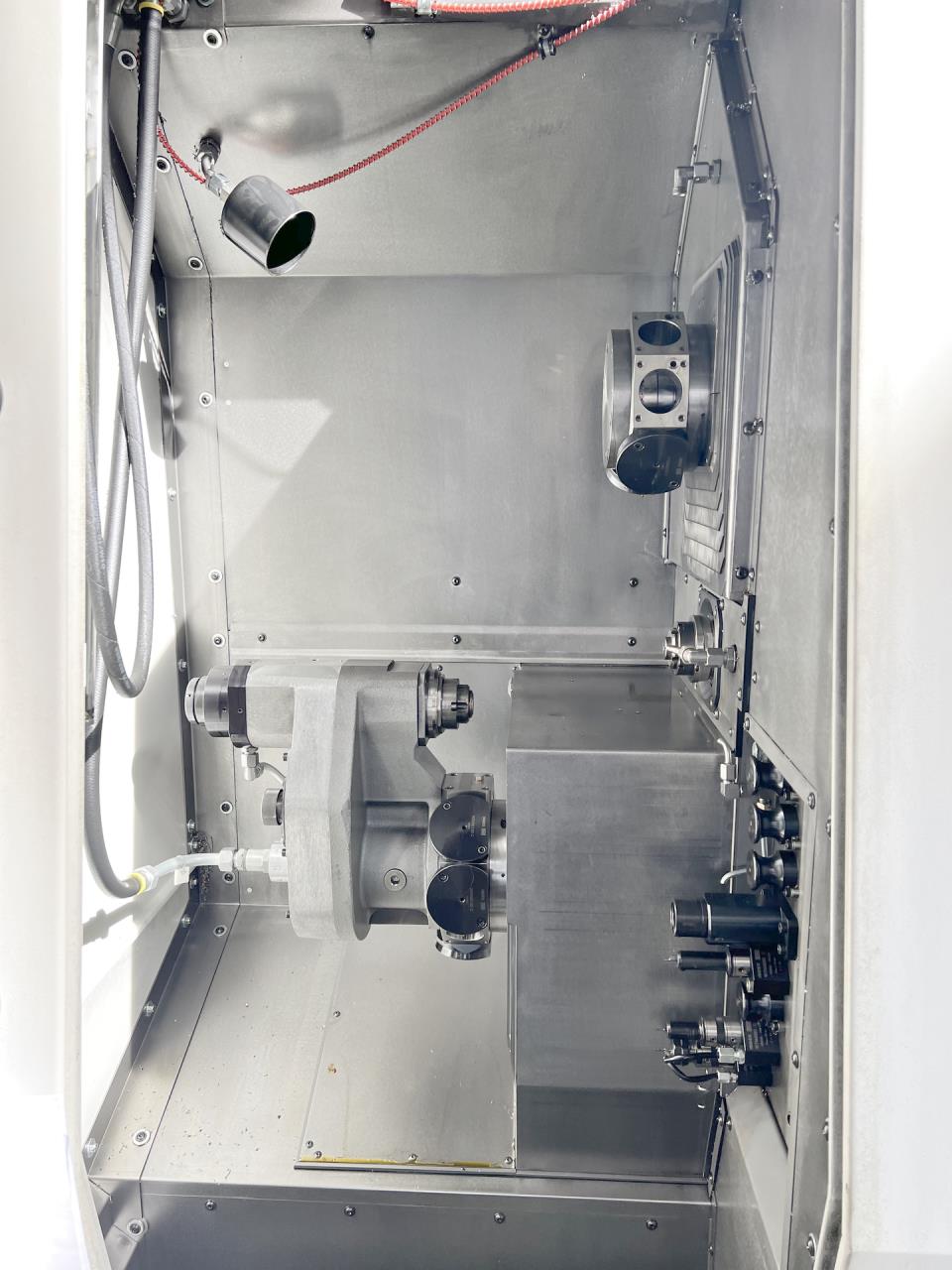

Turret slide:
numbers
2

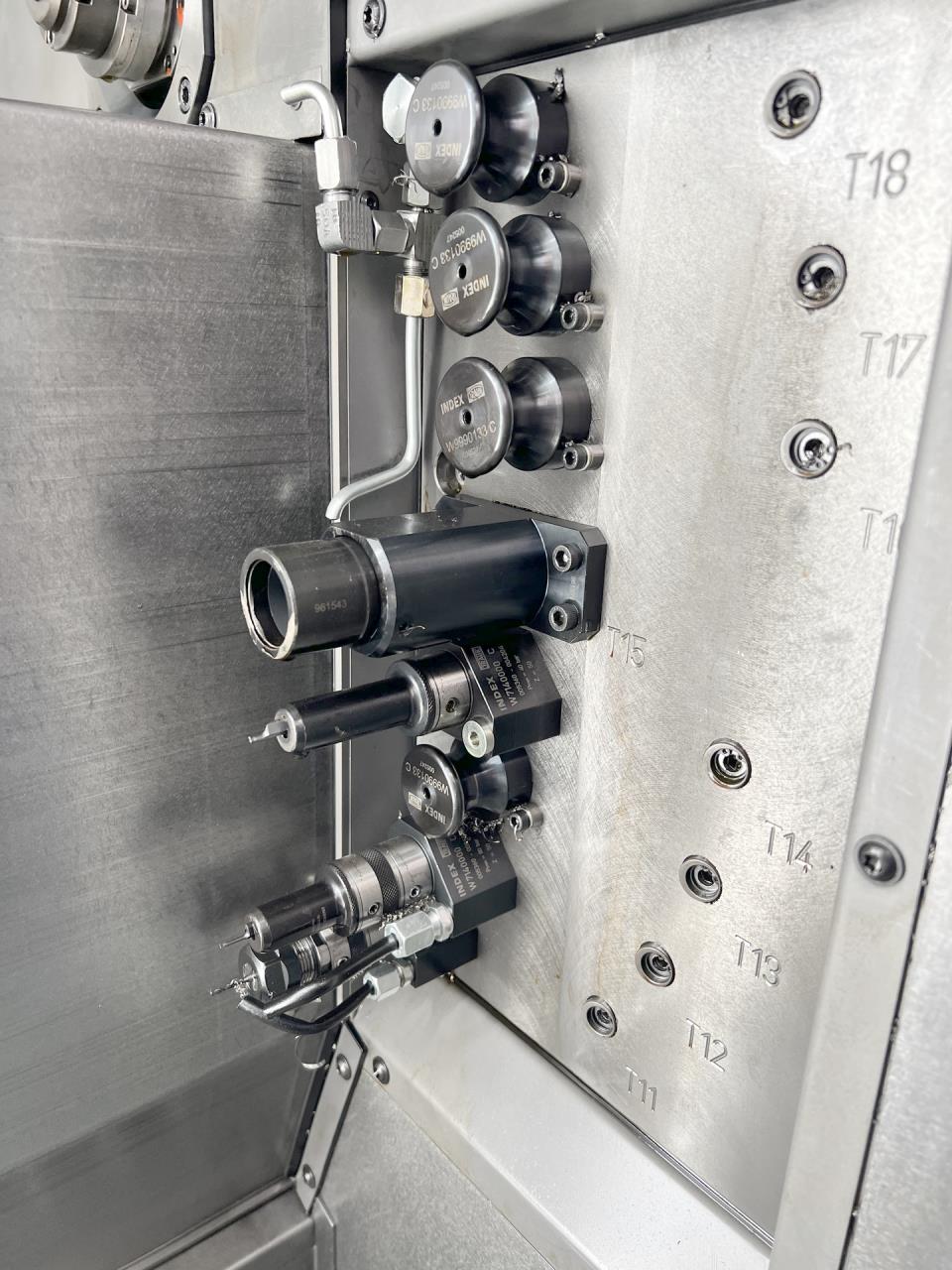

Upper turret head:
number of tools
8
number of driven tools
8
Spindle speeds (turning tools)
12000 rpm
X axis
120 mm
Lower turret head:
number of tools
7
number of driven tools
7
Spindle speeds (turning tools)
6400 rpm
X axis
120 mm
Z axis
250 mm
Y axis
-20 / +40 mm
Counter-operation:
number of tools
7
number of driven tools
3
Voltage 50 Hz 3x
400 Volt
Spindle motor
2.2 / 3.7 kW
Power of back spindle
1.5 / 2.5 kW
Total power required
24 kVA
Machine's weight about
4000 kg
Overall dimensions machine:
Length
2500 mm
Width
1460 mm
Height
2250 mm
Various accessories:

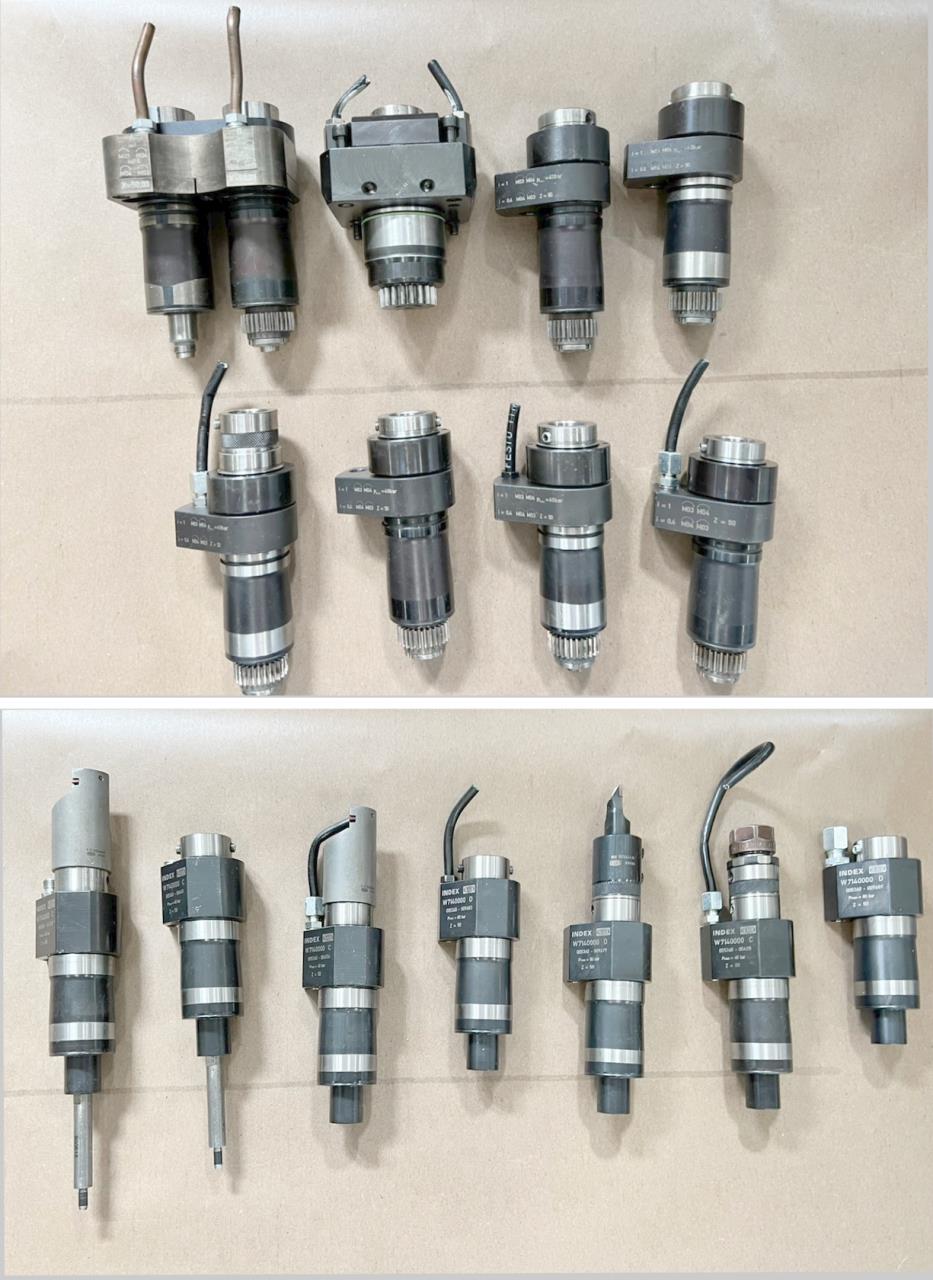

Driven tools (number)

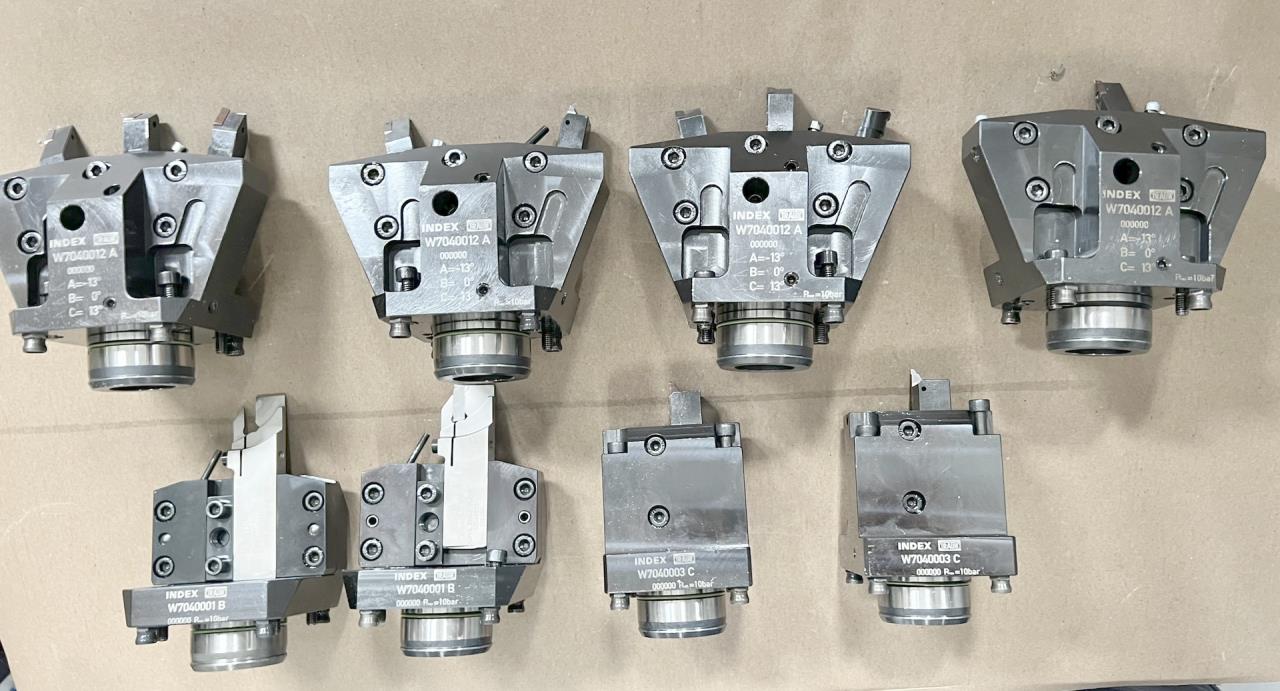

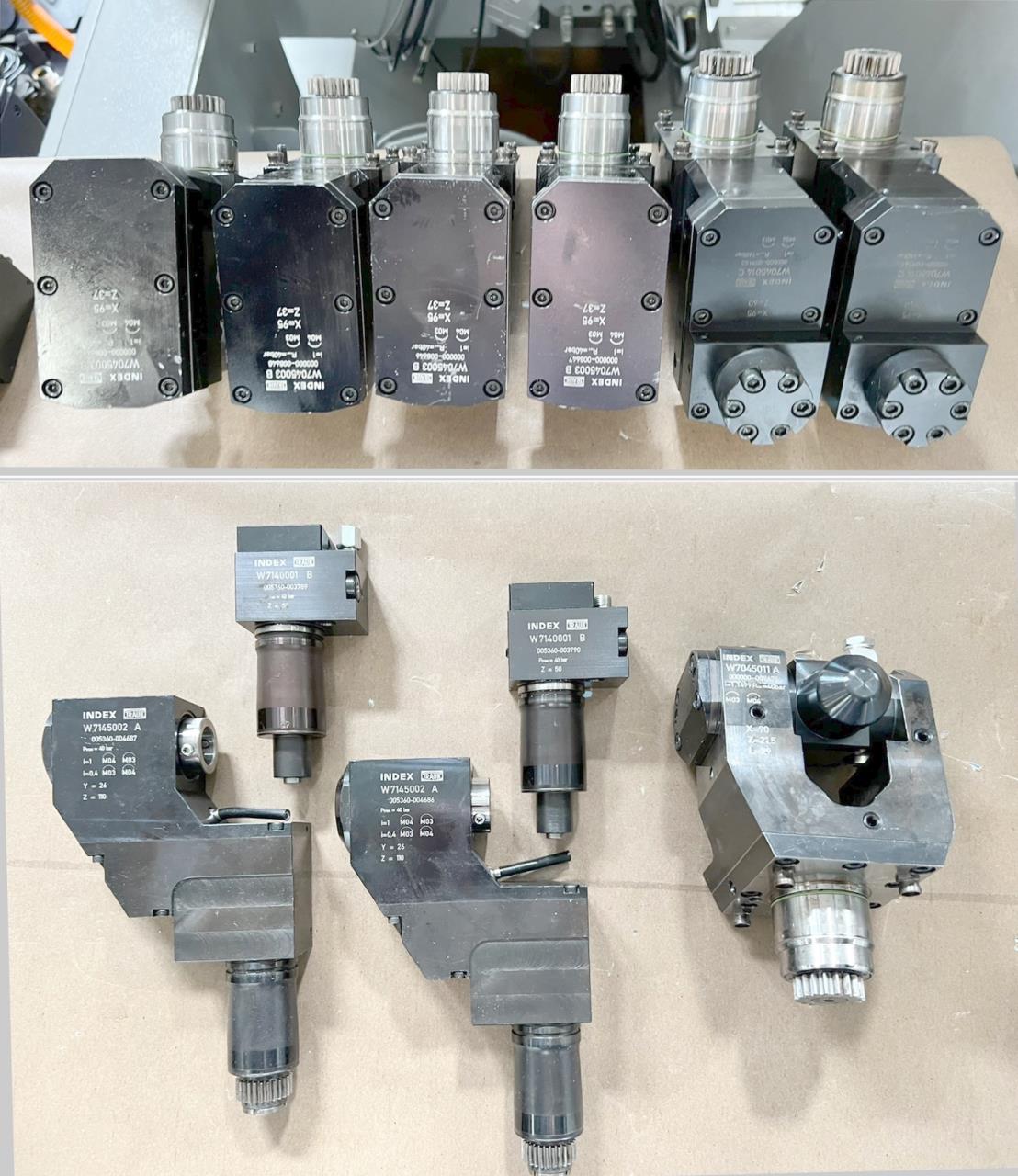

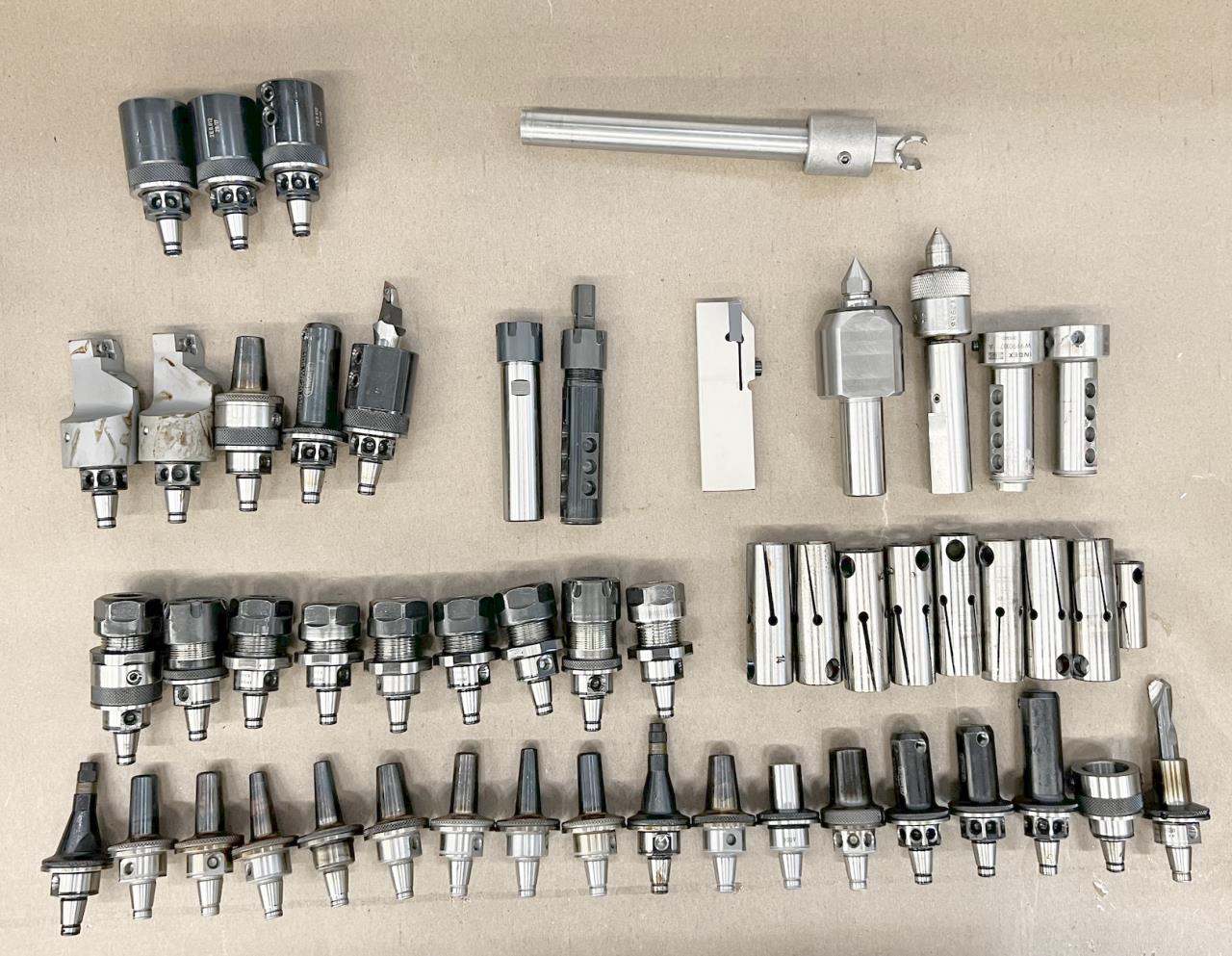

Toolholders

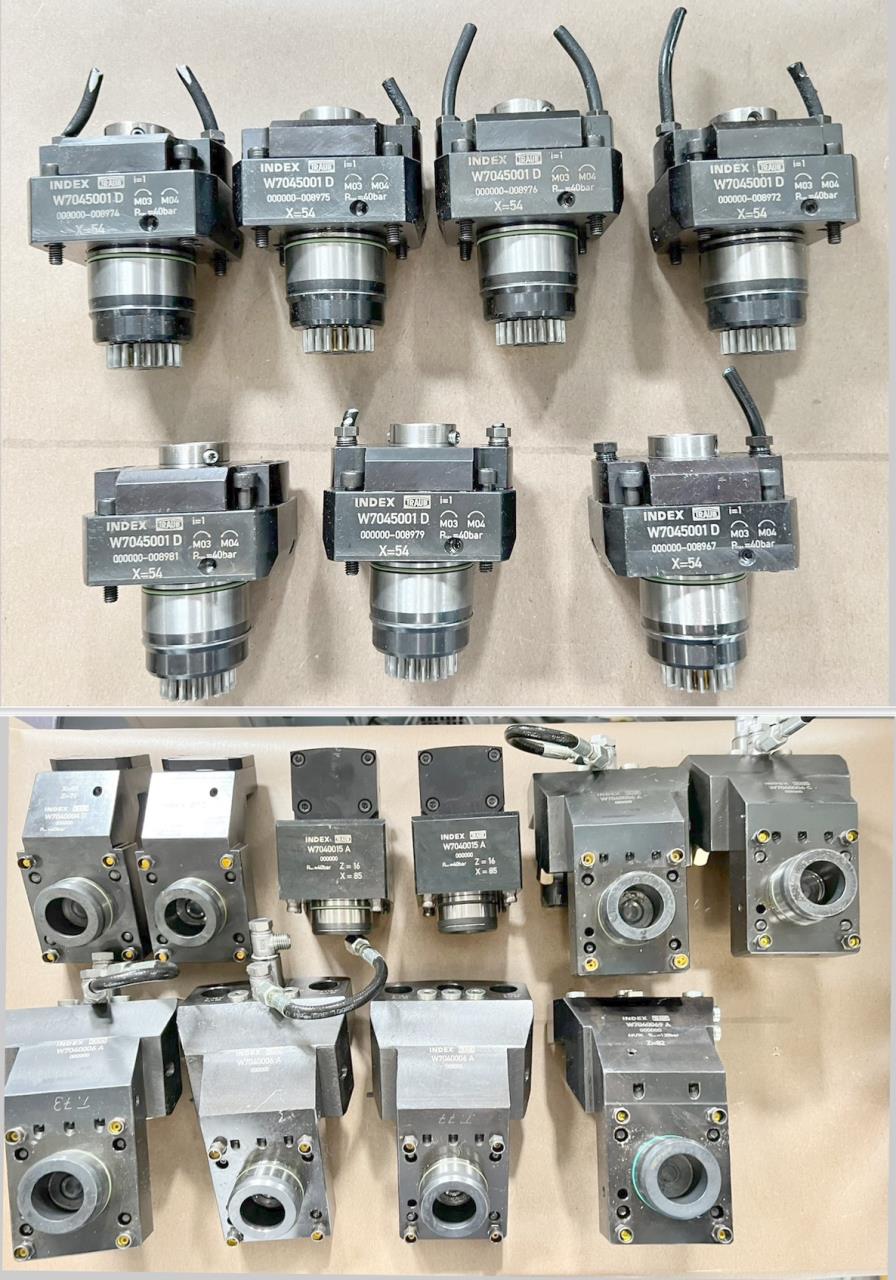

Set of toolholders
Set of quick change inserts

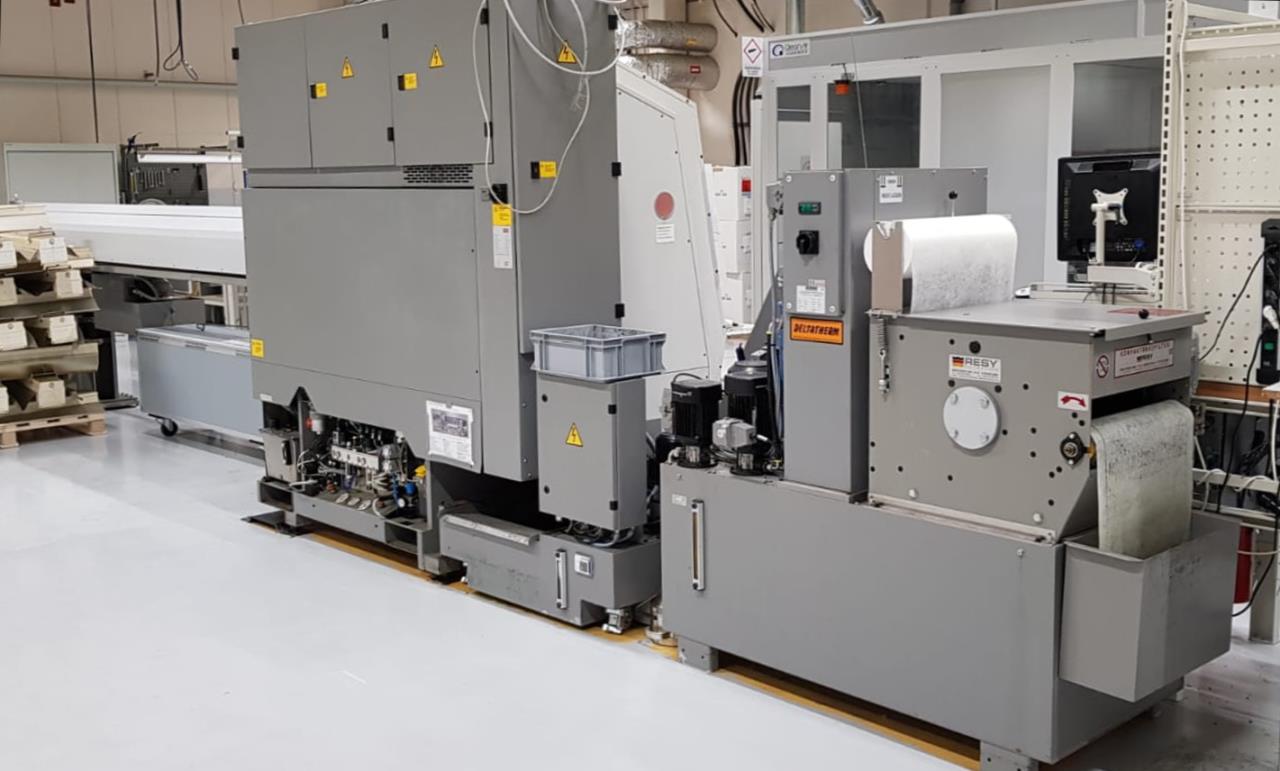

Bar feeder
Manufacturer
FMB
Type
minimag 20
Length of bars max.
4200 mm
Bar diameter
2 - 23 mm
Workpiece conveyor

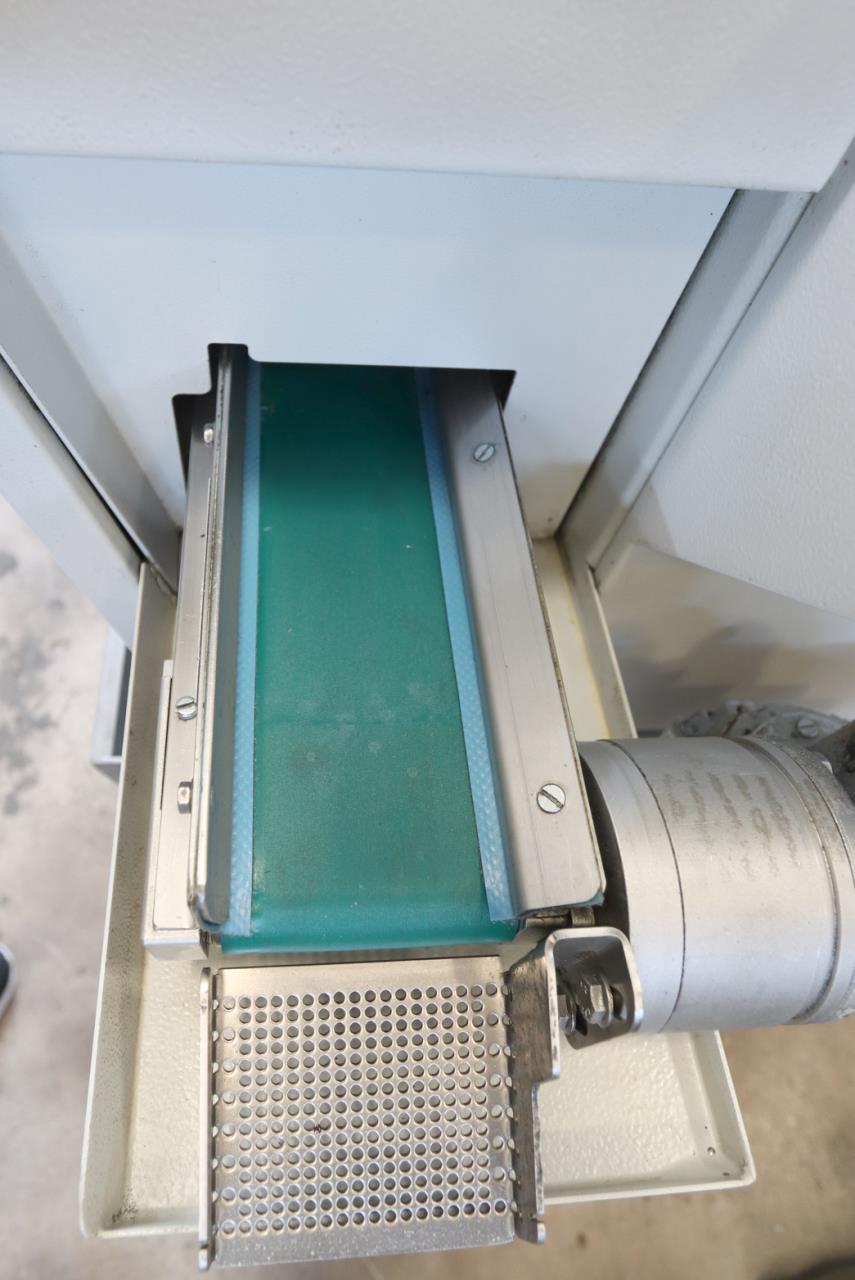

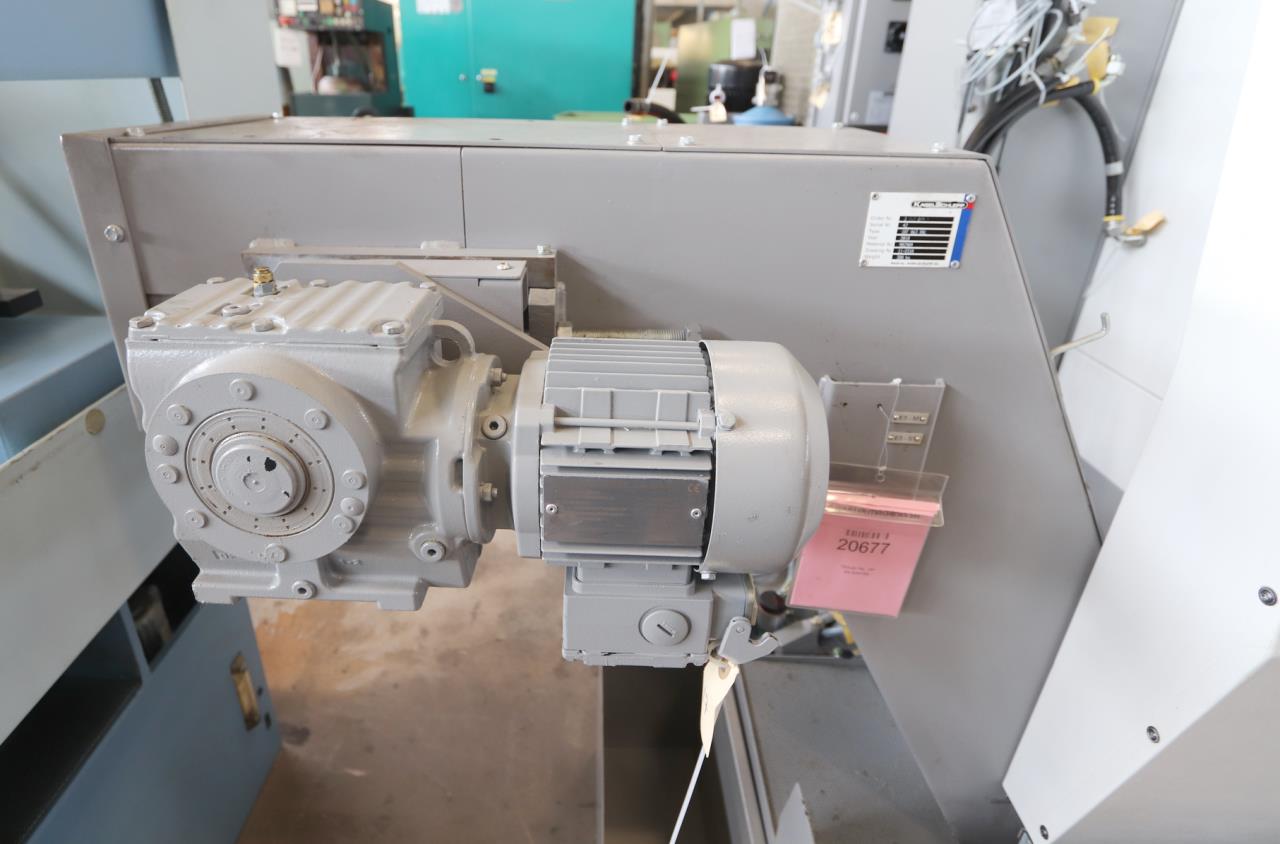

Chip conveyor
High pression colant device
30 bar
Water cooler
Paper filter facility
Set of reducing bushes
Tool Presetting block
Guide sleeve

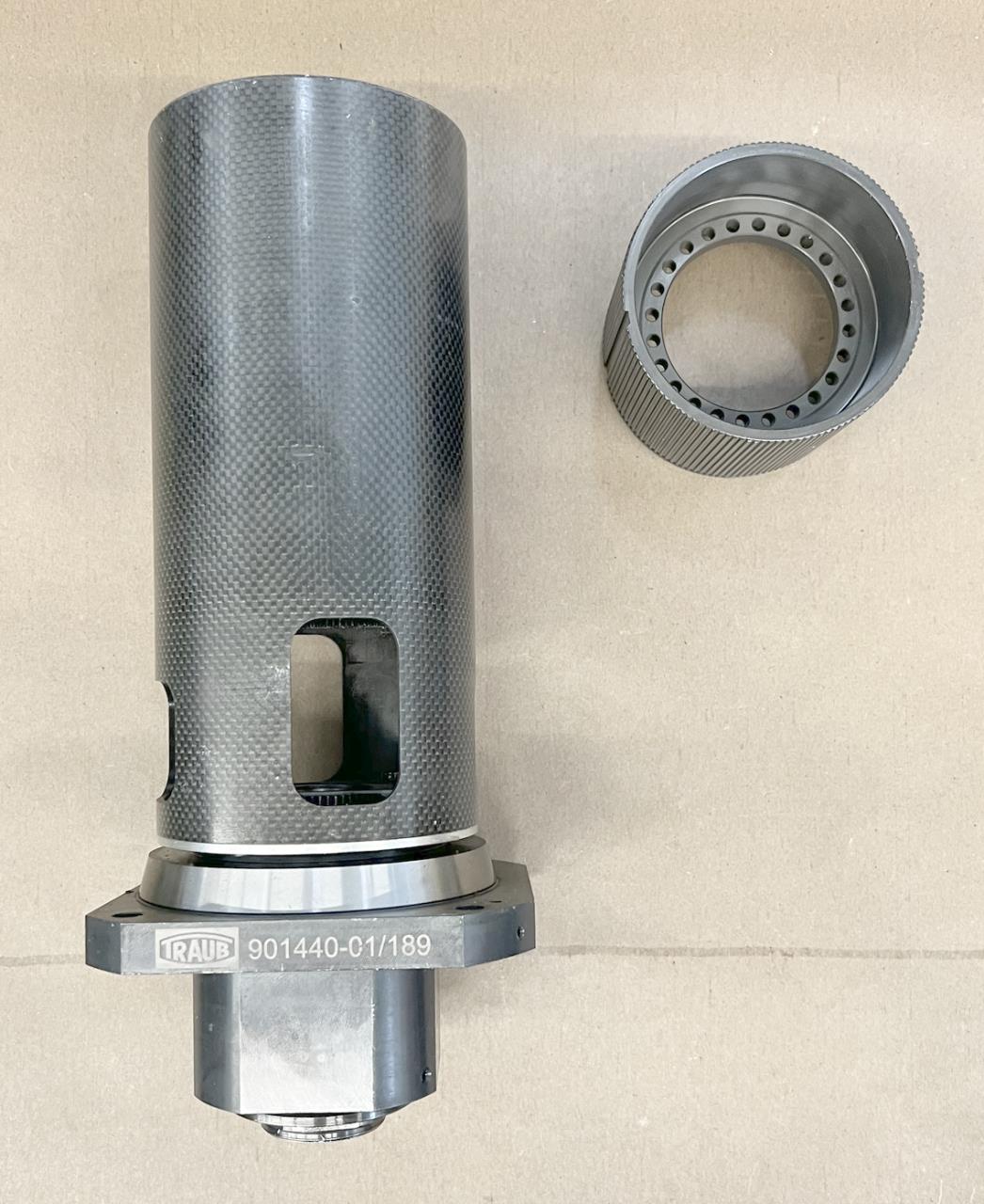

Milling attachment
Lamp
Fire extinguishing system (without bottle)
Technical specifications and pictures without guarantee.
