stock no. :
20664
Machine's group :
Jig grinding machine CNC
Type :
HAUSER S 40 CNC

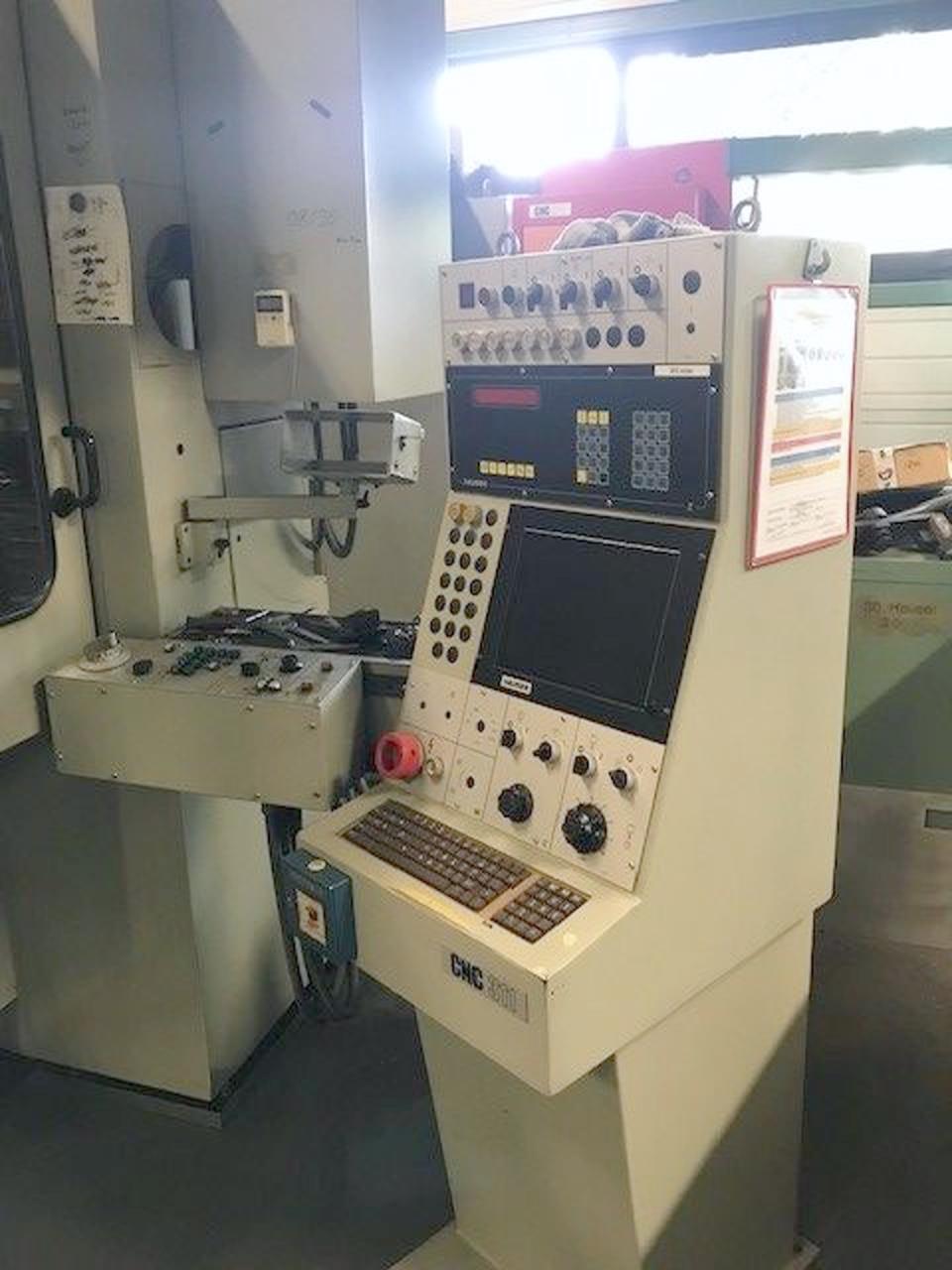

Controller :
CNC 311
Information request Video

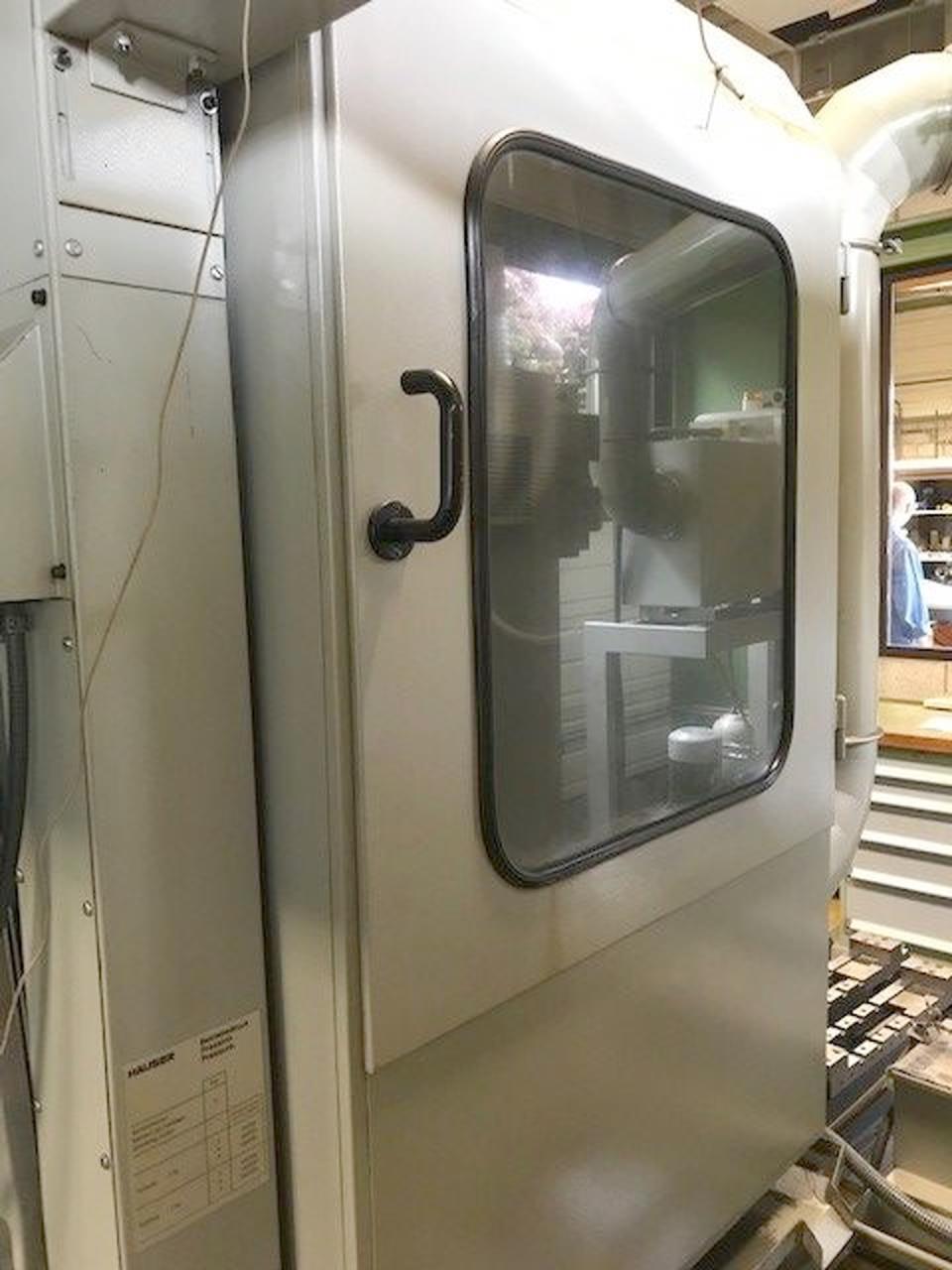

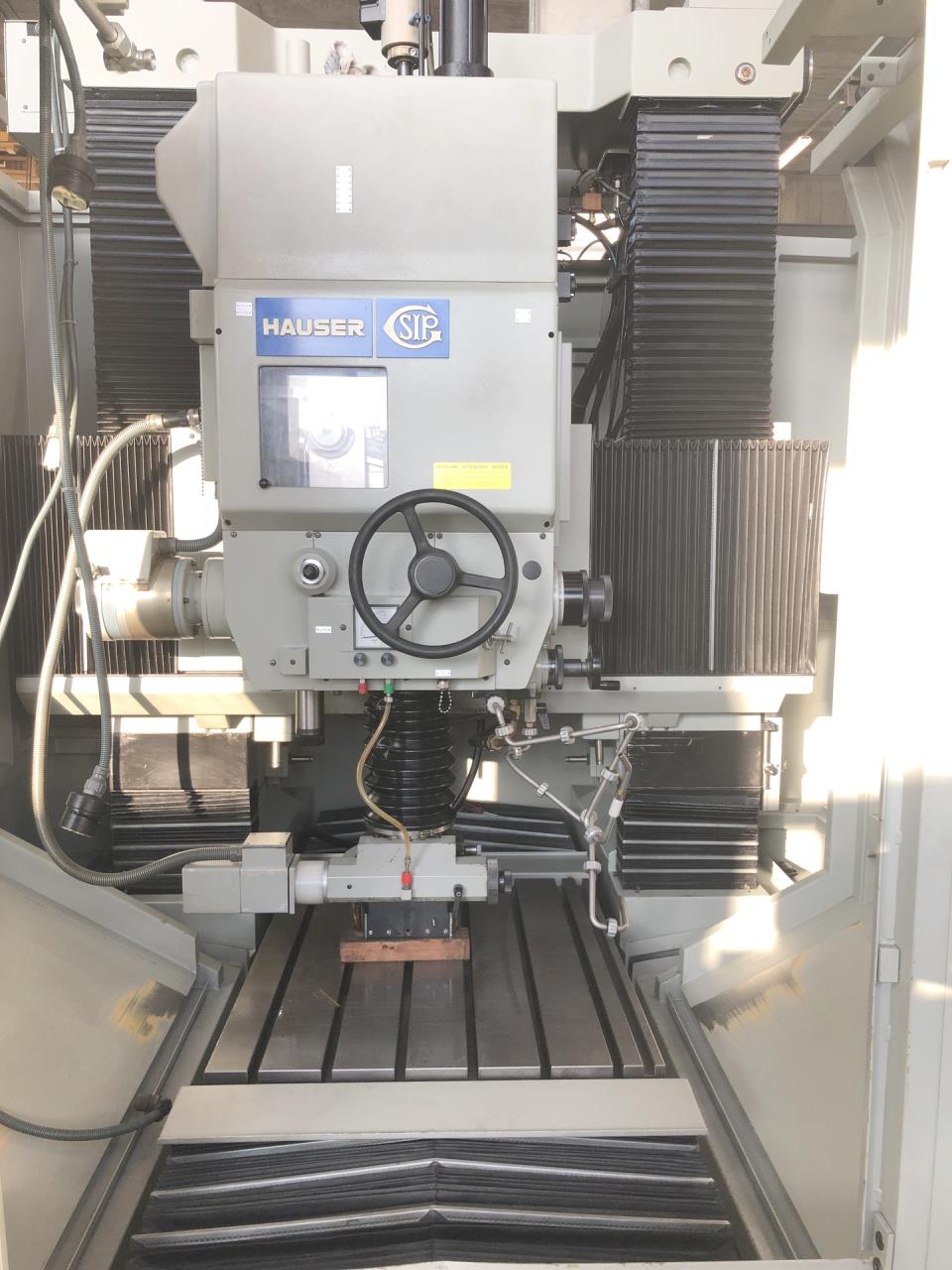

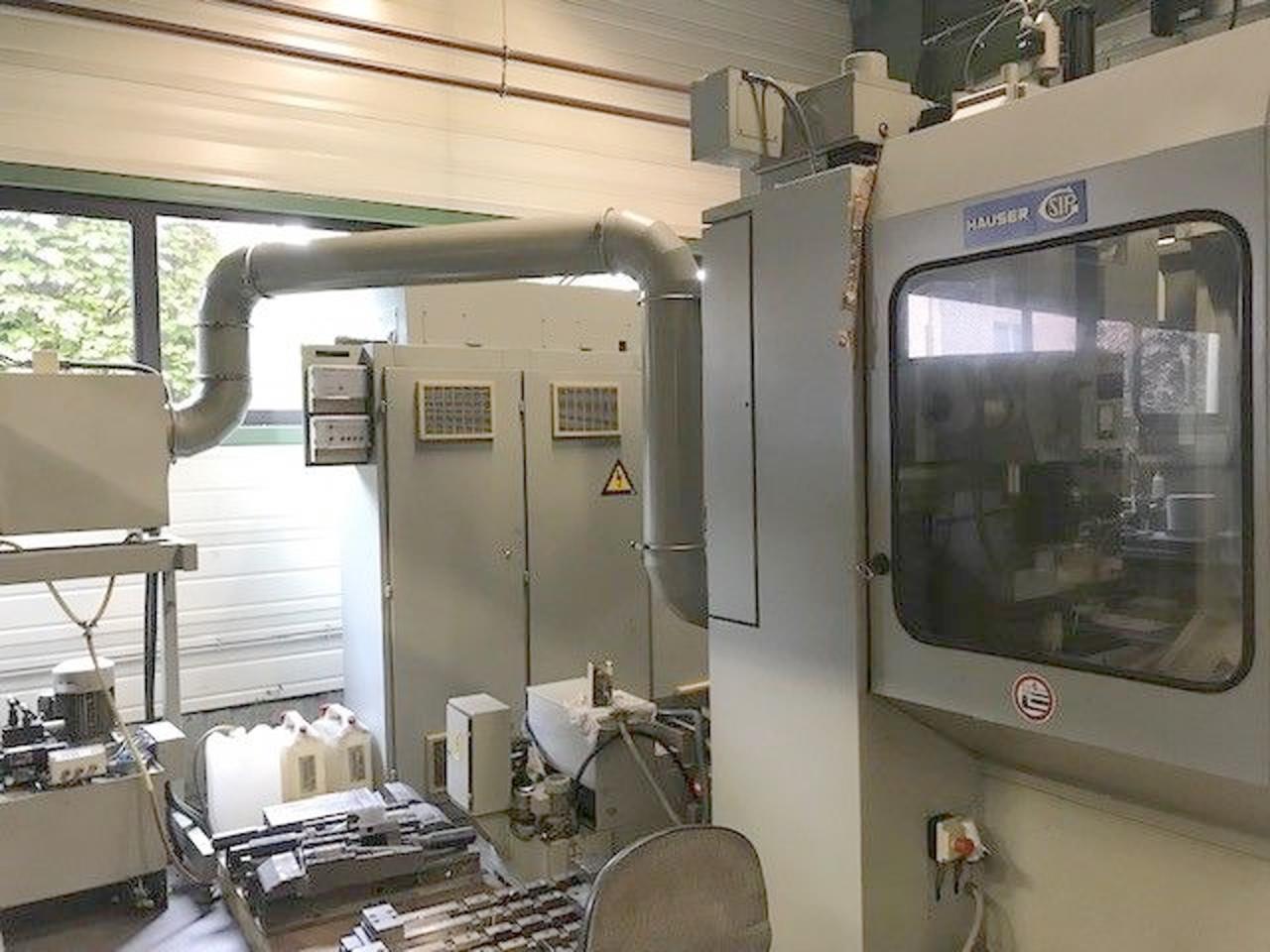

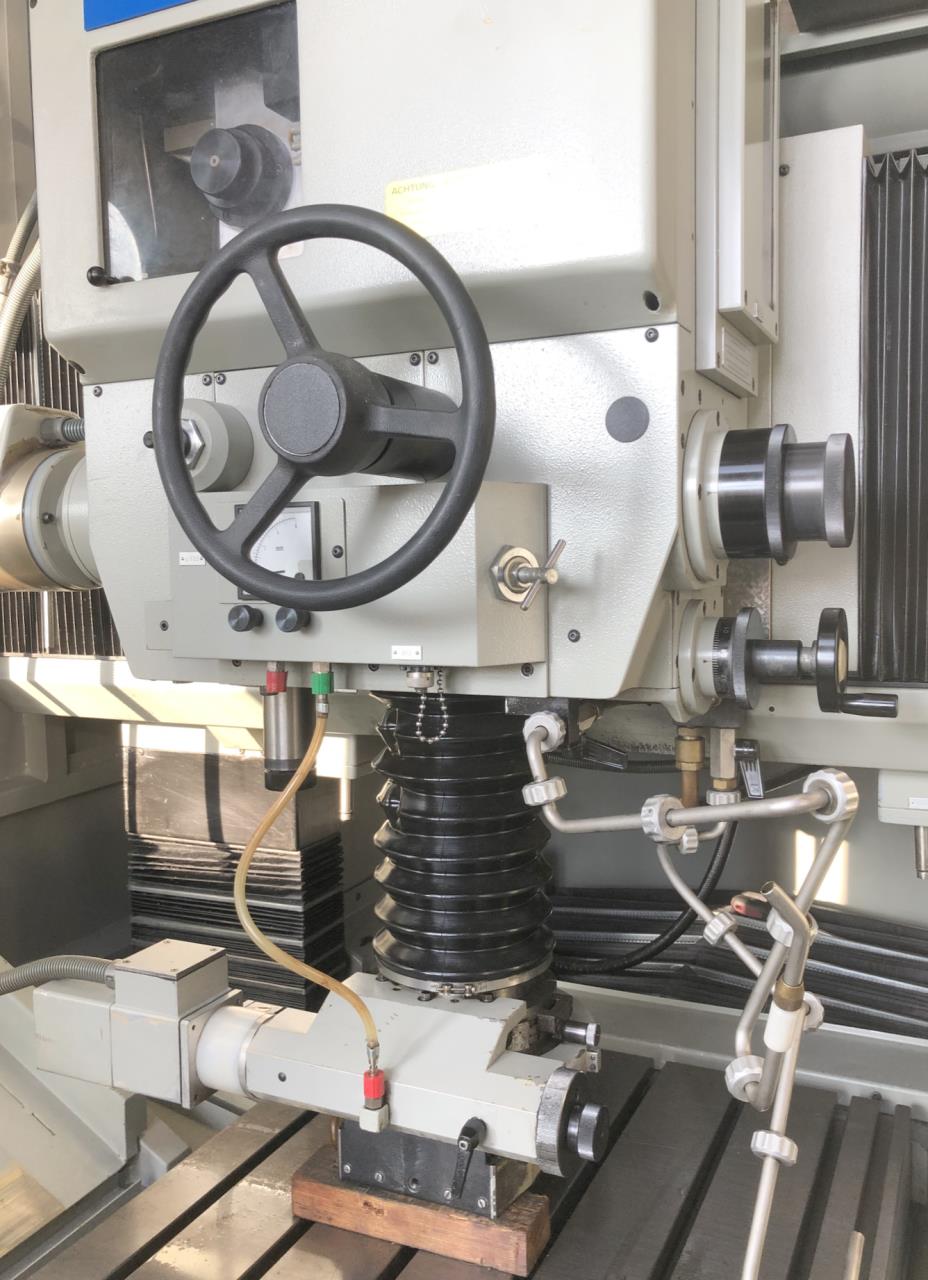

HAUSER S 40 CNC 7 Image(s)
Back
Technical data
    Table length
770 mm
    Table width
630 mm
    Table load max.
500 kg
    Longitudinal travel (X-axis)
650 mm
    Transversal travel (y-axis)
450 mm
    Verticla travel (W-axis)
500 mm
Max. grinding diameter
230 mm
    with display-plate
360 mm
Stroke of spindle-nose
125 mm
Max. angle with taper grinding:
    up to
16 °
    up to grinding depth
44 mm
    Alternating stroke mouvement, infinitely adjust.
       from Vmin.
0.5 mm/min
       up to Vmax.
12000 mm/min
Stroke frequency Z
4 Hz
Radiale fine feed U-axis up to
5.5 mm
Planetary motion speeds: c axis
    stepless
       from
5 rpm
       up to
250 rpm
Possible grinding-spindle speeds:
    stepless
       from
4500 rpm
       up to
80000 rpm
With air-turbine max.
160000 rpm
Voltage 50 Hz 3x
380 Volt
Machine's weight about
5600 kg
Overall dimensions machine:
    Length
2650 mm
    Width
2000 mm
    Height
3150 mm

Technical specifications and pictures without guarantee.
