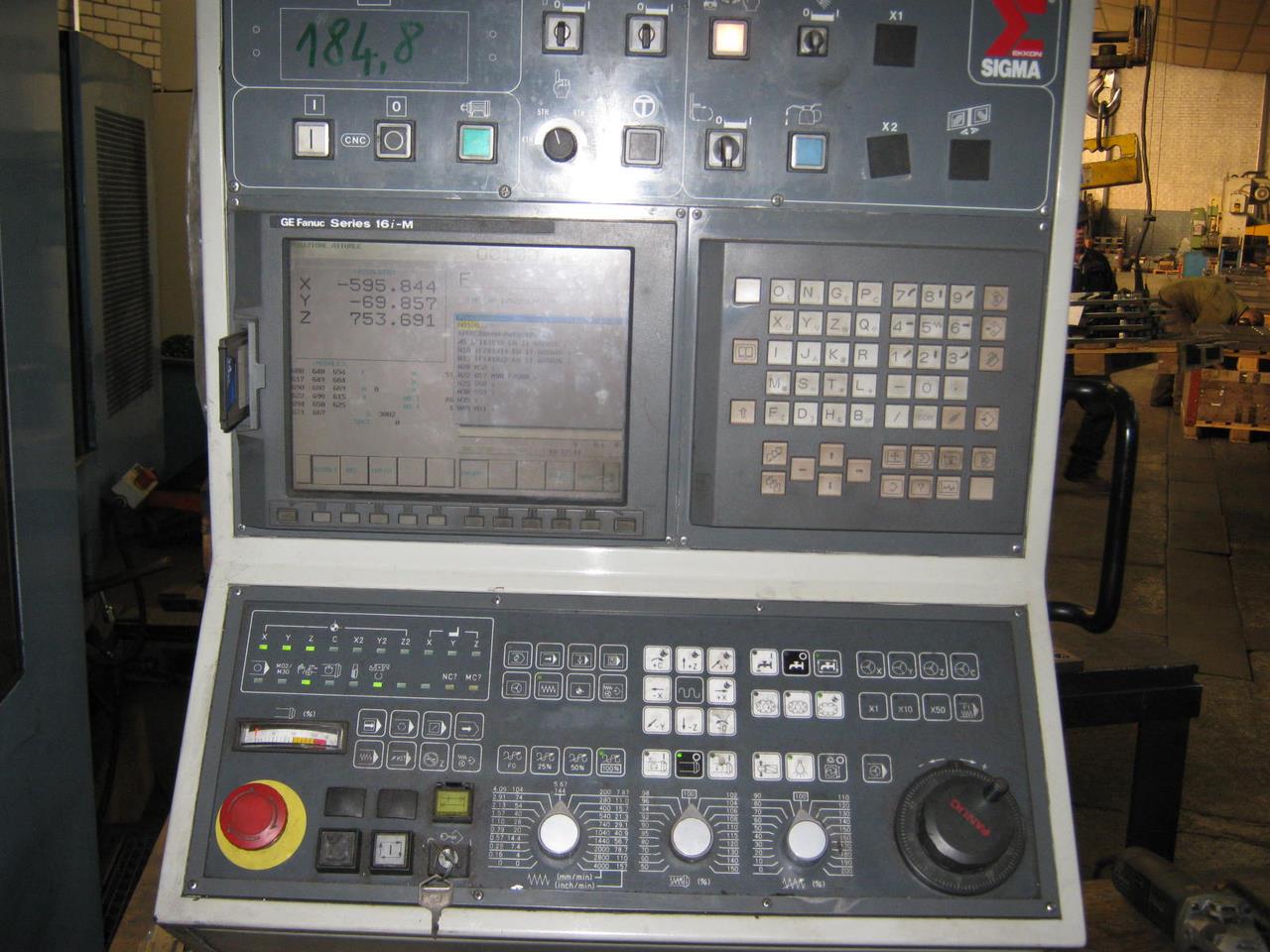

Technical data
Number of axis total
3
Table length
1400 mm
Table width
650 mm
Longitudinal travel (X-axis)
1250 mm
Transversal travel (y-axis)
700 mm
Vertical travel (z axis)
750 mm
Table load max.
1500 kg

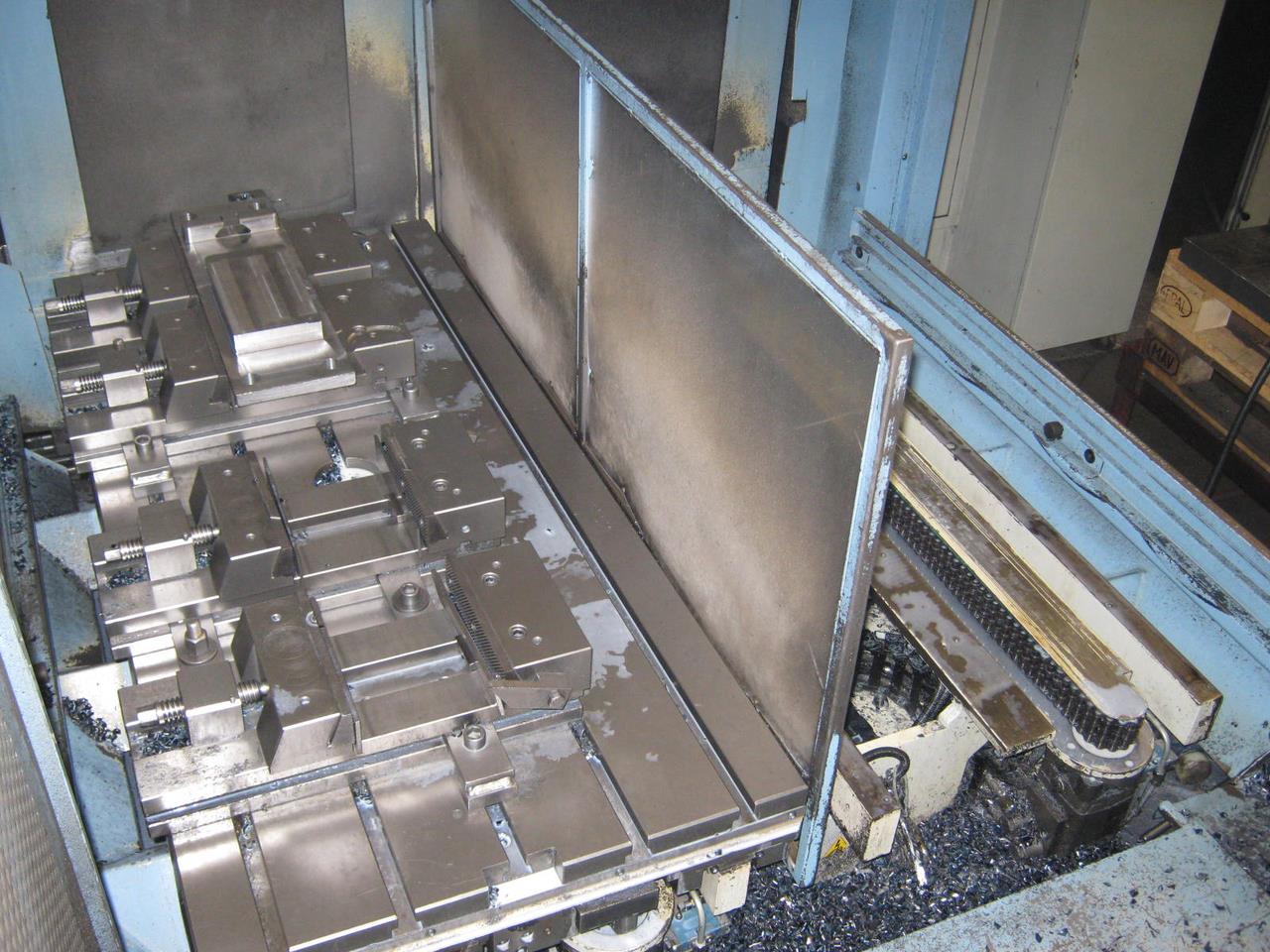

Pallets chanching device:
numbers
2
Length
1400 mm
Width
650 mm
Time of changing palets
45 sec
Transport weight
1500 kg

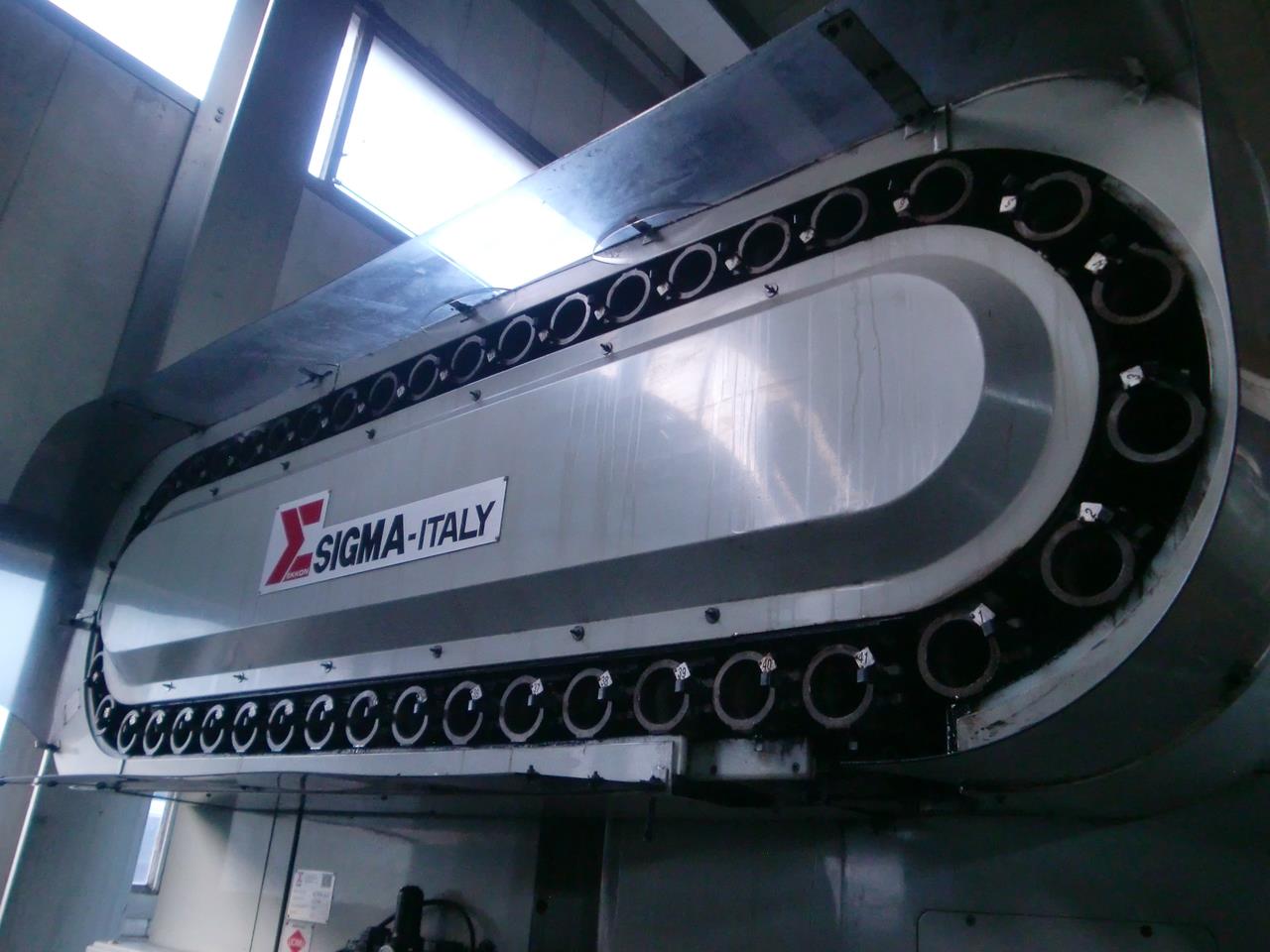

Tool changer:
Number of tools
40
Tool diameter
120 mm
Diameter with free adjacent pockets
200 mm
Tool lenght
400 mm
Max. tool-weight
20 kg
Time of tool changing
5 / 11 sec

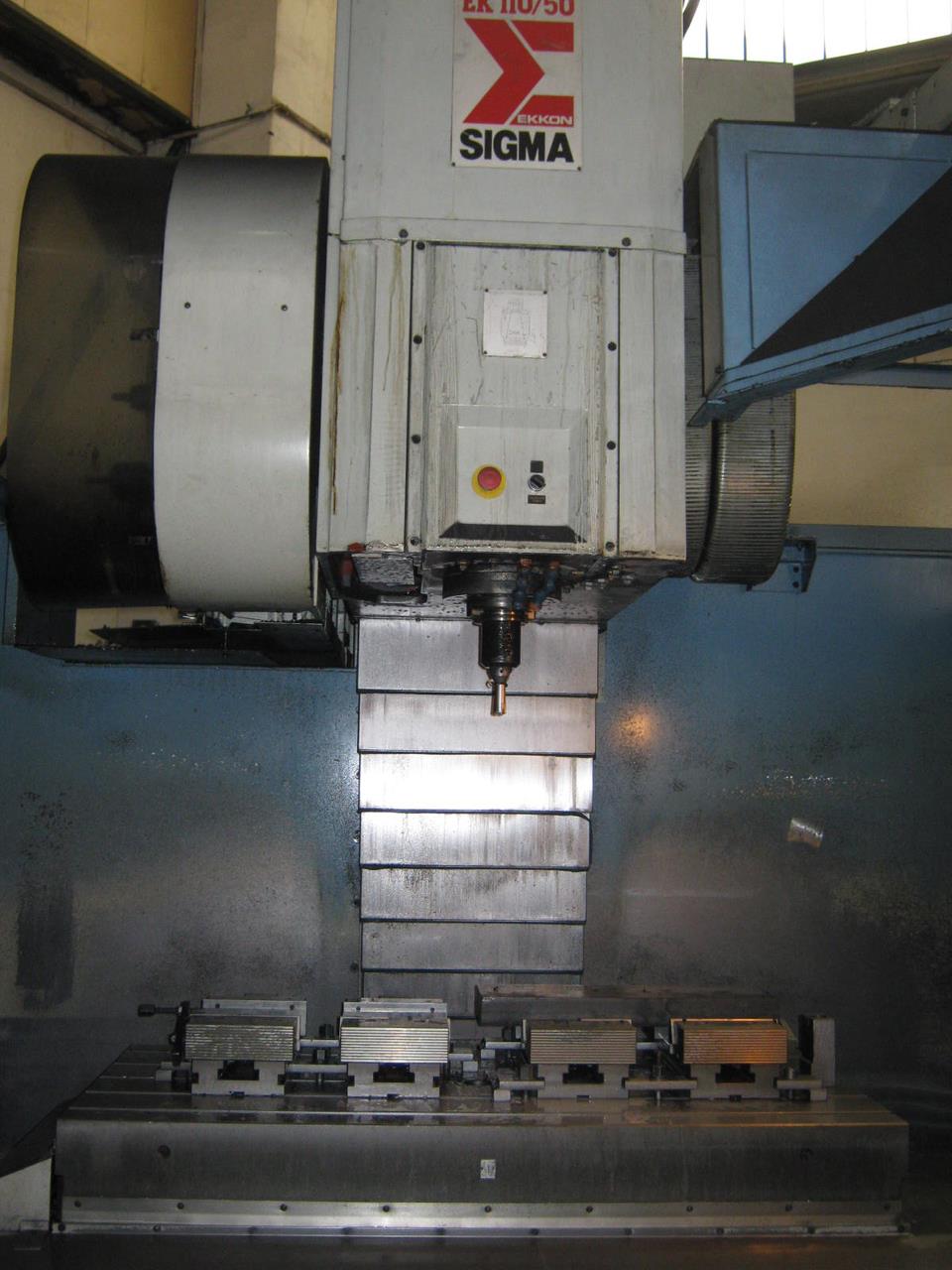

Spindle nose:
n° 50
Distance from vertical
spindle to table
100/850 mm
Spindle speeds:
stepless
up to
4000 rpm
Vertical spindle speeds:
stepless
from
20 rpm
up to
4000 rpm
Torque max.
662 Nm
Rapid traverse:
15 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
26 kW
Machine's weight about
16750 kg
Overall dimensions machine:
Length
7135 mm
Width
5300 mm
Height
3266 / 2980 mm
Various accessories:
Full splash cabin
Coolant system
High pression colant device
Booster pump (coolant)
30 bar
Coolant through spindle (cts)
Chip conveyor
Electronic hand held remote control
Lamp
RS-232 Interface
Central lubrification
Technical specifications and pictures without guarantee.
