stock no. :
20607
Machine's group :
CNC milling machine
Type :
KUNZMANN WF 7/3
Controller :

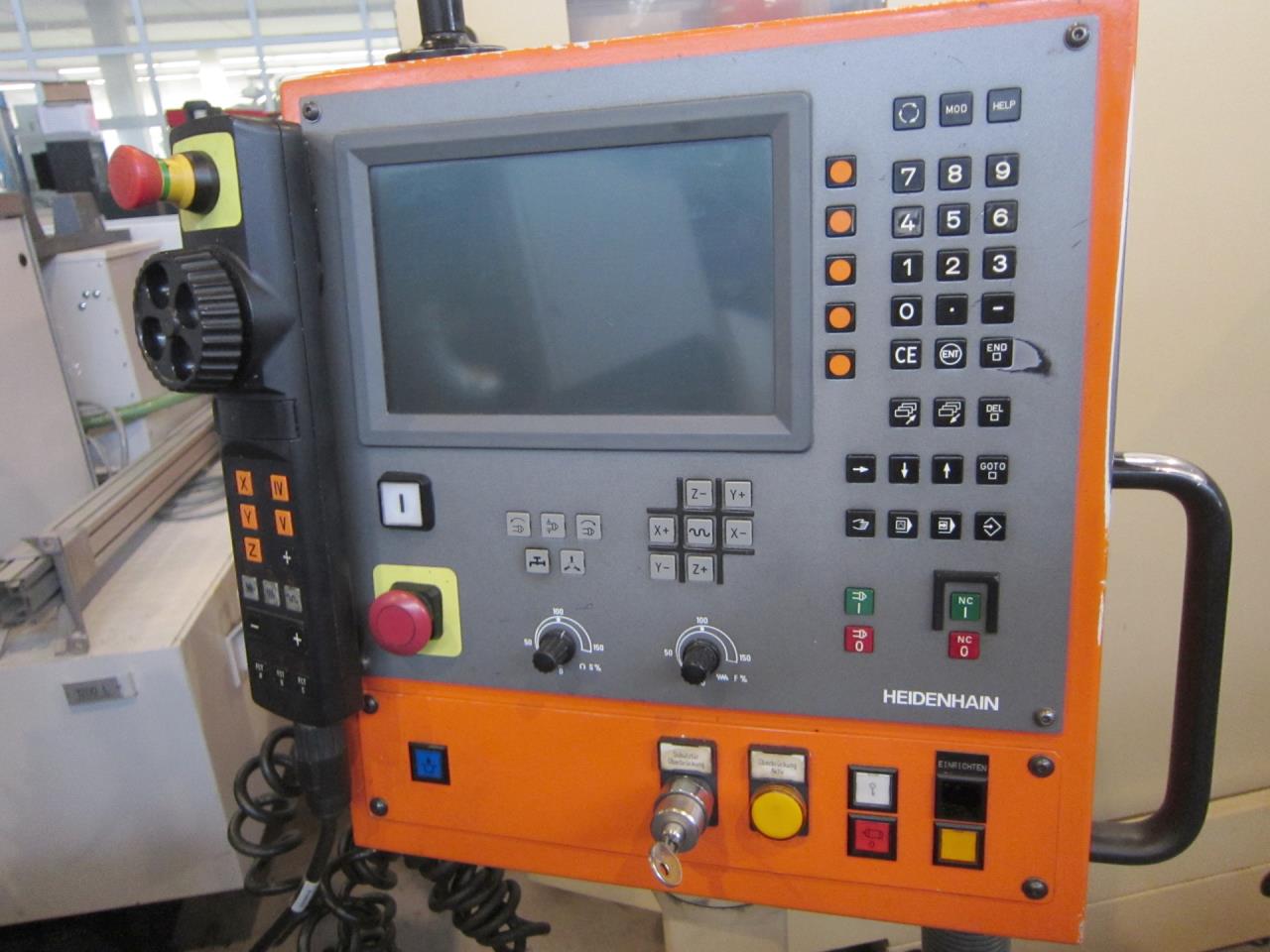

HEIDENHAIN TNC 124
Information request
KUNZMANN WF 7/3 7 Image(s)
Back
Technical data
Number of axis total
3
Table length
800 mm
Table width
425 mm
Longitudinal travel (X-axis)
600 mm
Transversal travel (y axis)
400 mm
Vertical travel (z axis)
400 mm
Table load max.
250 kg
Distance from vertical
    spindle to table
560 mm
Taper in spindle:
40 SK
Spindle speeds:
    stepless
       horizontal from
5 rpm
       up to
5000 rpm
       vertical from
rpm
       from
5 rpm
       up to
5000 rpm
Swivel range Vertical milling head
+/- 90 °
Feeds:
    stepless
       longitudinal from
0 mm/min
       up to
2000 mm/min
       transversal from
0 mm/min
       up to
2000 mm/min
       vertical from
0 mm/min
       up to
2000 mm/min
Rapid traverse: long.
10 m/min
Rapid traverse: transversal
10 m/min
Rapid traverse: vertical
7.5 m/min
Vertical quill travel
60 mm
Voltage 50 Hz 3x
400 Volt
Milling spindle motor
5.5 / 7 kW
Total power required
15 kVA
Machine's weight about
1800 kg
Overall dimensions machine:
Length
2100 mm
Width
1800 mm
Height
2050 mm
Various accessories:

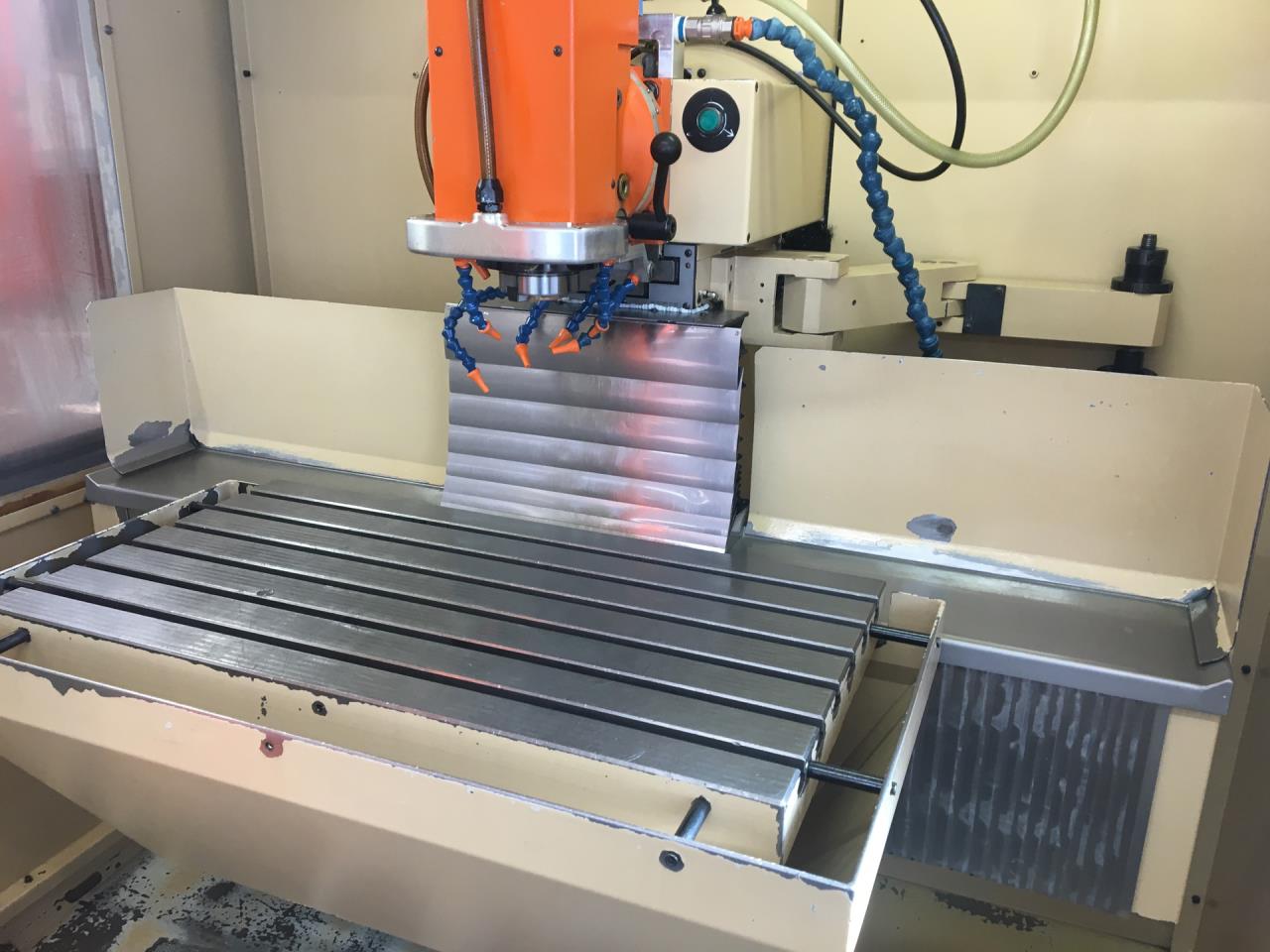

Rigide table
Handwheel electroinic

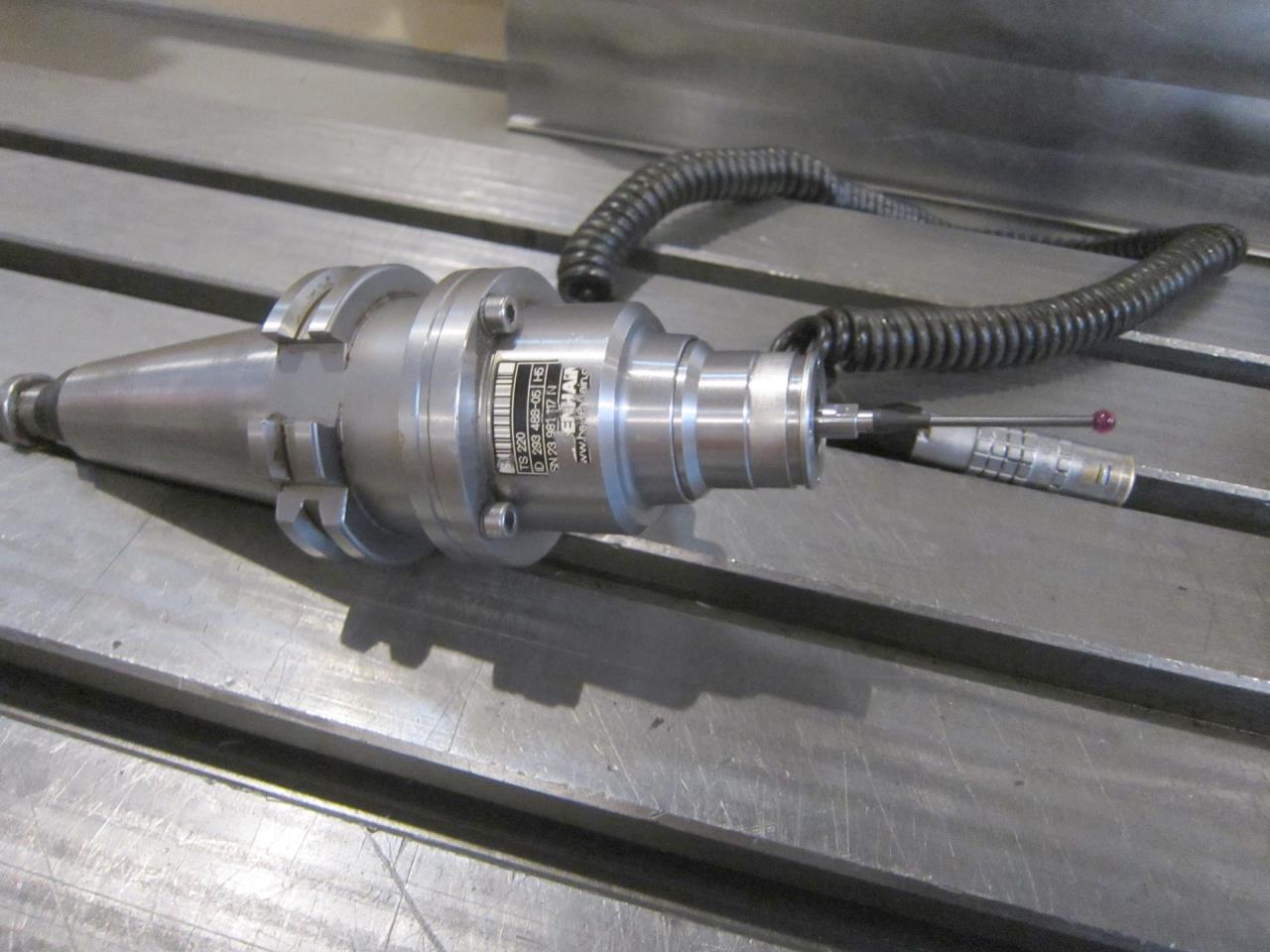

Measuring feeler gauge
HEIDENHAIN

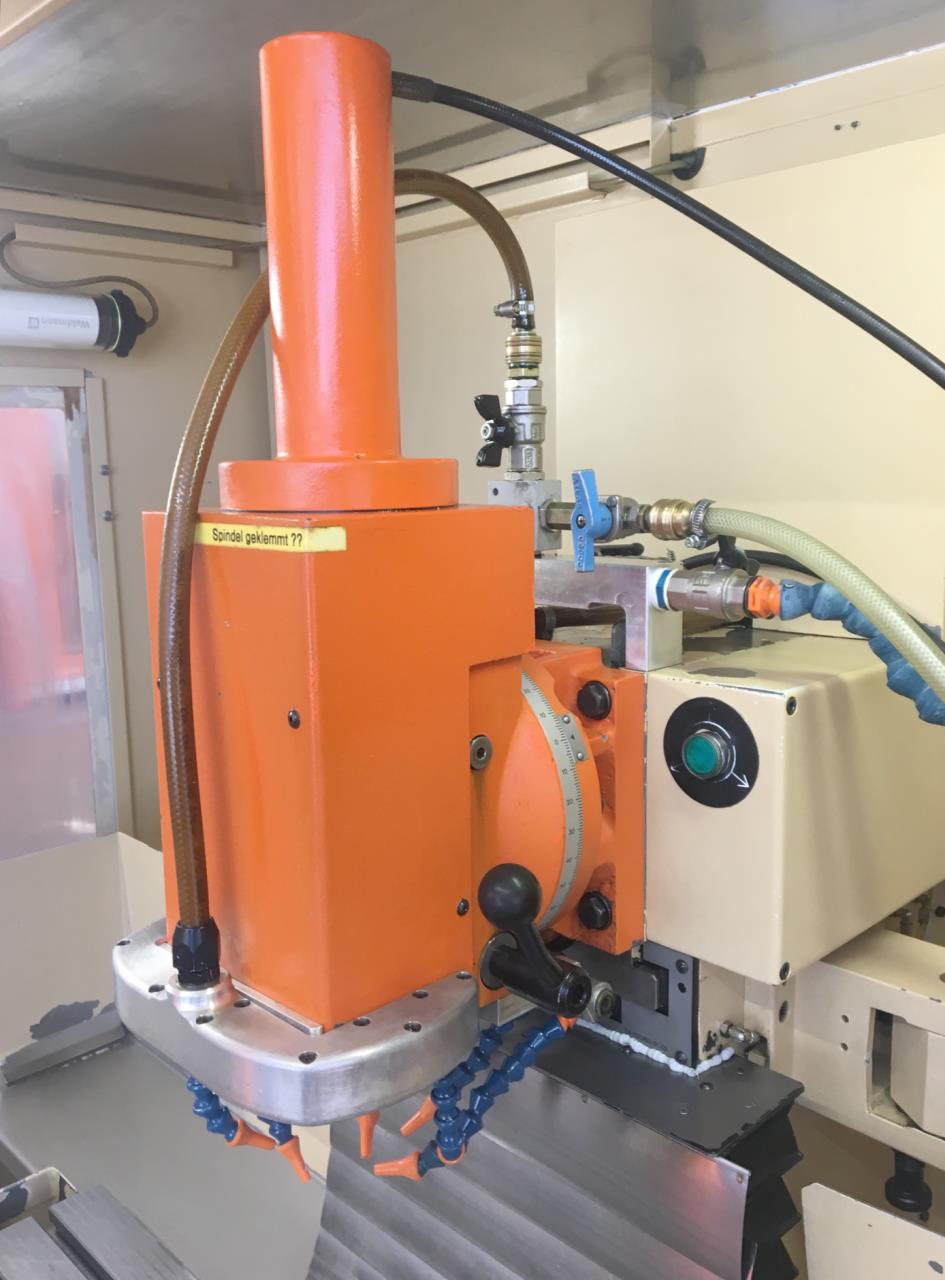

Vertical milling head

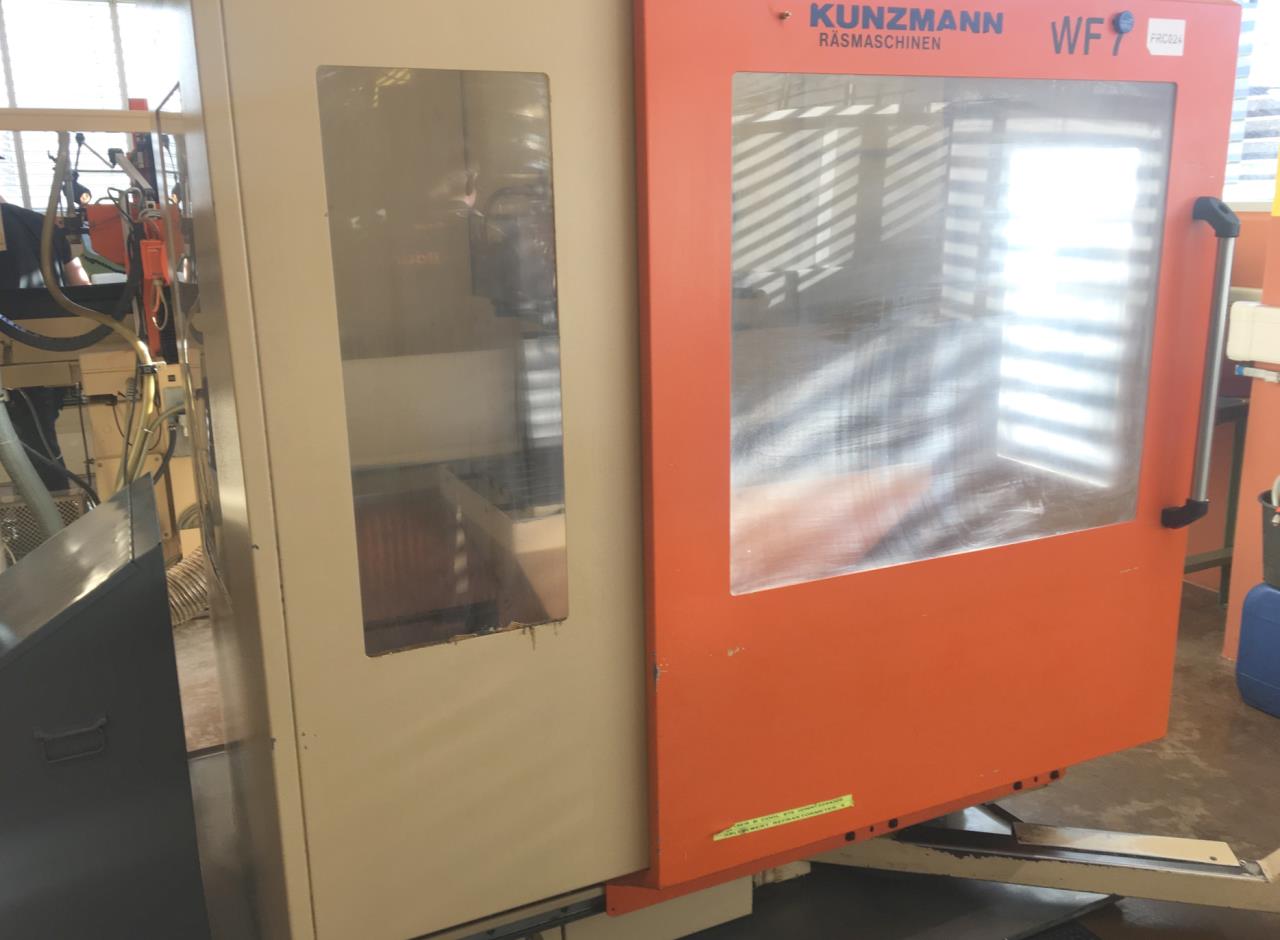

Full splash cabin
Coolant system
Machine lamp

Technical specifications and pictures without guarantee.
