stock no. :
20593
Machine's group :
Vertical machining center
Type :
DMG DMU 60 T
Controller :
HEIDENHAIN TNC 430
Information request

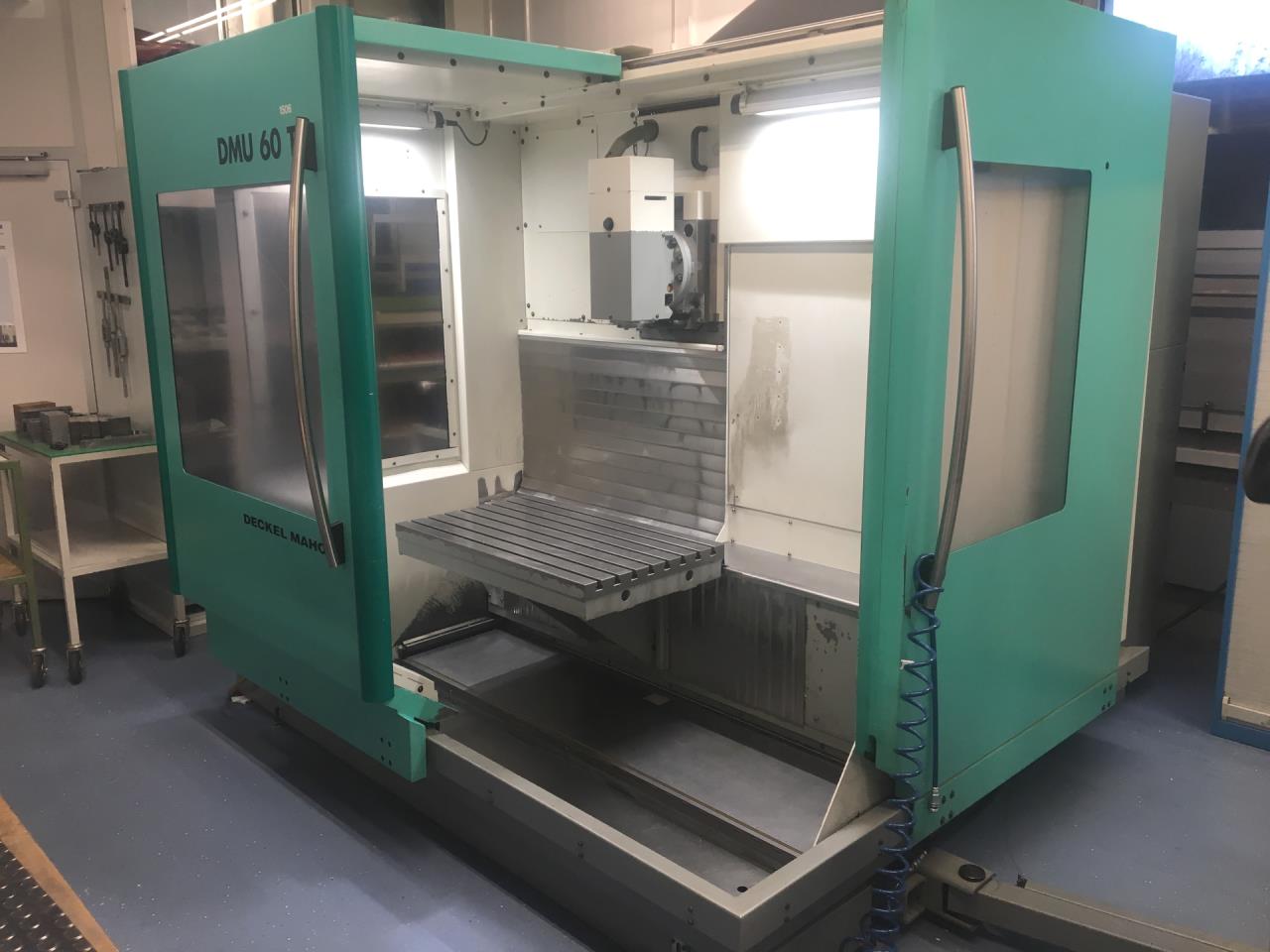

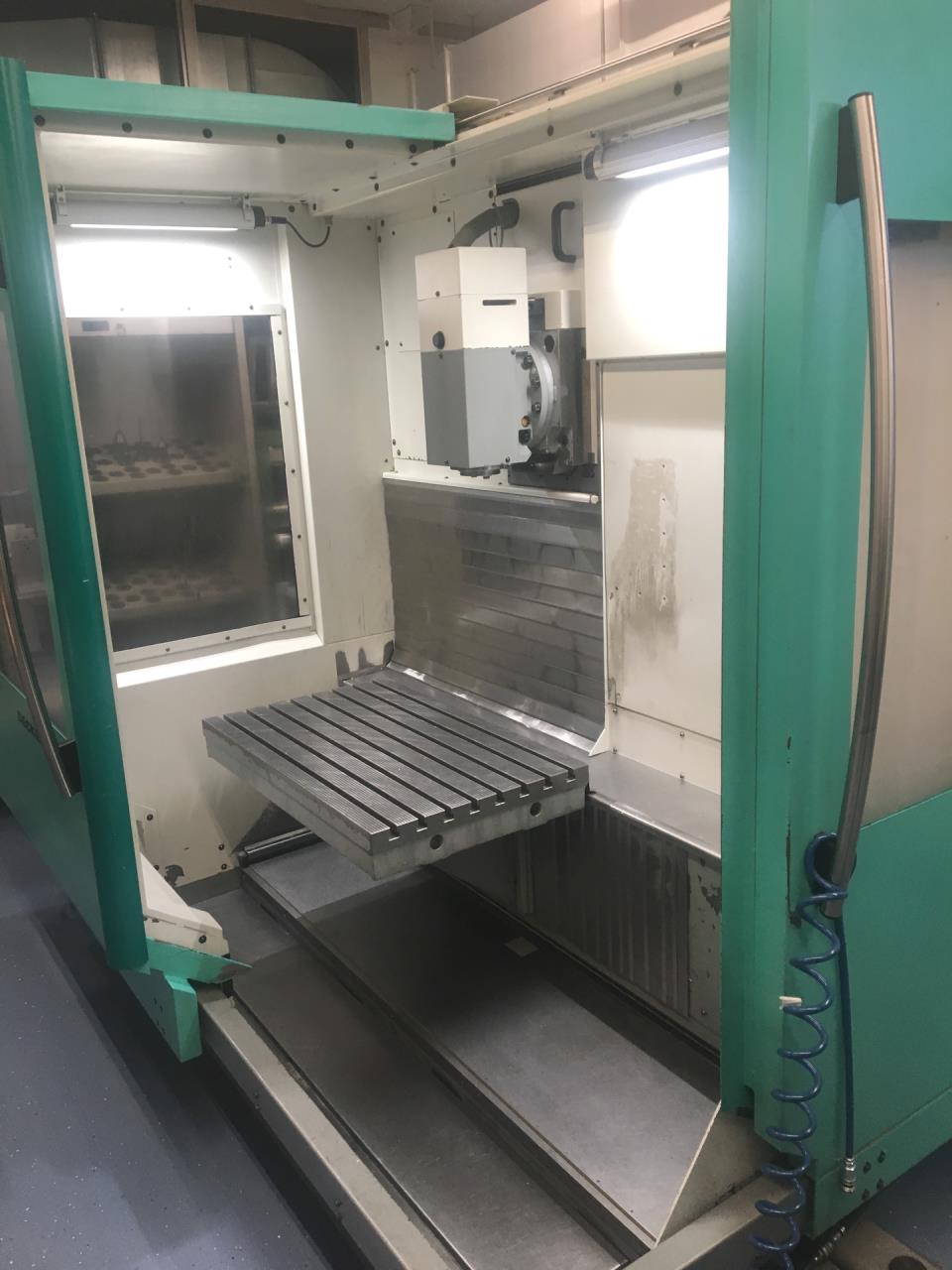

DMG DMU 60 T 10 Image(s)
Back
Technical data
Number of axis simultaneous
3

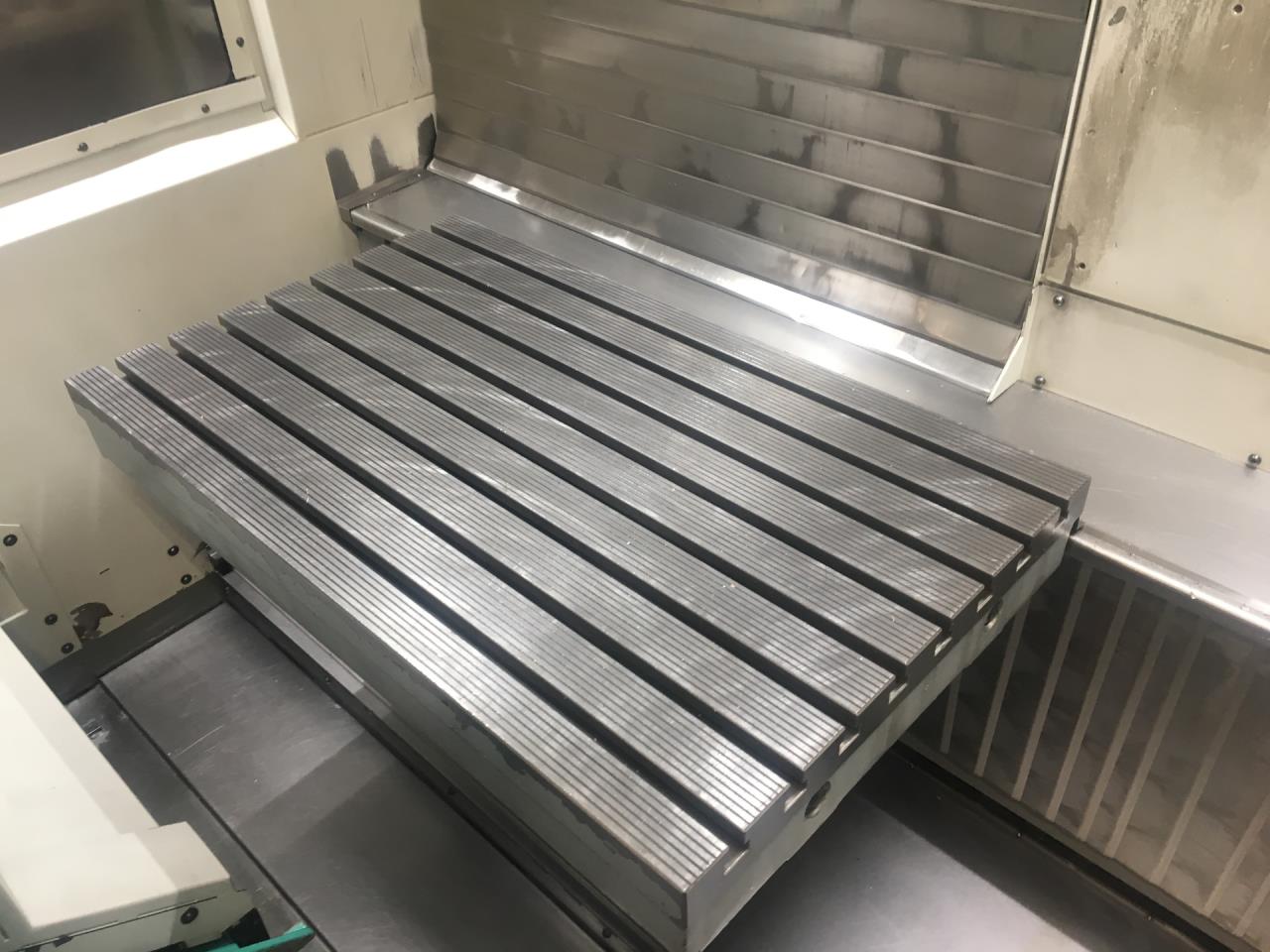

Table length
900 mm
Table width
543 mm
Longitudinal travel (X-axis)
600 mm
Transversal travel (y axis)
525 mm
Vertical travel (z axis)
500 mm
Position accuracy
0.010 mm
Table load max.
350 kg
Resolution
0.001
Tool changer:
    Number of tools
25
    Tool diameter
80 mm
    Diameter with free adjacent pockets
160 mm
    Tool lenght
315 mm
    Max. tool-weight
8 kg
Spindle nose SK
40

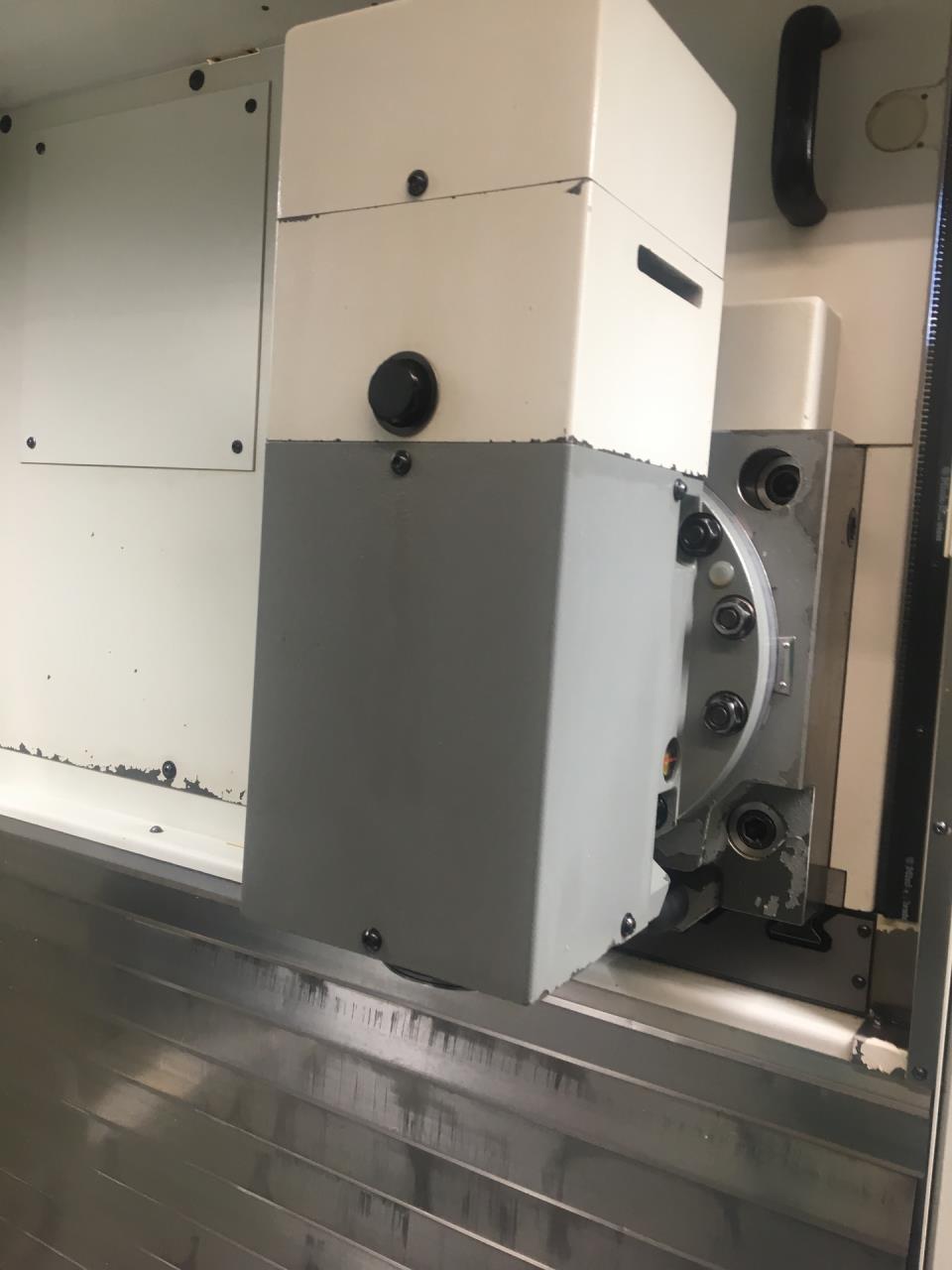

Vertical spindle speeds:
    stepless
       from
20 rpm
       up to
12000 rpm
Feed range
20 - 10000 mm/min
Input resolution
0.001 mm
Rapid traverse: long.
18 m/min
Rapid traverse: transversal
18 m/min
Rapid traverse: vertical
18 m/min
Vertical quill travel
90 mm
Air connect
5.5 - 8.0 bar

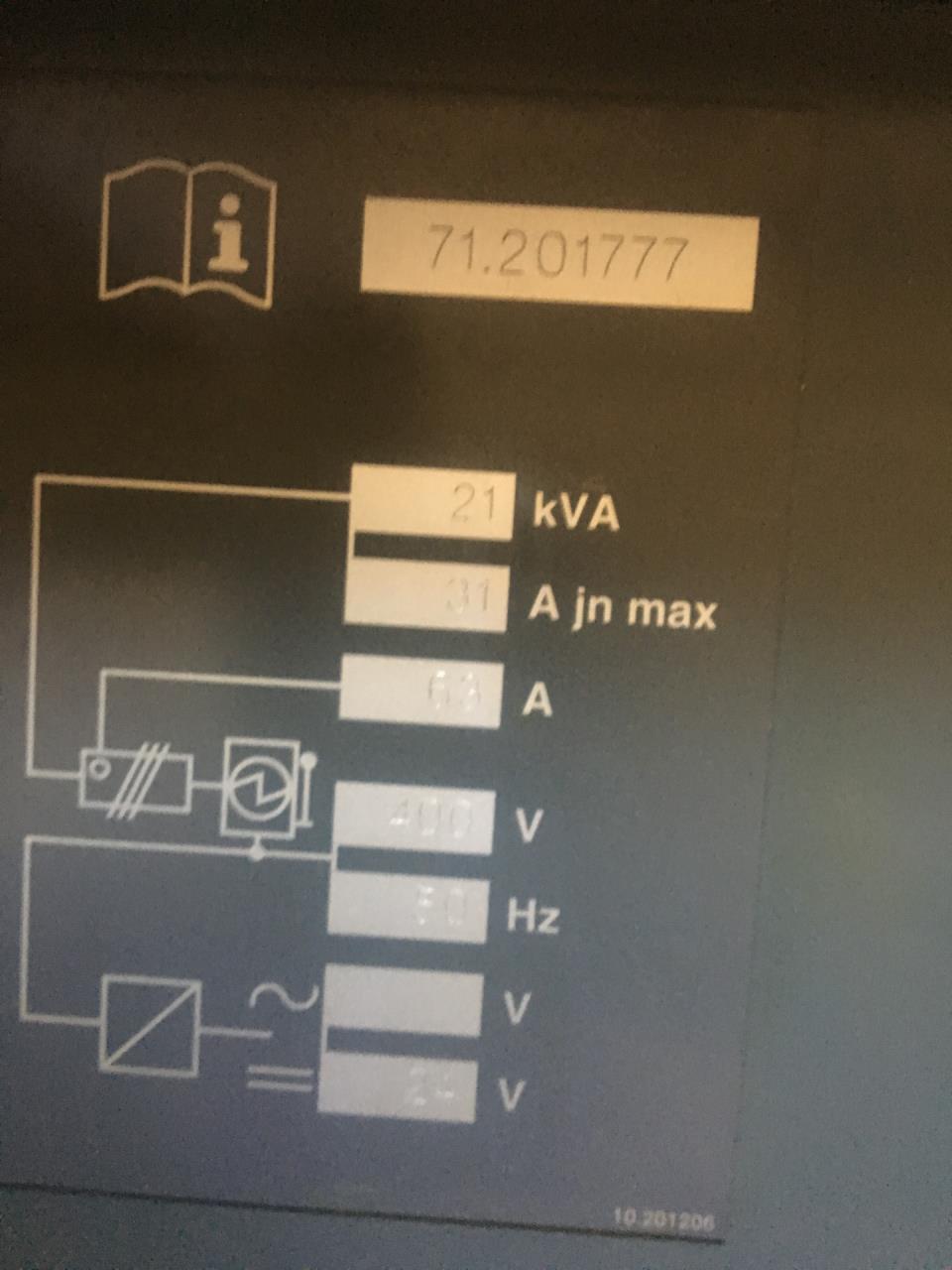

Voltage 50 Hz 3x
400 Volt
Spindle motor
7.5 kW
Machine's weight about
4100 kg
Overall dimensions machine:
    Length
2900 mm
    Width
2000 mm
    Height
2300 mm
Various accessories:
Full splash cabin
Coolant system
Electronic hand held control
Lamp
RS-232 Interface
Central lubrification

Technical specifications and pictures without guarantee.
