stock no. :
20569
Machine's group :
High speed machining centers
Type :

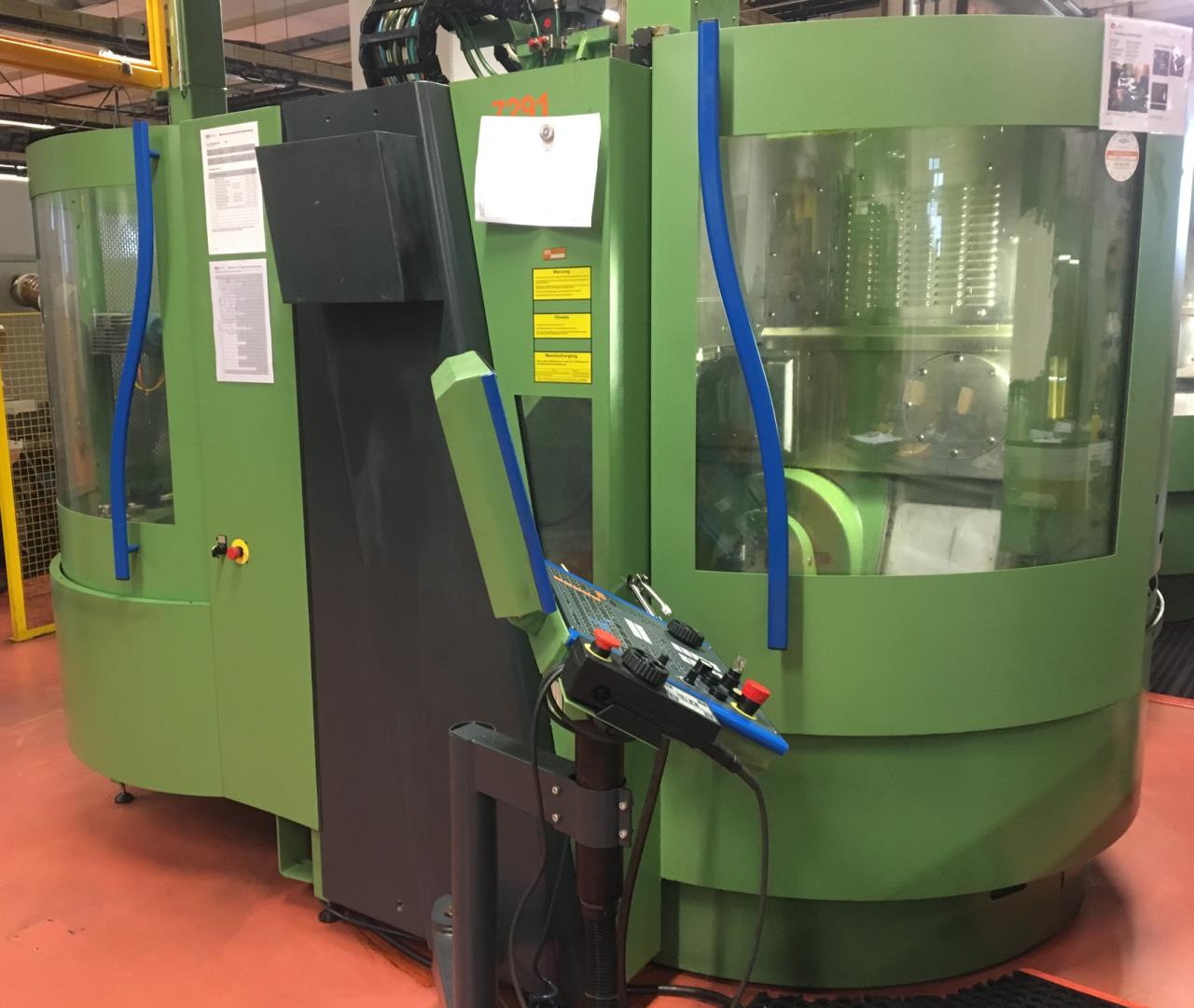

MIKRON HSM 400 U
Controller :

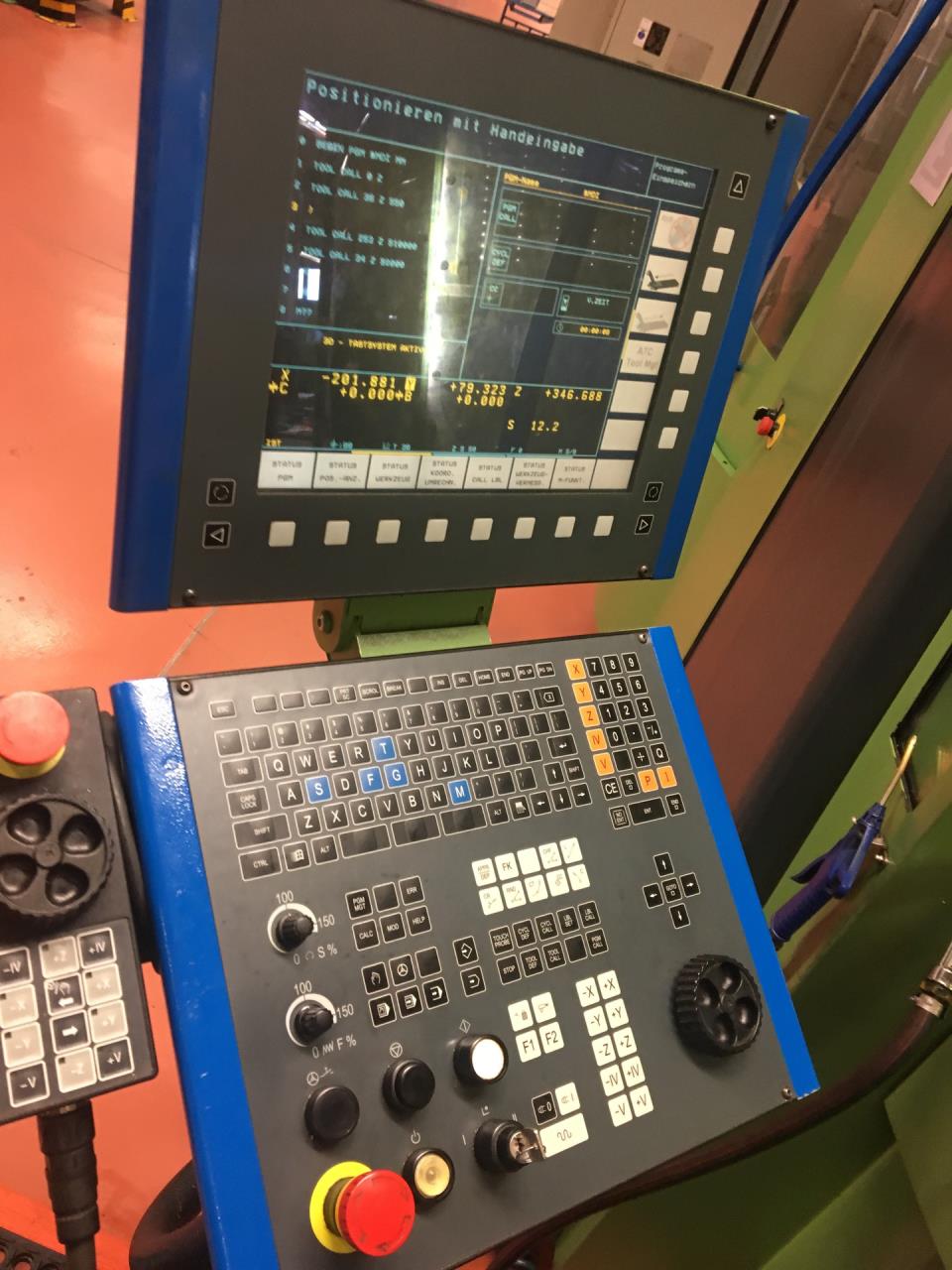

HEIDENHAIN iTNC 530
Information request
MIKRON HSM 400 U 9 Image(s)
Back
Technical data
Number of axis total
5
Longitudinal travel (X-axis)
400 mm
Transversal travel (y axis)
240 mm
Vertical travel (z axis)
350 mm

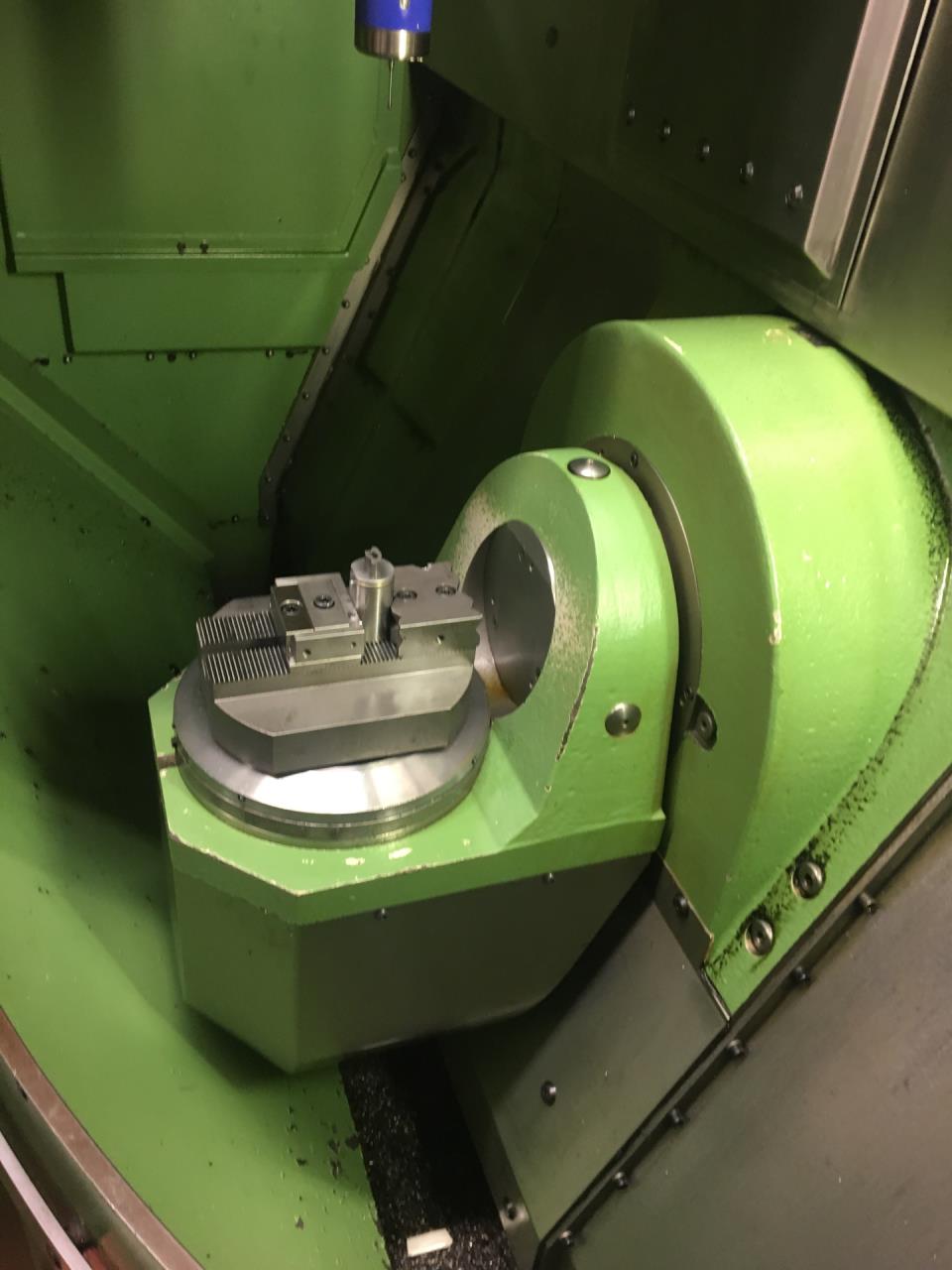

B axis swivelling range
+/-110 °
C axis
360 °

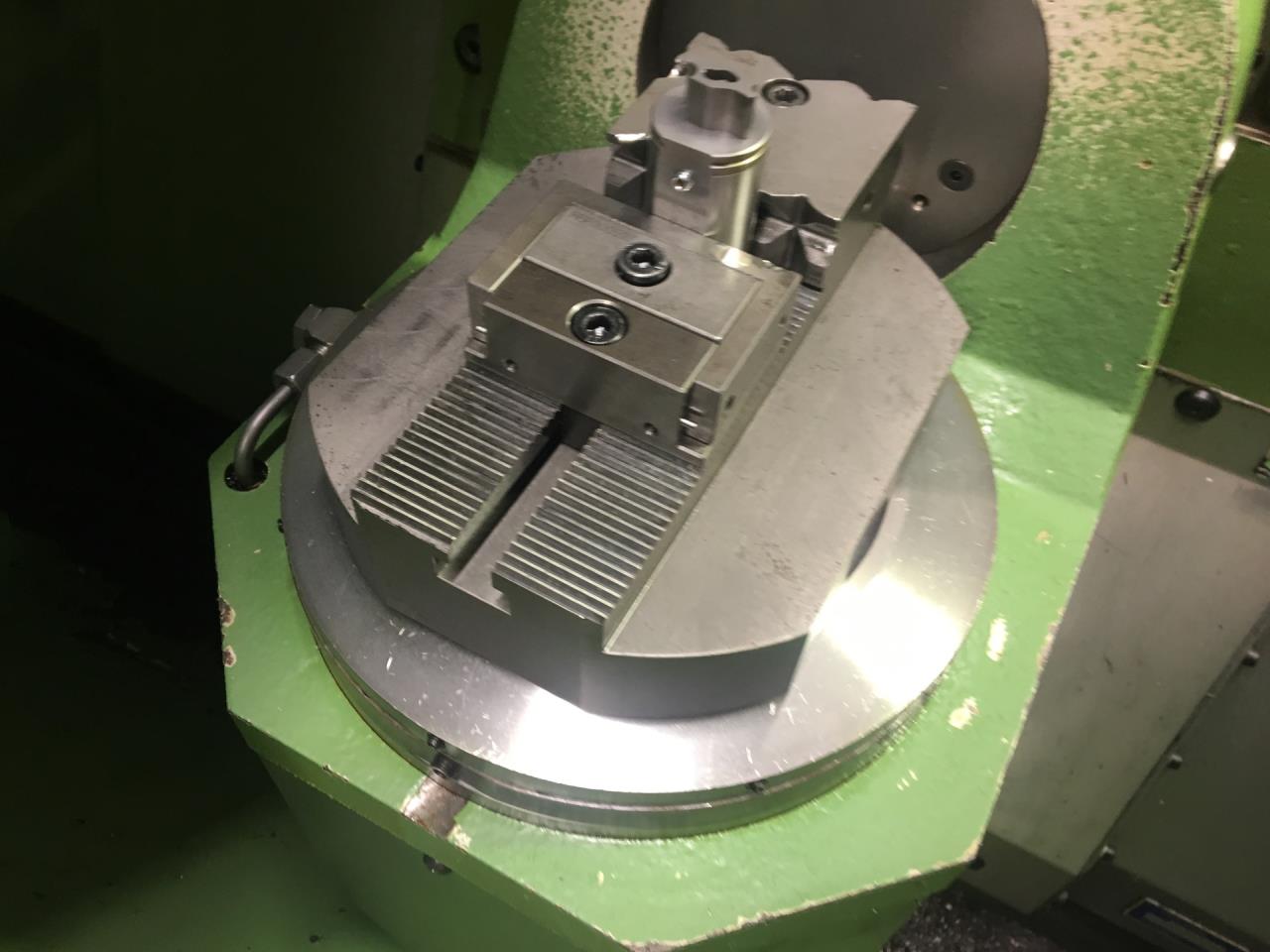

Pallets:
EROWA ITS 148mm
    number
20

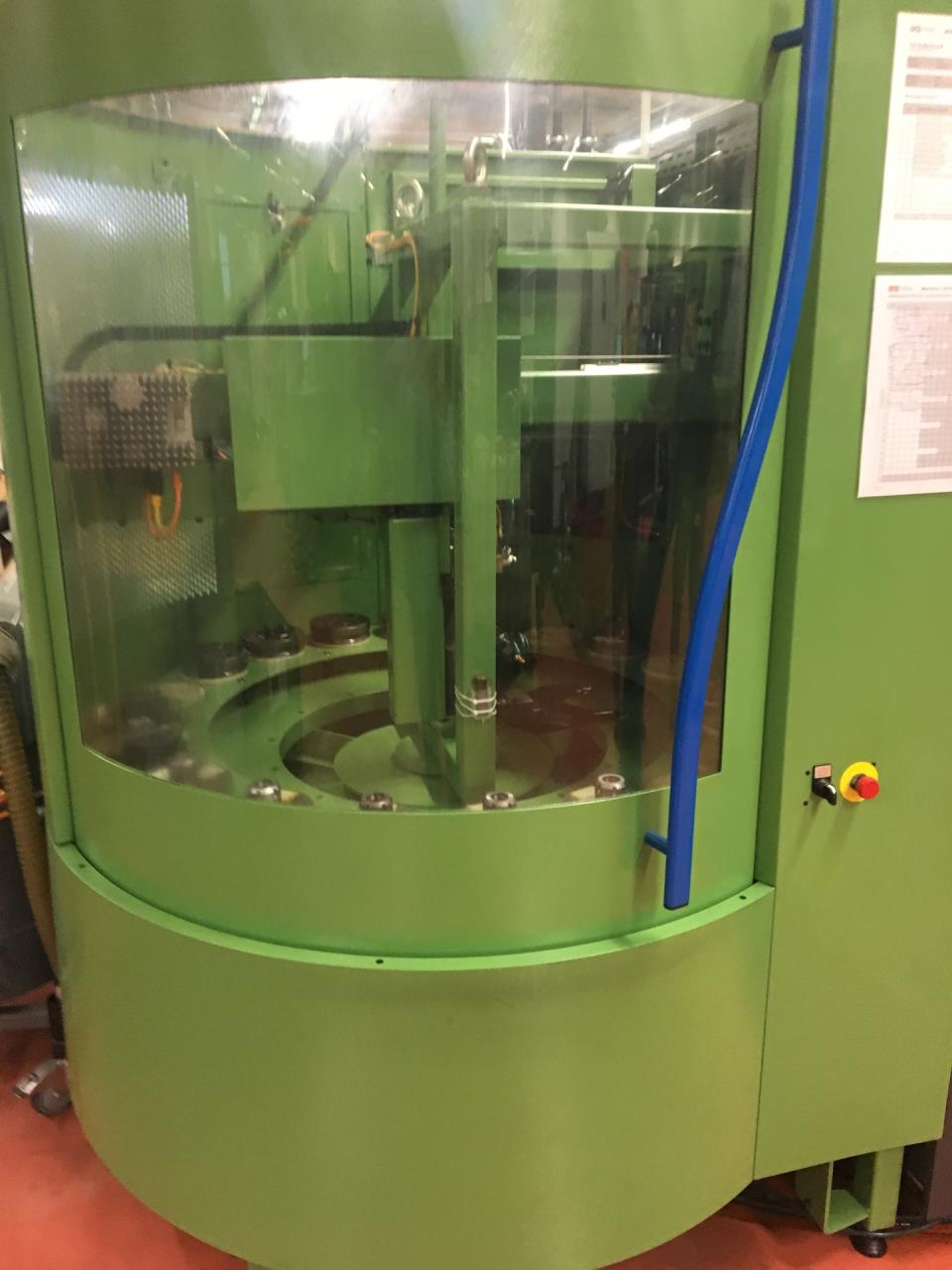

Tool changer:
TCD
Number of tools
36
Spindle nose: HSK
40E OptiCool

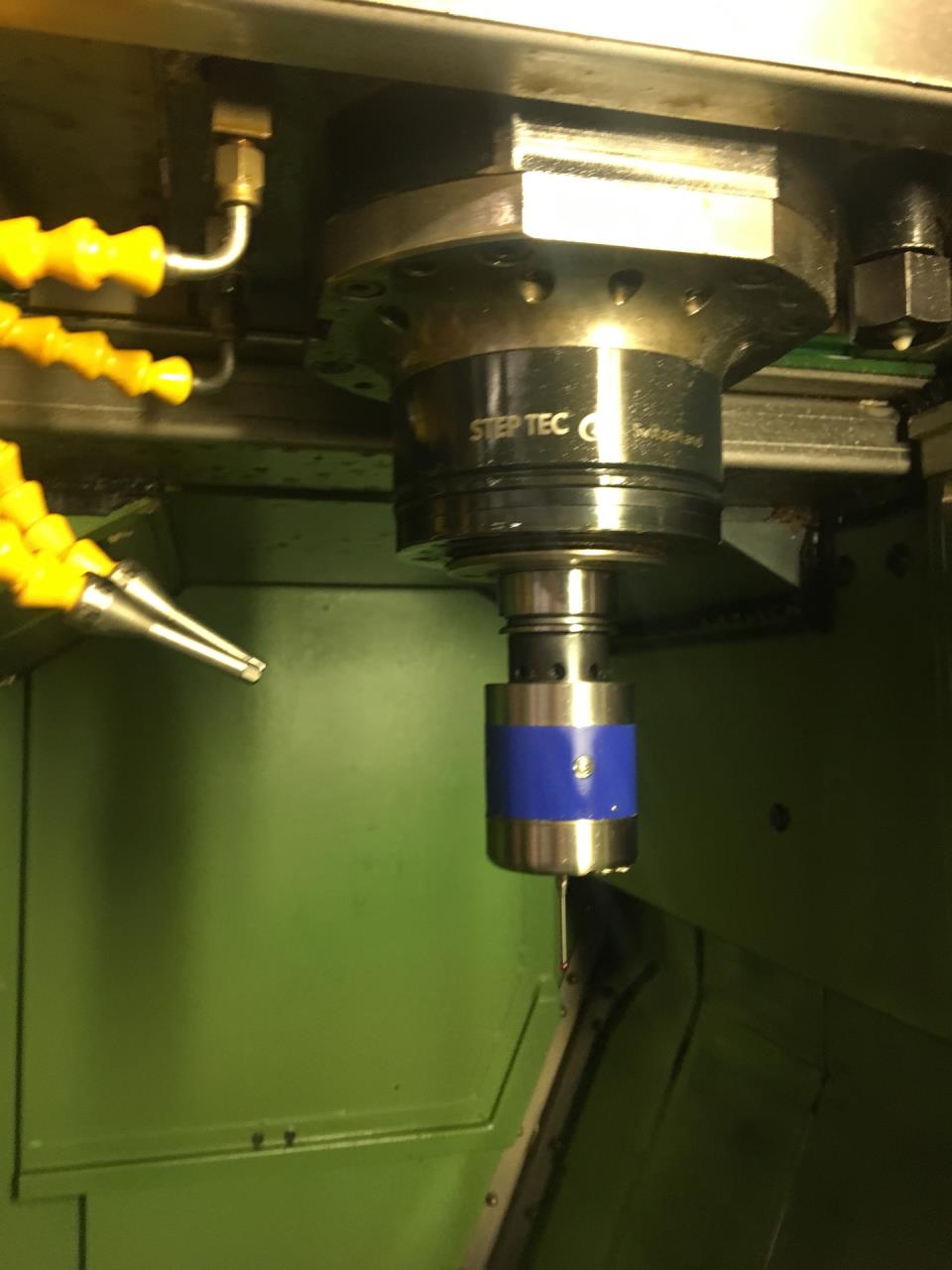

Spindle speeds:
StepTec
    stepless
       from
100 rpm
       up to
42000 rpm
Feeds:
    stepless
       longitudinal from
1 mm/min
       up to
40000 mm/min
       transversal from
1 mm/min
       up to
40000 mm/min
       vertical from
1 mm/min
       up to
40000 mm/min
Rapid traverse:
42 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
13 kW
Machine's weight about
6500 kg
Overall dimensions machine:
    Length
3800 mm
    Width
2900 mm
    Height
2500 mm
Various accessories:
Touch Probe Renishaw
Handwheel electroinic

Technical specifications and pictures without guarantee.
