stock no. :
20557
Machine's group :
Internal grinding machine
Type :
STETTLER STR 200
Information request

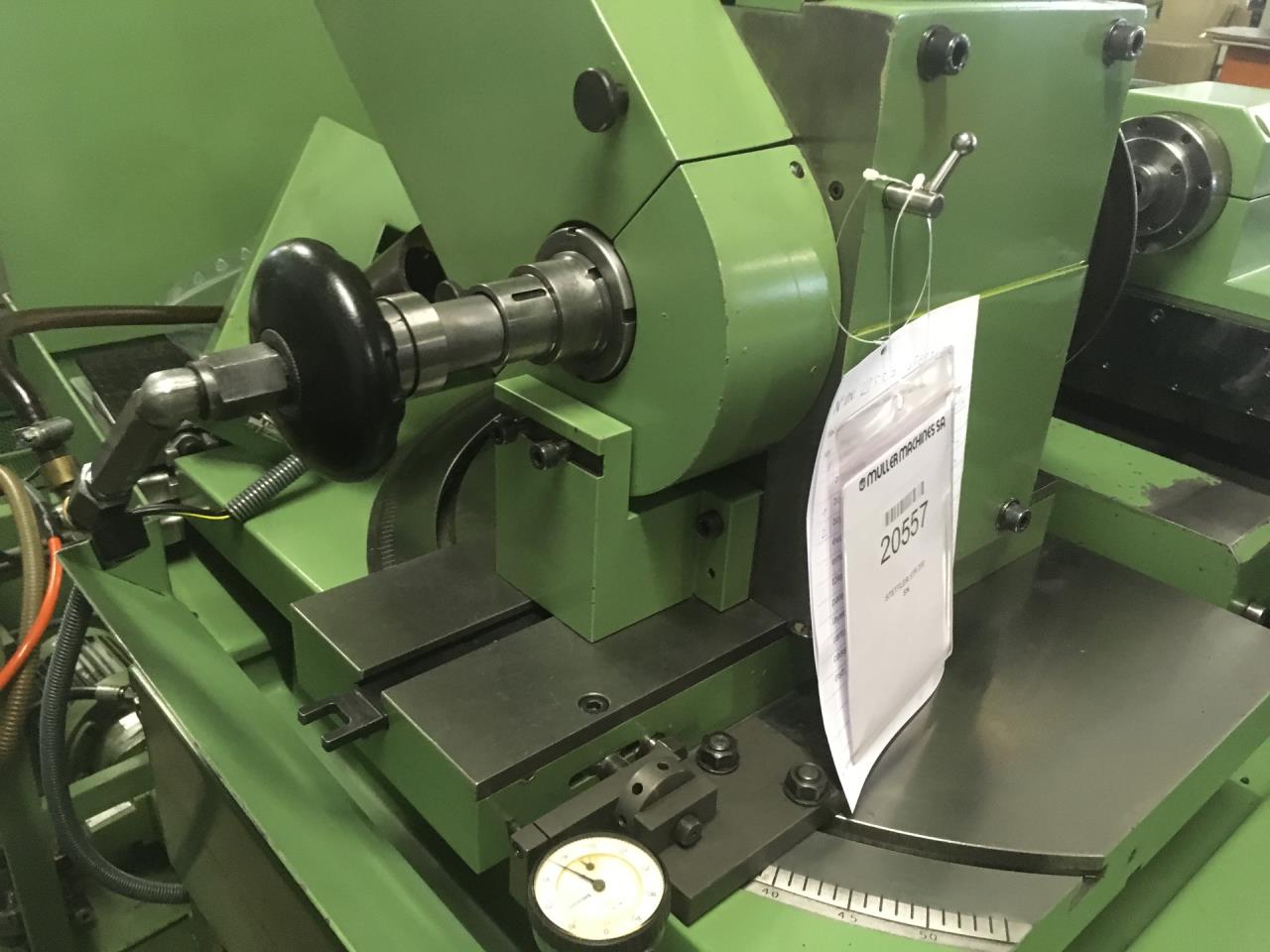

STETTLER STR 200 11 Image(s)
Back
Technical data
Max. internal grinding diameter
30 mm
Min. internal grinding diameter
0.8 mm
Grinding depth
1 - 100 mm
Centre height
185 mm
Distance between centres
200 mm
Workpiece spindle speeds:
    number (steps)
3
       from
550 rpm
       up to
800 rpm
Spindle hole
20 mm
Taper in spindle:
20 W
Grinding table travel:
    min.
1 mm
    max
100 mm
Table speeds:
    stepless
       up to
5.00 m/min
Voltage 50 Hz 3x
380 Volt
Machine's weight about
610 kg
Overall dimensions machine:
    Length
1450 mm
    Width
760 mm
    Height
1600 mm
Various accessories:
Wheel trueing attachment

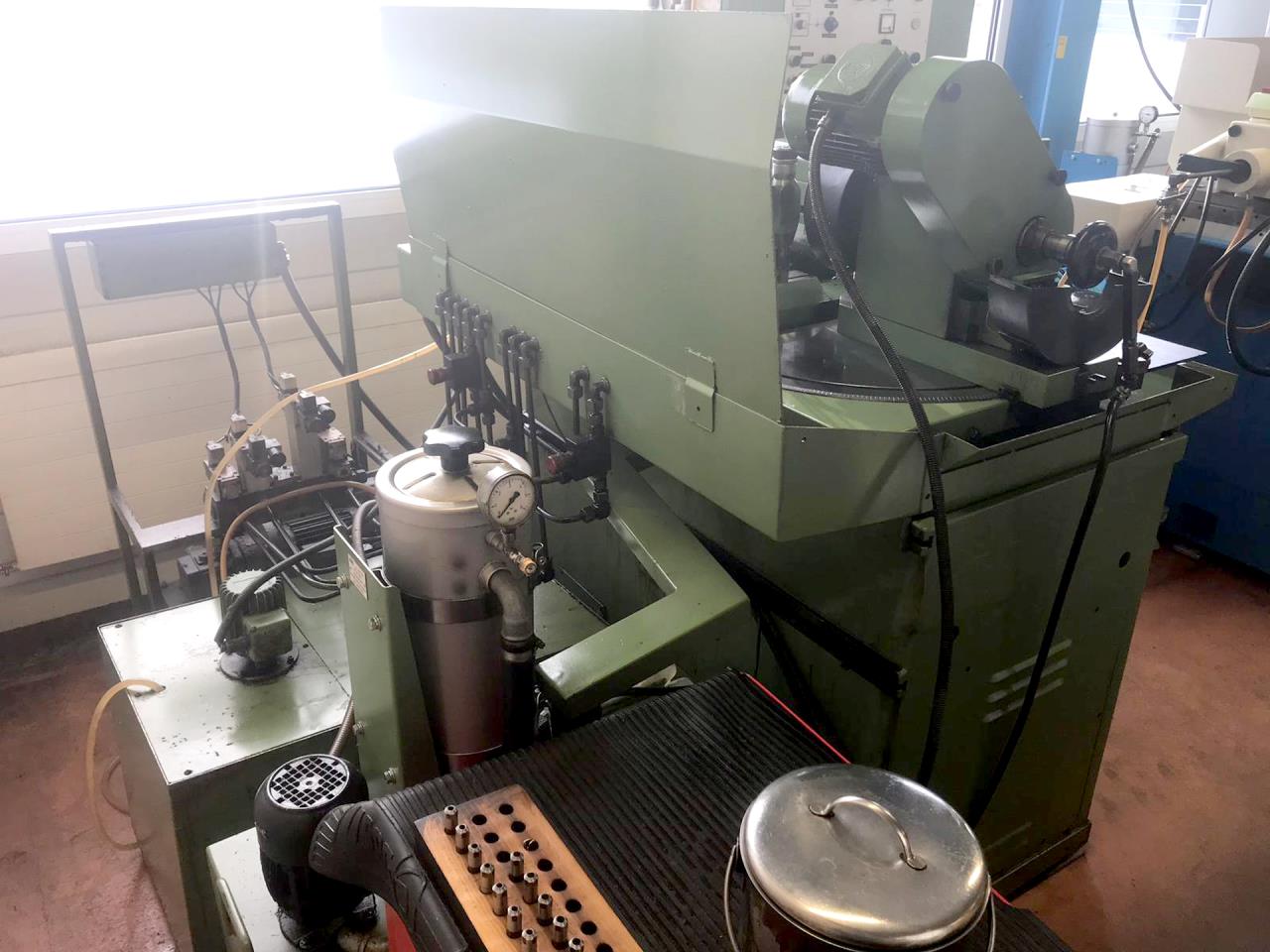

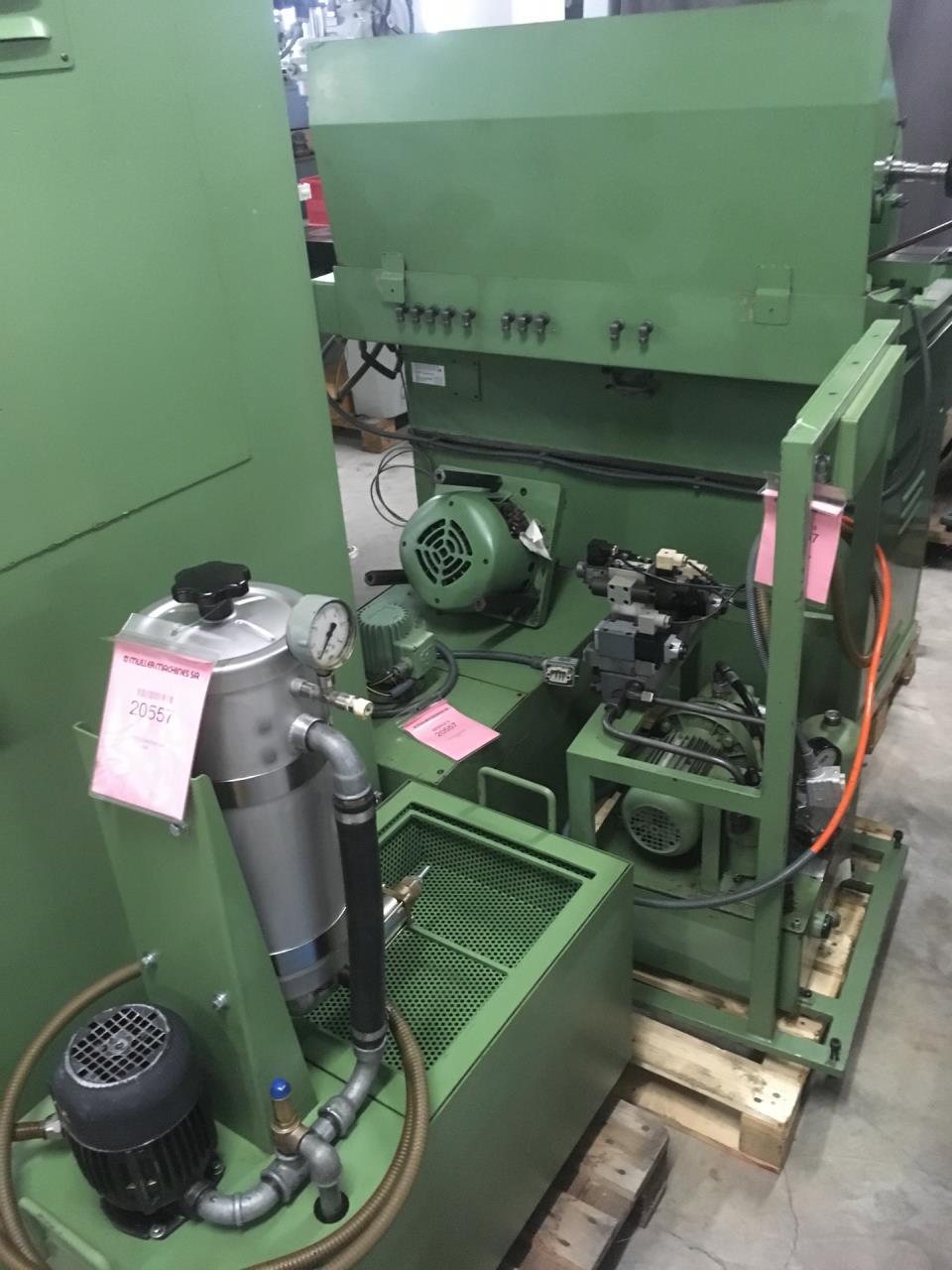

Coolant system

Technical specifications and pictures without guarantee.
