Technical data
Table length
200 mm
Table width
120 mm
Grinding-wheel diameter
75 - 150 mm
Grinding head:
Spindle inclination (A-axis)
-15 - 25 °
Height adjustment (Y-axis)
150 mm
Hublage adjustment (X-axis)
90 mm
Grinding spindle speeds:
number (steps)
4
from
1000 rpm
up to
4500 rpm
Workpiece carriage:
Radius adjustment (Z-axis)
80 mm
Adjustment accuracy of the Z axis
0.01 mm
Courses support
120 mm
Max. Swivel angle (B-axis)
355 °
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
1 HP
Machine's weight about
800 kg
Overall dimensions machine:
Length
1180 mm
Width
1080 mm
Height
1520 mm
Various accessories:
Lamp

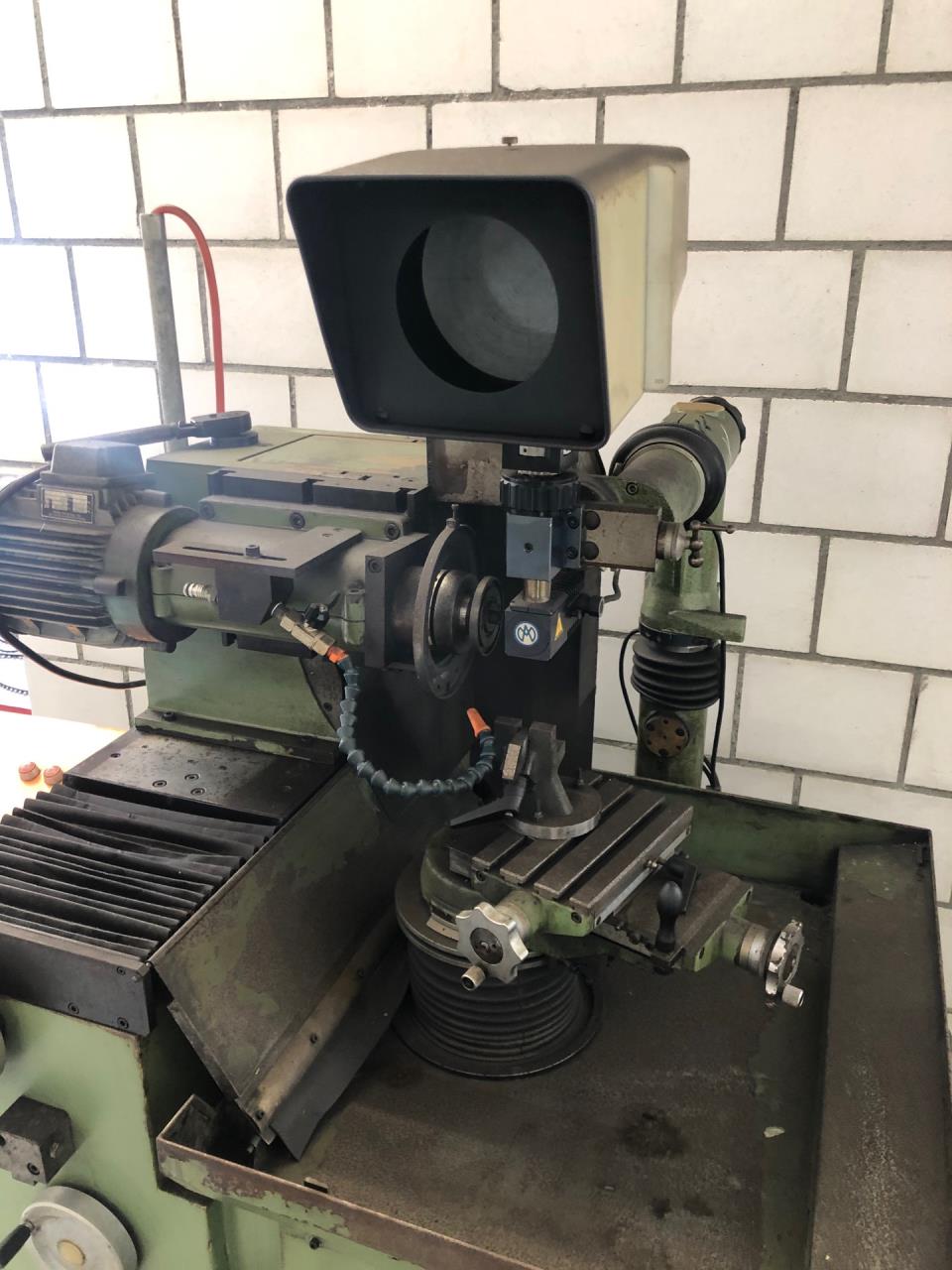

Profil projector
Technical specifications and pictures without guarantee.
