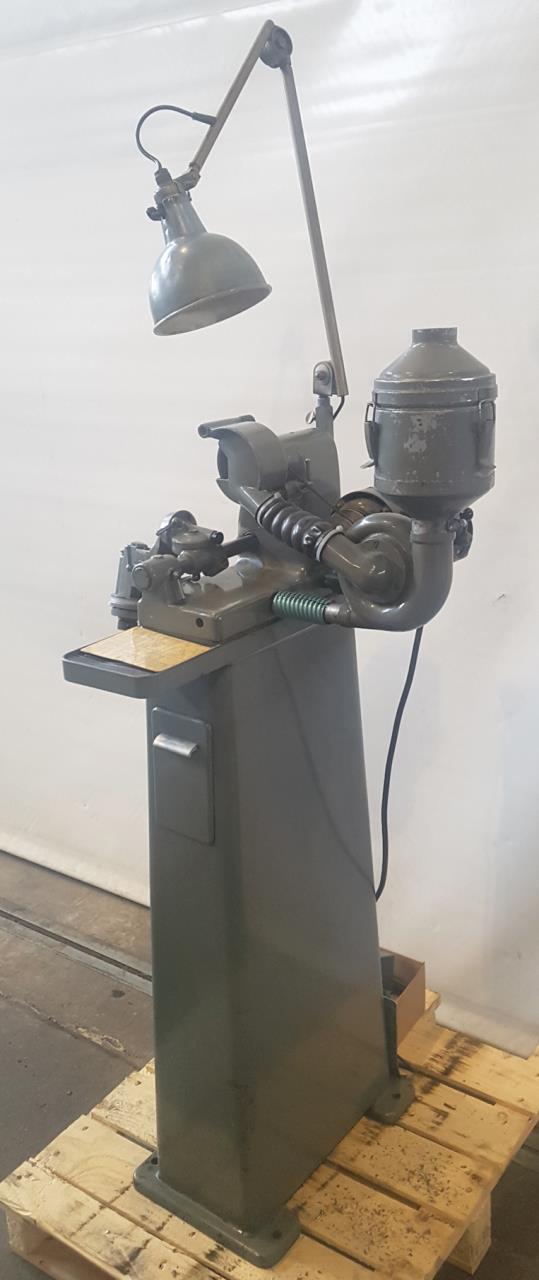

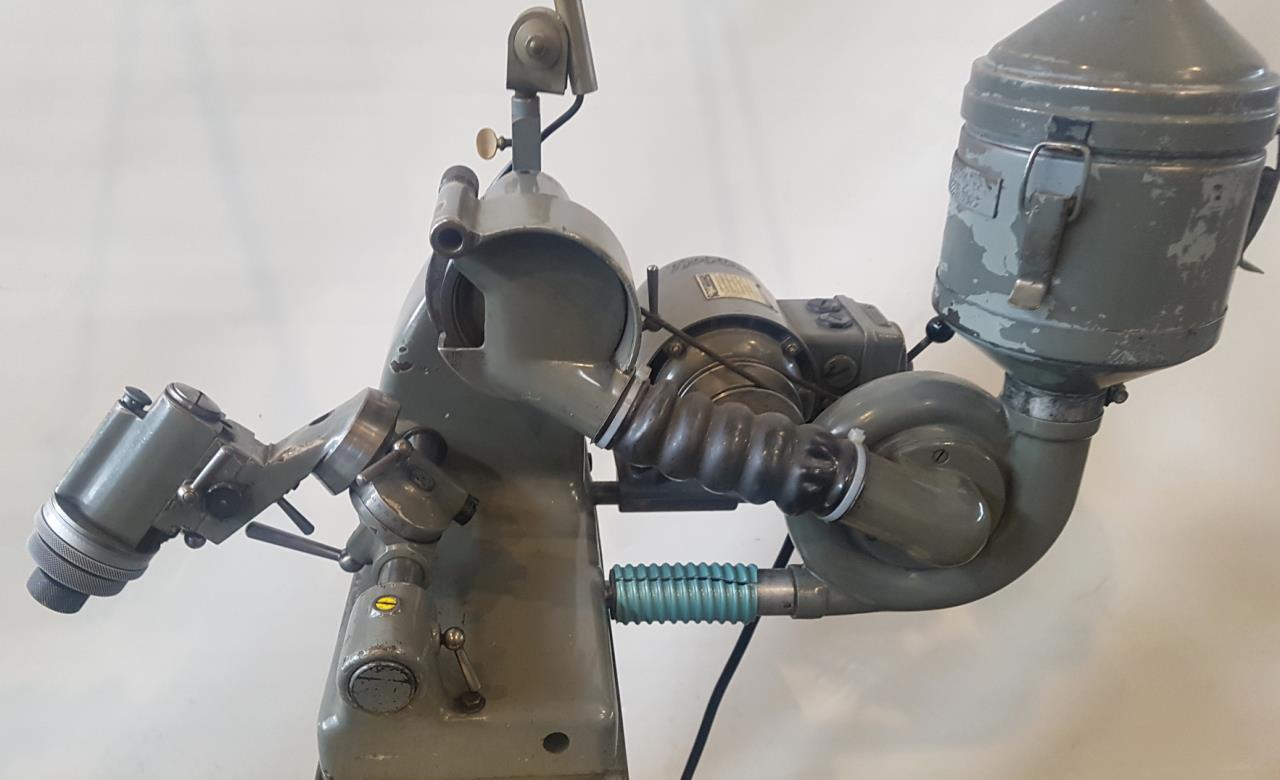

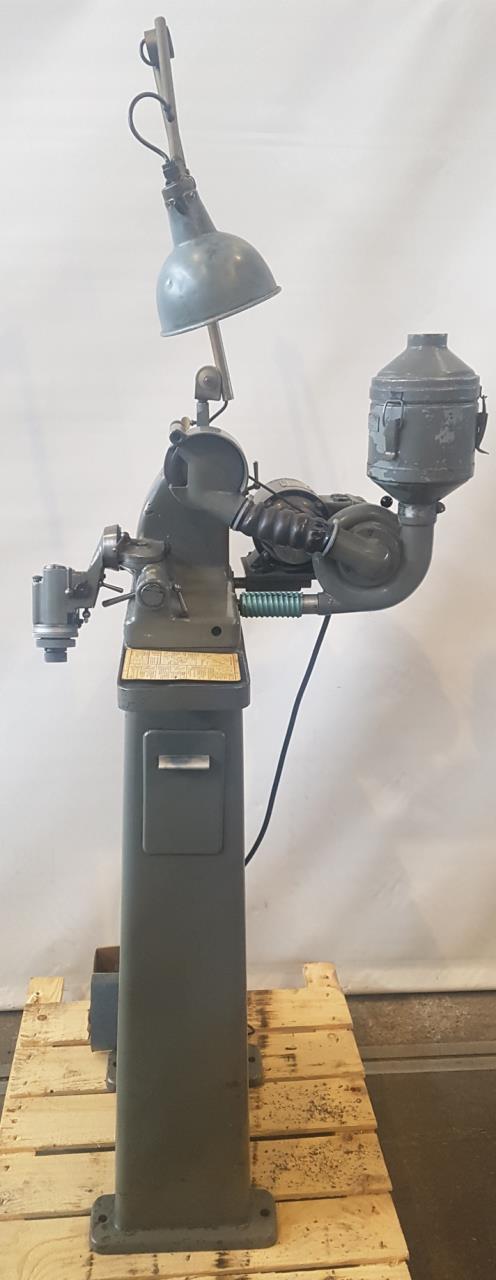

DECKEL SOE 4 Image(s)
Back
Technical data
Min. milling cutter diameter
0.5 mm
Max. milling cutter diameter
17.5 mm
Max. radius to grind
10 mm
Collet drill
17.5 mm
Relief grinding angle max.
45 °
Grinding wheel speeds fix
4500 rpm
Voltage 50 Hz 3x
380 Volt
Motor power
0.55 kW
Machine's weight about
125 kg
Overall dimensions machine:
    Length
660 mm
    Width
570 mm
    Height
1400 mm

Technical specifications and pictures without guarantee.
