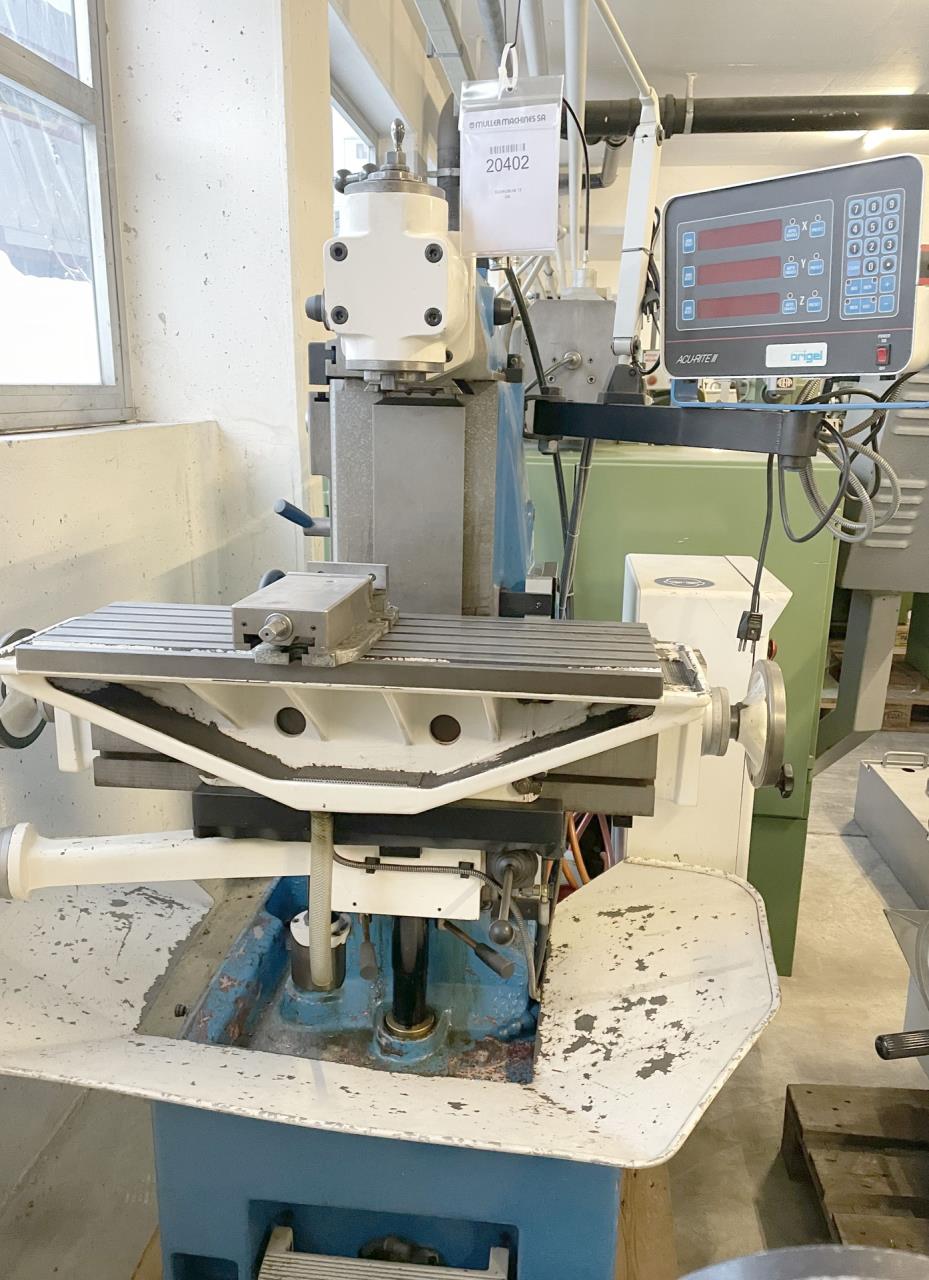

SCHAUBLIN 13 6 Image(s)
Back
Technical data

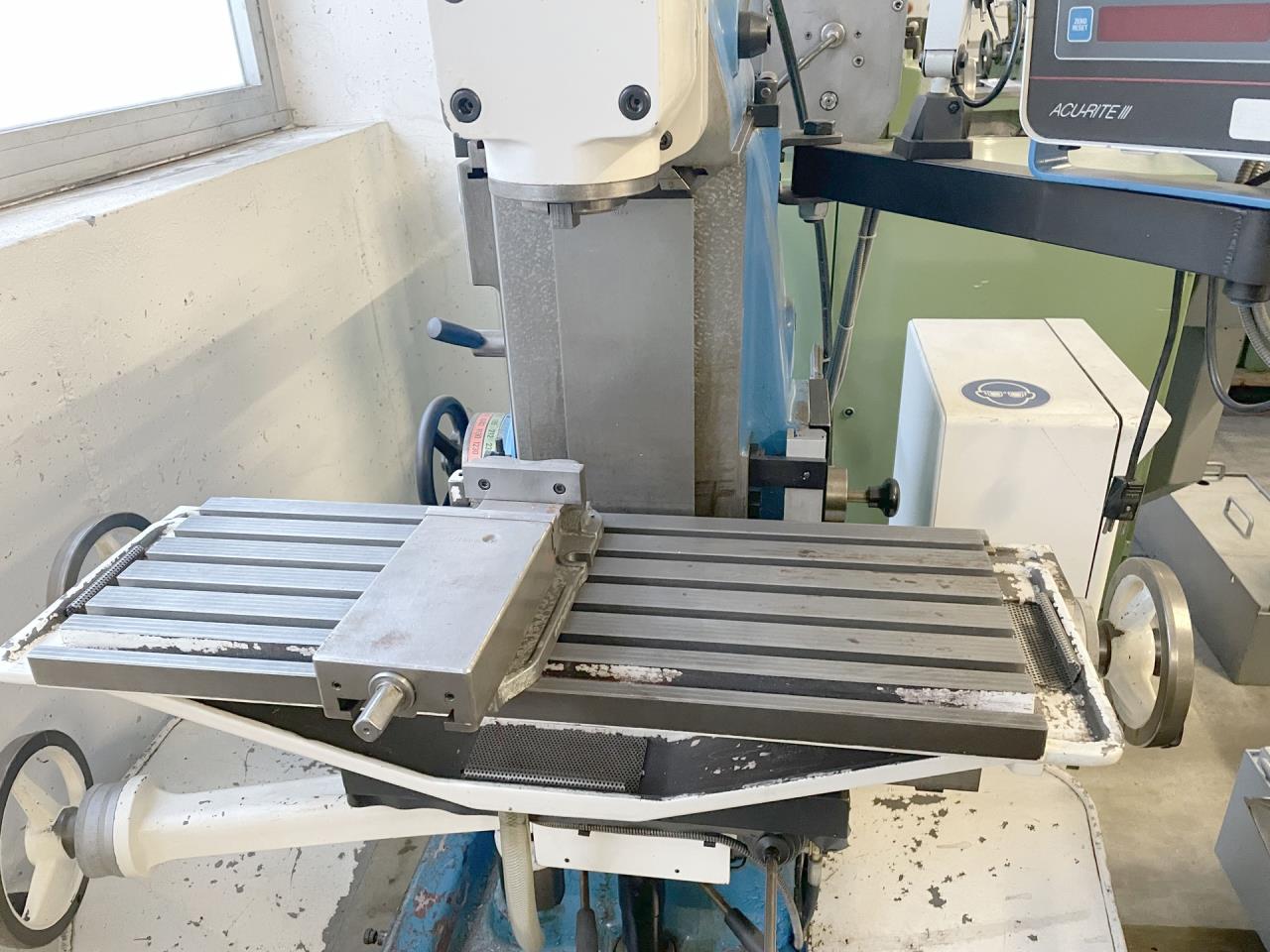

Table length
600 mm
Table width
210 mm
Longitudinal travel (X-axis)
260 mm
Transversal travel (y axis)
150 mm
Vertical travel (z axis)
310 mm
Travel of the upper slide
mm
Distance from vertical spindle to table
310 mm
Distance from horizontal spindle to table
410 mm
Spindle speeds:
    stepless
       from
58 rpm
       up to
2000 rpm
Taper in spindle
30 ISO
Feeds steps:
10
Feeds stepless:
    longitudinal from
12.0 mm/min
       up to
400 mm/min
    vertical from
12.0 mm/min
       up to
400 mm/min
Rapid traverse:
    longitudinal
1.2 m/min
    vertical
1.2 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
2.0 HP
Total power required
3.0 HP
Total power required
kVA
Machine's weight about
700 kg
Overall dimensions machine:
    Length
1500 mm
    Width
1100 mm
    Height
1600 mm
Various accessories:
Vice: width
100 mm

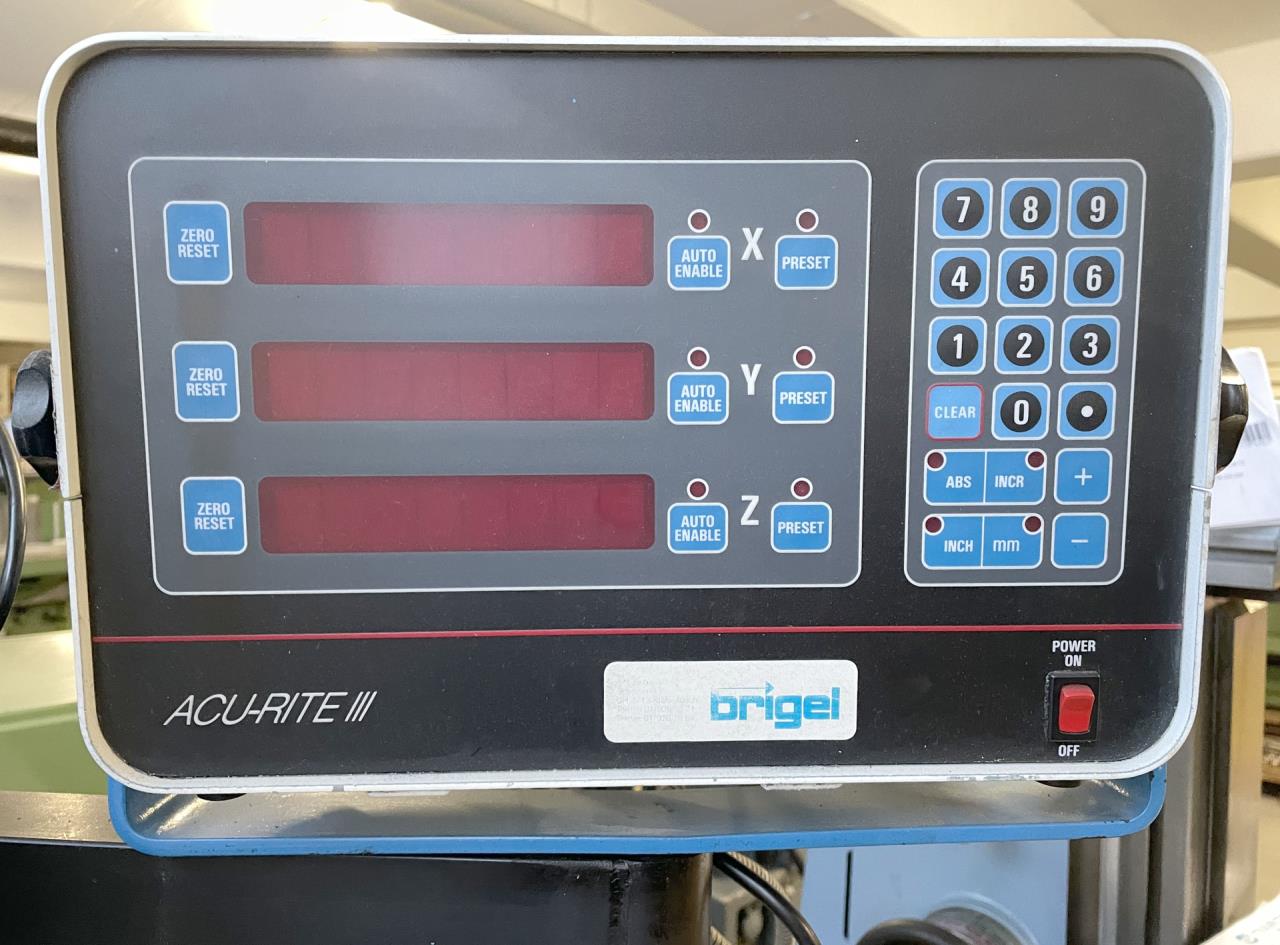

Digital readout number of axis:
3
Rigide table

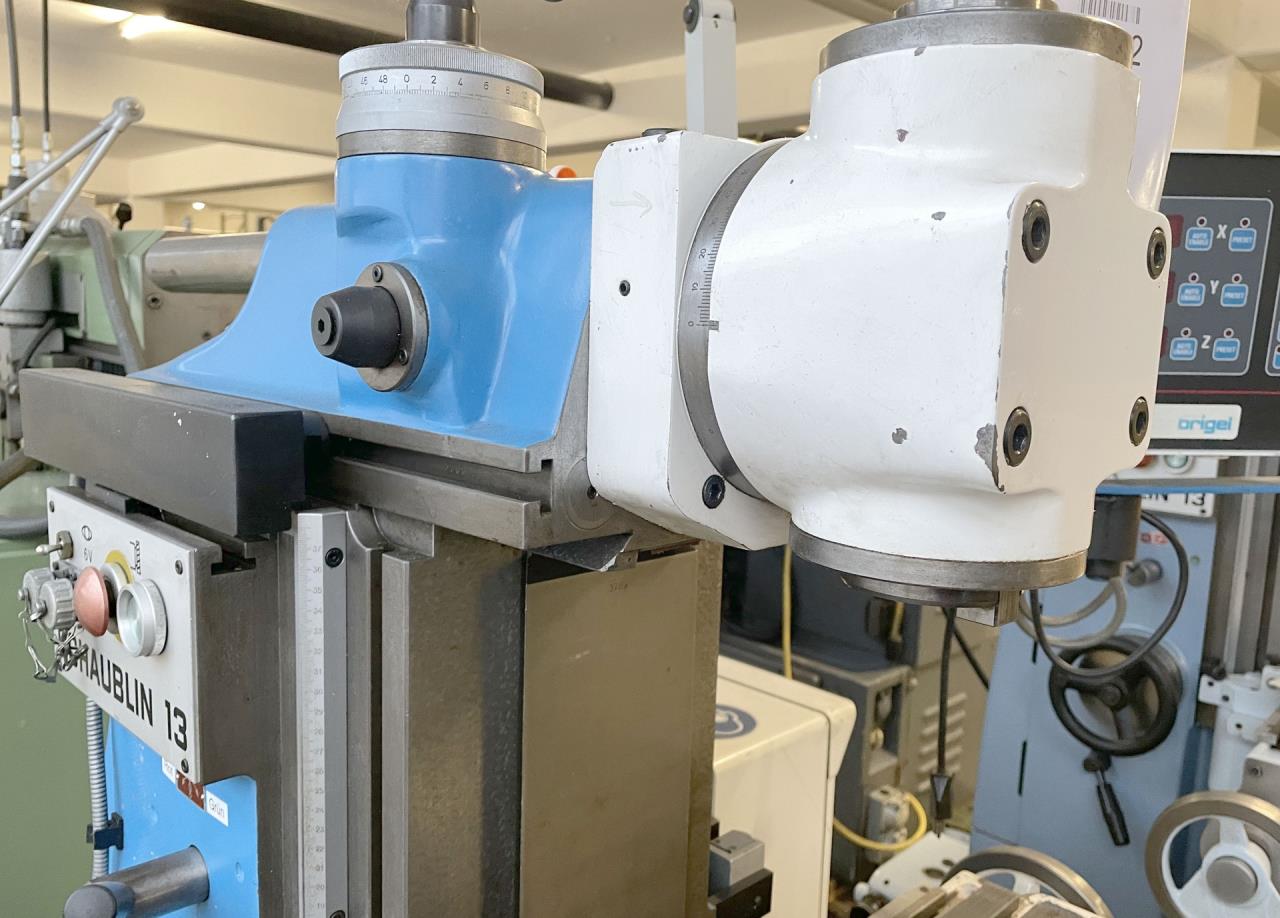

Quick drill and milling head

Technical specifications and pictures without guarantee.
