Technical data
Table length
840 mm
Table width
250 mm
Grinding length
600 mm
Grinding width
320 mm
hydraulic
with automatic cycle
to spindle-centreline
500 mm
Longitudinal travel (X-axis)
680 mm
Transversal travel (y axis)
270 mm
Automatic cross-feed:
stepless
from
0 m/min
up to
3 m/min
Table speeds:
stepless
from
0 m/min
up to
30 m/min
Diameter of grinding wheel
300 mm
Width of the grinding wheel
50 mm
Wheel int. diameter
127 mm
Grinding wheel speeds:
stepless
from
665 rpm
up to
2388 rpm
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
7.8 HP
Machine's weight about
2600 kg
Overall dimensions machine:
Length
1880 mm
Width
1430 mm
Height
2300 mm
Various accessories:
Coolant system

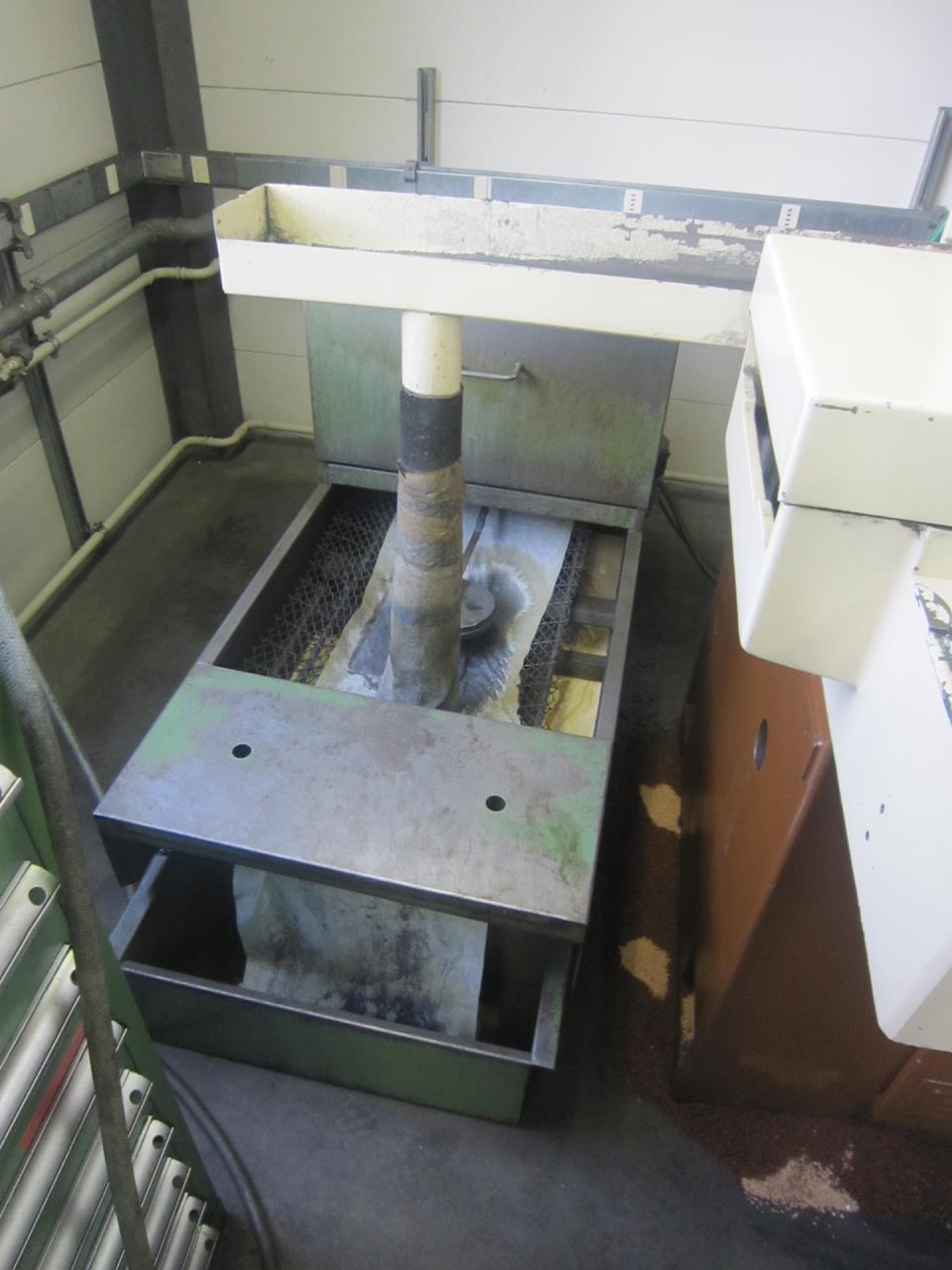

Paper filter facility
Electrical magnetic chuck
Length
600 mm
Width
250 mm
Central lubrification
Technical specifications and pictures without guarantee.
