stock no. :
20202
Machine's group :
Type :

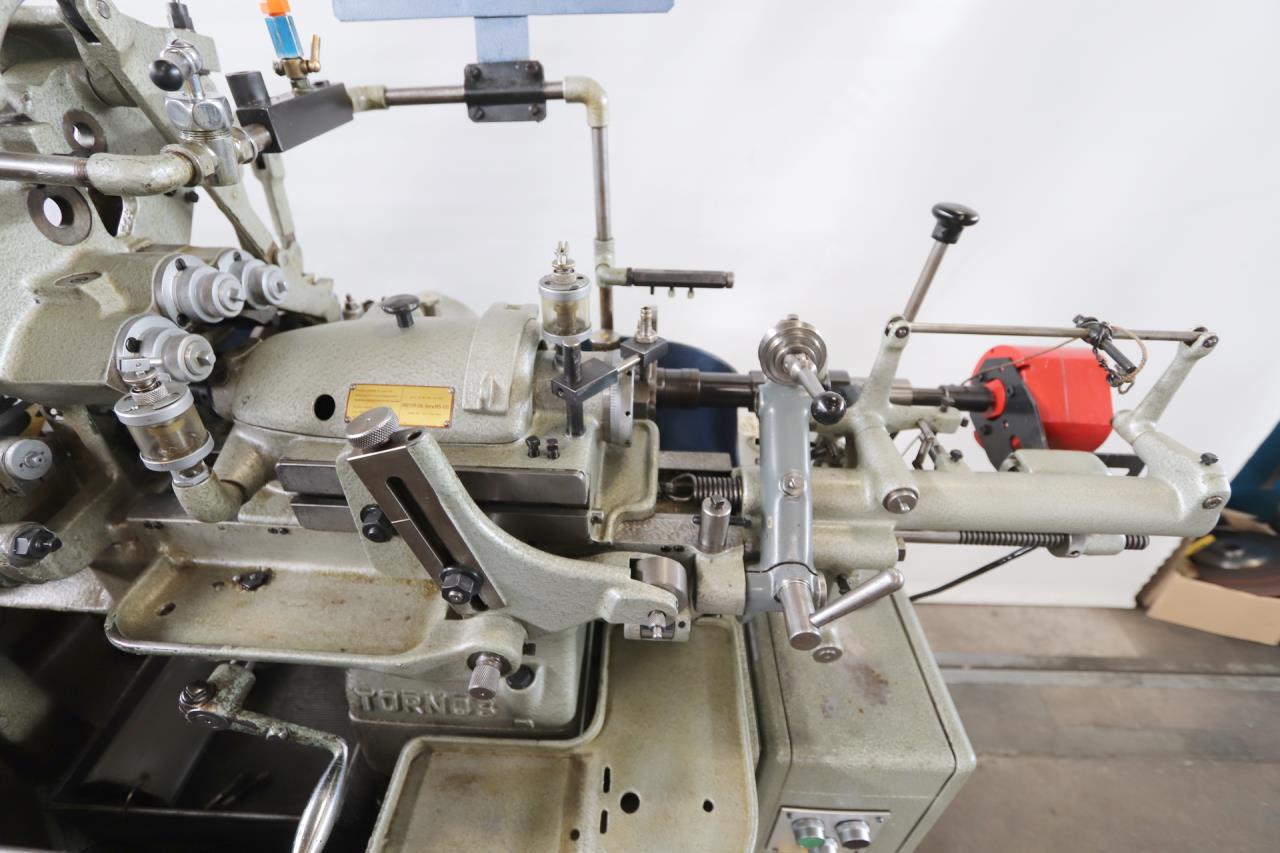

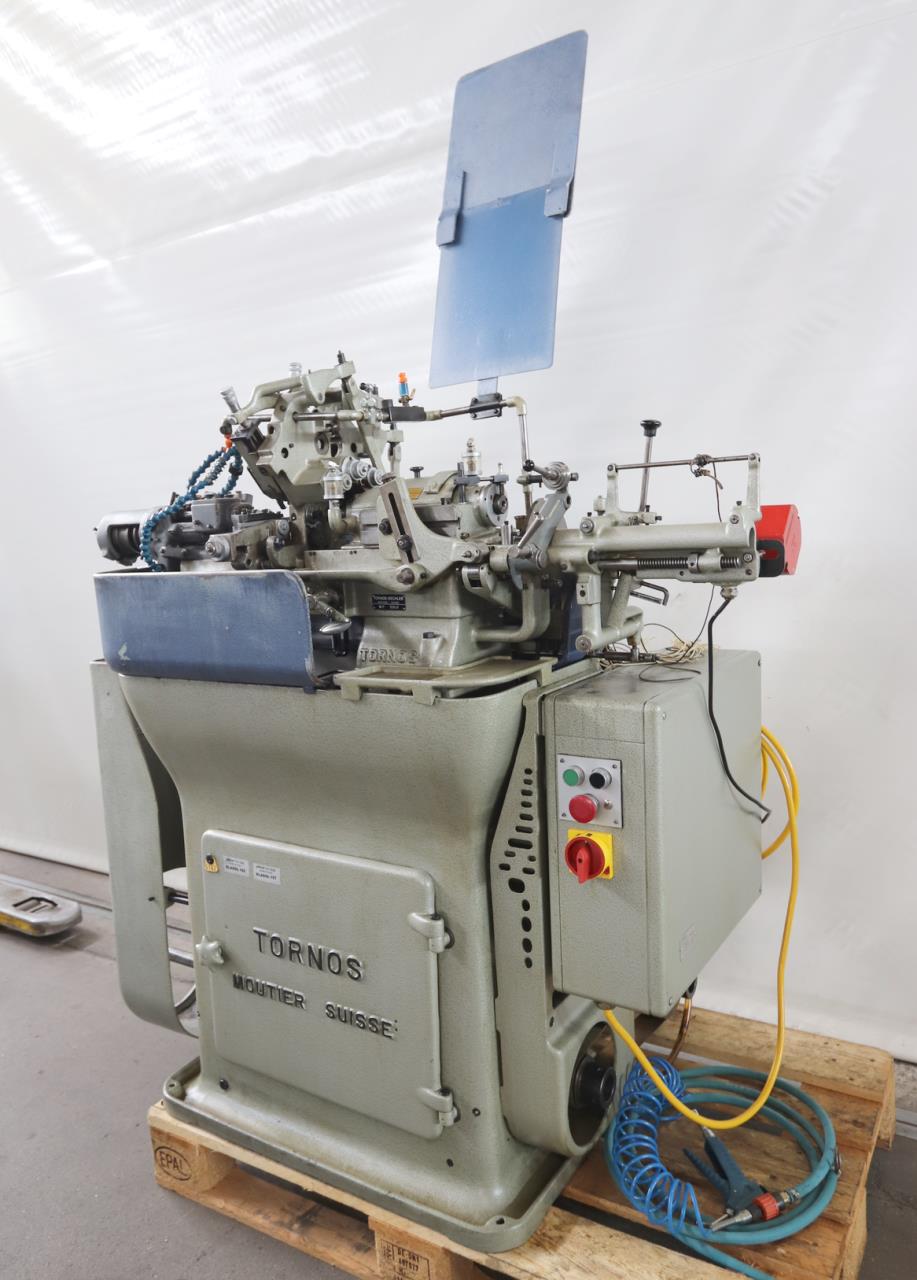

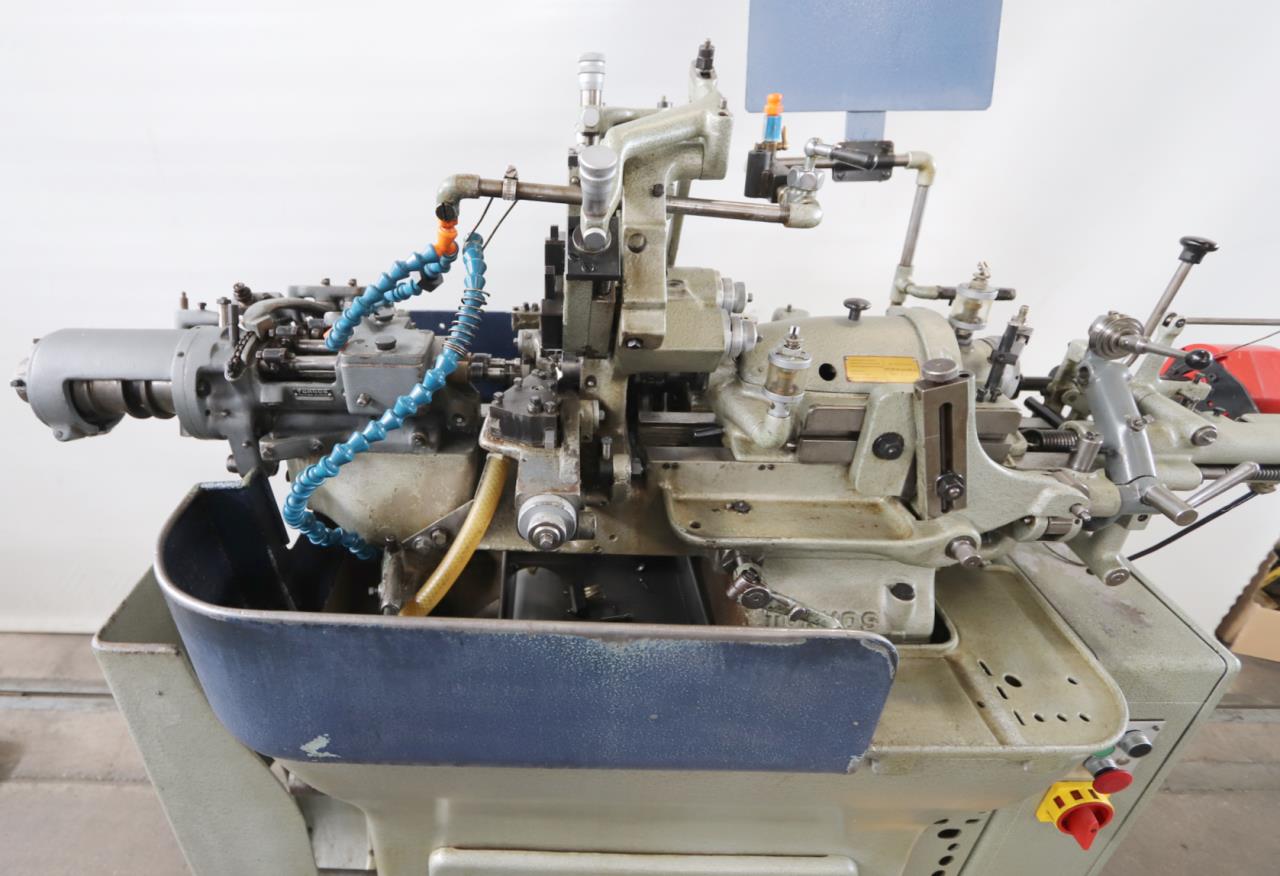

TORNOS M 7
TORNOS M 7 4 Image(s)
Back
Technical data
Diameter of work admitted
7 mm
Max. turning length:
    with flat cames
60 mm
Spindle hole
8 mm
Max. treading diameter
6 M (Metric)
Number of tool cutters
5
Spindle speeds:
Number of spindle speeds
20
    from
1400 rpm
    up to
10000 rpm
Voltage 50 Hz 3x
380 Volt
Total power required
2 HP
Machine's weight about
520 kg
Overall dimensions machine:
    Length
1200 mm
    Width
700 mm
    Height
1400 mm
Various accessories:
Protective cover

Technical specifications and pictures without guarantee.
