Technical data
Min. internal grinding diameter
0.5 mm
Max. internal grinding diameter
20 mm
Grinding depth
100 mm
Centre height
60 mm
Distance between centres
150 mm
Workpiece spindle speeds:
number (steps)
3
from
560 rpm
up to
1000 rpm
Spindle hole
12 mm
Taper in spindle:
12 W
Grinding spindle speeds:
from
90000 rpm
up to
120000 rpm
Rotatable grinding spindle head (b-axis)
+ 45 / - 45 °
Voltage 50 Hz 3x
380 Volt
Machine's weight about
250 kg
Overall dimensions machine:
Length
900 mm
Width
750 mm
Height
1300 mm
Various accessories:
Automatic internal grinding support
AMI 25
Set of flanges

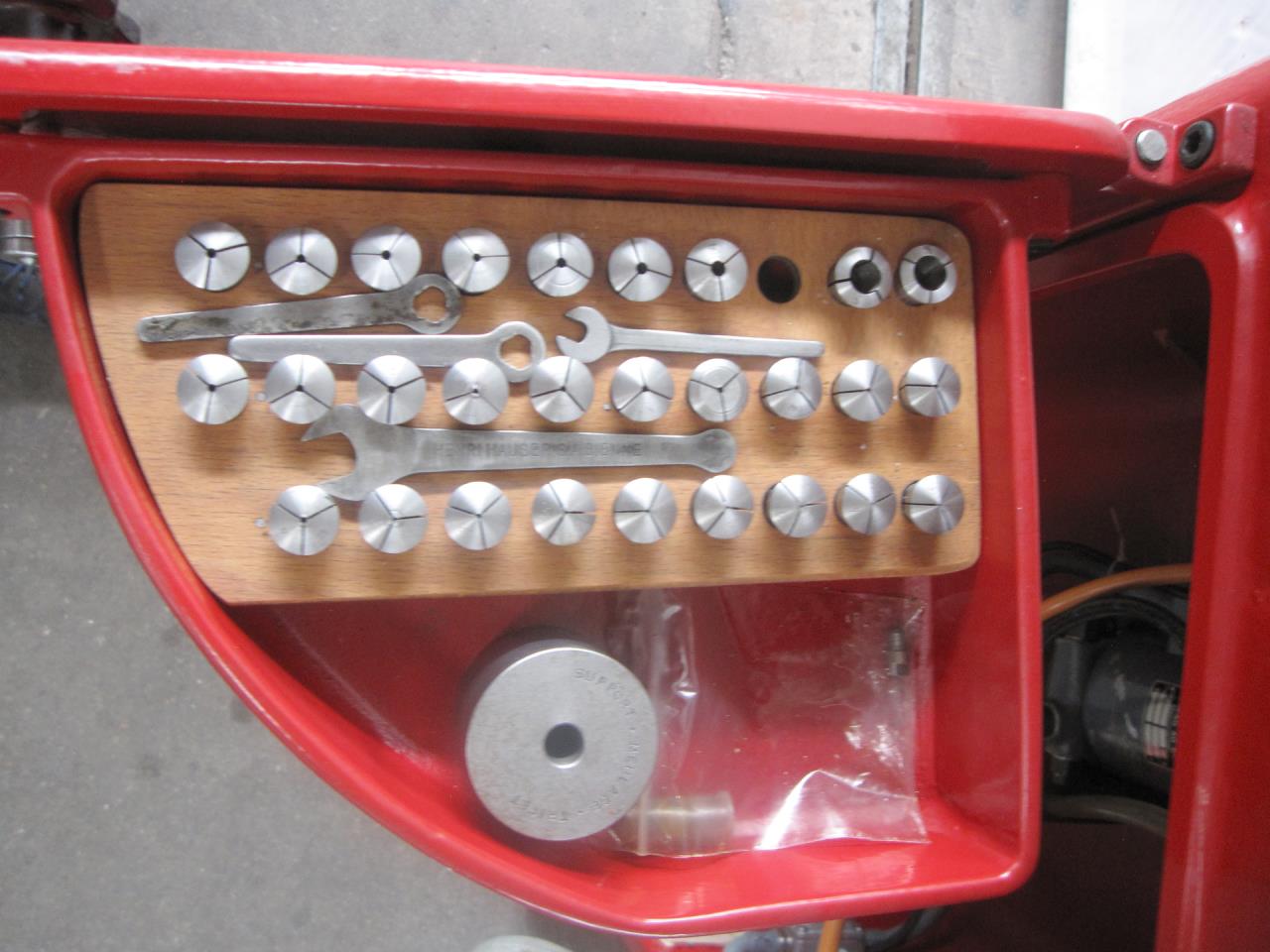

Set of collets
W 12
Lamp
Air spindle
Set of service tools
Technical specifications and pictures without guarantee.
