stock no. :
19049
Machine's group :
Tool and cutter grinder
Type :

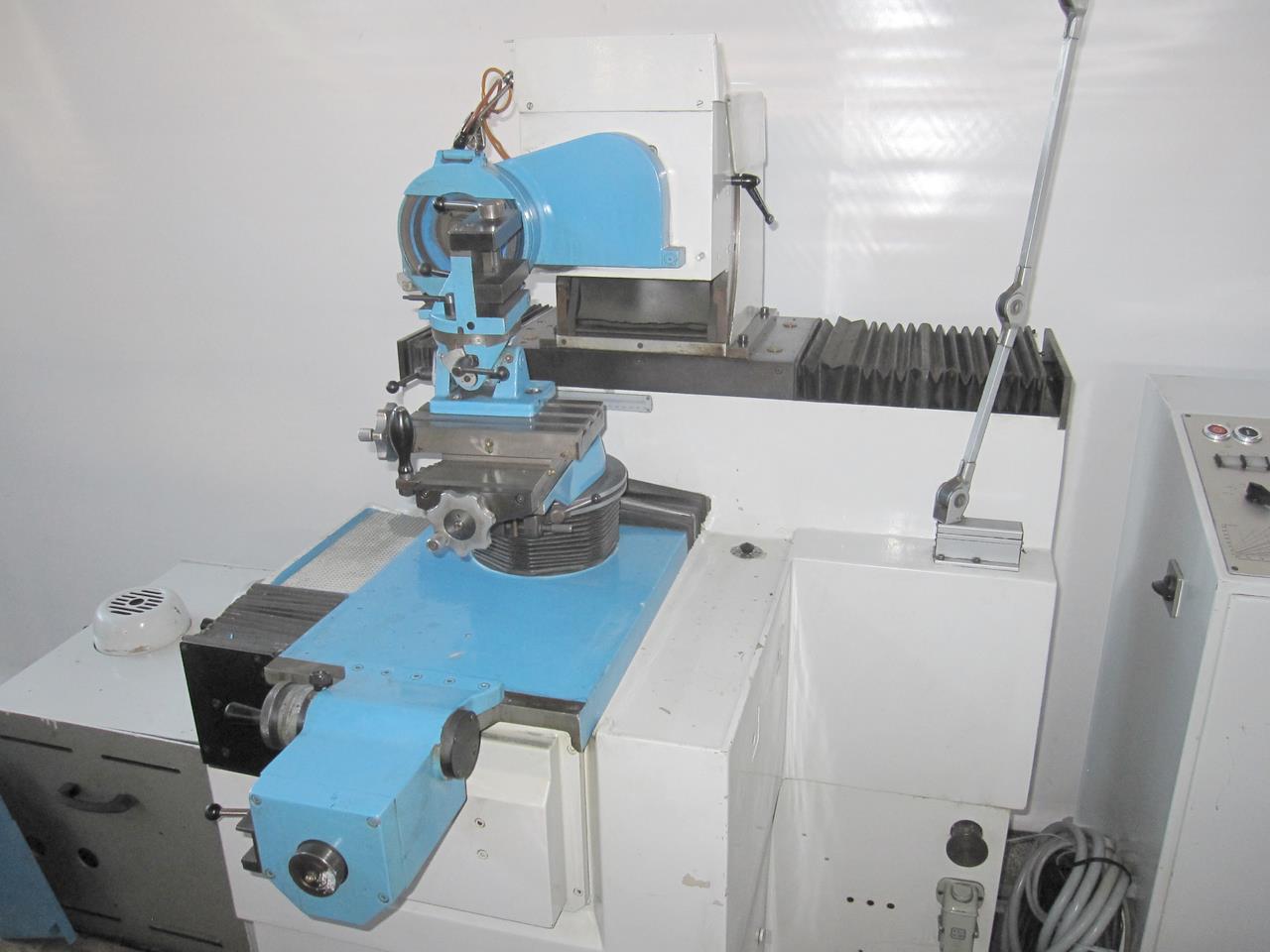

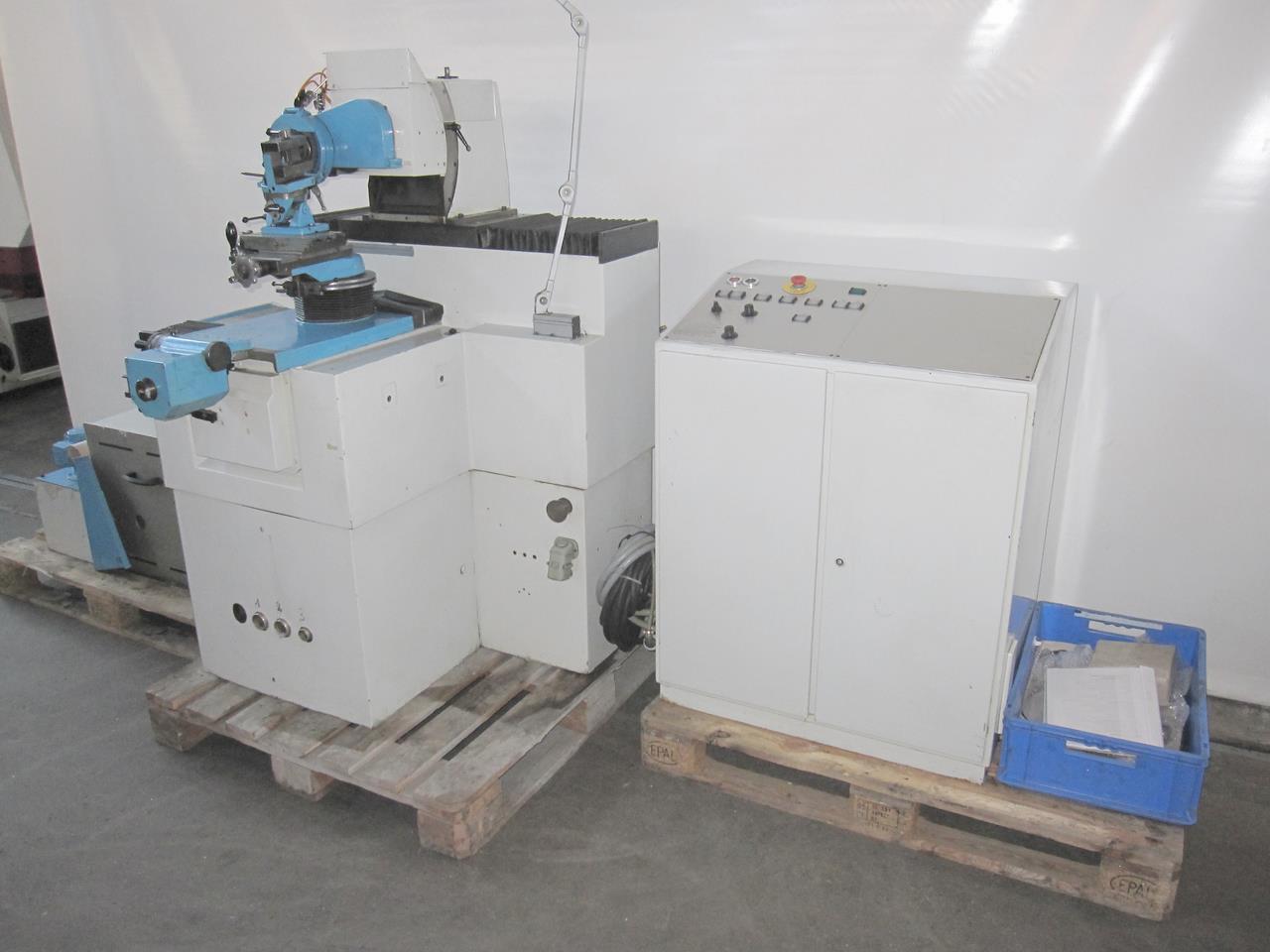

EWAG RS 3 H
Information request
EWAG RS 3 H 6 Image(s)
Back
Technical data
Grinding-wheel diameter
75 - 150 mm
rotary axis of the grinding spindle head
-15 / +25 °
Grinding spindle speeds:
       from
1000 rpm
       up to
4500 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
1 HP
Machine's weight about
800 kg
Overall dimensions machine:
    Length
1180 mm
    Width
1080 mm
    Height
1520 mm

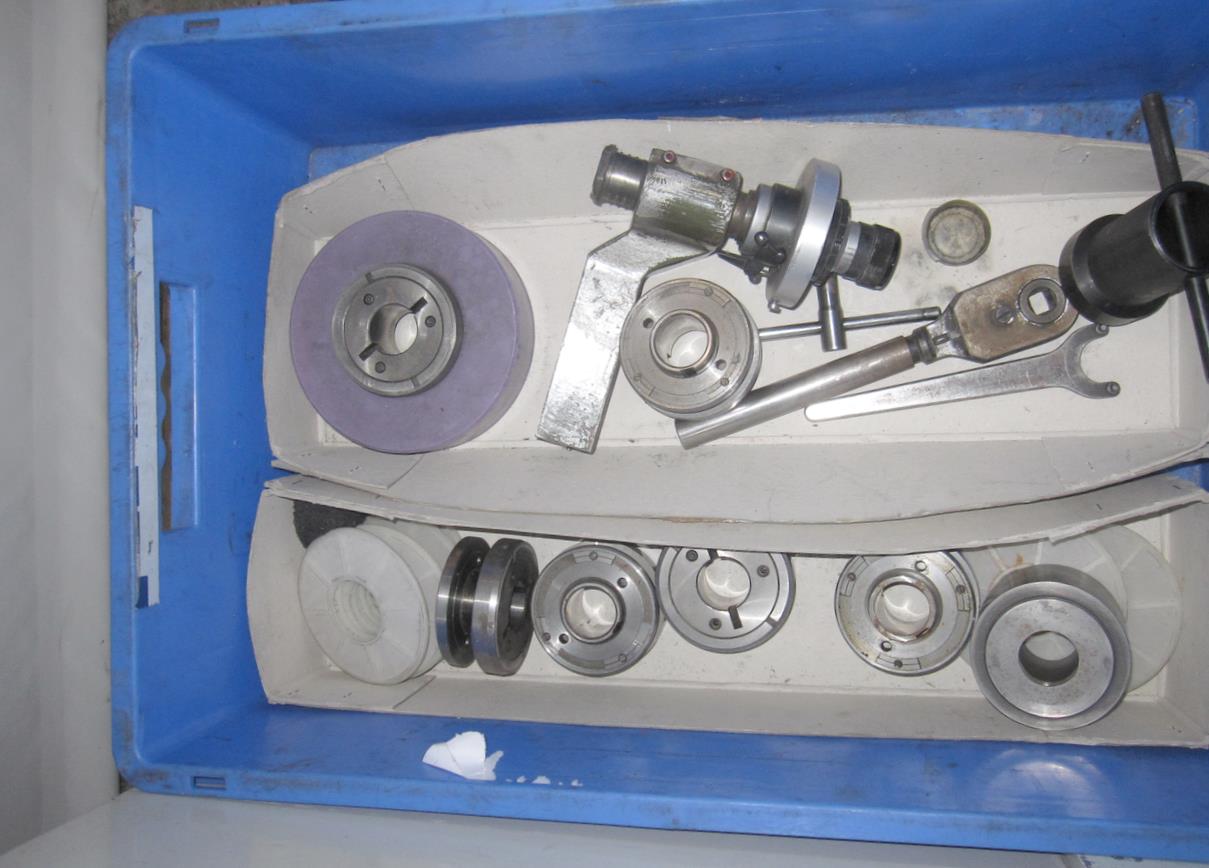

Various accessories:
Coolant system

Technical specifications and pictures without guarantee.
