Technical data
Table length
700 mm
Table width
370 mm
Clamping surface:
Length
580 mm
Width
280 mm
Drill capacity in steel
22 mm
Drill capacity in cast-iron
24 mm
Depth of throat
300 mm
Drill depth (spindle stroke)
120 mm
Spindle head adjustment
300 mm

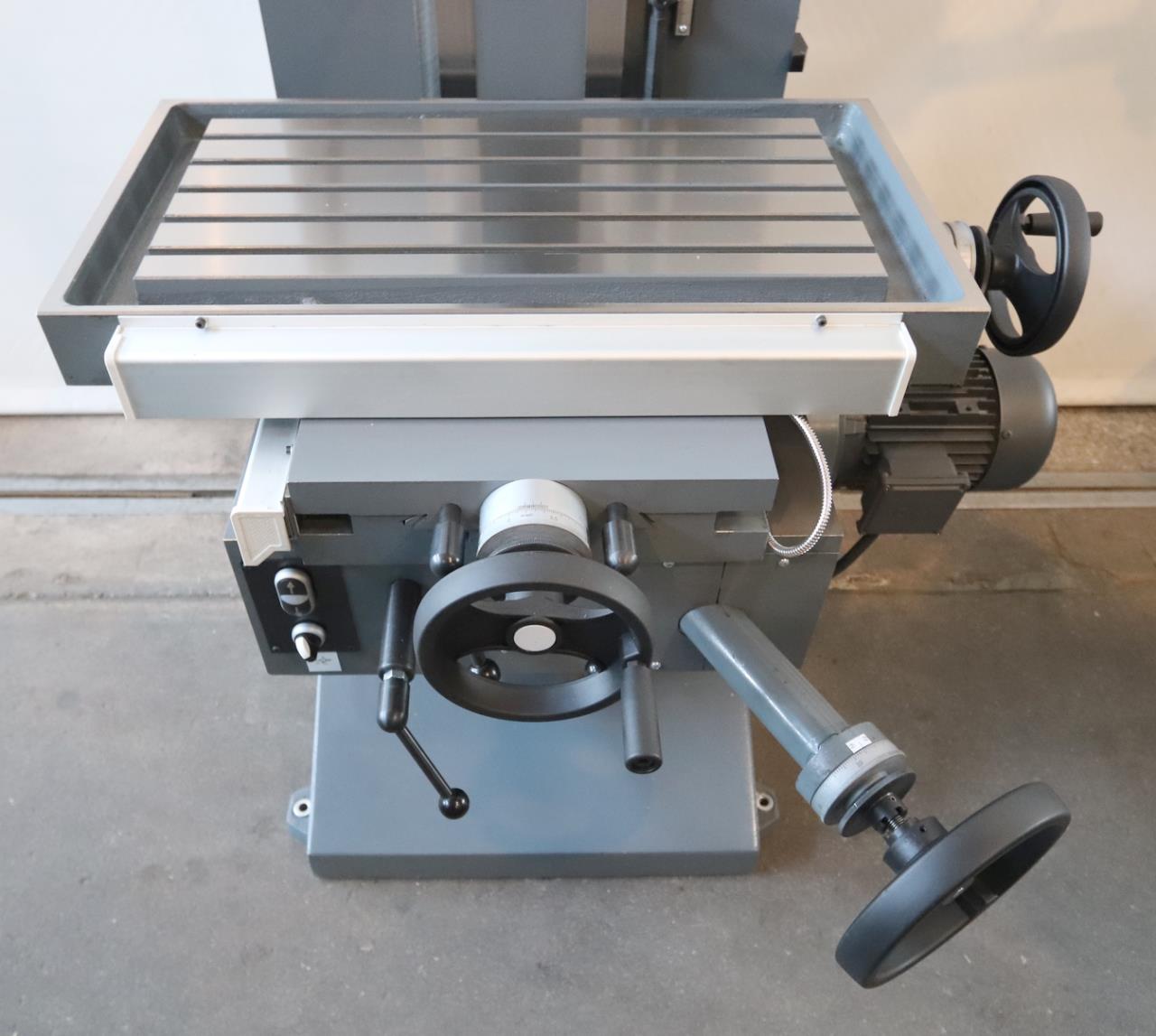

Table travels:
Longitudinal travel (X-axis)
330 mm
Transversal travel (y-axis)
210 mm
Vertical travel (z axis)
350 mm

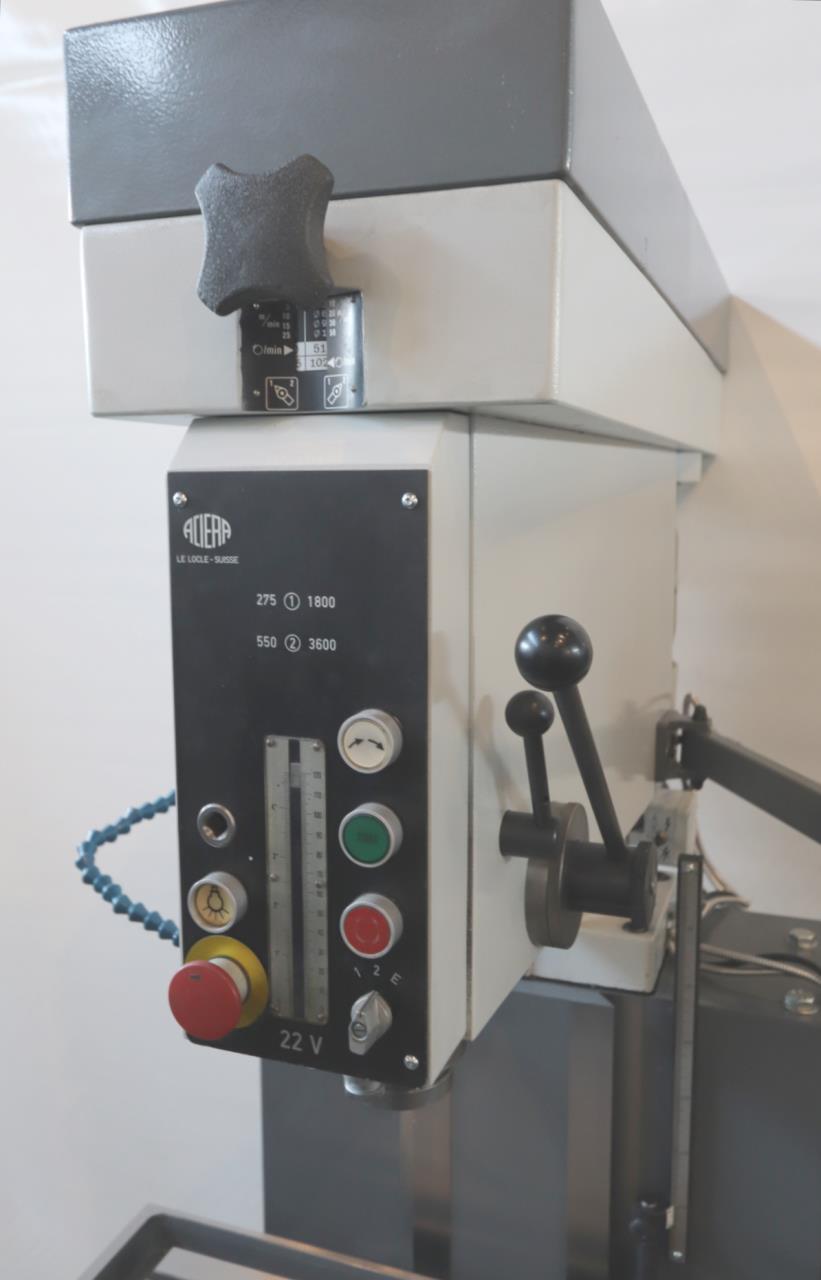

Spindle speeds:
stepless
from
275 rpm
up to
3600 rpm
Voltage 50 Hz 3x
380 Volt
Spindle motor
2 HP
Machine's weight about
990 kg
Overall dimensions machine:
Length
1100 mm
Width
600 mm
Height
2100 mm
Various accessories:
Preparation for coolant device
Lamp
Quick change device

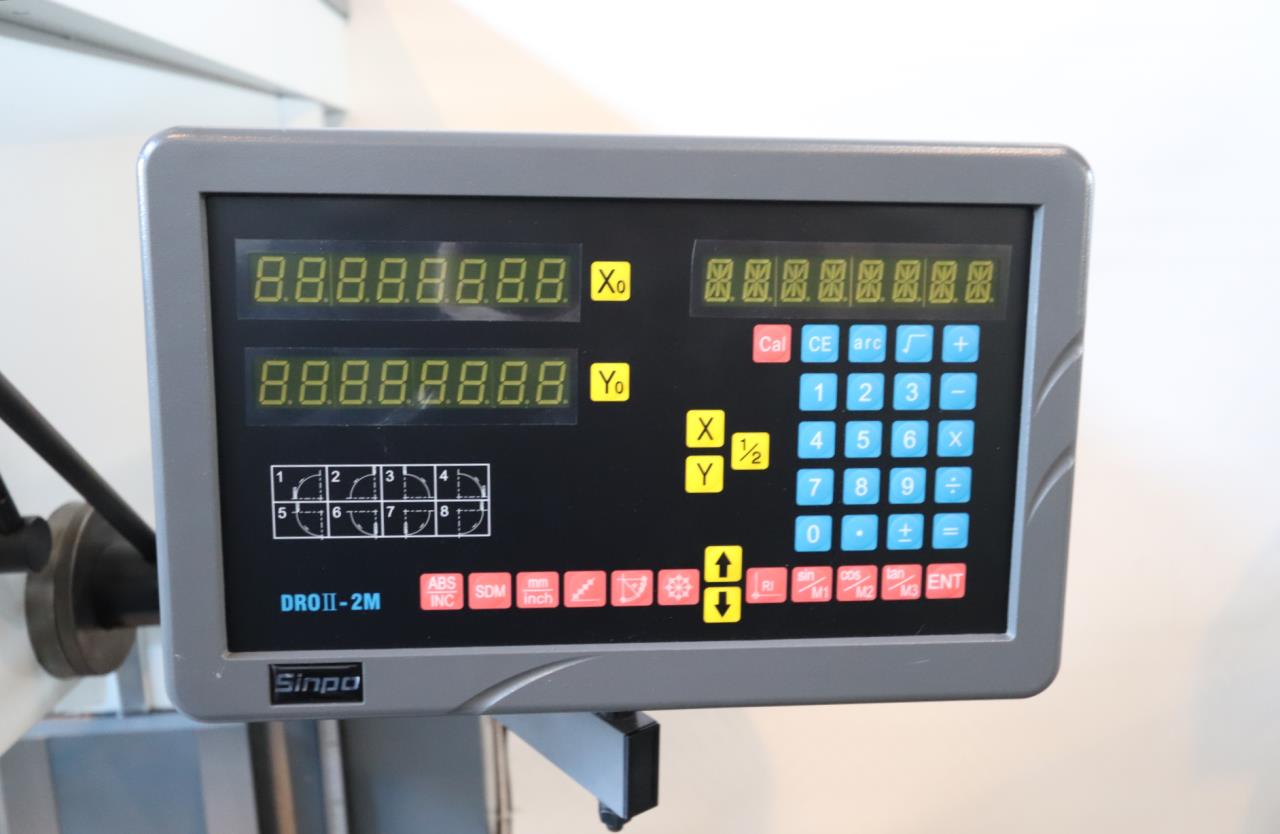

Digital readout number of axis:
2
Motorized table adjustment
Technical specifications and pictures without guarantee.
