stock no. :
18818
Machine's group :
Type :

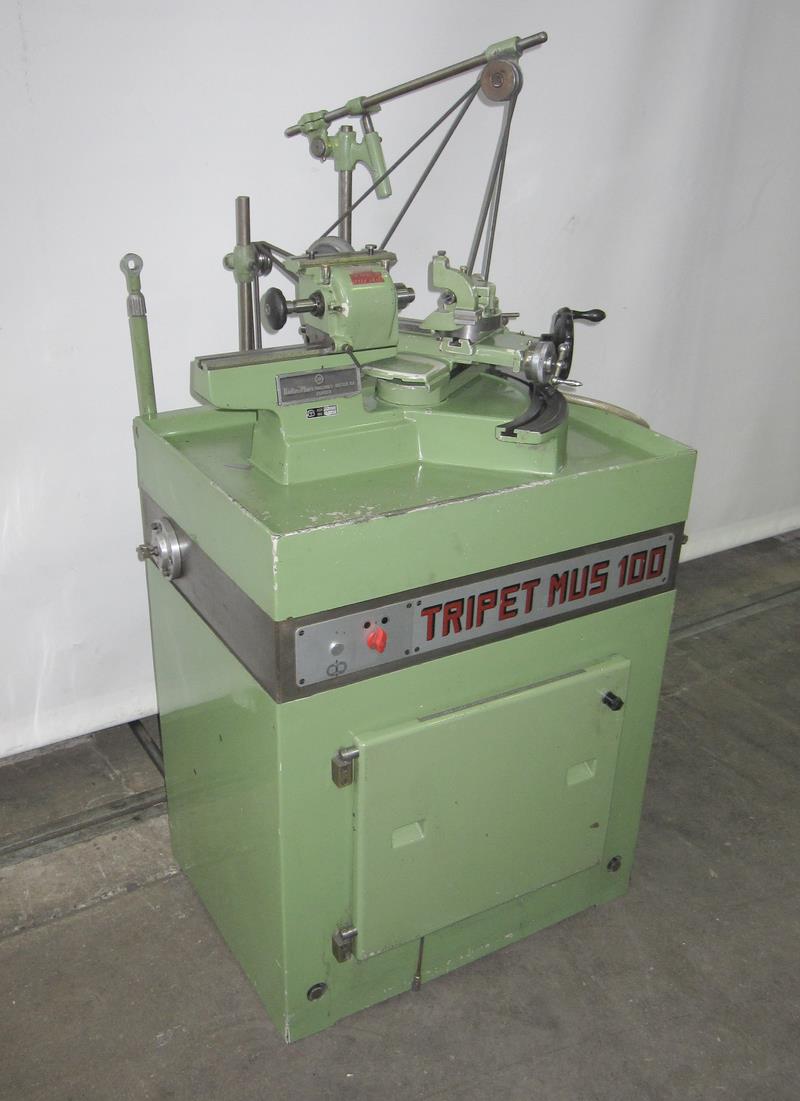

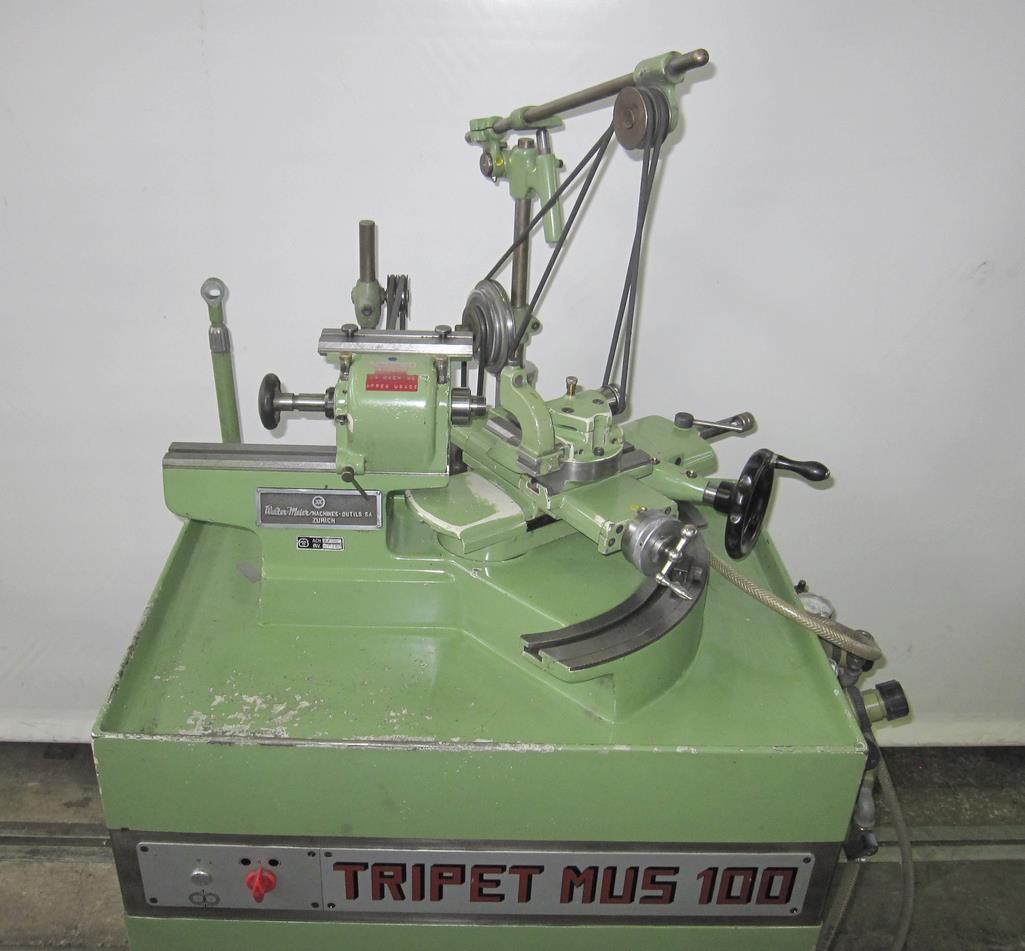

TRIPET MUS 100
TRIPET MUS 100 5 Image(s)
Back
Technical data
Max. internal grinding diameter
20 mm
Centre height
60 mm
Distance between centres
150 mm
Workpiece spindle speeds:
    number (steps)
3
       from
560 rpm
       up to
1000 rpm
Spindle hole
12 mm
Taper in spindle:
12 W
Possible grinding-spindle speeds:
    from
6000 rpm
    up to
9000 rpm
Rotatable grinding spindle head (b-axis)
+45 / -45 °
Voltage 50 Hz 3x
380 Volt
Machine's weight about
250 kg
Overall dimensions machine:
    Length
900 mm
    Width
750 mm
    Height
1300 mm

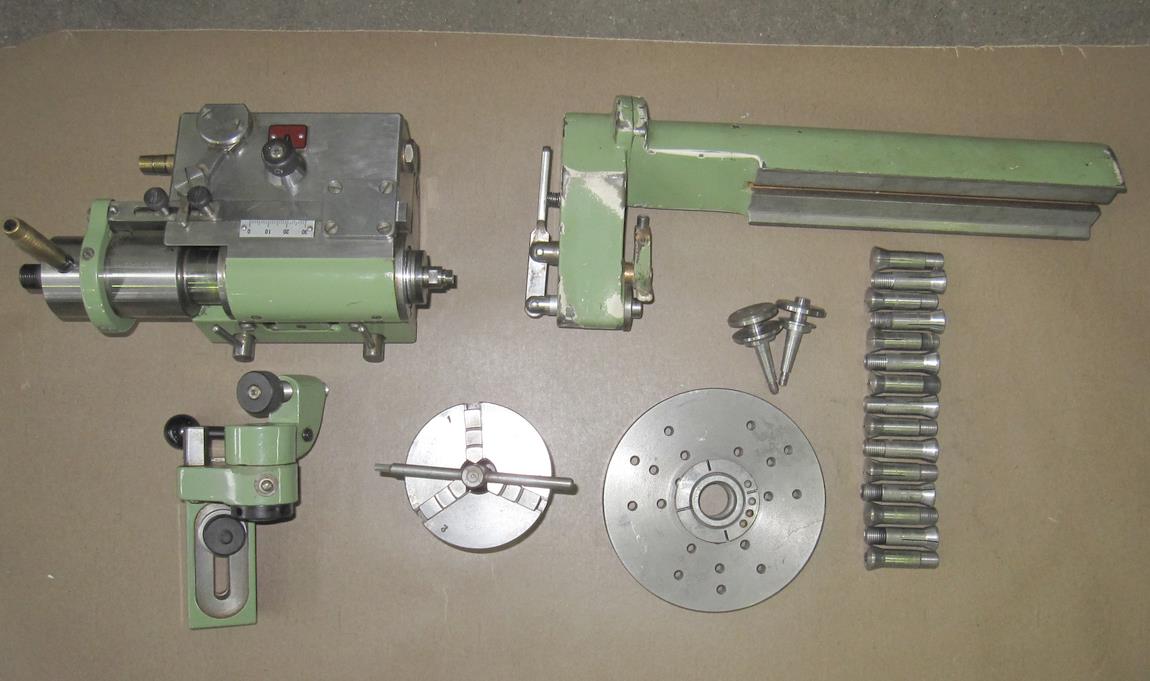

Various accessories:
3-jaw chuck diameter
mm
Horizontal grinding spindle support
Set of flanges

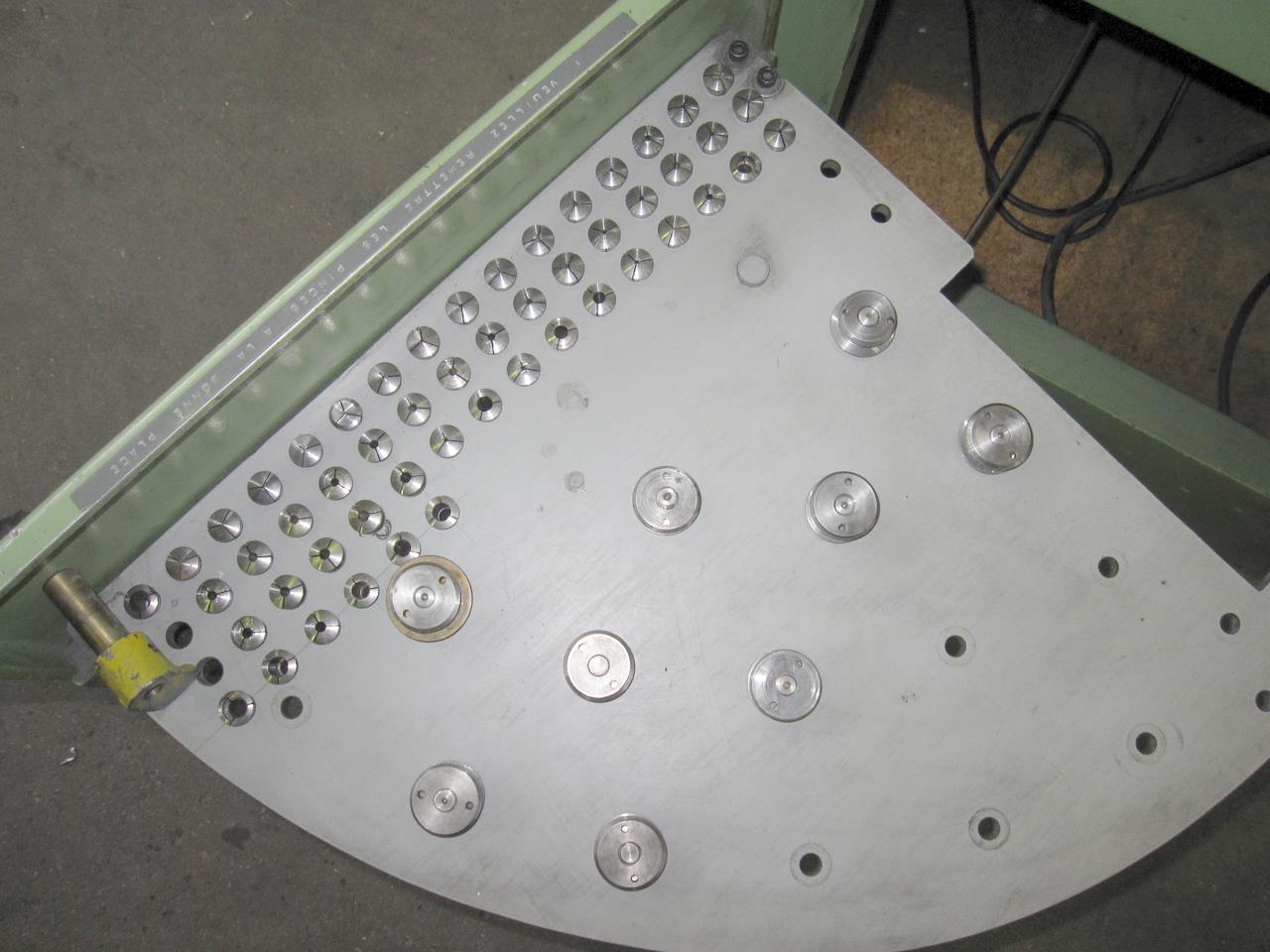

Set of collets
W 12
Steady
External grinding spindle

Technical specifications and pictures without guarantee.
