stock no. :
17659
Machine's group :
CNC milling machine
Type :
DECKEL FP 2 NC
Controller :
DECKEL DIALOG 3
Information request
DECKEL FP 2 NC 4 Image(s)
Back
Technical data
Table length
632 mm
Table width
277 mm
Longitudinal travel (X-axis)
300 mm
Transversal travel (y axis)
220 mm
Vertical travel (z axis)
400 mm
Table load max.
400 kg
Distance from vertical
    spindle to table
93 - 525 mm
Distance from spindle axis
Spindle speeds:
    number (steps)
21
       vertical from
31.5 rpm
       up to
3150 rpm
Feeds:
    stepless
       longitudinal from
2 mm/min
       up to
2000 mm/min
       transversal from
2 mm/min
       up to
2000 mm/min
       vertical from
2 mm/min
       up to
2000 mm/min
Rapid traverse:
4 m/min
Vertical quill travel
60 mm
Stroke of horizontal spindle
65 mm
Voltage 50 Hz 3x
380 Volt
Milling spindle motor
1.6 / 2 kW
Machine's weight about
1215 kg
Overall dimensions machine:
Length
2500 mm
Width
2100 mm
Height
1800 mm
Various accessories:

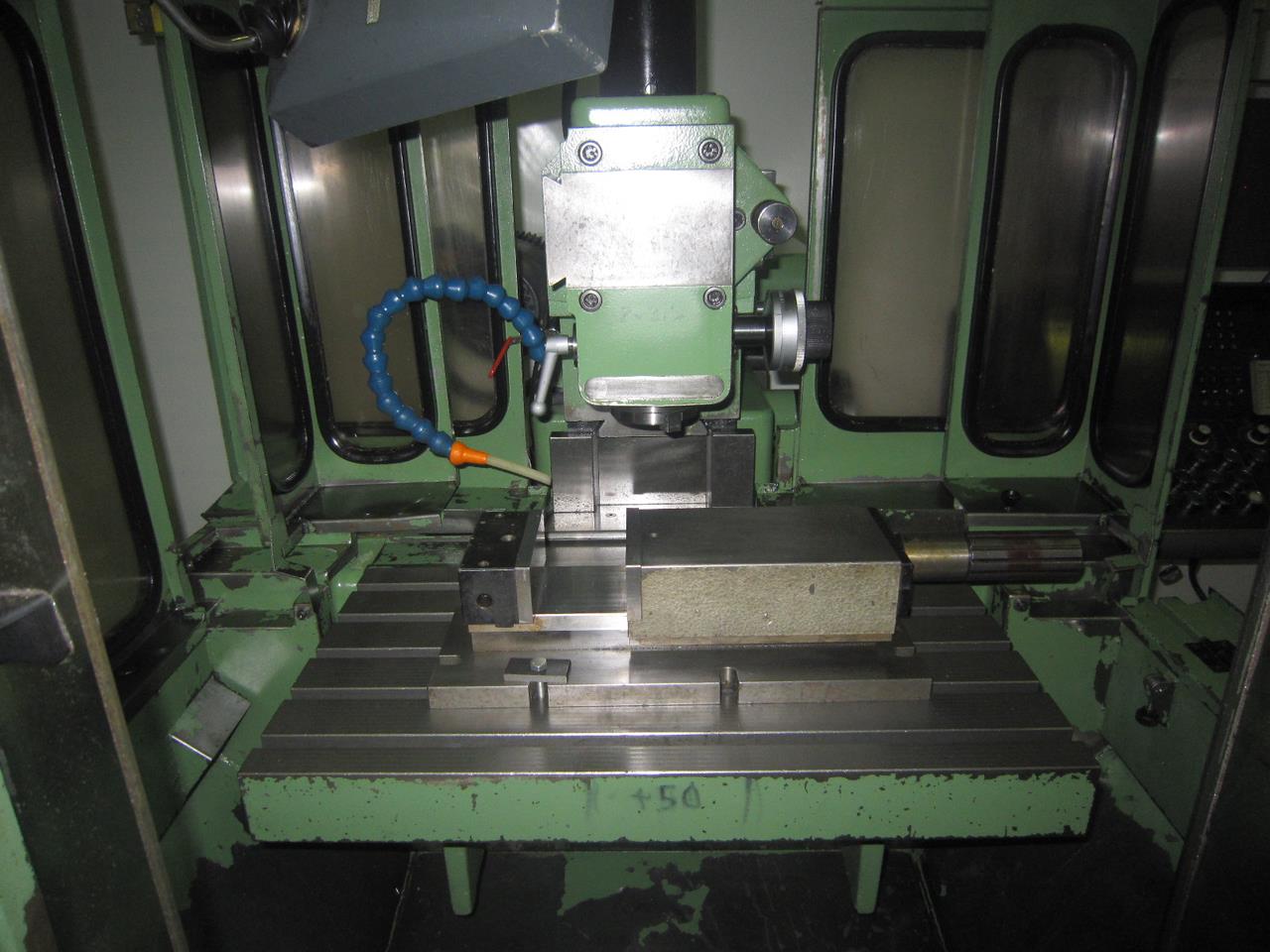

Vice: width
125 mm
Rigide table
Electronic hand held control
Handling with handwheels

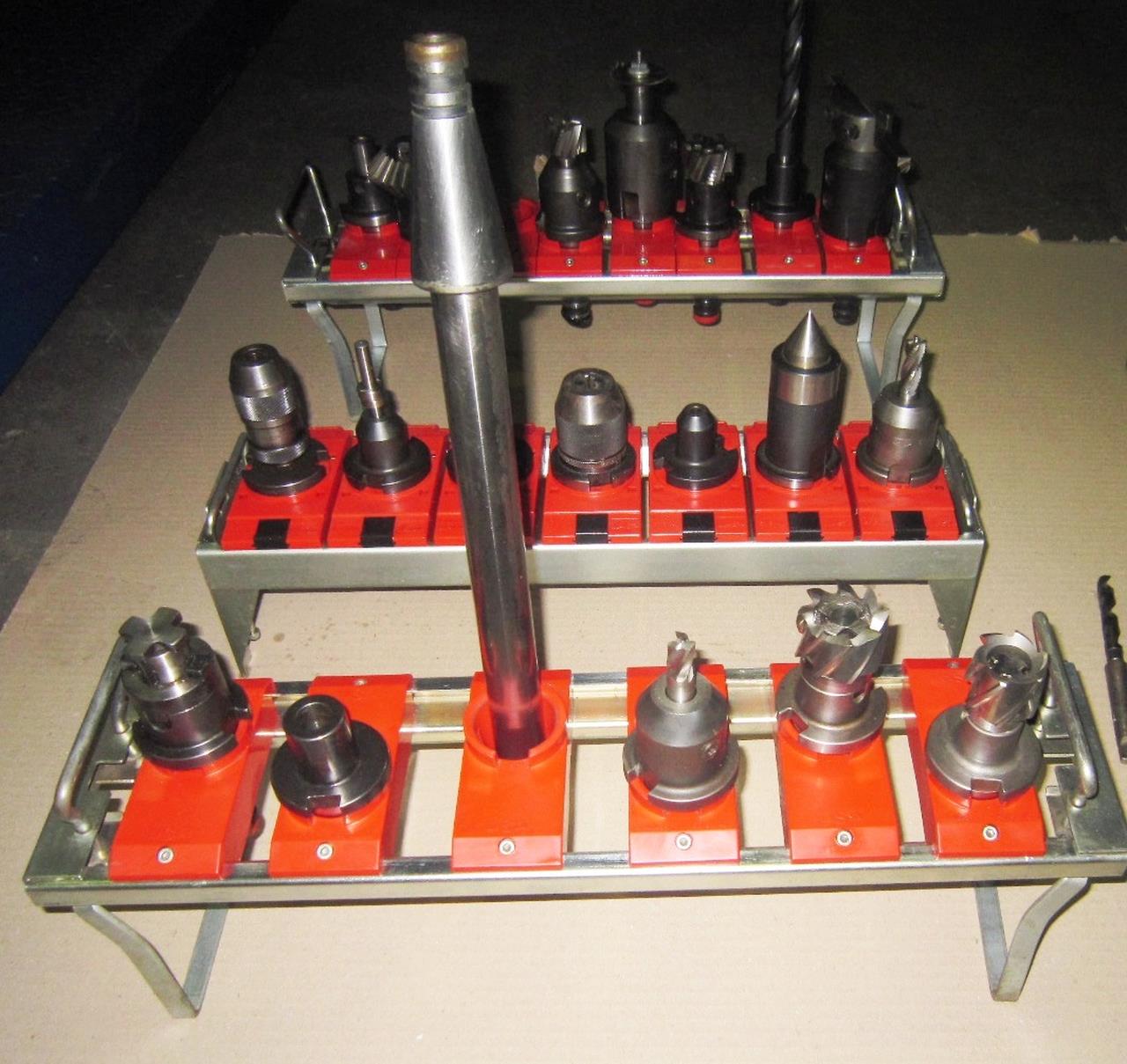

Set of toolholders
Coolant system
Machine lamp

Technical specifications and pictures without guarantee.
