Technical data
Longitudinal travel (X-axis)
100 mm
Transversal travel (y axis)
75 mm
Vertical travel (z axis)
150 mm
Spindle speeds:
number (steps)
6
from
125 rpm
up to
4000 rpm
Taper in spindle:
12 W
Voltage 50 Hz 3x
380 Volt
Motor output
0.3 HP
Machine's weight about
120 kg
Overall dimensions machine:
Length
700 mm
Width
600 mm
Height
1400 mm

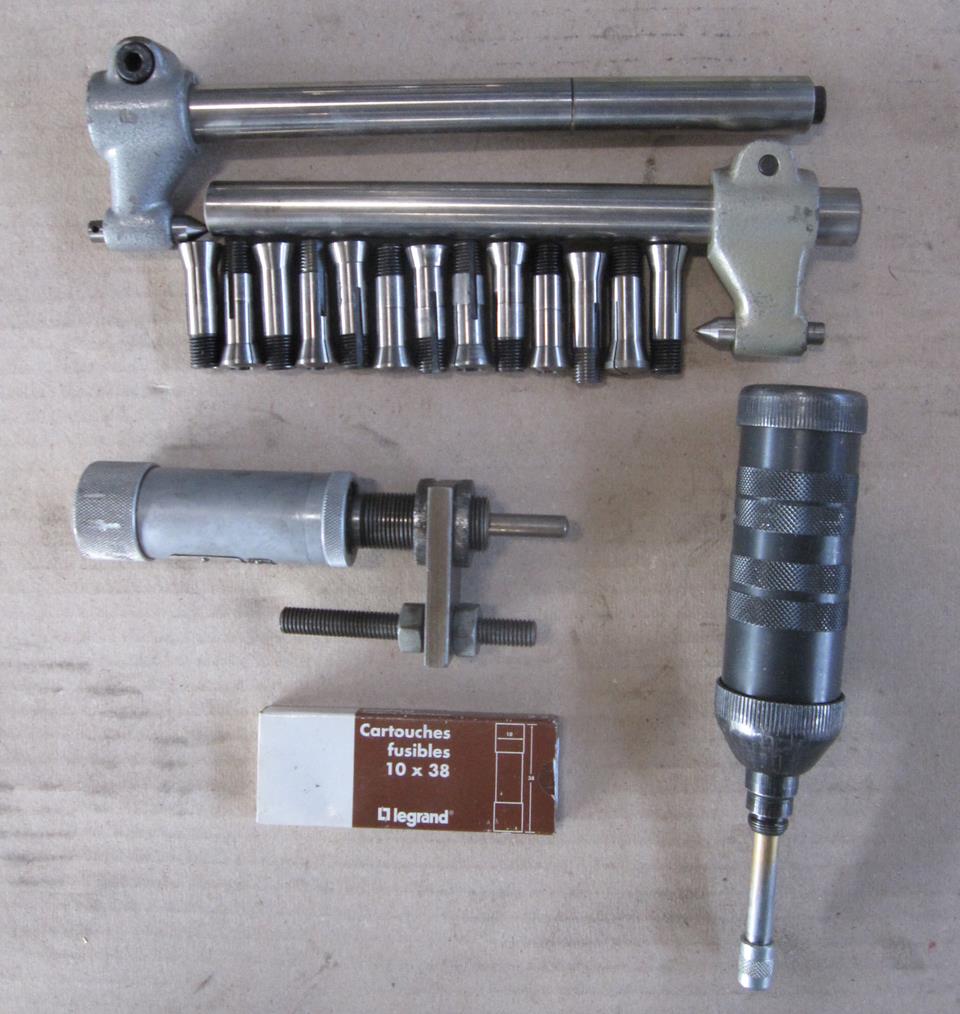

Various accessories:
Vice: width
60 mm
Steady
Set of collets
Technical specifications and pictures without guarantee.
