stock no. :
17178
Machine's group :
Tool and cutter grinder
Type :
AGATHON Optiset 2
Information request
AGATHON Optiset 2 1 Image(s)
Back
Technical data
Longitudinal way of table
250 mm
Vertical adjustment of grinding head
100 mm
Transversal way of grinding head
100 mm
Slewing range of grinding head:
    vertical
- 15 °
Grinding spindle speeds:
    stepless
       from
6000 rpm
       up to
50000 rpm
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
0.660 kW
Machine's weight about
500 kg
Overall dimensions machine:
    Length
800 mm
    Width
800 mm
    Height
1300 mm
Various accessories:

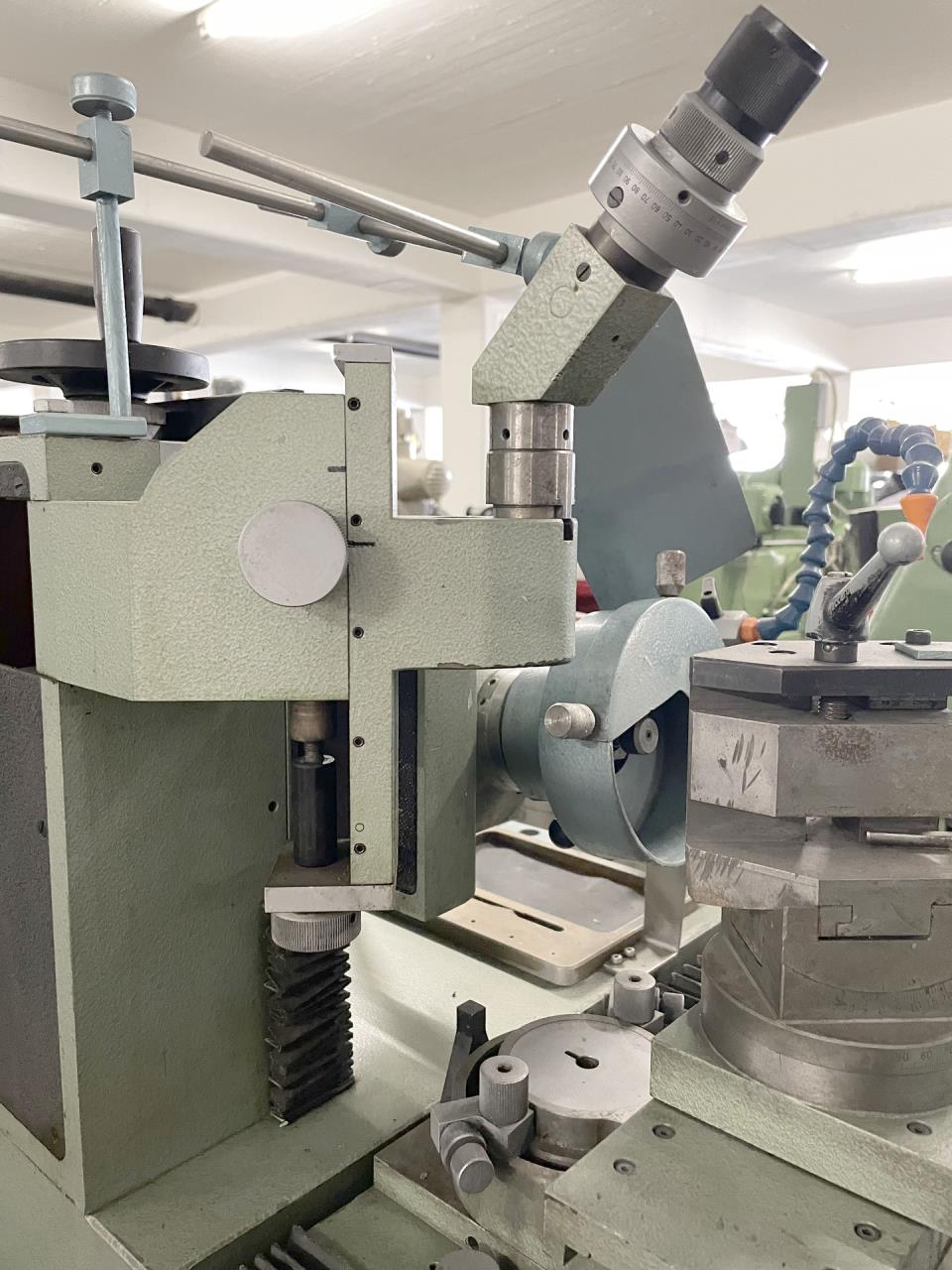

Microscope
Microscopeholder
Work piece spindle head
Grinding stroke drive

Technical specifications and pictures without guarantee.
