stock no. :
17097
Machine's group :
Centreless grinding machine
Type :
MICROREX 2 H
Information request Video
MICROREX 2 H 5 Image(s)
Back
Technical data
Max. grinding diameter
80 mm
Grinding wheel:
    diameter new wheel
400 mm
    Width
200 mm
    Bore
203.2 mm
Regulating wheel:
    diameter new wheel
250 mm
    Width
200 mm
    Bore
127 mm
    Speeds:
          from
10 rpm
          up to
200 rpm
Voltage 50 Hz 3x
220 Volt
Main motor
11 kW
Regulating wheel motor
1.1 kW
Machine's weight about
3000 kg
Overall dimensions machine:
    Length
2400 mm
    Width
2550 mm
    Height
1700 mm
Various accessories:

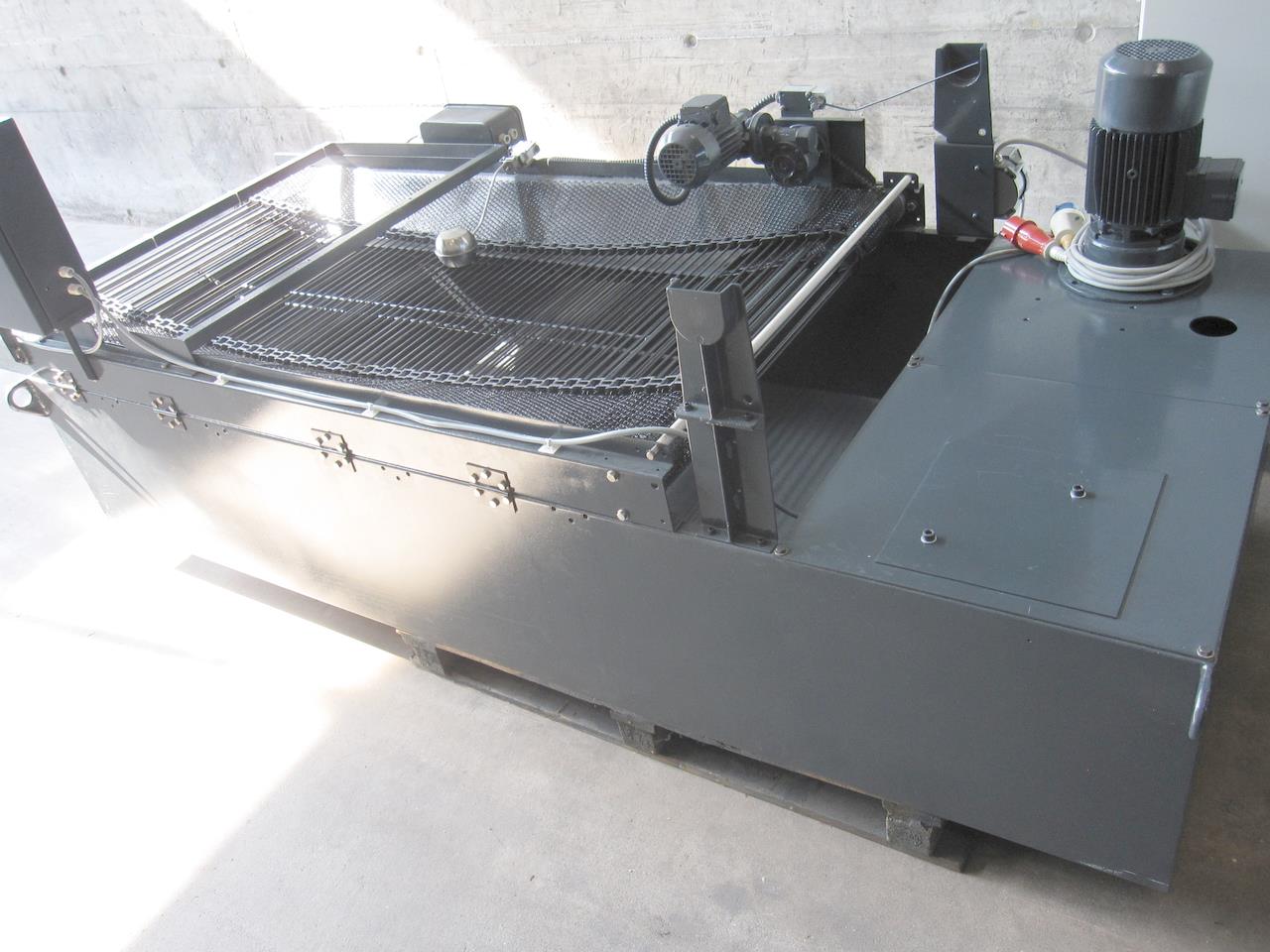

Coolant system

Technical specifications and pictures without guarantee.
