Technical data

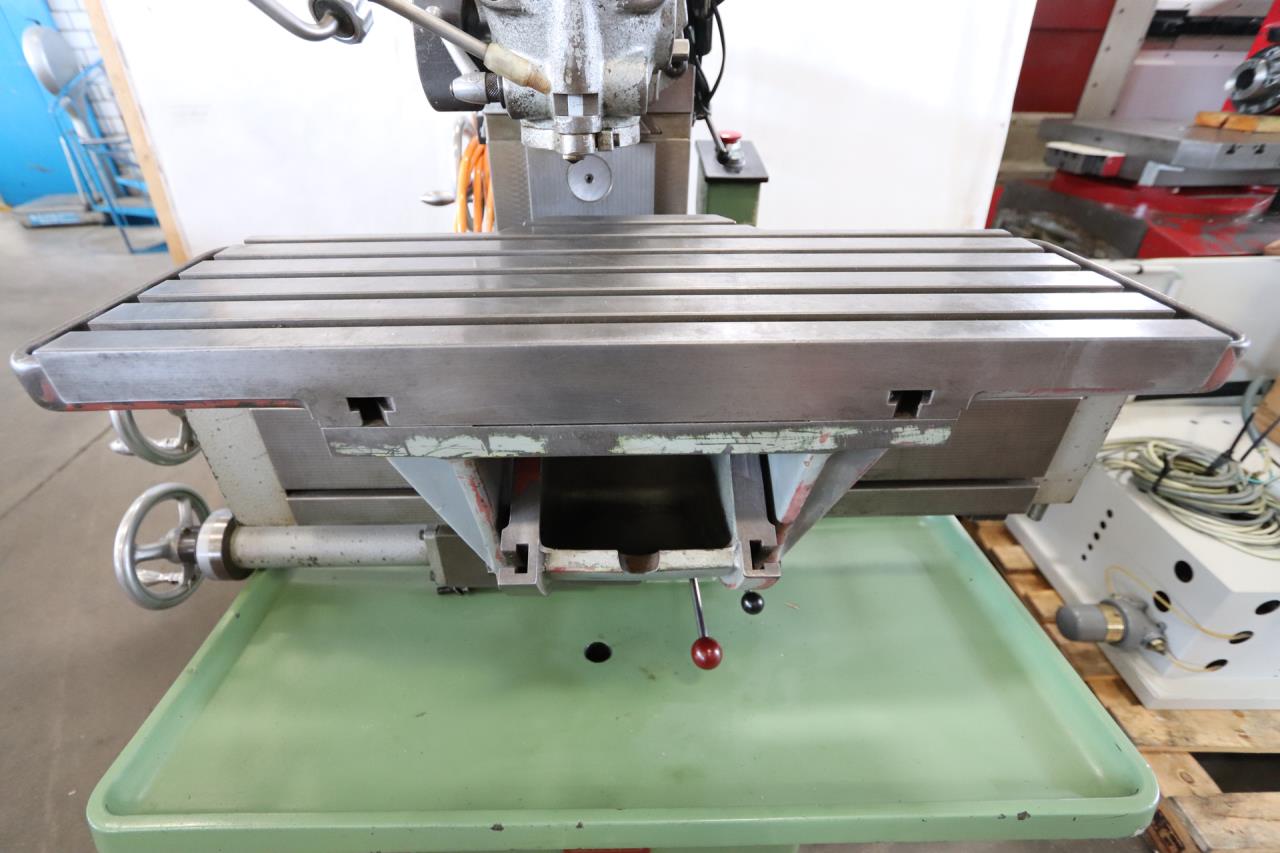

Table length
600 mm
Table width
300 mm
Longitudinal travel (X-axis)
450 mm
Transversal travel (y axis)
170 mm
Vertical travel (z axis)
410 mm
Distance from vertical spindle to table
320 mm

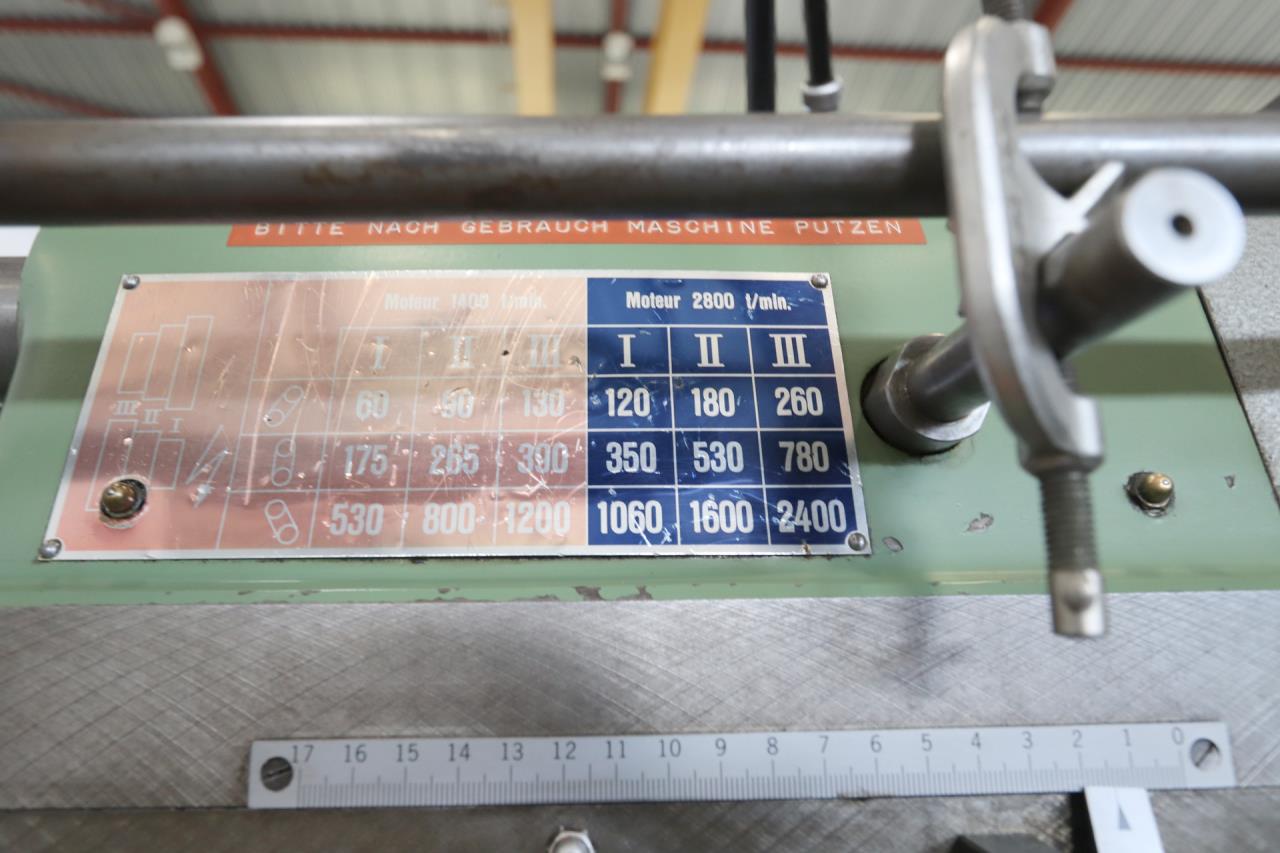

Spindle speeds:
number (steps)
18
from
60 rpm
up to
2400 rpm
Taper in spindle
40 ISO
Feeds steps:
8
longitudinal from
12.0 mm/min
up to
216 mm/min
vertical from
6.0 mm/min
up to
108 mm/min
Rapid traverse:
longitudinal
1.0 m/min
vertical
0.5 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
1.5 HP
Total power required
2.0 HP
Machine's weight about
800 kg
Overall dimensions machine:
Length
1200 mm
Width
1100 mm
Height
1600 mm
Various accessories:
Coolant system
Rigide table

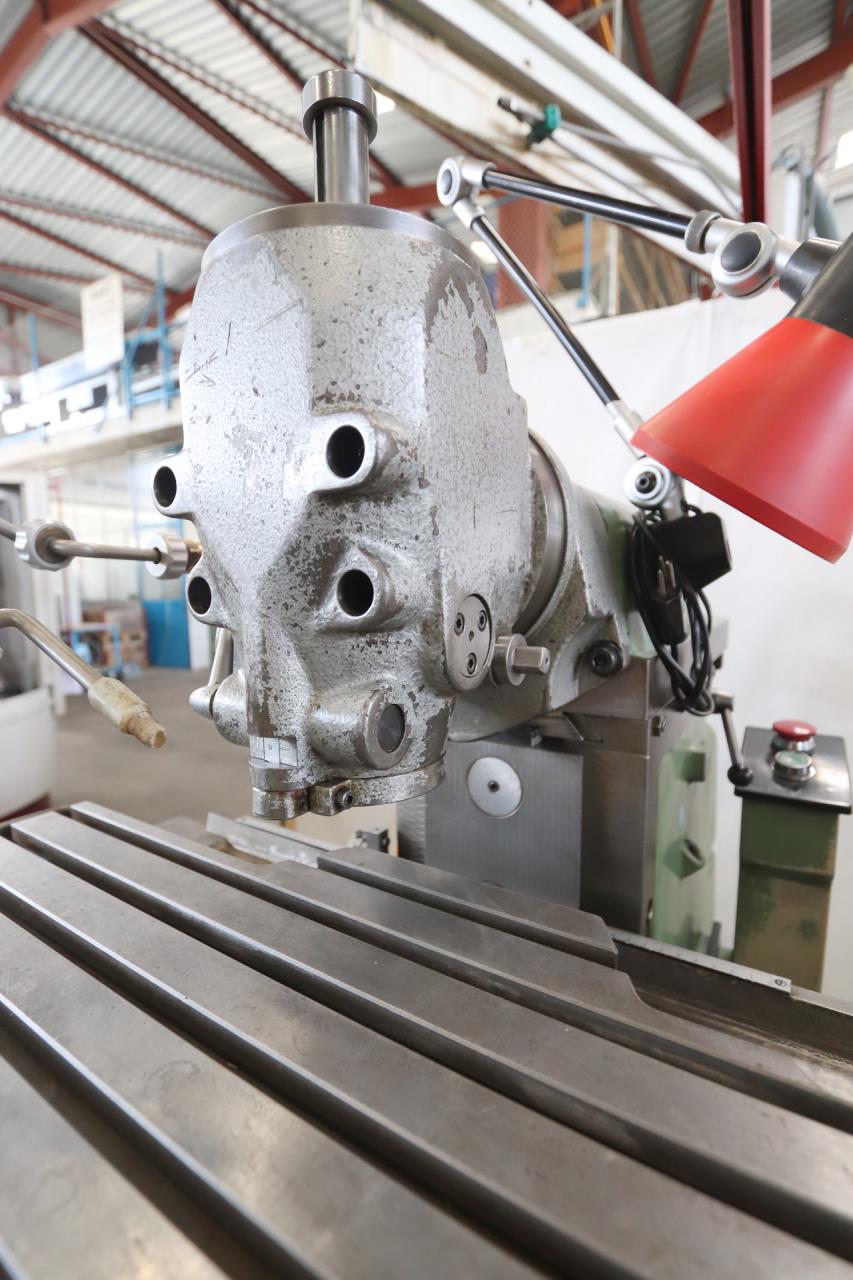

Quick drill and milling head
Lamp
Technical specifications and pictures without guarantee.
