stock no. :
13503
Machine's group :
Vertical machining center
Type :
DECKEL DC 50 V
Controller :
GRUNDIG DIALOG 112
Information request

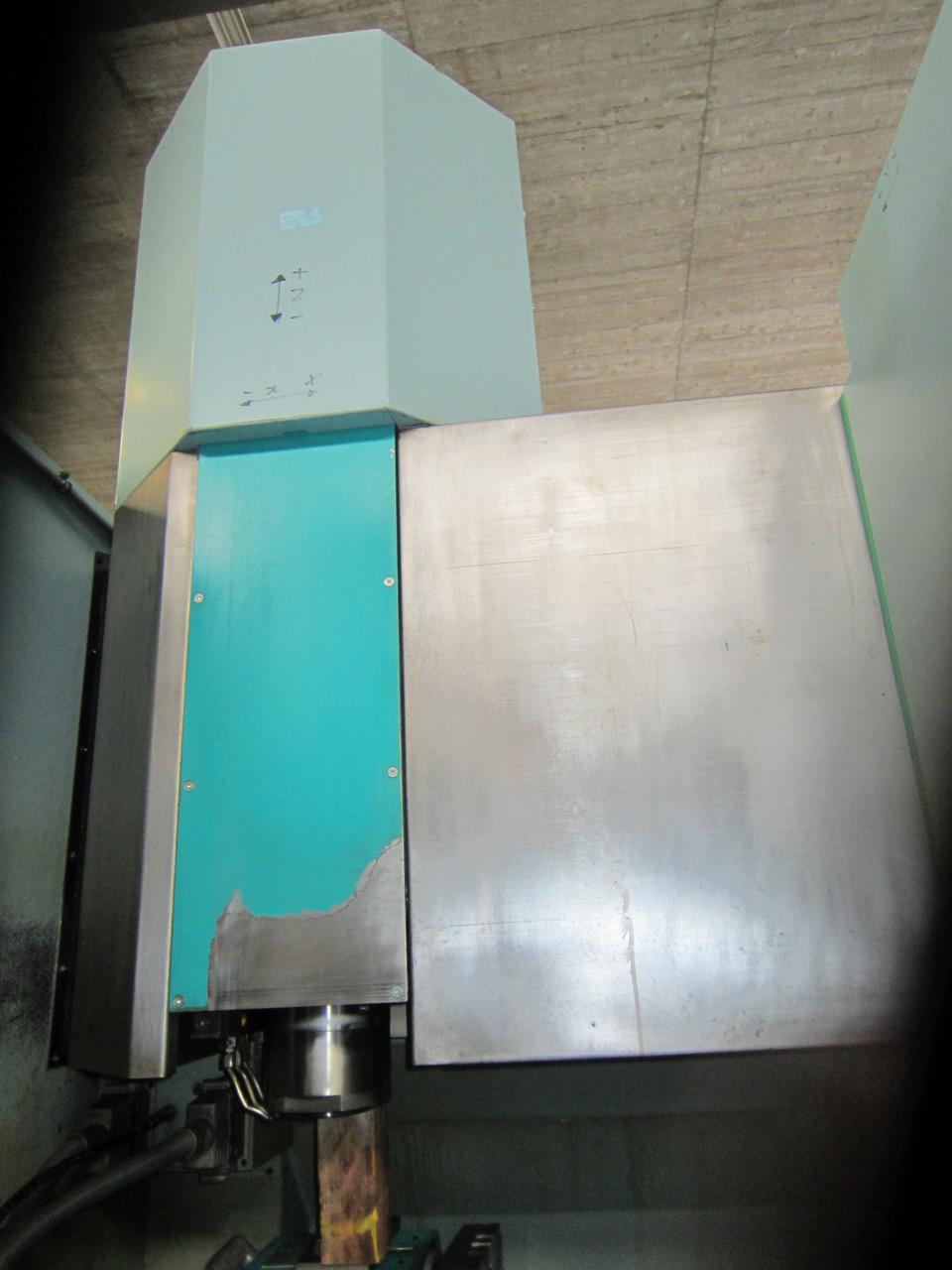

DECKEL DC 50 V 8 Image(s)
Back
Technical data
Table length
700 mm
Table width
400 mm
Longitudinal travel (X-axis)
650 mm
Transversal travel (y axis)
500 mm
Vertical travel (z axis)
500 mm

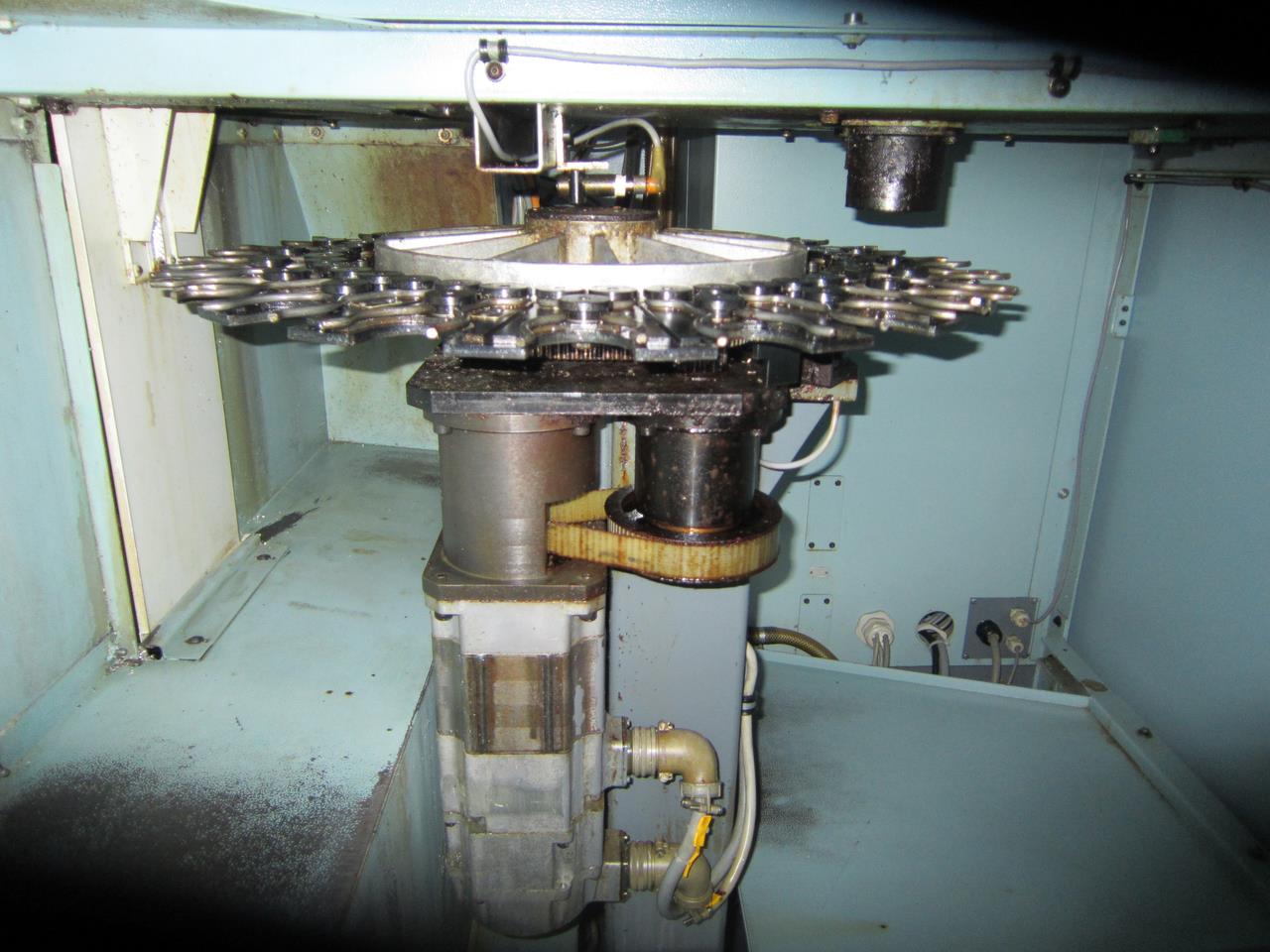

Tool changer:
Number of tools
20
Spindle nose SK
40
Vertical spindle speeds:
    stepless
       from
20 rpm
       up to
8000 rpm
Feeds:
       longitudinal from
0 mm/min
       up to
10000 mm/min
       transversal from
0 mm/min
       up to
10000 mm/min
       vertical from
0 mm/min
       up to
10000 mm/min
Rapid traverse:
15 m/min
Voltage 50 Hz 3x
380 Volt
Spindle motor
15 kW
Total power required
35 kW
Machine's weight about
6500 kg
Overall dimensions machine:
    Length
4000 mm
    Width
3000 mm
    Height
3000 mm
Various accessories:
Dividing attachment 4th axis

Technical specifications and pictures without guarantee.
