stock no. :
13181
Machine's group :
Centreless grinding machine
Type :

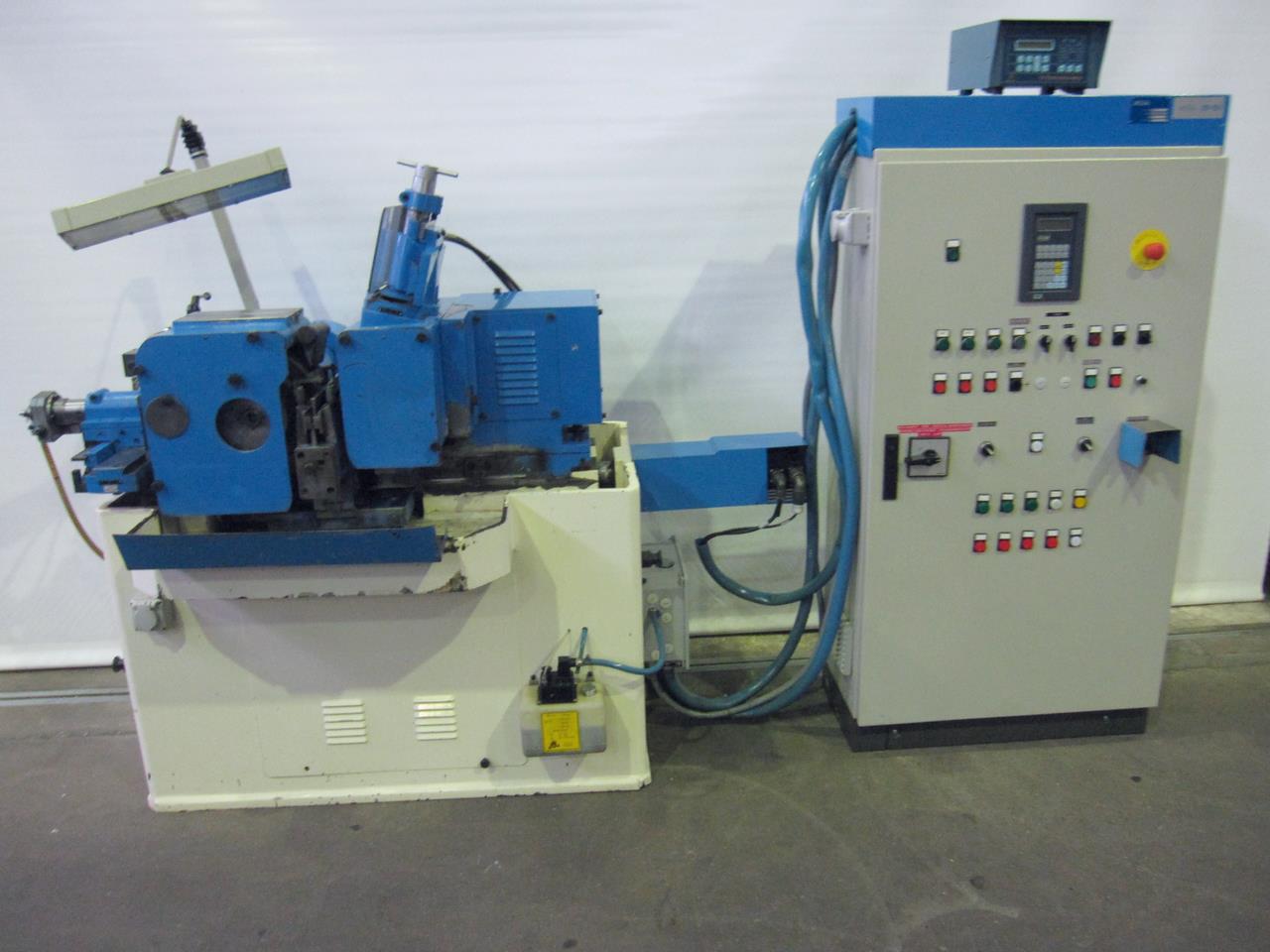

MAGNAGHI RSC 350
Information request
MAGNAGHI RSC 350 7 Image(s)
Back
Technical data
Min. grinding diameter
2 mm
Max. grinding diameter
85 mm
Grinding wheel:
    diameter new wheel
350 mm
    Width
120 mm
    Bore
200 mm
    Speeds:
          up to
1800 rpm
Regulating wheel:
    diameter new wheel
250 mm
    Width
120 mm
    Bore
150 mm
    Speeds:
          from
18 rpm
          up to
250 rpm
Voltage 50 Hz 3x
380 Volt
Main motor
10 HP
Machine's weight about
2000 kg
Overall dimensions machine:
    Length
1800 mm
    Width
1000 mm
    Height
1800 mm

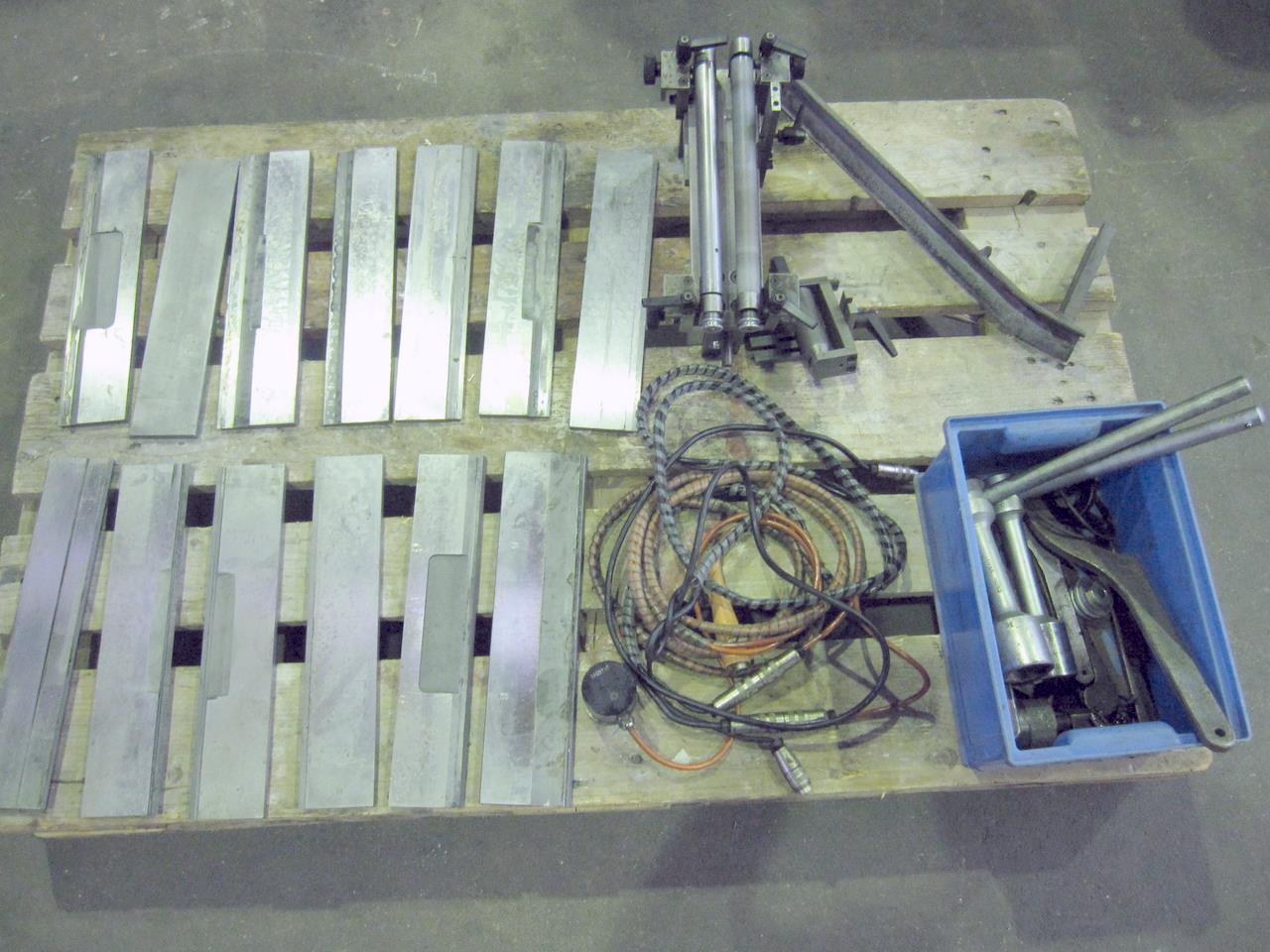

Various accessories:
Set of supporting templades
Lamp
Balancing attachment
Gt Elettronica VM 23
Wheel trueing attachment
2 x

Technical specifications and pictures without guarantee.
