Technical data

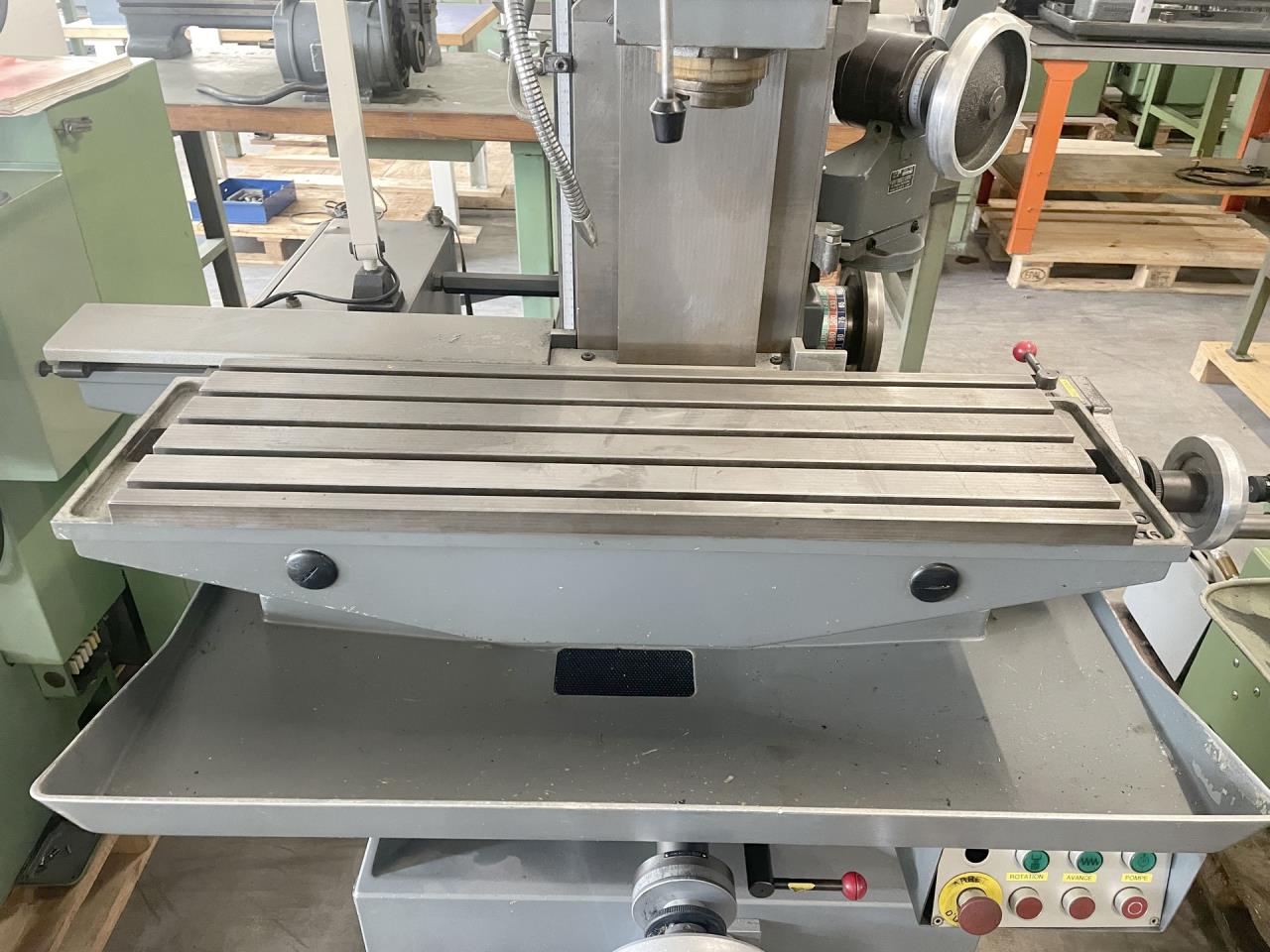

Table length
800 mm
Table width
250 mm
Longitudinal travel (X-axis)
400 mm
Transversal travel (y axis)
175 mm
Vertical travel (z axis)
450 mm
Spindle speeds:
stepless
from
50 rpm
up to
3400 rpm
Taper in spindle
30 ISO
Feeds stepless:
longitudinal from
12 mm/min
up to
360 mm/min
vertical from
12 mm/min
up to
360 mm/min
Vertical quill travel
60 mm
Rapid traverse:
longitudinal
1.8 m/min
vertical
1.8 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
2.5 HP
Machine's weight about
900 kg
Overall dimensions machine:
Length
1200 mm
Width
900 mm
Height
1600 mm
Technical specifications and pictures without guarantee.
