Technical data

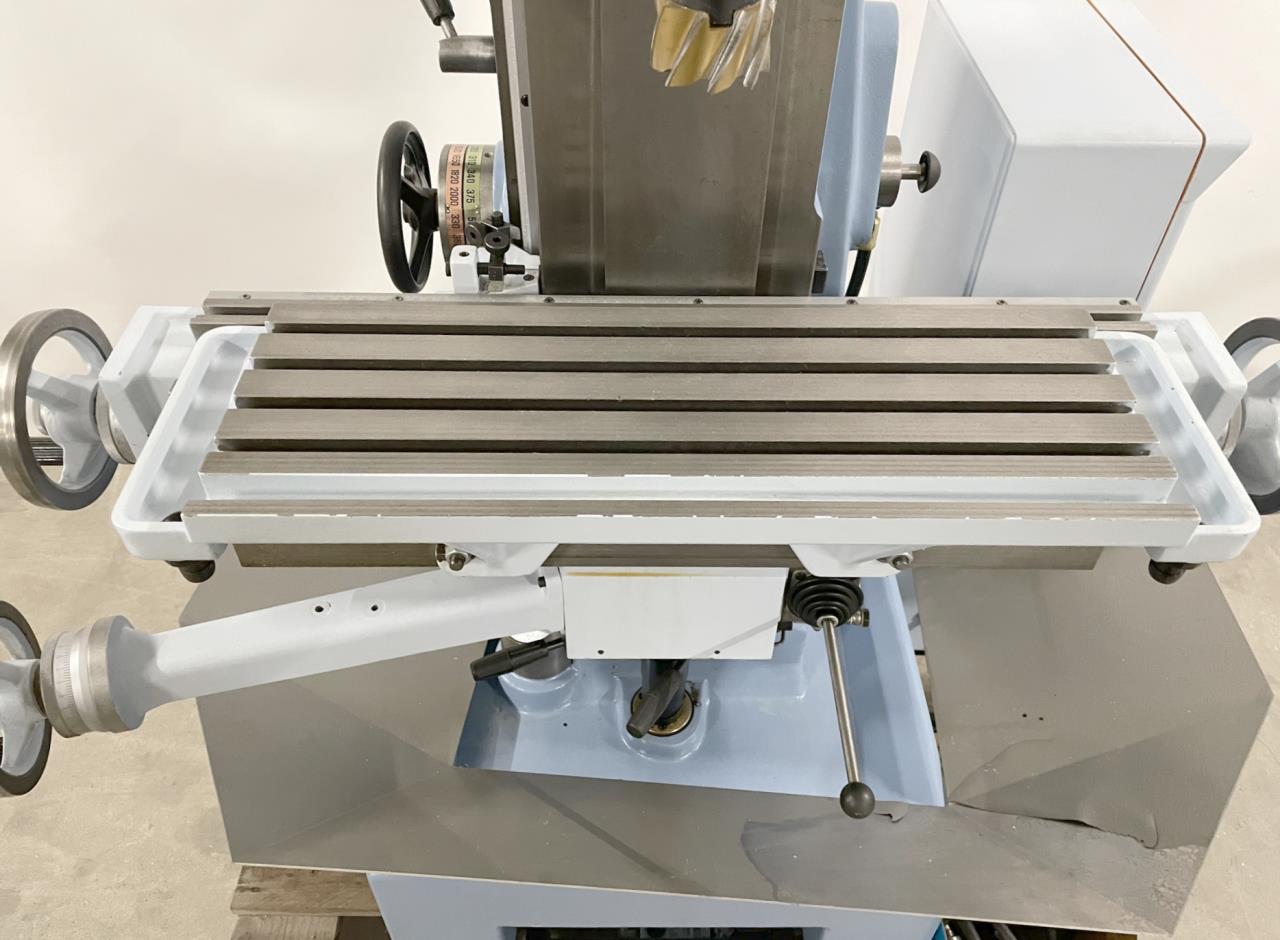

Table length
600 mm
Table width
210 mm
Longitudinal travel (X-axis)
260 mm
Transversal travel (y axis)
150 mm
Vertical travel (z axis)
310 mm
Spindle speeds:
stepless
from
58 rpm
up to
2000 rpm
Taper in spindle
30 ISO
Feeds steps:
10
longitudinal from
12.0 mm/min
up to
400 mm/min
vertical from
12.0 mm/min
up to
400 mm/min
Rapid traverse:
longitudinal
1.2 m/min
vertical
1.2 m/min
Voltage 50 Hz 3x
380 Volt
Total power required
3.5 HP
Machine's weight about
750 kg
Overall dimensions machine:
Length
1500 mm
Width
1100 mm
Height
1600 mm
Various accessories:
Coolant system
Rigide table
Vertical milling head
Technical specifications and pictures without guarantee.
