Technical data
Number of spindles
6
Capacity round bar
20 mm
Capacity square bar
14 mm
Capacity hexagon bar
17 mm
Max. advance of bar
80 mm
Max. turning length
39.6 mm
Max. stroke of long slide
63 / 39.6 mm
Number of possible pieces
31
Machining rate:
from
0.36 sec
up to
95 sec
Spindle speeds:
stepless
from
355 rpm
up to
5000 rpm
Voltage 50 Hz 3x
380 Volt
Power
15 kW
Machine's weight about
4000 kg
Overall dimensions machine:
Length
3125 mm
Width
1030 mm
Height
2000 mm
Various accessories:

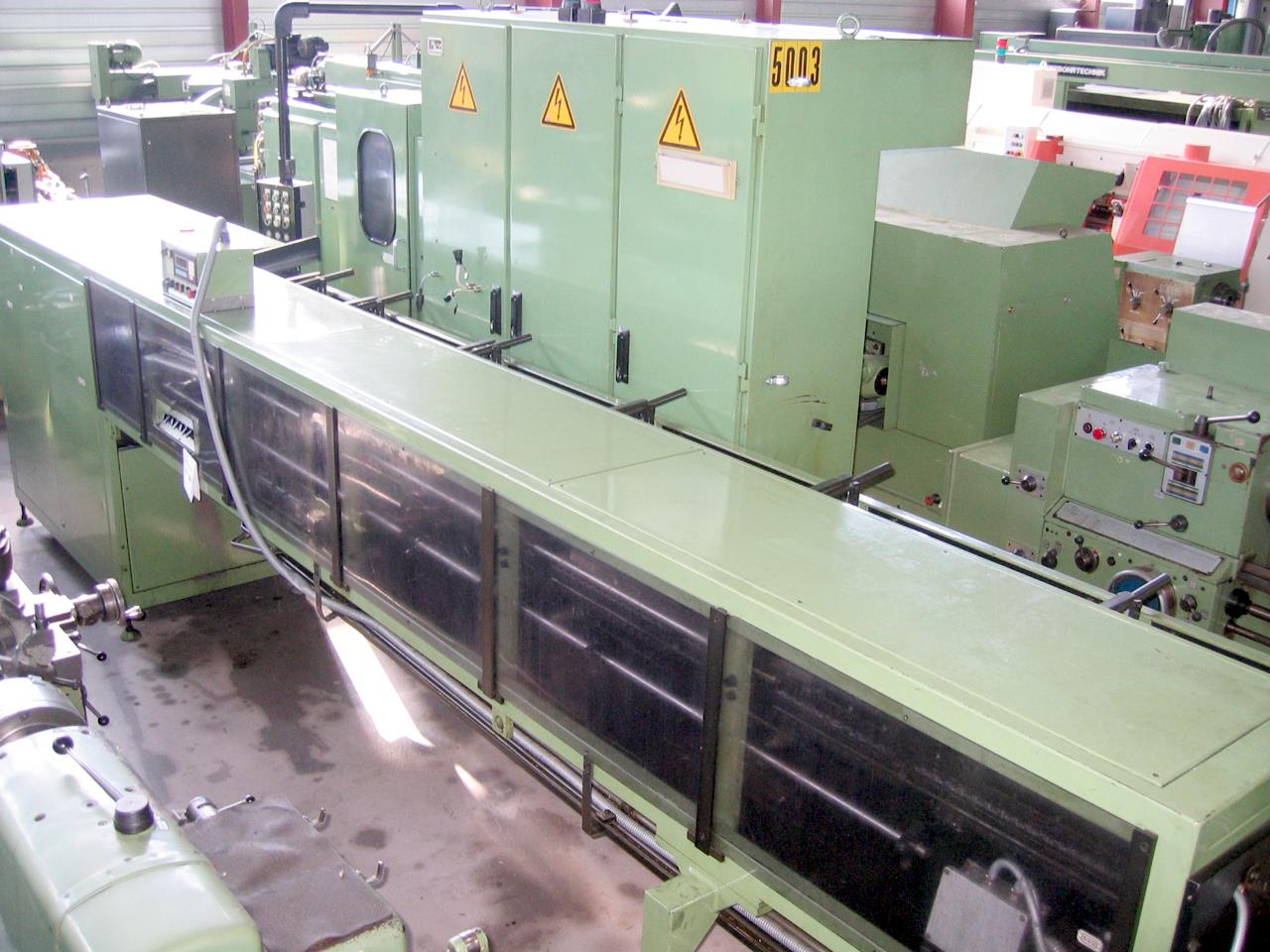

Bar feeder
CUCCI
Threading attachment
OERTLINGHAUS
Coolant system
Chip conveyor
KNOLL

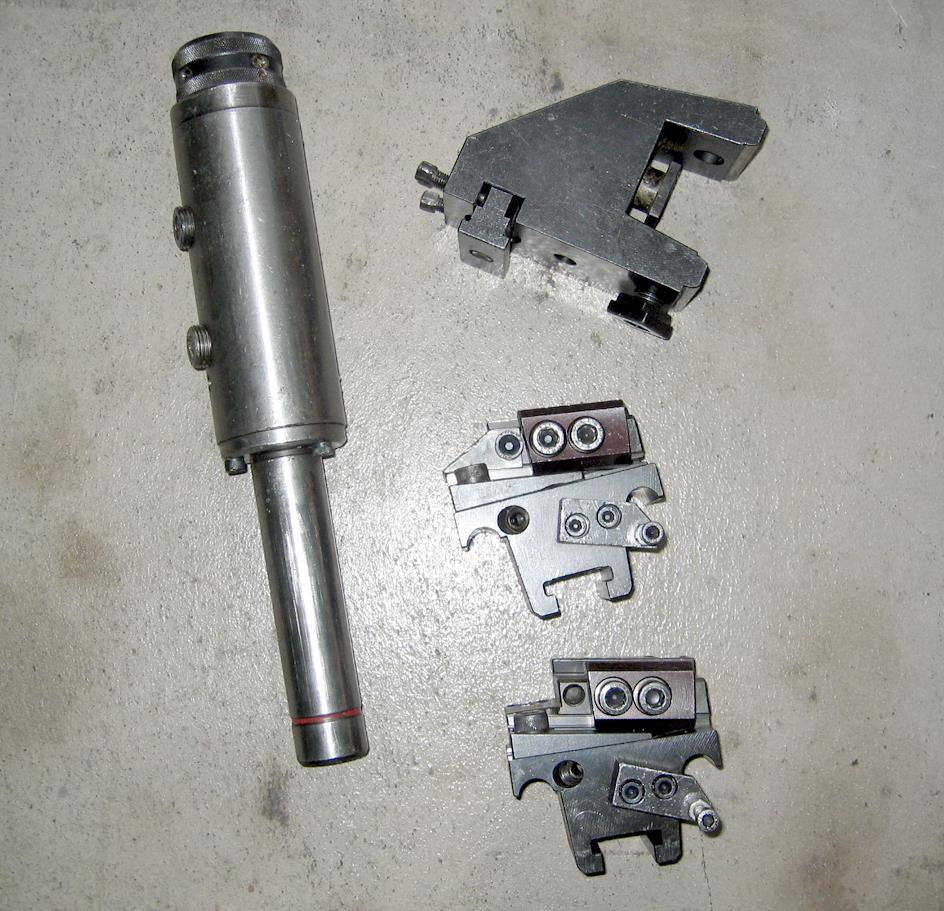

Toolholders
Technical specifications and pictures without guarantee.
