stock no. :
432
Machine's group :
Surface grinder
Type :
MÄGERLE FD 7
Information request
MÄGERLE FD 7 1 Image(s)
Back
Technical data
Table length
750 mm
Table width
240 mm
Grinding length
700 mm
Grinding width
300 mm
Execution:
    hydraulic
Max. distance from table
    to spindle-centreline
600 mm
Transversal travel (y axis)
270 mm
Automatic cross-feed:
    stepless
    from
0.200 m/min
    up to
7.00 m/min
Table speeds:
    stepless
       from
3.00 m/min
       up to
30.0 m/min
Automatic vertical feed:
    from
0.0010 mm
    up to
0.012 mm
Vertical rapid traverse
0.30 m/min
Diameter of grinding wheel
400 mm
Width of the grinding wheel
500 mm
Grinding wheel speeds:
    number (steps)
       up to
2200 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
5.00 HP
Total power required
20.00 HP
Machine's weight about
3000 kg
Various accessories:
Coolant system

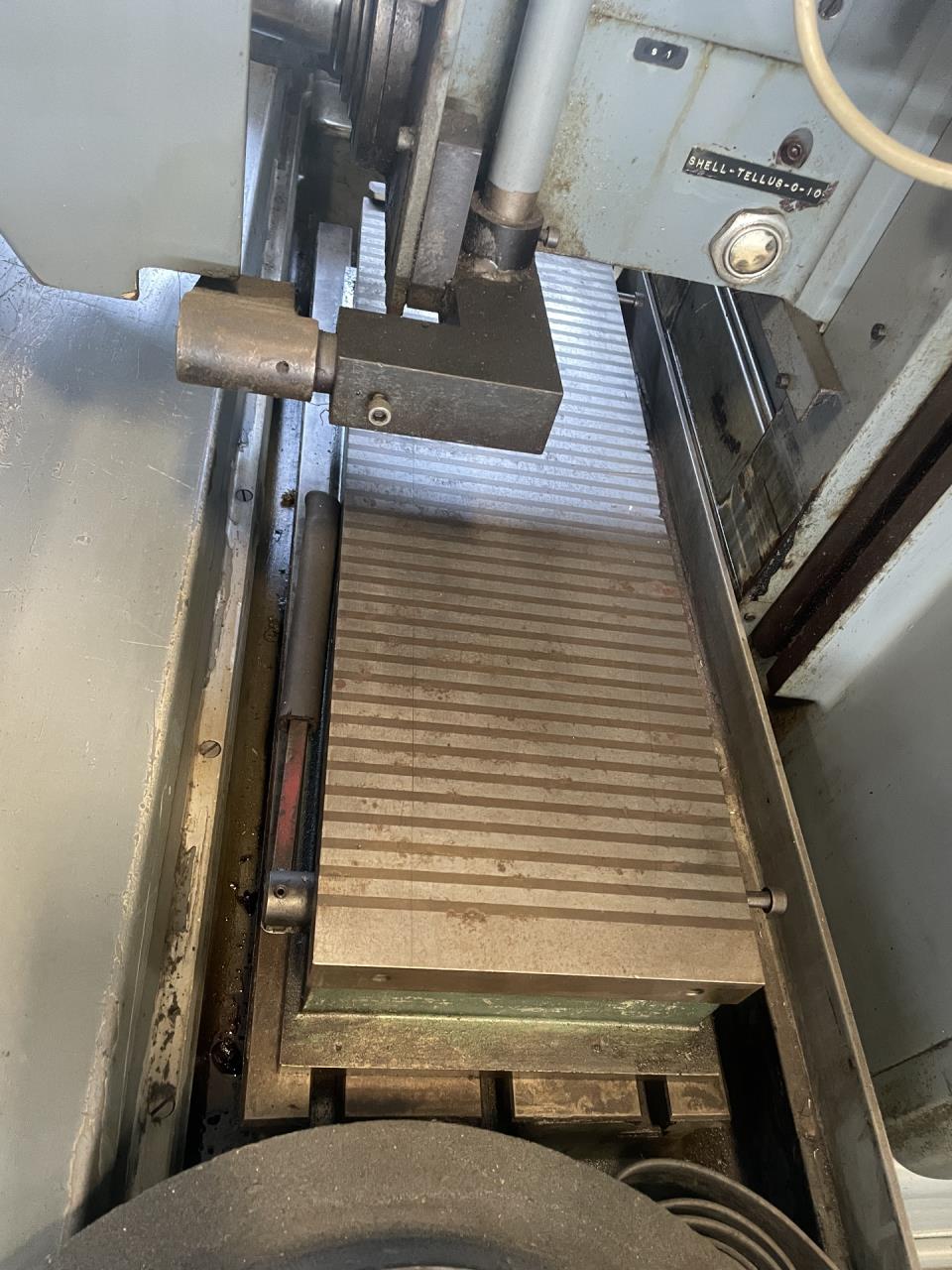

Magnetic plate:
    Length
700 mm
    Width
250 mm

Technical specifications and pictures without guarantee.
