stock no. :
22145
Machine's group :
2-wheels flat honing
Type :

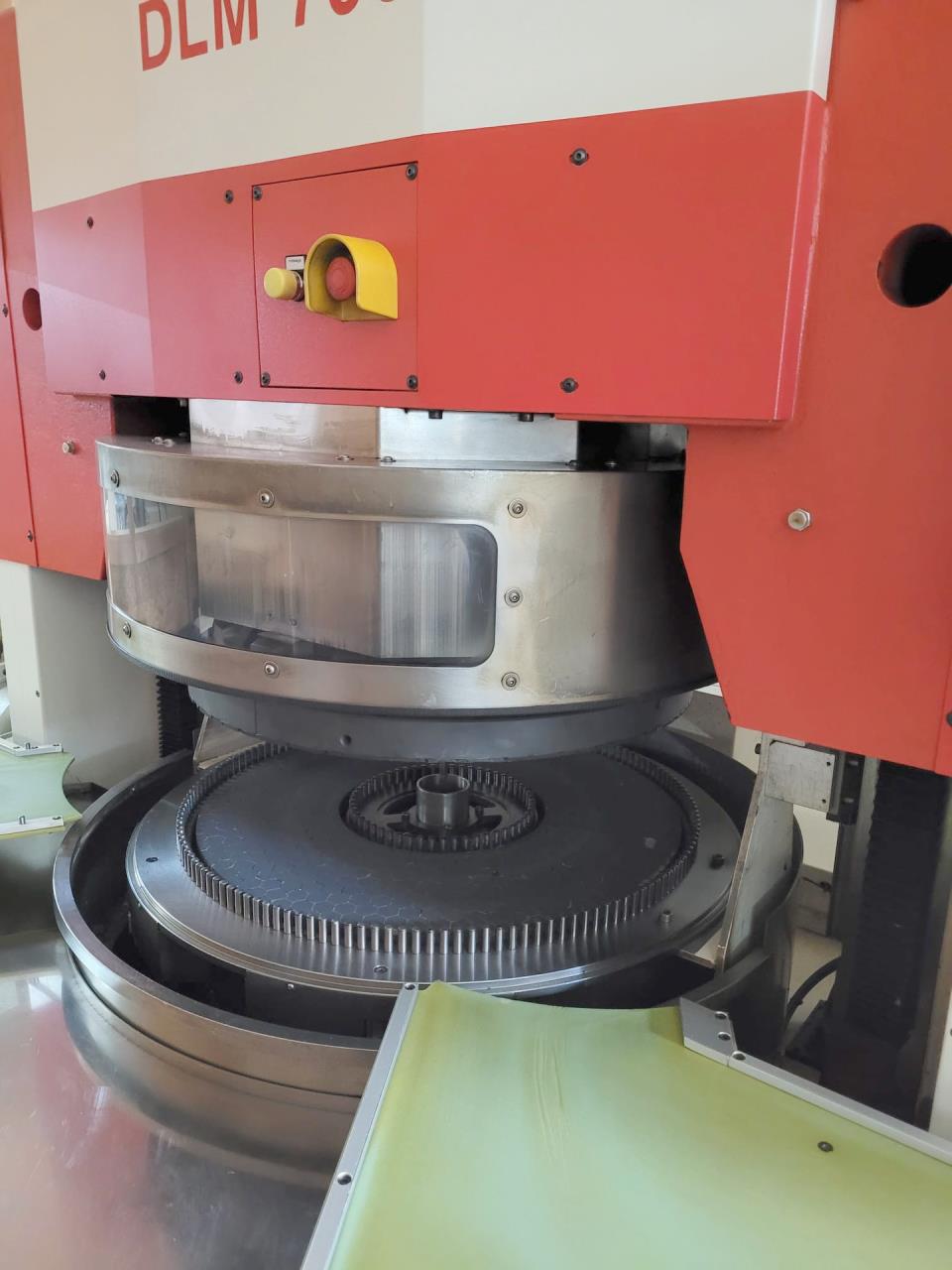

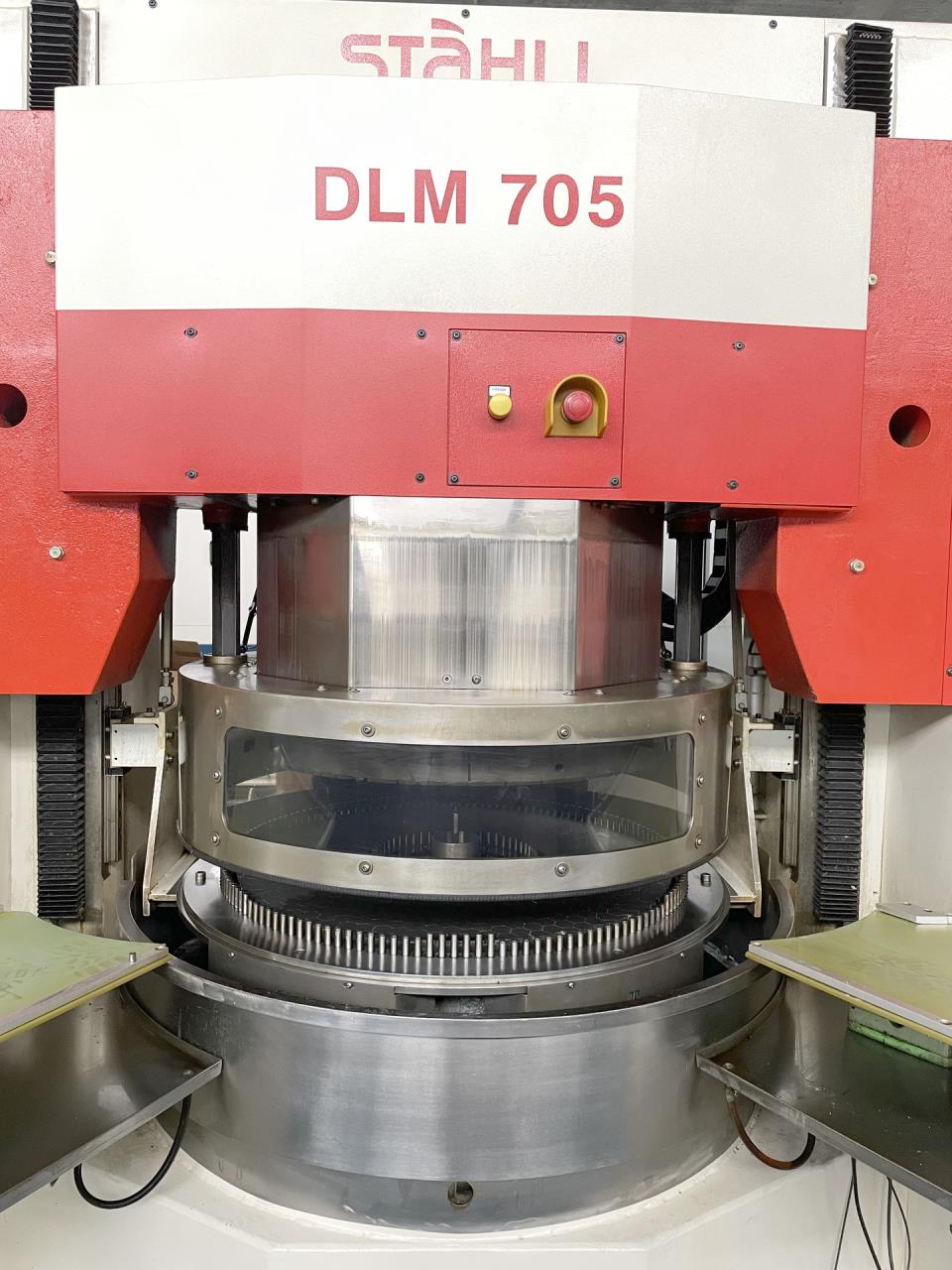

STÄHLI DLM 705
Information request
STÄHLI DLM 705 6 Image(s)
Back
Technical data
Execution:
    two wheels
Max. wheel diameter
720 mm
Max. work-piece height
100 mm

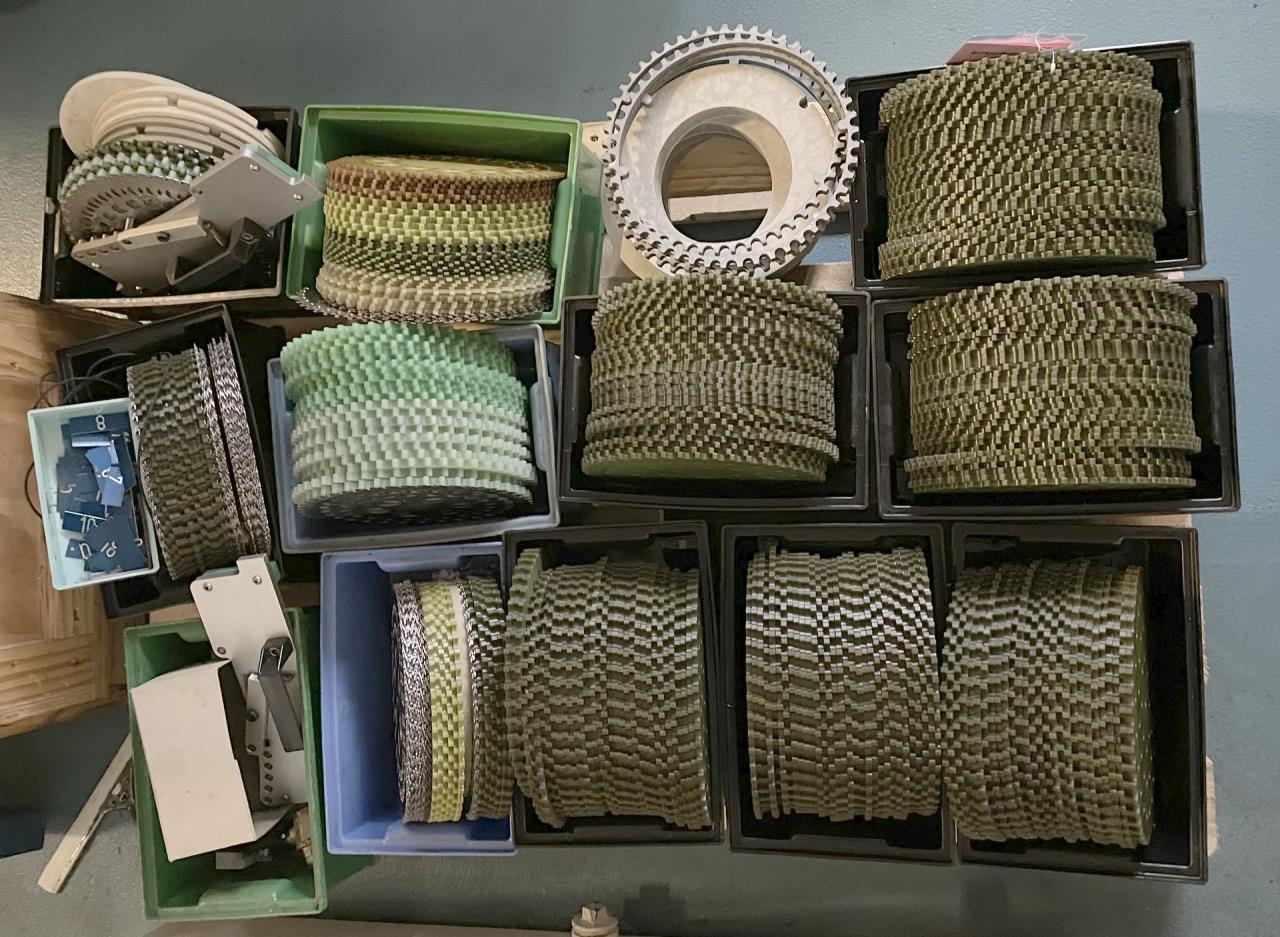

Number of carriers
4-8
Speeds upper wheel:
       from
0 rpm
       up to
400 rpm
Speeds lower wheel:
       from
0 rpm
       up to
400 rpm
Speeds work-piece mechanism:
       from
0 rpm
       up to
200 rpm
Voltage 50 Hz 3x
400 Volt
Air connect
6 bar
Motor capacity:
    Main motor
15 kW
    work-piece mechanism
7.5 kW
Total power required
68 kW
Machine's weight about
7800 kg
Overall dimensions machine:
    Length
3300 mm
    Width
2200 mm
    Height
2600 mm

Technical specifications and pictures without guarantee.
