stock no. :
20483
Machine's group :
Tool and cutter grinder CNC
Type :
SCHÜTTE WU 305L micro

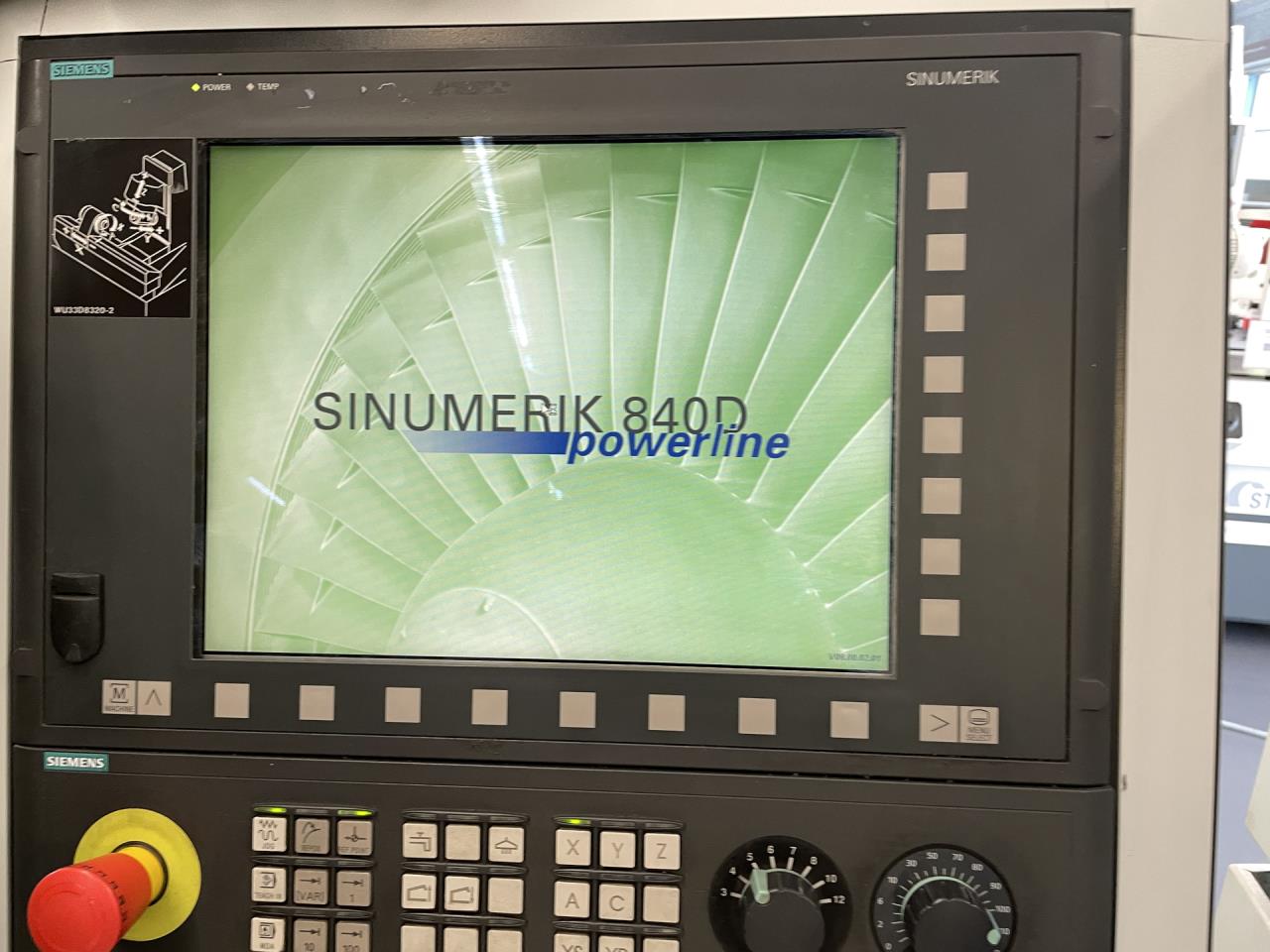

Controller :

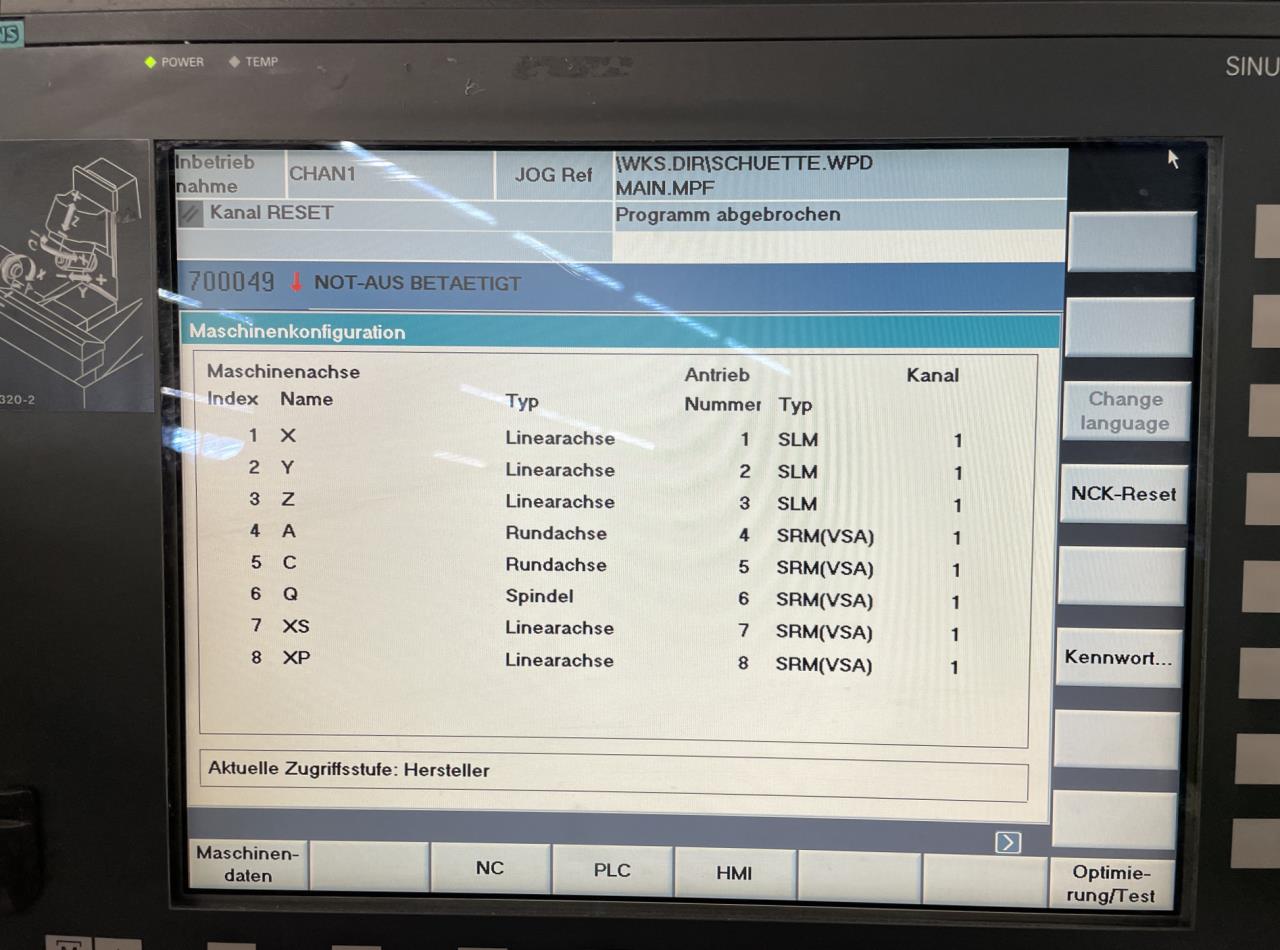

SIEMENS SINUMERIK 840 D / WINDOWS XP
Information request
SCHÜTTE WU 305L micro 3 Image(s)
Back
Technical data
Number of axis total
5
Linear Axes direct driven
Rotary axes axes direct drives
Direct measuring system X, Y and Z axis
X axis
400 mm
Y axis
250 mm
Z axis
250 mm
grinding diameter
1 - 10 mm
Tool lenght
mm
Distance from table to
A axis
HSK 50E
Collet attachment
15 W
Spindle nose: HSK
50
Grinding spindle speeds:
    stepless
       up to
12000 rpm
Grinding spindle motor
8 kW
Total power required
20 kVA
Machine's weight about
2800 kg
Overall dimensions machine:
    Length
1990 mm
    Width
1640 mm
    Height
1960 mm
Various accessories:
Grinding wheel changer 5-fold Automatic

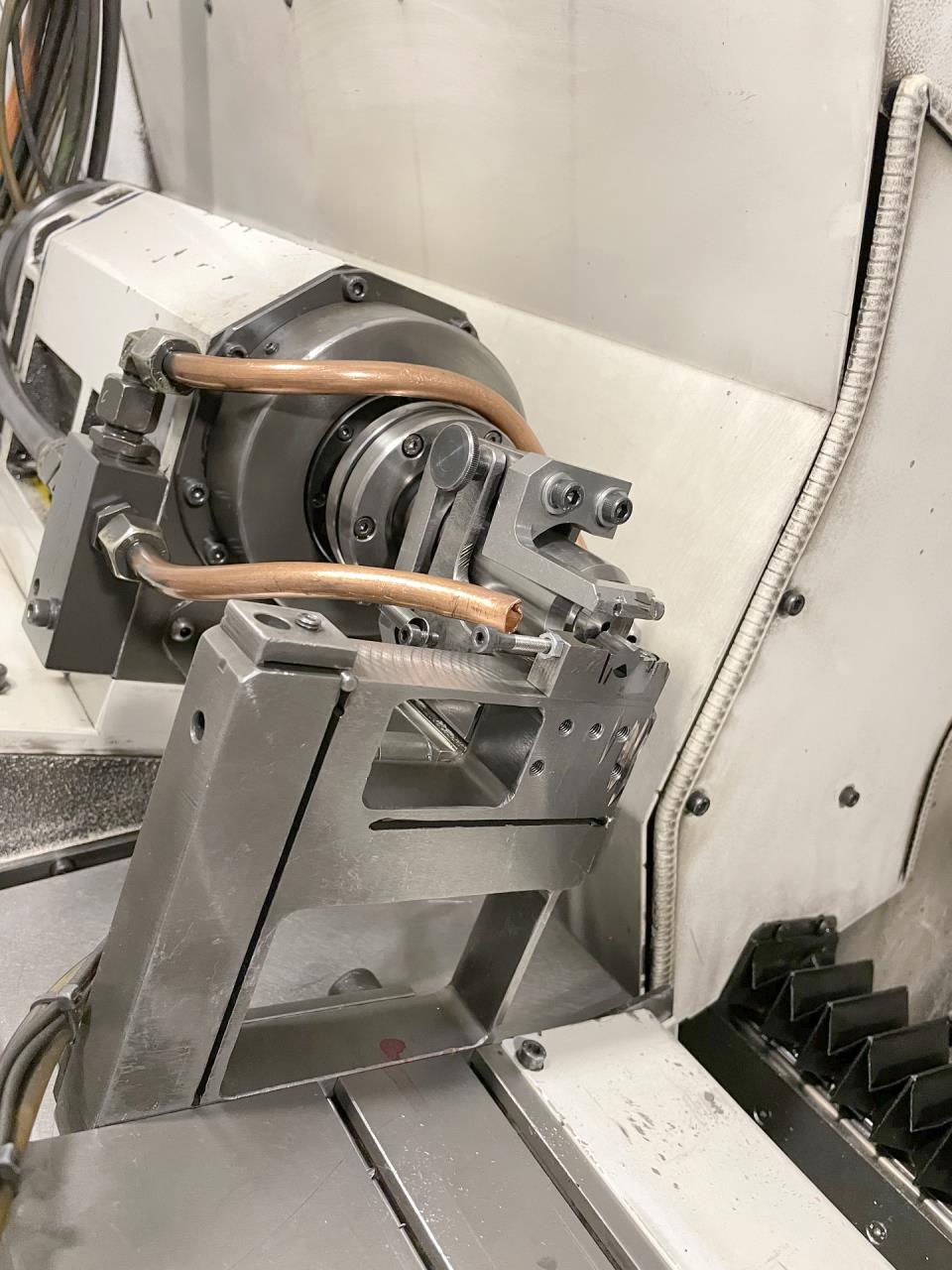

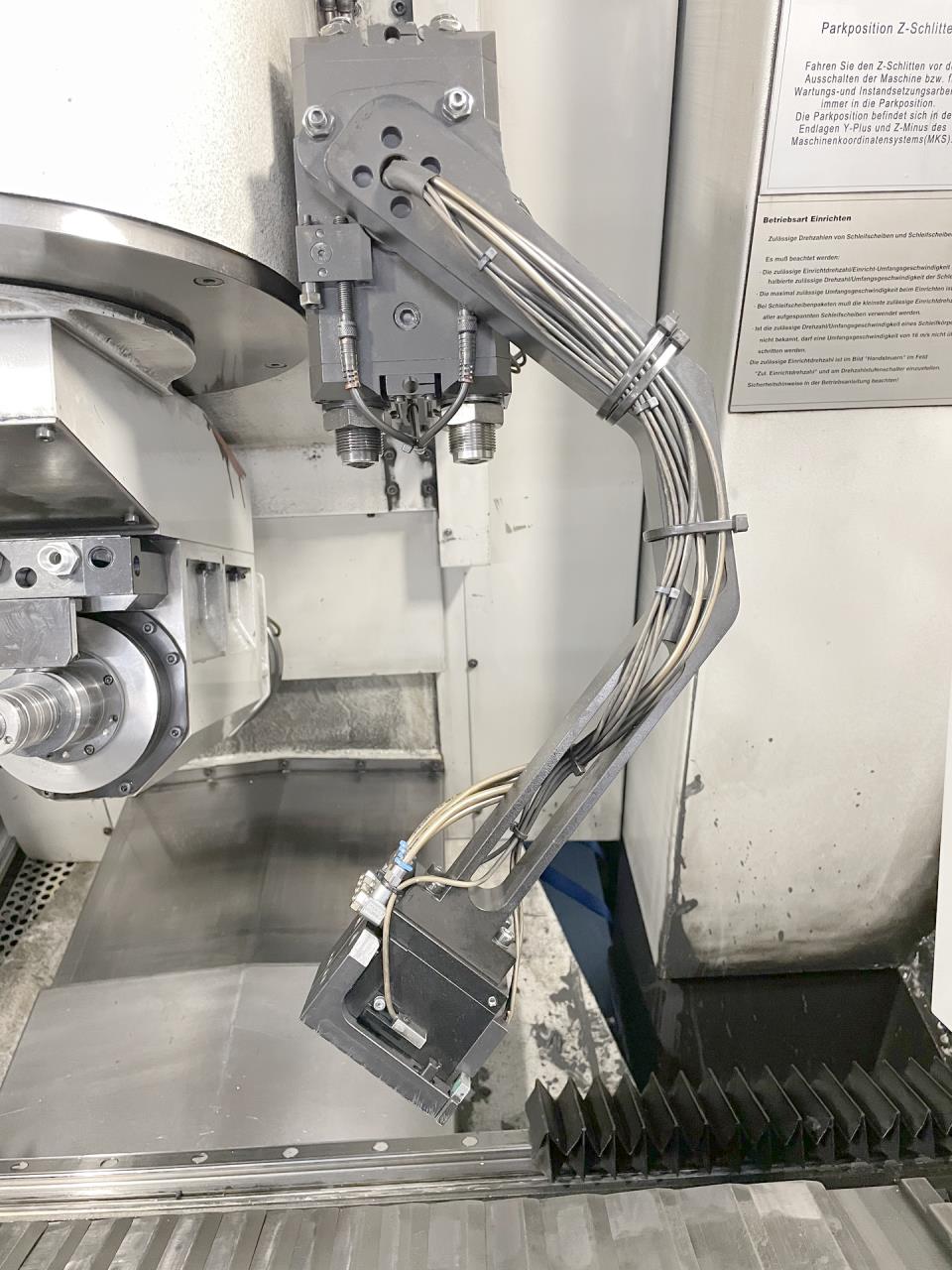

Workpiece guiding system
Central lubrification

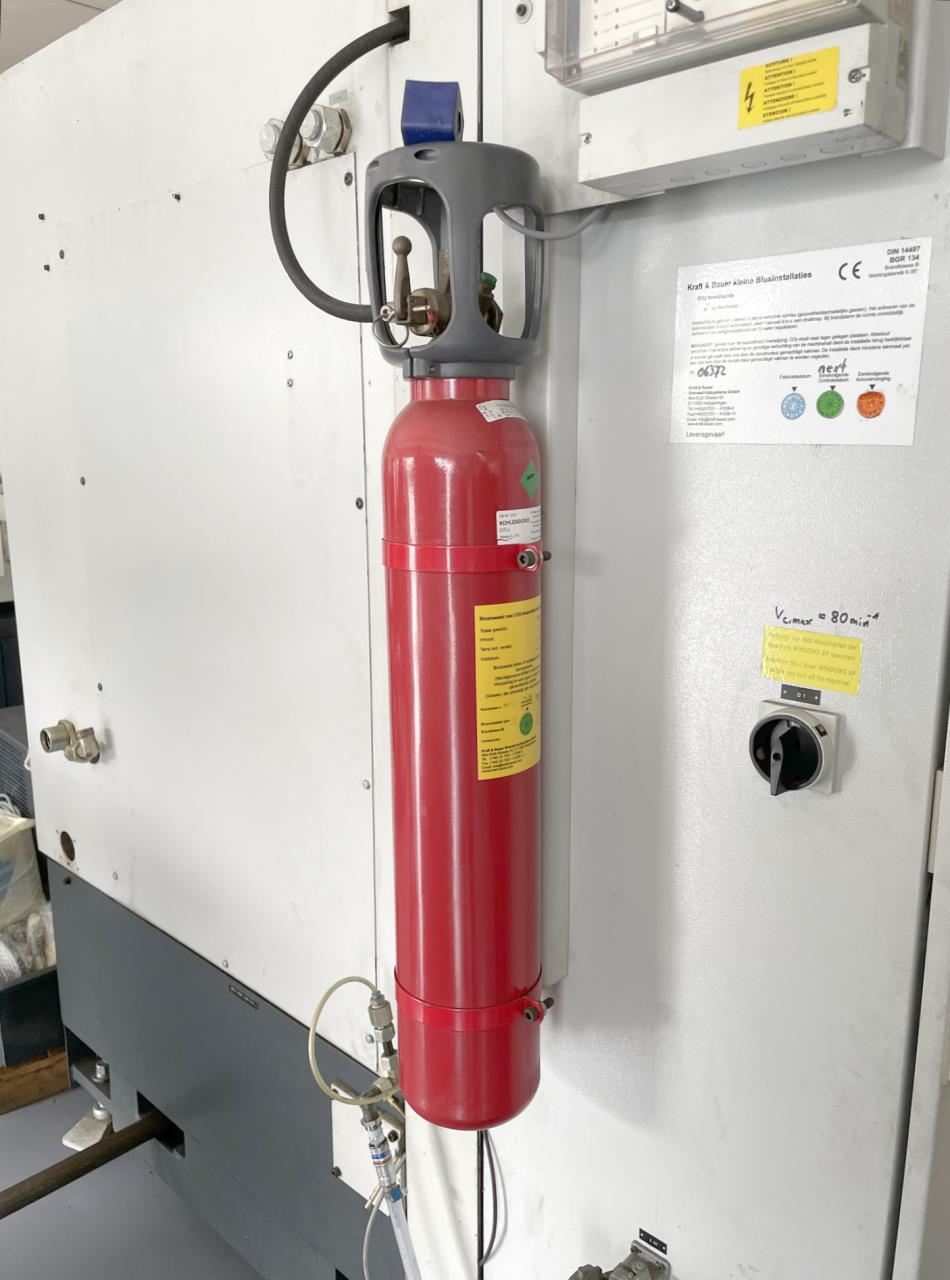

fire extinctor

Technical specifications and pictures without guarantee.
