stock no. :
12390
Machine's group :
Multi-spindle lathe
Type :

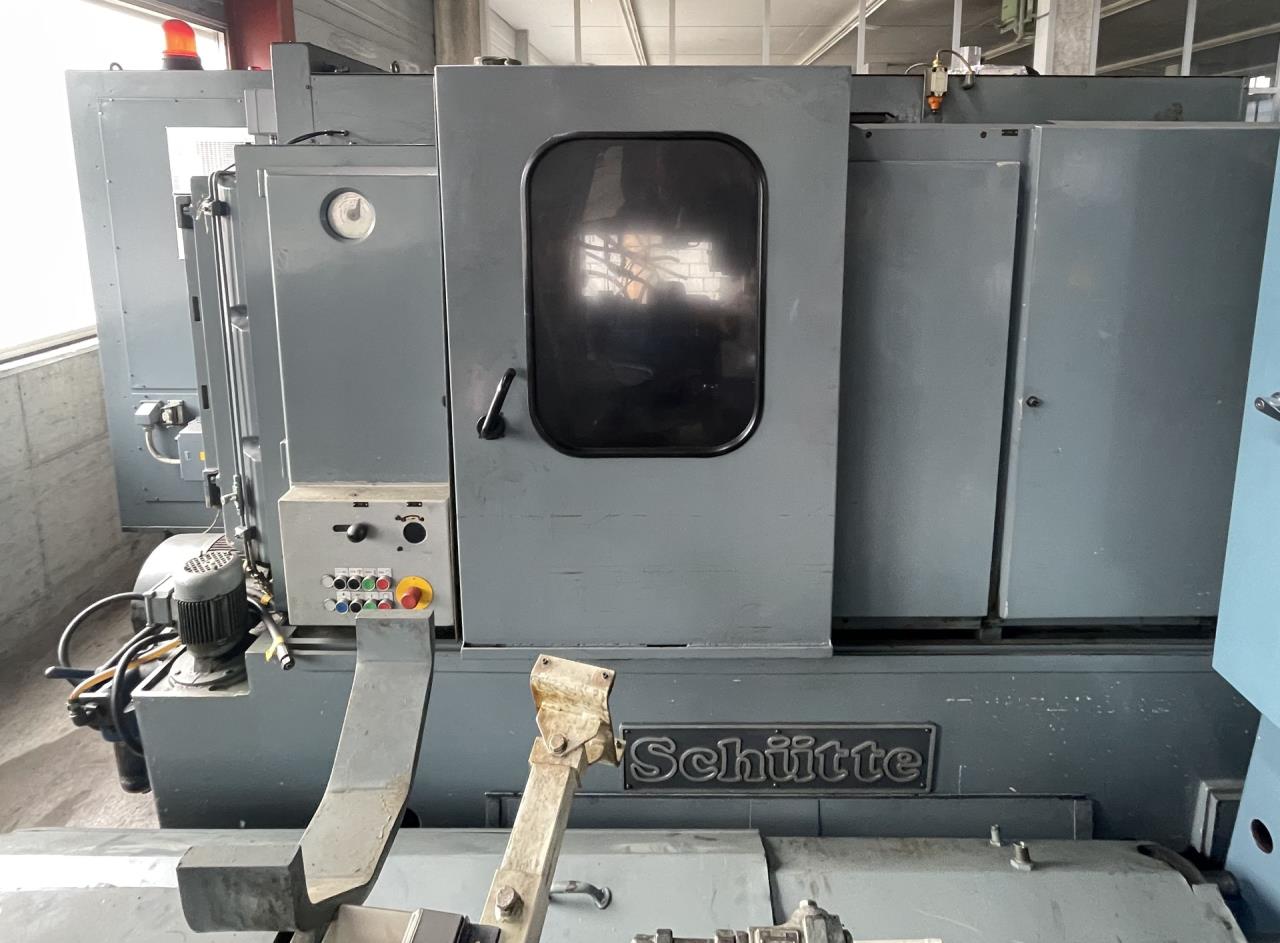

SCHÜTTE SF 26
Information request
SCHÜTTE SF 26 3 Image(s)
Back
Technical data
Number of spindles
6
Capacity round bar
26 mm
Max. advance of bar
80 mm
Max. turning length
39.6 mm
Max. stroke of long slide
63 / 39.6 mm
Number of possible pieces
31
Machining rate:
    from
0.36 sec
    up to
95 sec
Spindle speeds:
       from
355 rpm
       up to
5000 rpm
Voltage 50 Hz 3x
380 Volt
Power
15 kW
Machine's weight about
4000 kg
Overall dimensions machine:
    Length
3125 mm
    Width
1030 mm
    Height
2000 mm
Various accessories:

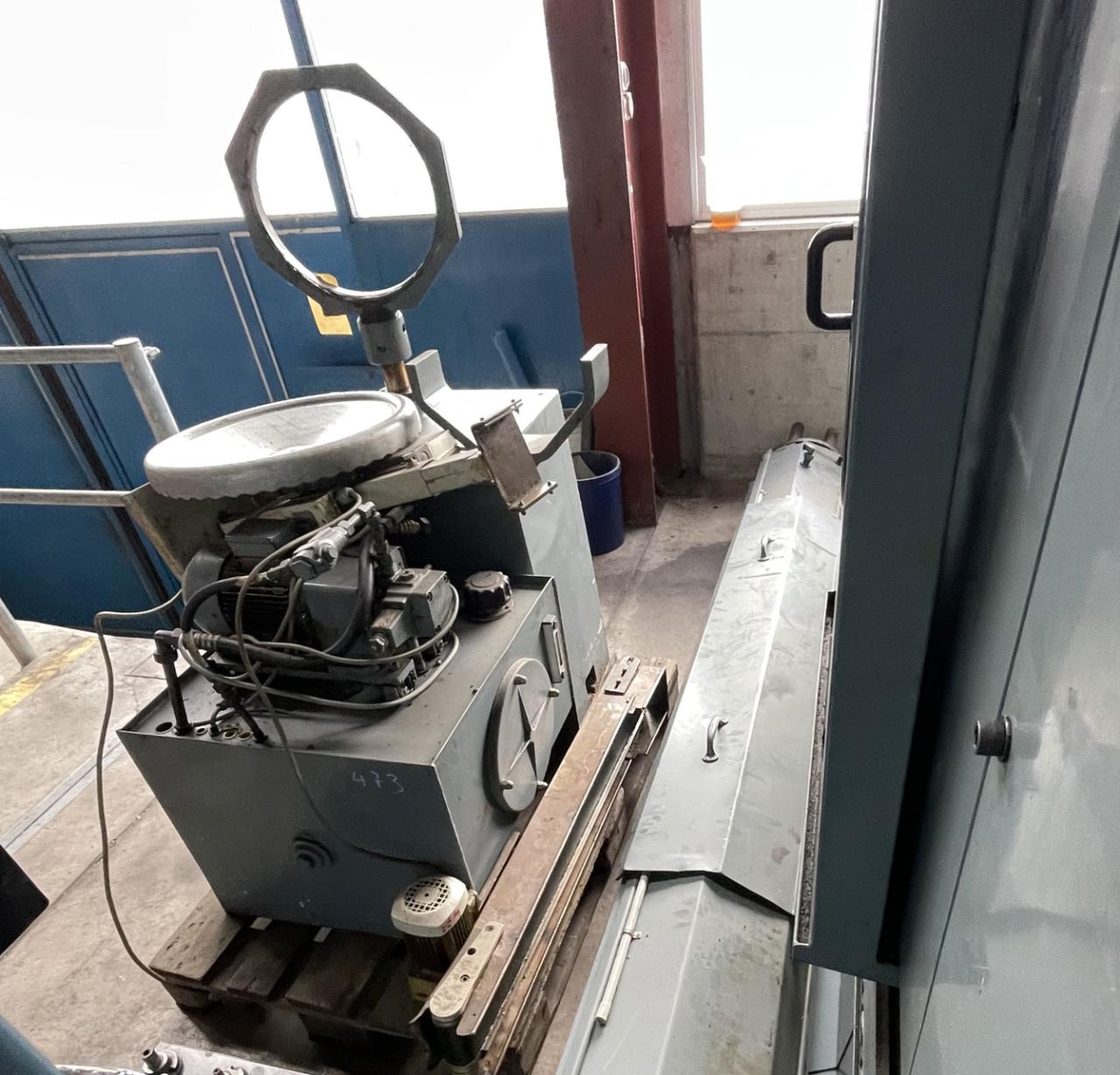

Bar feeder
Oil mist extractor
Chip conveyor
Longitudinal slide number
2

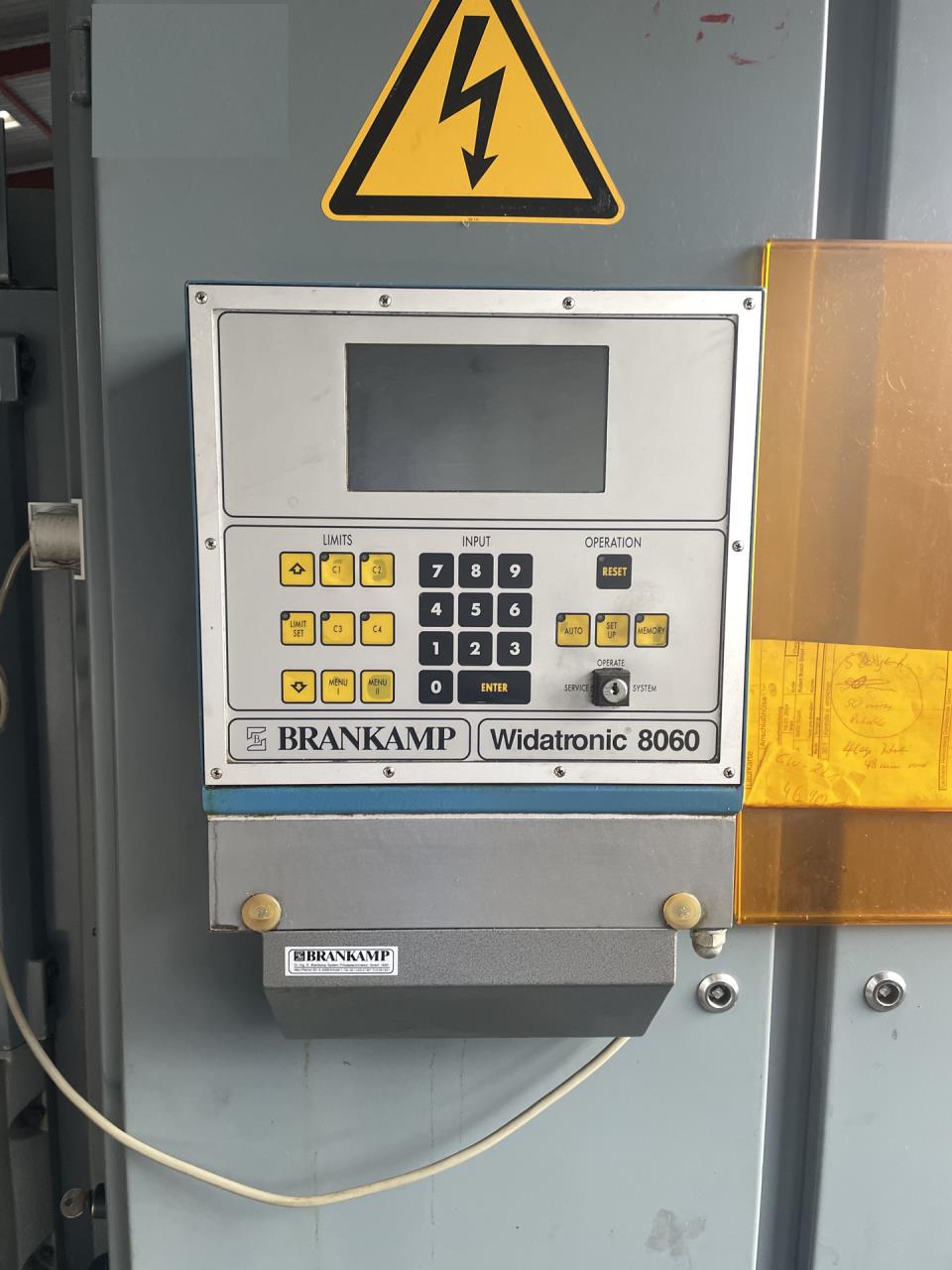

Tool break control
Back working unit

Technical specifications and pictures without guarantee.
