Inventory number: 9696

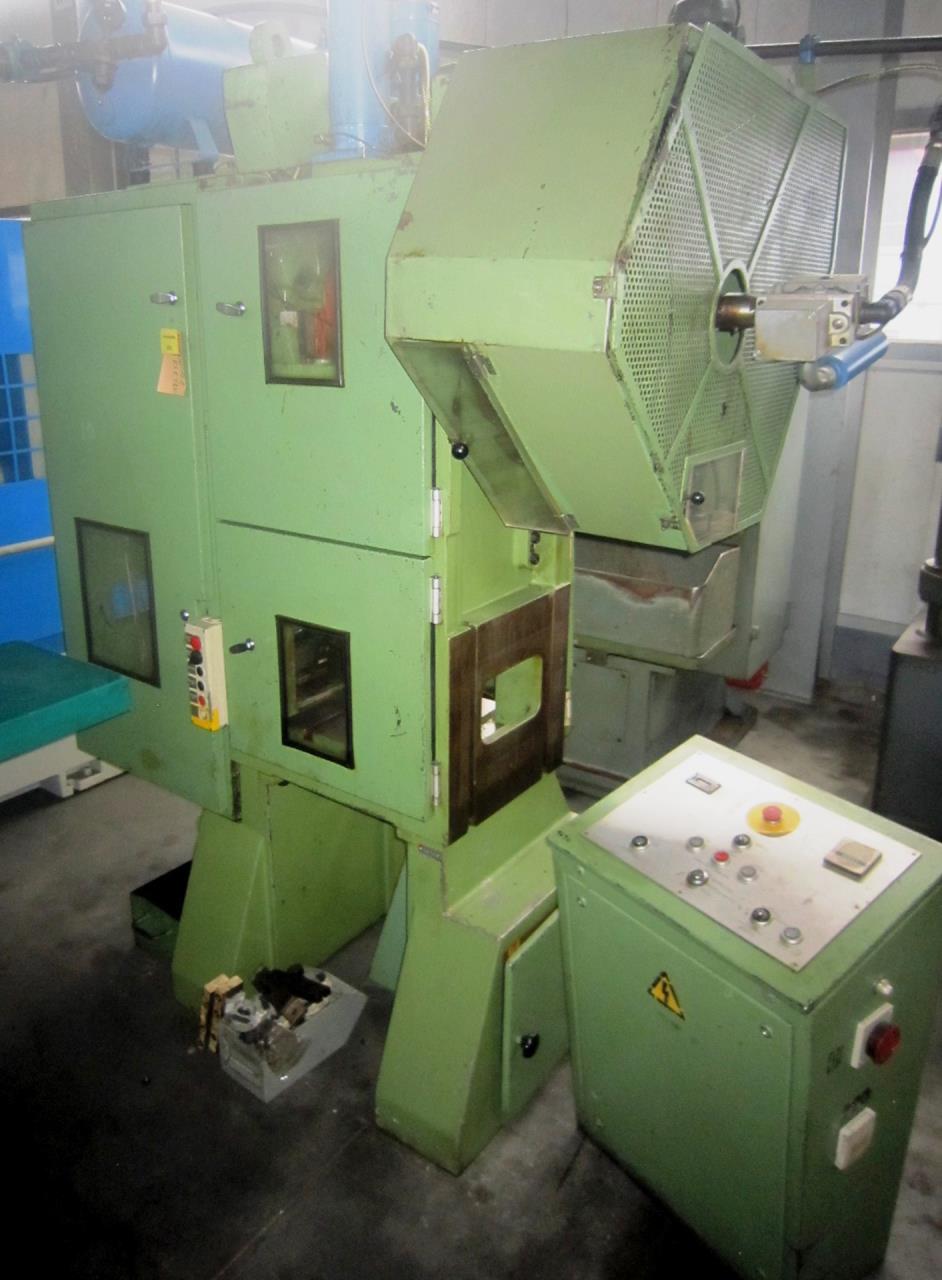

High speed press
|
1 Image(s)
|
| Pressure | 32 | to |
| Stroke: (stepless) | ||
| from | 80 | s/min |
| up to | 400 | s/min |
| Execution: | ||
| 4 supports | ||
| Table surface: | ||
| Length | 420 | mm |
| Width | 380 | mm |
| Tool height | 300 | mm |
| With pressing power: | ||
| upside down | ||
| Slide adjustment | 50 | mm |
| Stroke adjustment: | ||
| from | 6 | mm |
| up to | 50 | mm |
| slide bore diameter | 32 | mm |
| Slide clamping surface: | ||
| Length | 420 | mm |
| Width | 380 | mm |
| Passage between the supports: | ||
| longitudinal | 420 | mm |
| Lateral | 250 | mm |
| Voltage 50 Hz 3x | 380 | Volt |
| Machine's weight about | 3000 | kg |
| Overall dimensions machine: | ||
| Length | 1400 | mm |
| Width | 900 | mm |
| Various accessories: | ||

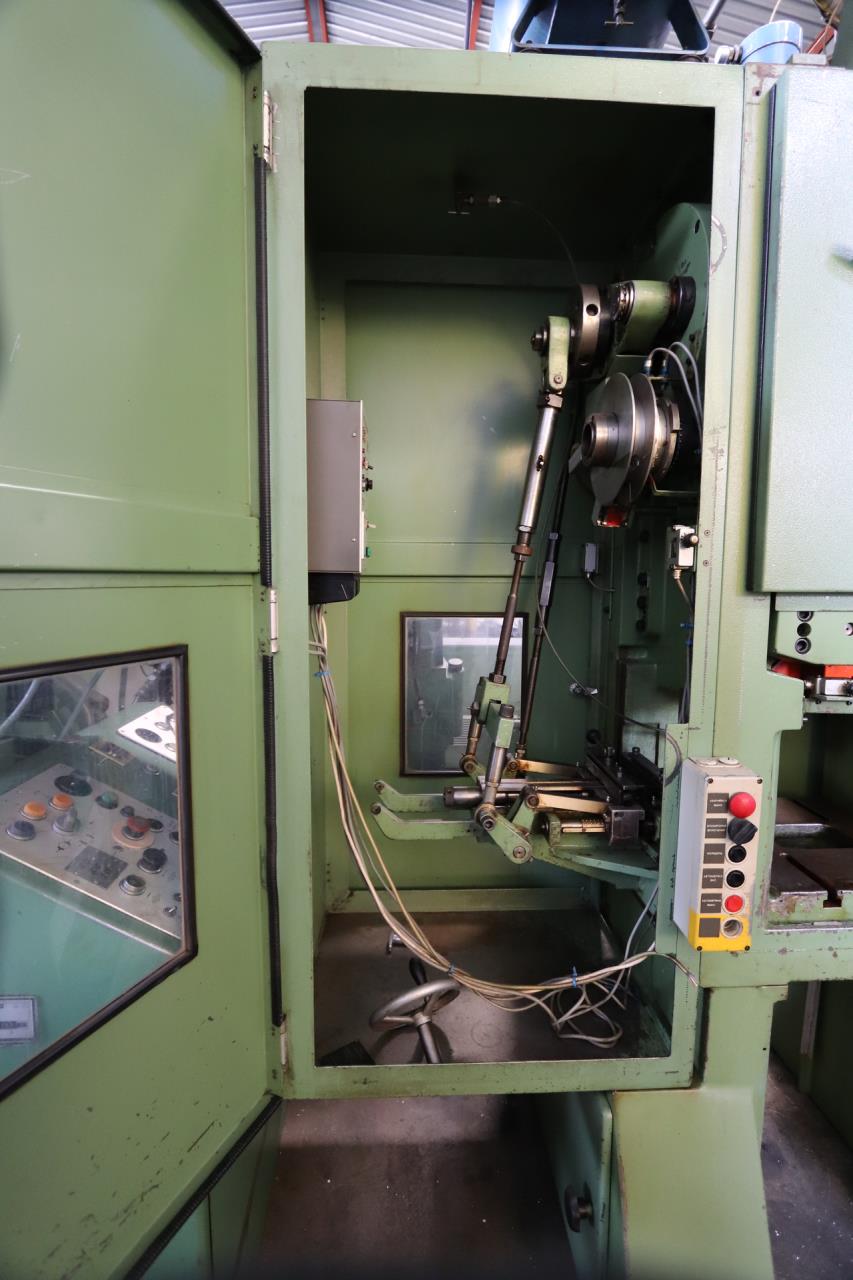

| Automatic feed: number | 1 | |
| Execution: | ||
| collets | ||
| Draw-in left | ||
| Electro-pneumatic clutch | ||
| Upper extractor | ||

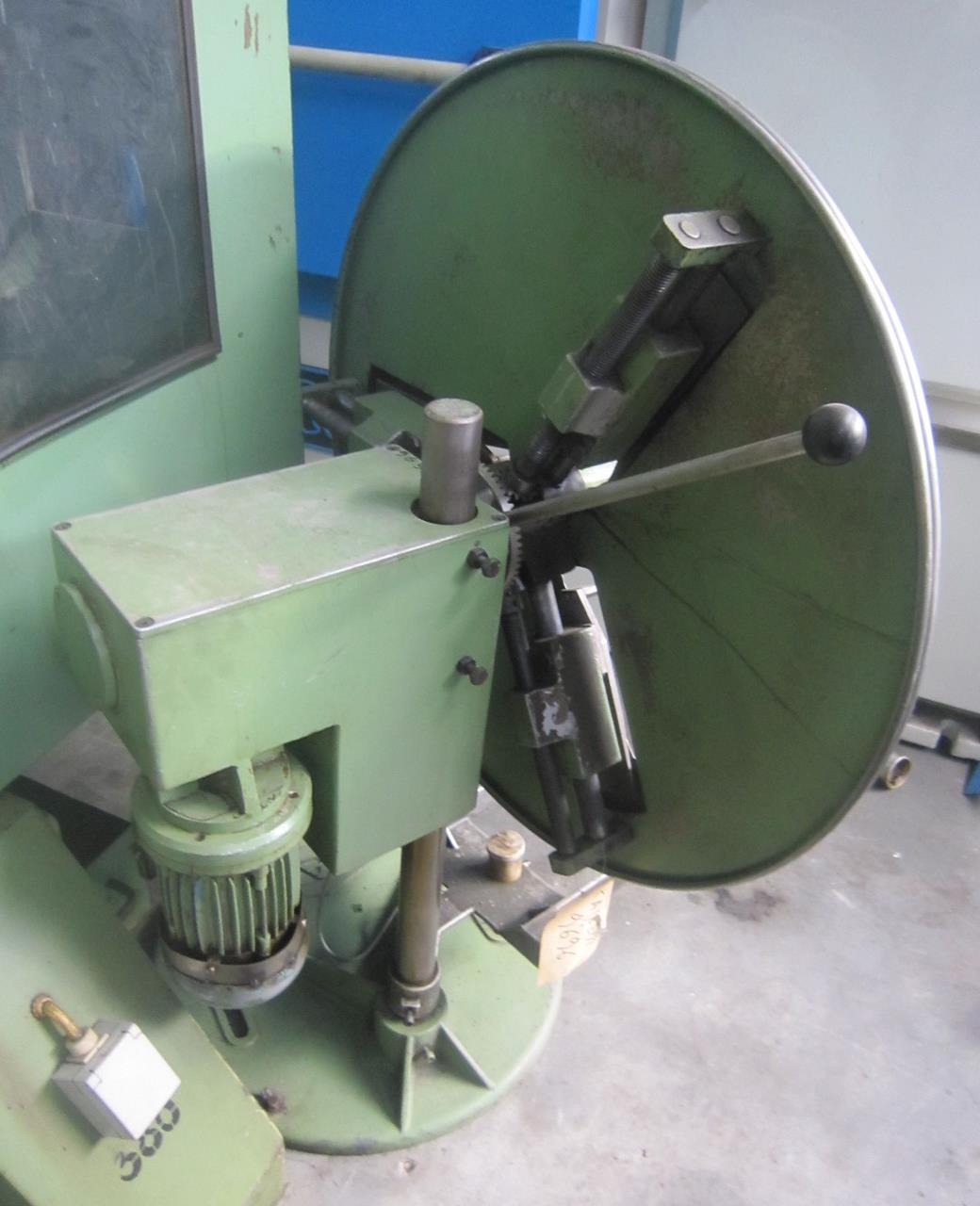

| Stock reels | ||
| with electric motor |
