Table length
|
900
|
mm
|
|
Table width
|
250
|
mm
|
|
Grinding length
|
650
|
mm
|
|
Grinding width
|
375
|
mm
|
|
Grinding height
|
300
|
mm
|
|
Table load max.
|
280
|
kg
|
|
Execution:
|
|
|
|
hydraulic
|
|
|
|
Longitudinal travel (X-axis)
|
10 - 700
|
mm
|
|
Transversal travel (y axis)
|
350
|
mm
|
|
Automatic cross-feed:
|
|
|
|
stepless
|
|
|
|
from
|
3
|
mm/stroke
|
|
up to
|
50
|
mm/stroke
|
|
Table speeds:
|
|
|
|
stepless
|
|
|
|
from
|
2
|
m/min
|
|
up to
|
30
|
m/min
|
|
Diameter of grinding wheel
|
300
|
mm
|
|
Width of the grinding wheel
|
50
|
mm
|
|
Wheel int. diameter
|
76.2
|
mm
|
|
Grinding wheel speeds:
|
|
|
|
number (steps)
|
2
|
|
|
from
|
1500
|
rpm
|
|
up to
|
3000
|
rpm
|
|
Voltage 50 Hz 3x
|
380
|
Volt
|
|
Grinding spindle motor
|
3.7/4.5
|
kW
|
|
Machine's weight about
|
4000
|
kg
|
|
Overall dimensions machine:
|
|
|
|
Length
|
2800
|
mm
|
|
Width
|
2300
|
mm
|
|
Height
|
2400
|
mm
|
|
Various accessories:
|
|
|
|

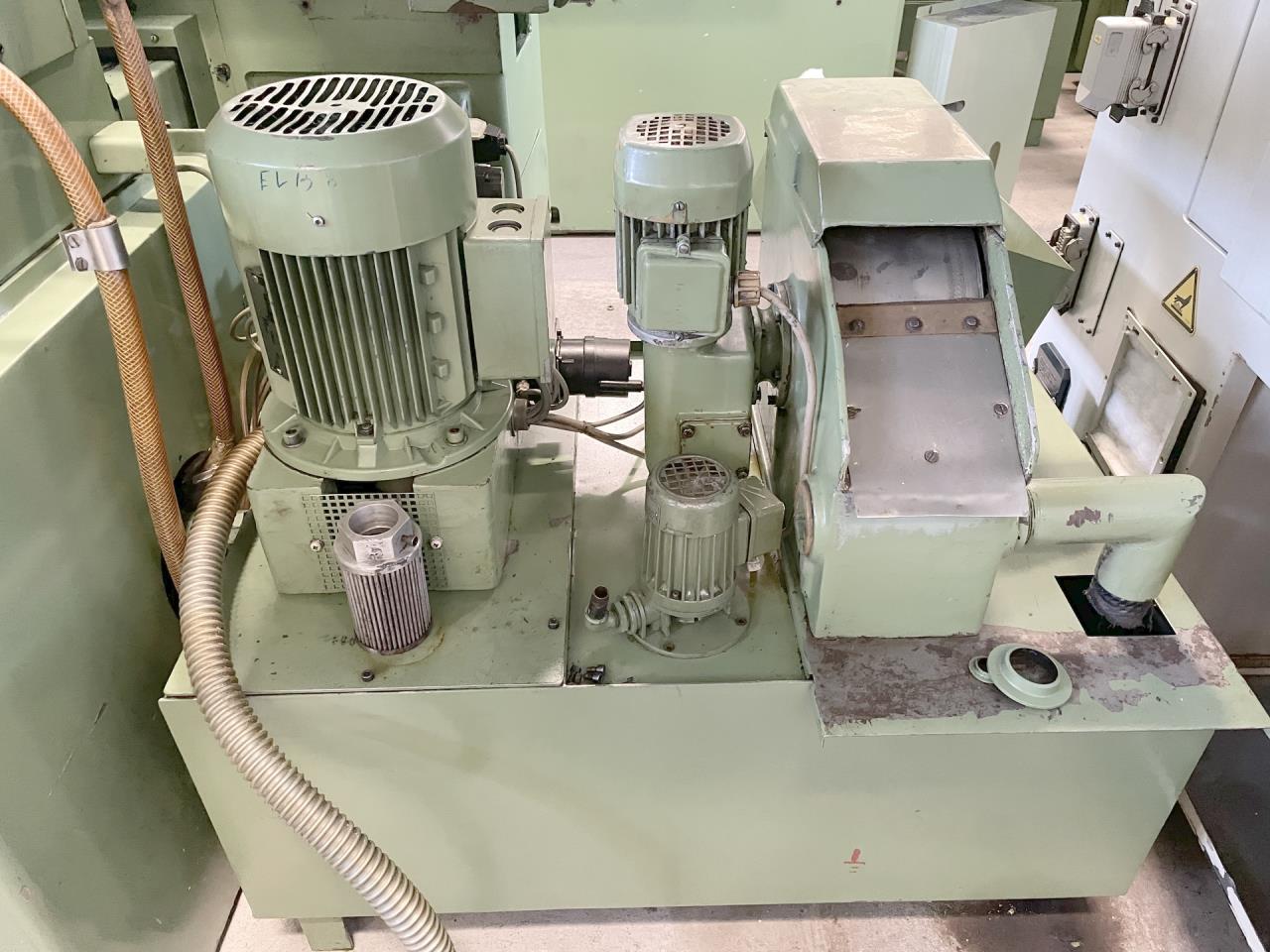

Coolant system
|
|
|
|
Magnetic separator
|
|
|
|

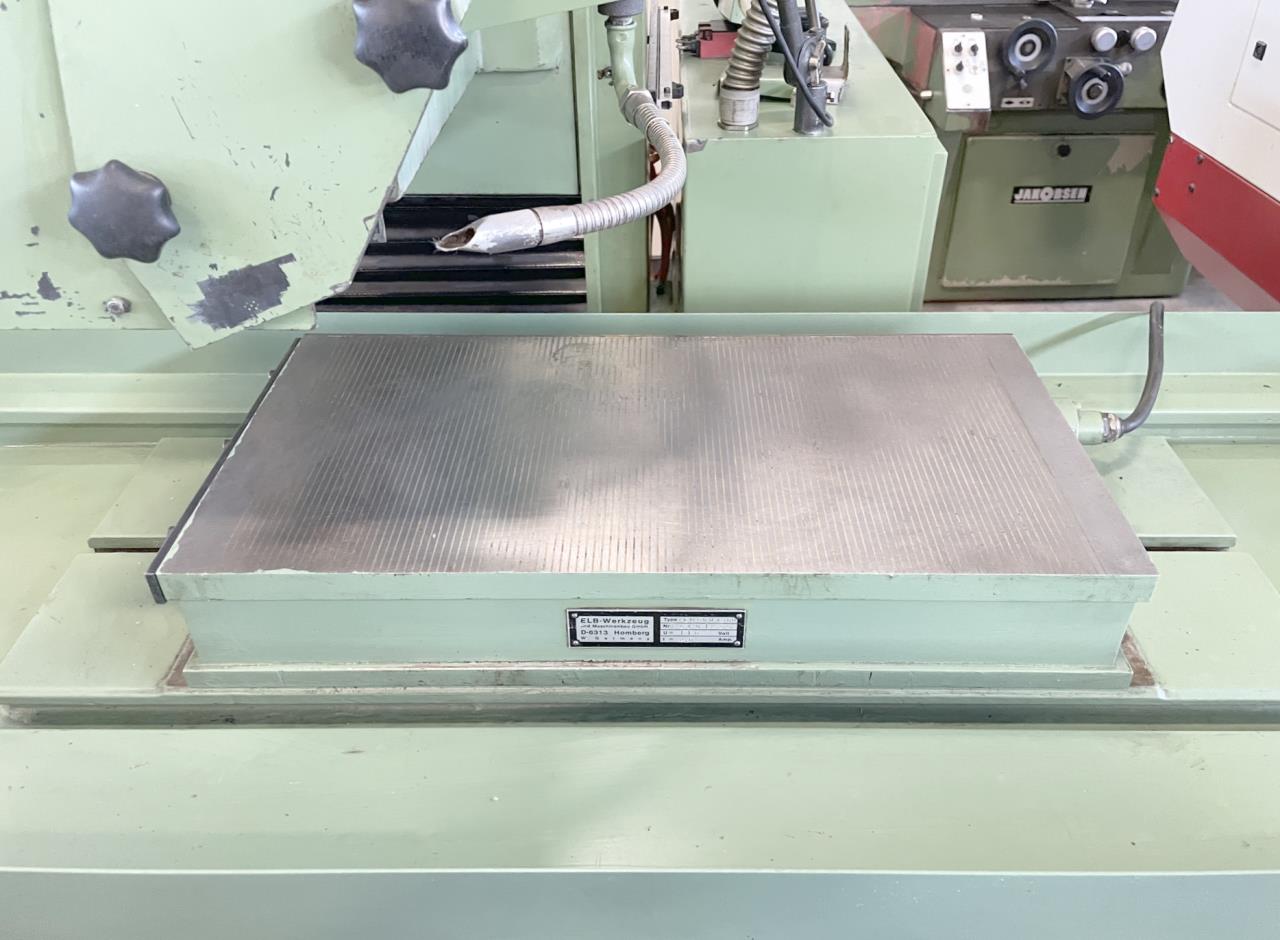

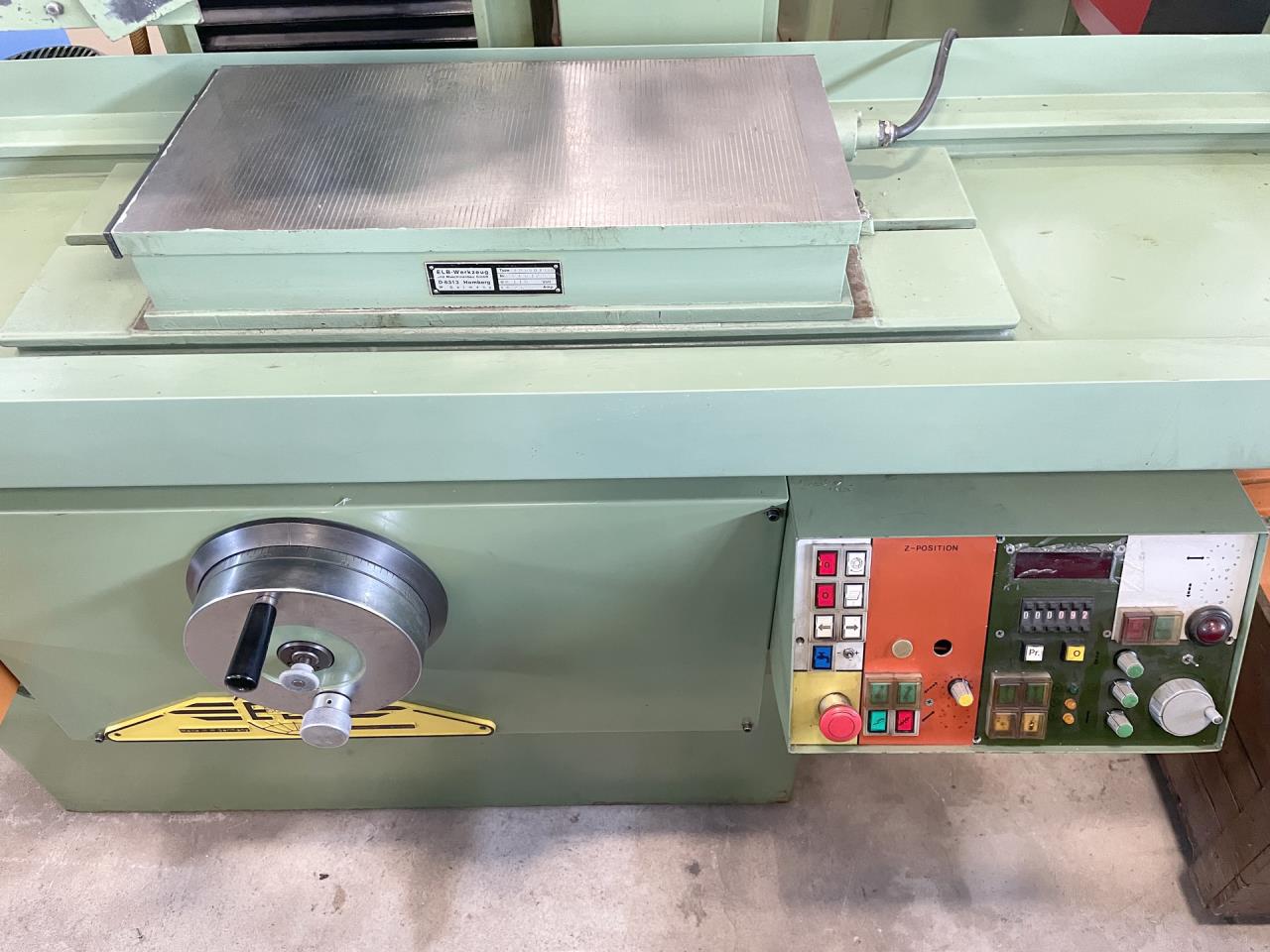

Electrical magnetic chuck
|
|
|
|
Length
|
600
|
mm
|
|
Width
|
300
|
mm
|
|
Sine magnetic chuck:
|
|
|
|
Length
|
400
|
mm
|
|
Width
|
200
|
mm
|
|
Central lubrification
|
|
|
