Inventory number: 11899

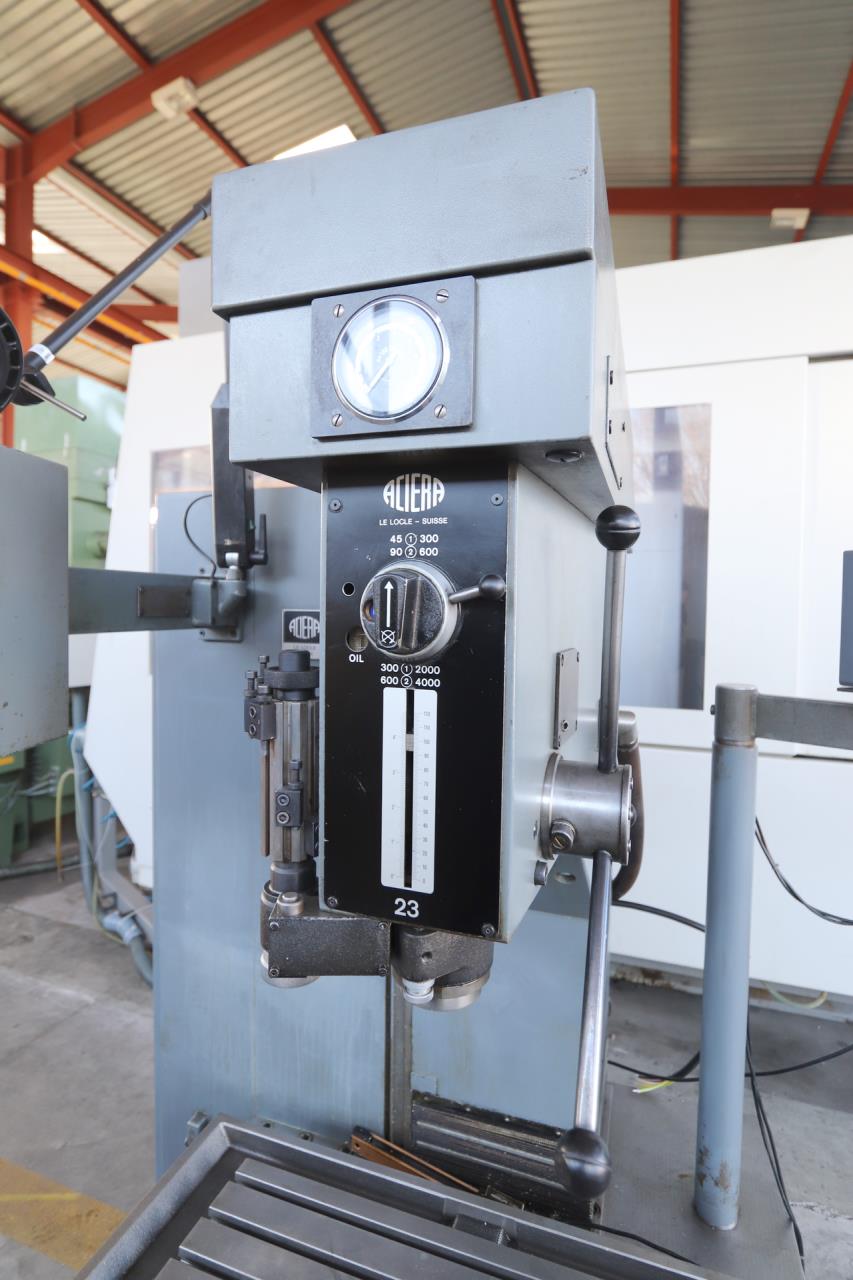

Pillar drilling machine
|
1 Image(s)
|

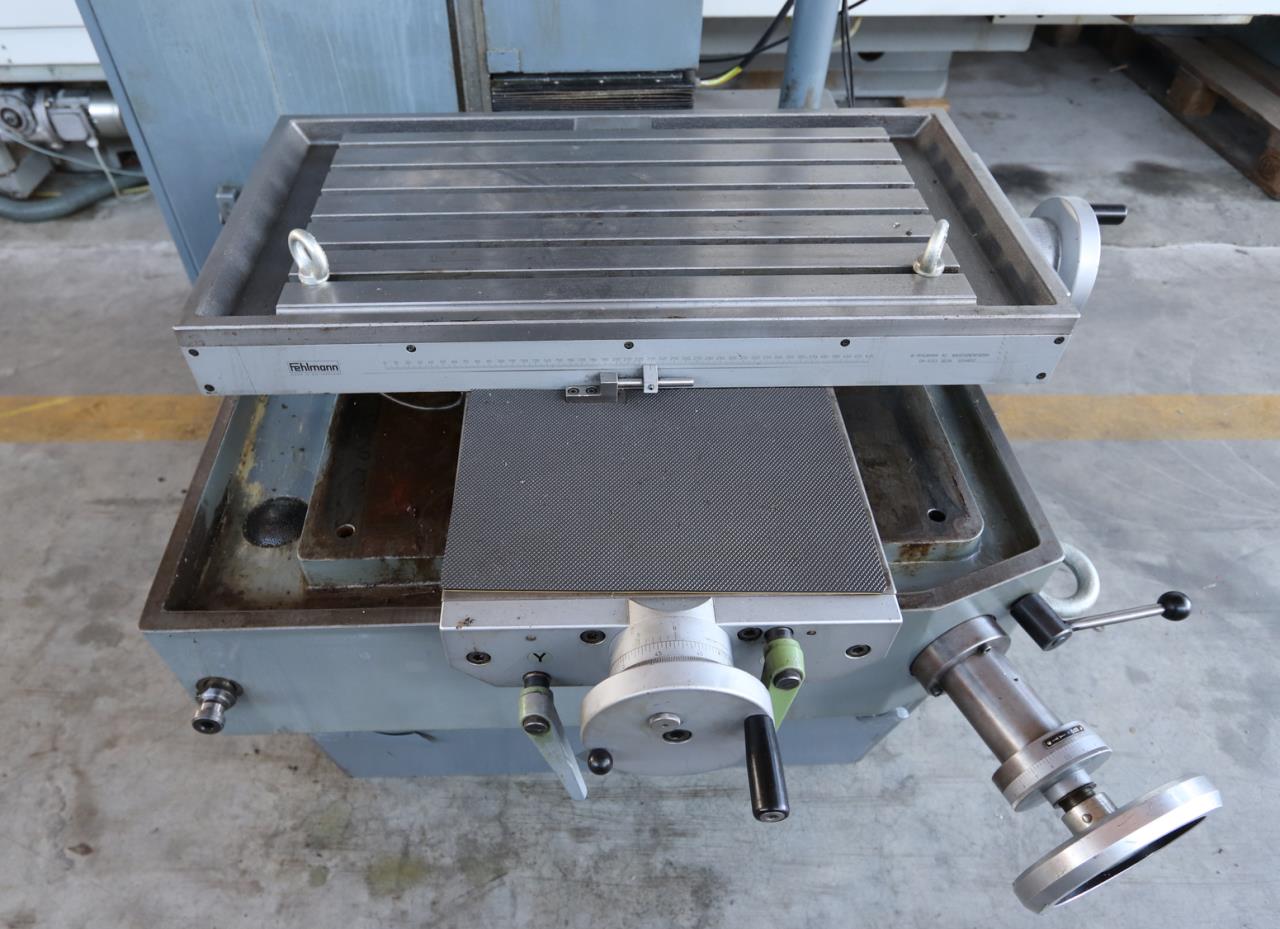

| Table width | 400 | mm |
| Drill capacity in steel | 23 | mm |
| Drill depth (spindle stroke) | 120 | mm |
| Spindle speeds: | ||
| stepless | ||
| from | 45 | rpm |
| up to | 4000 | rpm |
| Voltage 50 Hz 3x | 380 | Volt |
| Machine's weight about | 1550 | kg |
| Overall dimensions machine: | ||
| Length | 1700 | mm |
| Width | 1400 | mm |
| Height | 2100 | mm |

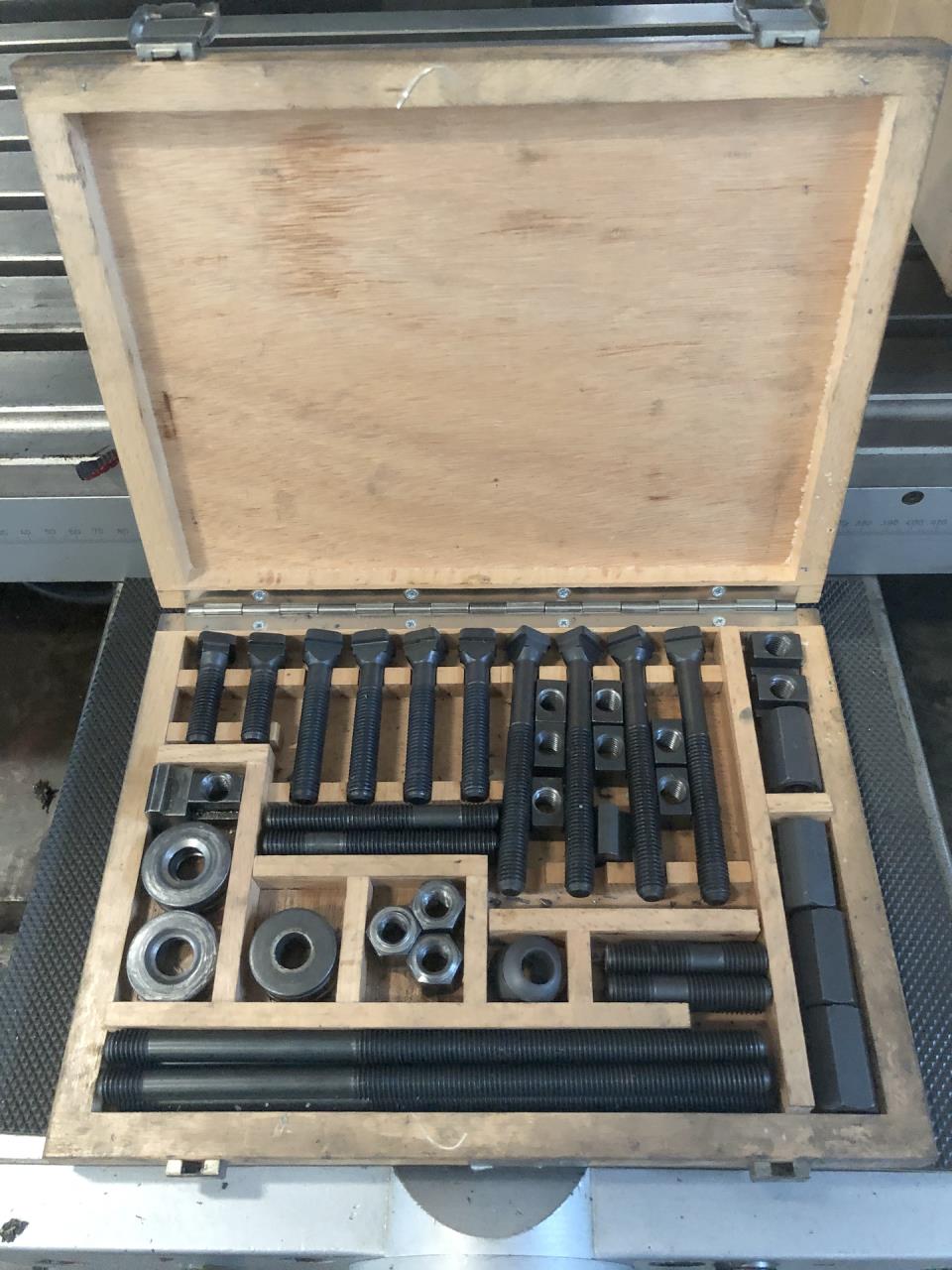

| Various accessories: | ||
| Threading device | ||
| Tool holder deposit | ||
| BREGNARD table | ||
| Quick change device | ||

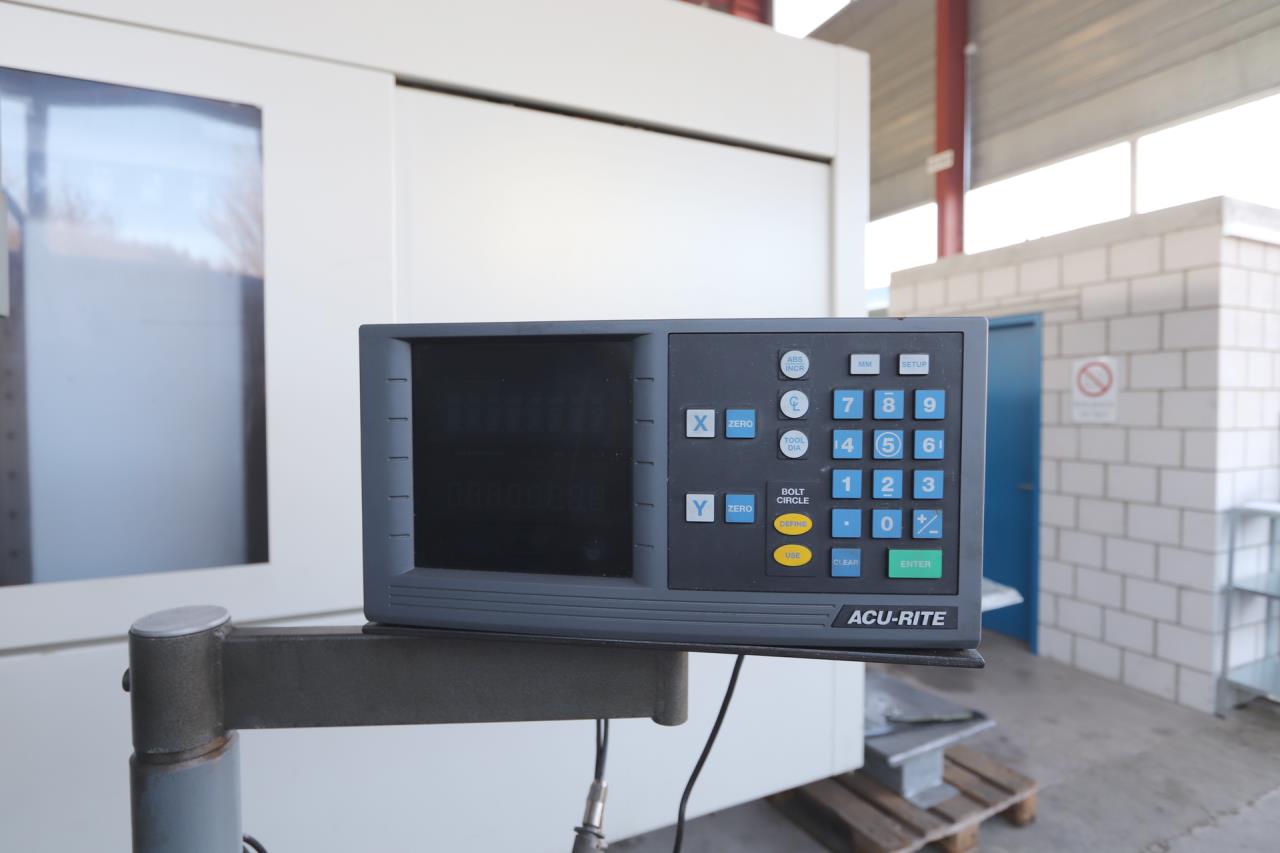

| Digital readout number of axis: | 2 | |
| Manufacturer | ACU RITE | |
| Spindle brake | ||
| Turret stopping device |
