Max. distance from table
|
|
|
|
to spindle centreline
|
600
|
mm
|
|
Grinding length
|
800
|
mm
|
|
Grinding width
|
300
|
mm
|
|
Grinding wheel:
|
|
|
|
diameter
|
250
|
mm
|
|
Width
|
50
|
mm
|
|
bore
|
50.8
|
mm
|
|
max. width
|
70
|
mm
|
|
Table speeds:
|
|
|
|
stepless
|
|
|
|
from
|
2
|
m/min
|
|
up to
|
35
|
m/min
|
|
Creep feed:
|
|
|
|
from
|
2
|
m/min
|
|
up to
|
1000
|
m/min
|
|
Automatic cross feed:
|
|
|
|
stepless
|
|
|
|
from
|
1
|
mm/min
|
|
up to
|
10000
|
mm/min
|
|
Automatic vertical feed:
|
|
|
|
from
|
0.001
|
mm/min
|
|
up to
|
10000
|
mm/min
|
|
Voltage 50 Hz 3x
|
400
|
Volt
|
|
Grinding spindle motor
|
6.6
|
kW
|
|
Total power required
|
22
|
kVA
|
|
Machine's weight about
|
4500
|
kg
|
|
Various accessories:
|
|
|
|
Coolant system
|
|
|
|
Paper filter facility
|
|
|
|
Oil mist extractor
|
|
|
|
Stabilisation coolant temperature
|
|
|
|

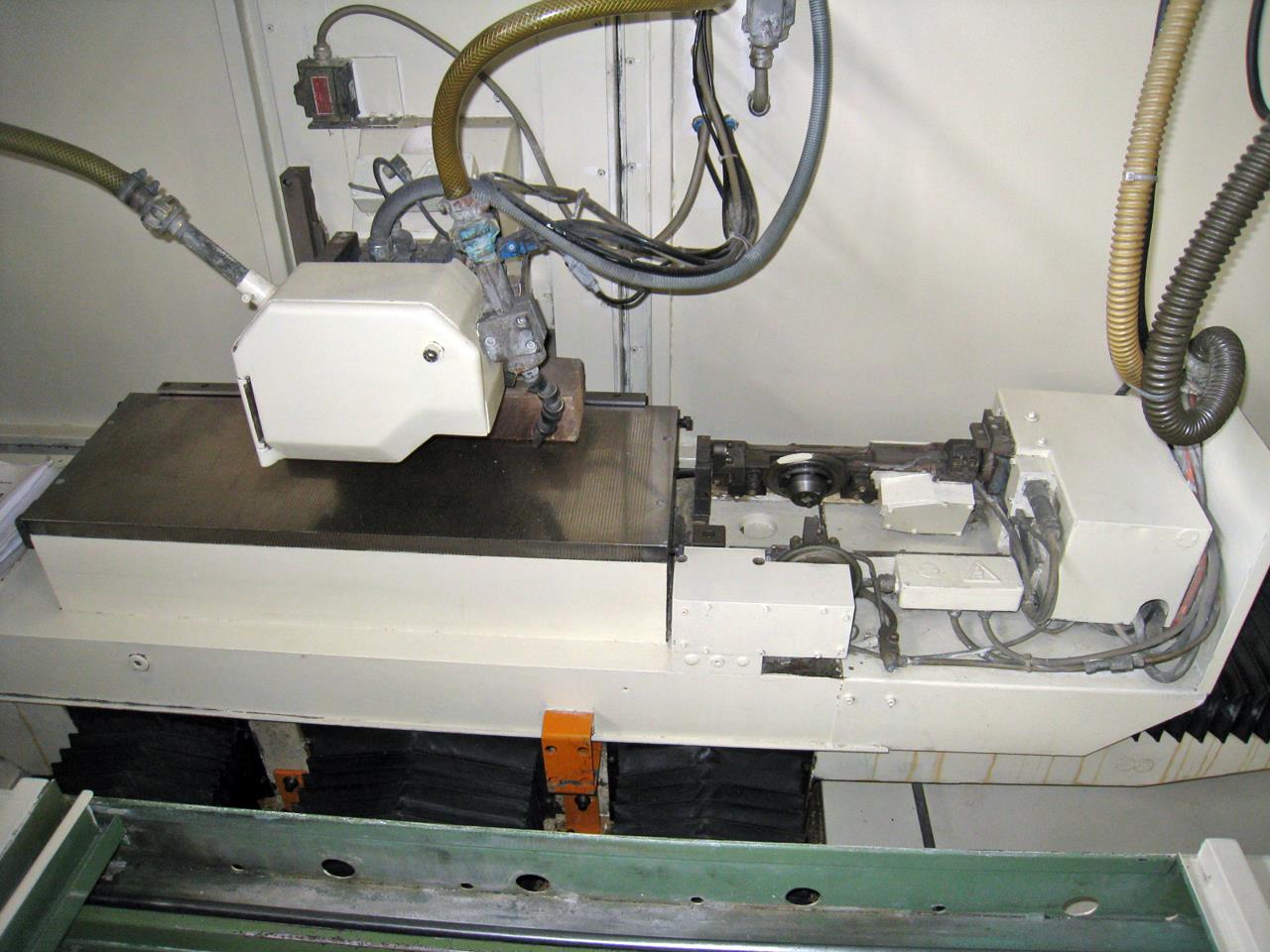

Electrical magnetic chuck
|
|
|
|
Length
|
800
|
mm
|
|
Width
|
300
|
mm
|
|
Wheel trueing attachment
|
TAG
|
|
|
Profile wheel trueing attachment
|
TAD
|
|
|
Creep feed
|
|
|
|
Electronic balancing device
|
|
|
|
Lamp
|
|
|
|
Full splash cabin
|
|
|
|
Interface serial port RS 232-C, V 24
|
|
|
